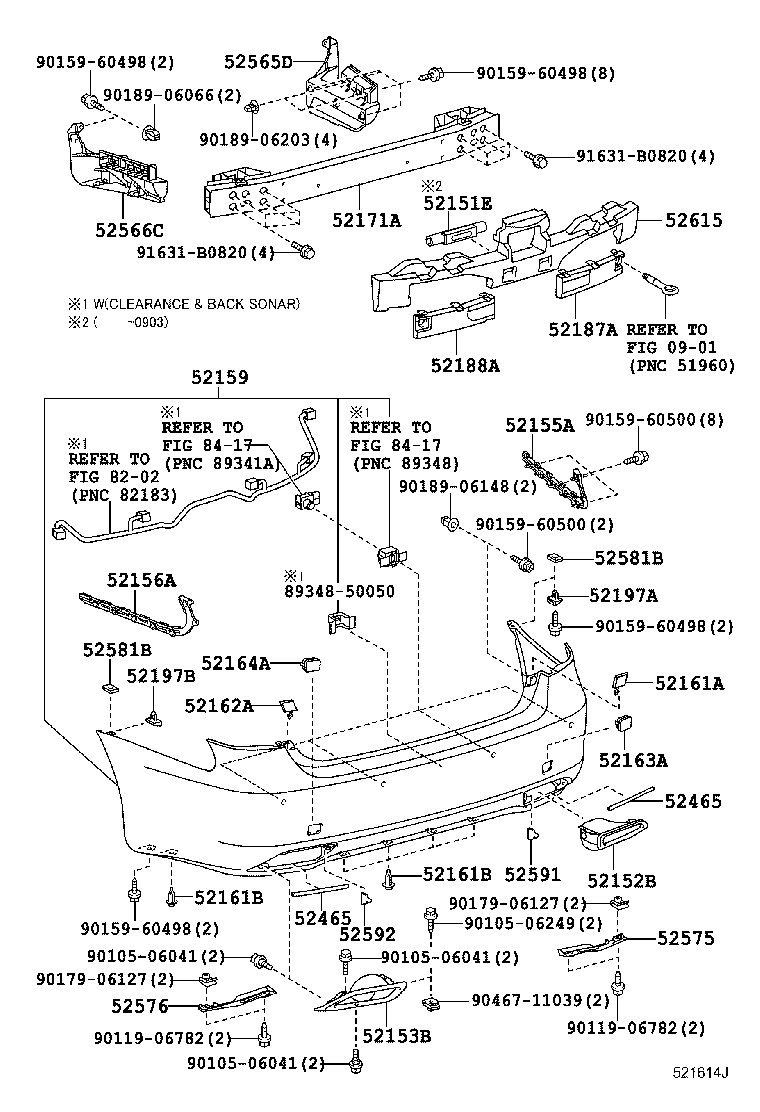

Toyota Lexus ls460/460l USF45 REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52151E - BAR, REAR BUMPER
52151-50010	USF4# NO PAINT REQ.	08/2006 - 09/2008	1
52151-50010	USF4# NO PAINT REQ.	09/2008 - 03/2009	1
52152B - EXTENSION, REAR BUMPER, RH
52106-50011	USF4#	09/2008 - 09/2009	1
52106-50010	USF4#	08/2006 - 11/2007	1
52153B - EXTENSION, REAR BUMPER, LH
52107-50011	USF4#	09/2008 - 09/2009	1
52107-50010	USF4#	08/2006 - 11/2007	1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-50030	USF4#	09/2008 - 09/2009	1
52155-50030	USF4#	08/2006 - 09/2008	1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-50020	USF4#	08/2006 - 09/2008	1
52156-50020	USF4#	09/2008 - 09/2009	1
52159 - COVER, REAR BUMPER
52159-50908	USF4# PAINT REQ.	08/2006 - 09/2008	1
52159-50908	USF4# PAINT REQ.	09/2008 - 09/2009	1
52159-50912	USF4# PAINT REQ.,CLEARANCE & BACK SONAR-WITH	09/2008 - 09/2009	1
52159-50912	USF4# PAINT REQ.,CLEARANCE & BACK SONAR-WITH	08/2006 - 09/2008	1
52161A - PIECE, REAR BUMPER, RH
52161-50901	USF4#	08/2006 - 09/2008	1
52161-50901	USF4#	09/2008 - 09/2009	1
52161B - PIECE, REAR BUMPER
52161-16010	USF4#	08/2006 - 09/2008	6
52161-16010	USF4#	09/2008 - 09/2009	6
52161B - PIECE, REAR BUMPER
52161-16010	USF4#	08/2006 - 09/2008	6
52161-16010	USF4#	09/2008 - 09/2009	6
52162A - PIECE, REAR BUMPER, LH
52162-50901	USF4#	08/2006 - 09/2008	1
52162-50901	USF4#	09/2008 - 09/2009	1
52163A - PLATE, REAR BUMPER, RH
52161-50902	USF4#	08/2006 - 09/2008	1
52161-50902	USF4#	09/2008 - 09/2009	1
52164A - PLATE, REAR BUMPER, LH
52162-50902	USF4#	09/2008 - 09/2009	1
52162-50902	USF4#	08/2006 - 09/2008	1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-50100	USF4#	08/2006 - 09/2008	1
52023-50070	USF4# KOREA SPEC	08/2006 - 09/2008	1
52023-50100	USF4#	09/2008 - 09/2009	1
52023-50100	USF4# CANADA SPEC	08/2006 - 09/2008	1
52023-50100	USF4# KOREA SPEC	09/2008 - 09/2009	1
52023-50070	USF4# CANADA SPEC	09/2008 - 09/2009	1
52023-50100	USF4# KOREA SPEC	08/2006 - 09/2008	1
52023-50070	USF4# CANADA SPEC	08/2006 - 09/2008	1
52023-50100	USF4# CANADA SPEC	09/2008 - 09/2009	1
52023-50070	USF4# KOREA SPEC	09/2008 - 09/2009	1
52187A - REINFORCEMENT, REAR BUMPER ARM, RH
52187-50030	USF4#	08/2006 - 09/2008	1
52187-50030	USF4#	09/2008 - 09/2009	1
52188A - REINFORCEMENT, REAR BUMPER ARM, LH
52188-50040	USF4#	08/2006 - 09/2008	1
52188-50040	USF4#	09/2008 - 09/2009	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-30040	USF4#	08/2006 - 09/2008	1
52197-30040	USF4#	09/2008 - 09/2009	1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-30040	USF4#	08/2006 - 09/2008	1
52197-30040	USF4#	09/2008 - 09/2009	1
52465 - CUSHION, REAR BUMPER, NO.1
52461-50010	USF4#	08/2006 - 09/2008	2
52461-50010	USF4#	09/2008 - 09/2009	2
52465 - CUSHION, REAR BUMPER, NO.1
52461-50010	USF4#	08/2006 - 09/2008	2
52461-50010	USF4#	09/2008 - 09/2009	2
52565D - RETAINER, REAR BUMPER, LOWER RH
52565-50050	USF4#	09/2008 - 09/2009	1
52565-50050	USF4#	08/2006 - 09/2008	1
52566C - RETAINER, REAR BUMPER, LOWER LH
52566-50030	USF4#	09/2008 - 09/2009	1
52566-50030	USF4#	08/2006 - 09/2008	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52577-50030	USF4#	08/2006 - 09/2008	1
52577-50030	USF4#	09/2008 - 09/2009	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52578-50030	USF4#	09/2008 - 09/2009	1
52578-50030	USF4#	08/2006 - 09/2008	1
52581B - PROTECTOR, REAR BUMPER
52581-30060	USF4#	09/2008 - 09/2009	2
52581-30060	USF4#	08/2006 - 09/2008	2
52581B - PROTECTOR, REAR BUMPER
52581-30060	USF4#	09/2008 - 09/2009	2
52581-30060	USF4#	08/2006 - 09/2008	2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-50010	USF4#	09/2008 - 09/2009	1
52591-50010	USF4#	08/2006 - 09/2008	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-50010	USF4#	08/2006 - 09/2008	1
52592-50010	USF4#	09/2008 - 09/2009	1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-50060	USF4#	09/2008 - 09/2009	1
52615-50060	USF4#	08/2006 - 09/2008	1
Common parts
89348-50050
90105-06041
90105-06249
90119-06782
90159-60498
90159-60500
90179-06127
90189-06066
90189-06148
90189-06203
90467-11039
91631-B0820
Linked diagrams
0901
8202
8417

USF45L-AEZGHA (2008)

(0608-0909)
