USF41L-AEZGHA (2006)

Toyota Lexus Ls460/460l

Production Aug 2006 - Sep 2008
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )USF40,41

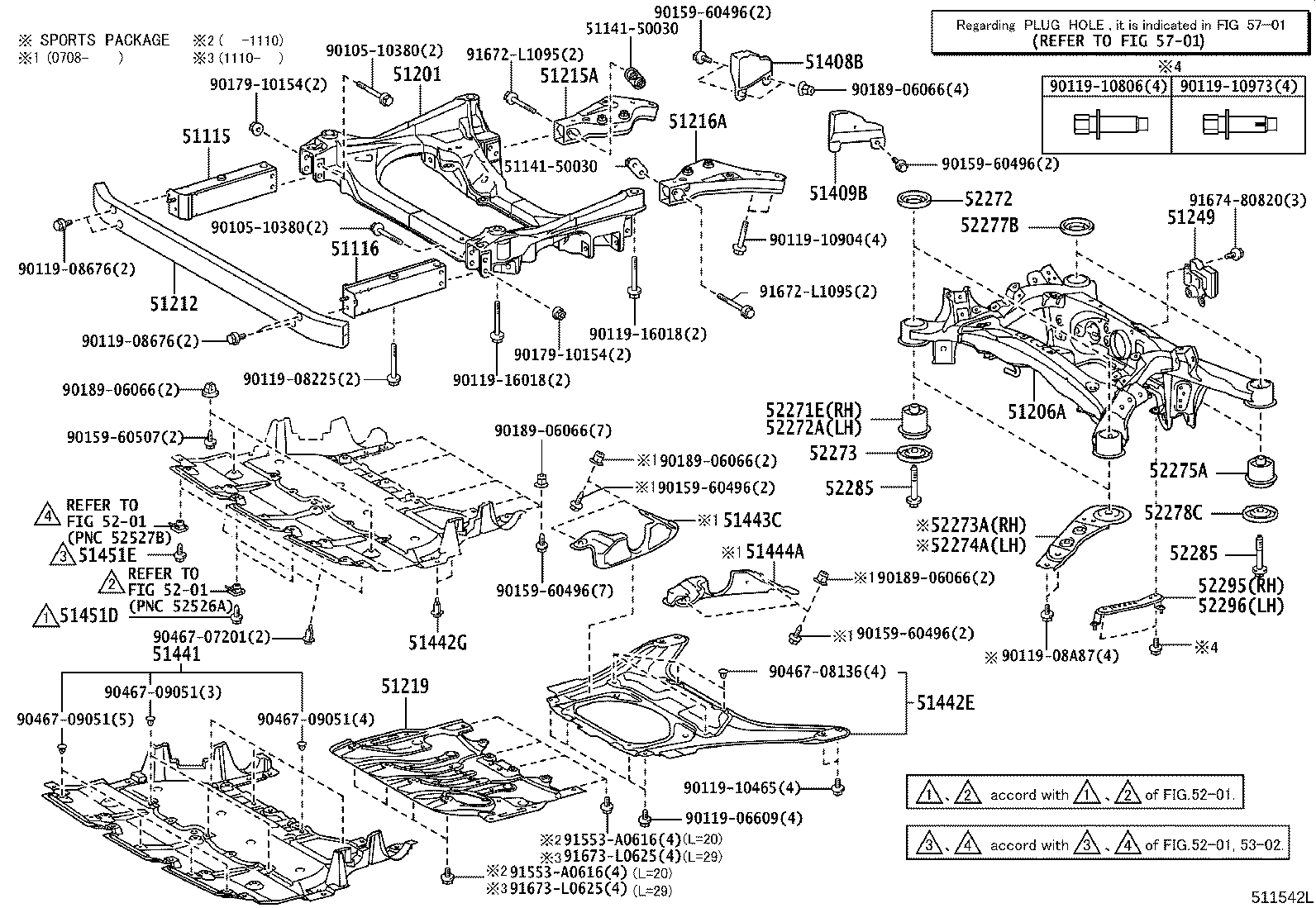

Click highlighted areas on diagram

diagram 51115 51116 5114150030 5114150030 51201 51206A 51212 51215A 51216A 51219 51249 51408B 51409B 51441 51442E 51442G 51443C 51444A 51451D 51451E 5201 5201 52271E 52272 52272A 52273 52273A 52274A 52275A 52277B 52278C 52285 52285 52295 52296 5701 9010510380 9010510380 9011906609 9011908225 9011908676 9011908676 9011908A87 9011910465 9011910806 9011910904 9011910973 9011916018 9011916018 9015960496 9015960496 9015960496 9015960496 9015960496 9015960507 9017910154 9017910154 9018906066 9018906066 9018906066 9018906066 9018906066 9046707201 9046708136 9046709051 9046709051 9046709051 91553A0616 91553A0616 91672L1095 91672L1095 91673L0625 91673L0625 9167480820
Part # Description Qty Price
51115 - RAIL, FRAME SIDE, REAR RH
51107-50021

USF4#

 1
51107-50020

USF4#

 1
51116 - RAIL, FRAME SIDE, REAR LH
51108-50020

USF4#

 1
51108-50021

USF4#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-50040

USF4#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-50050

USF4#

 1
51212 - CROSSMEMBER, FRONT SUSPENSION, LOWER
51212-50020

USF4#

 1
51212-50021

USF4#

 1
51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
57305-50010

USF4#

 1
51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
57306-50010

USF4#

 1
51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51219-50020

USF4#

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-50030

USF4#

 1
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
53747-50020

USF4#

 1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
53748-50020

USF4#

 1
51441 - COVER, ENGINE UNDER, NO.1
51440-50040

USF4#

 1
51442E - COVER, ENGINE UNDER, NO.2
51420-50020

USF4#

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07166

USF4#

 5
51443C - COVER, ENGINE UNDER, REAR RH
51443-50041

USF4#

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-50041

USF4#

 1
51451D - SCREW, NO.1
90159-60477

USF4#

 2
51451E - SCREW, NO.2
90159-60477

USF4#

 2
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-50060

USF4#

 1
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52278-50030

USF4#

 2
52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52272-50010

USF4#

 1
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-50020

USF4#

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-50030

USF41

SPORTS PACKAGE

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52274-50030

USF41

SPORTS PACKAGE

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-50071

USF4#

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-50031

USF4#

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52274-50020

USF4#

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021

USF4#

 4
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021

USF4#

 4
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-50030

USF4#

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-50030

USF4#

 1
Common parts
51141-50030
90105-10380
90119-06609
90119-08225
90119-08676
90119-08A87
90119-10465
90119-10806
90119-10904
90119-10973
90119-16018
90159-60496
90159-60507
90179-10154
90189-06066
90467-07201
90467-08136
90467-09051
91553-A0616
91672-L1095
91673-L0625
91674-80820
Linked diagrams
5201
5701
