USF40L-AEZGHA (2012)
Toyota Lexus Ls460/460l
Production
Sep 2012
-
Aug 2017
Engine
1URFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

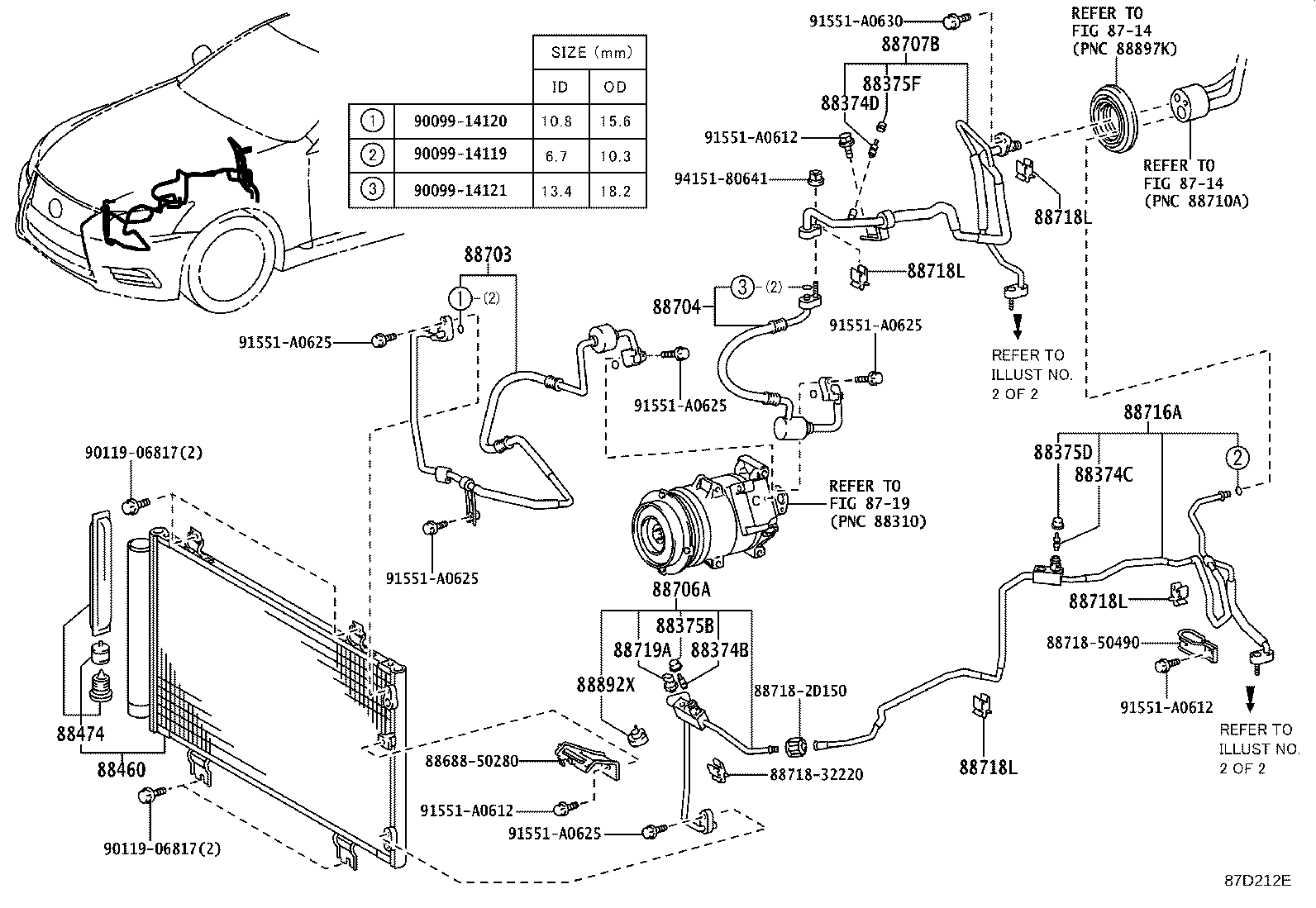

ILLUST NO. 1 OF 2(1209- )USF40,41
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
USF40,41 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
USF4# |
1 | ||
| 88374D - VALVE, SERVICE NO.3 | ||||
| 88374-30010 |
USF4# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
USF40,41 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
USF4# |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30290 |
USF4# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-50201 |
USF40,41 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
USF4# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-50010 |
USF40,41 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-50050 |
USF40,41 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-50010 |
USF40,41 |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-50010 |
USF4# |
1 | ||
| 88707-50020 |
USF40,41 VERSION L |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-50540 |
USF40,41 VERSION L |
1 | ||
| 88716-50530 |
USF4# |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-50390 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-50390 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-50390 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-50390 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
USF40,41 |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
USF40,41 |
1 | ||
| Common parts | ||||
| 88688-50280 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06817 | ||||
| 91551-A0612 | ||||
| 91551-A0625 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

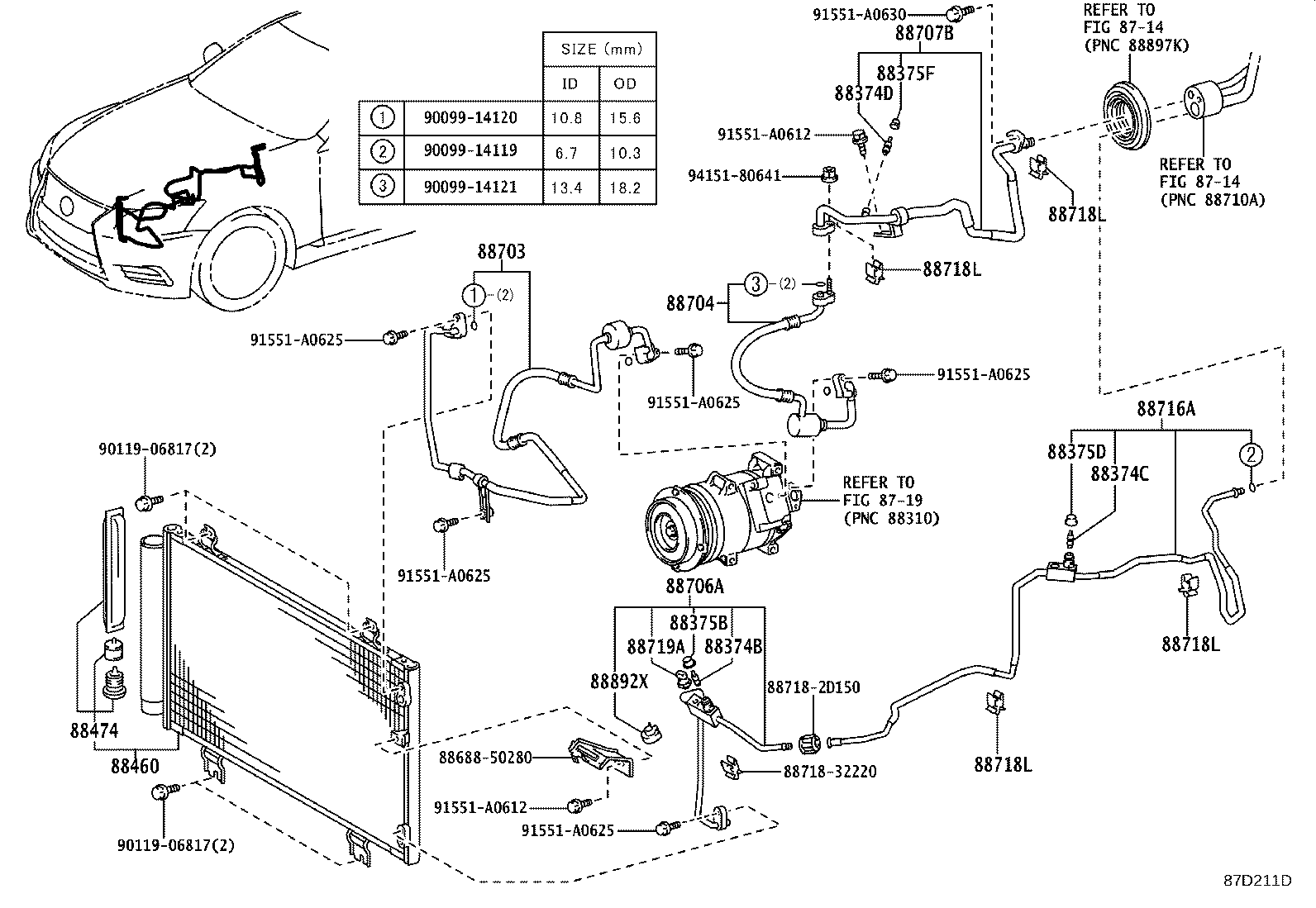

ILLUST NO. 1 OF 2(1209- )USF40,41
Click highlighted areas on diagram
FRONT---W(REAR COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
USF40,41 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
USF4# |
1 | ||
| 88374D - VALVE, SERVICE NO.3 | ||||
| 88374-30010 |
USF4# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
USF40,41 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
USF4# |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30290 |
USF4# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-50201 |
USF40,41 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
USF4# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-50010 |
USF40,41 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-50050 |
USF40,41 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-50010 |
USF40,41 |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-50010 |
USF4# |
1 | ||
| 88707-50020 |
USF40,41 VERSION L |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-50540 |
USF40,41 VERSION L |
1 | ||
| 88716-50530 |
USF4# |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-50390 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-50390 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-50390 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-50390 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88718-32220 |
USF4# |
4 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
USF40,41 |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
USF40,41 |
1 | ||
| Common parts | ||||
| 88688-50280 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 88718-50490 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06817 | ||||
| 91551-A0612 | ||||
| 91551-A0625 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

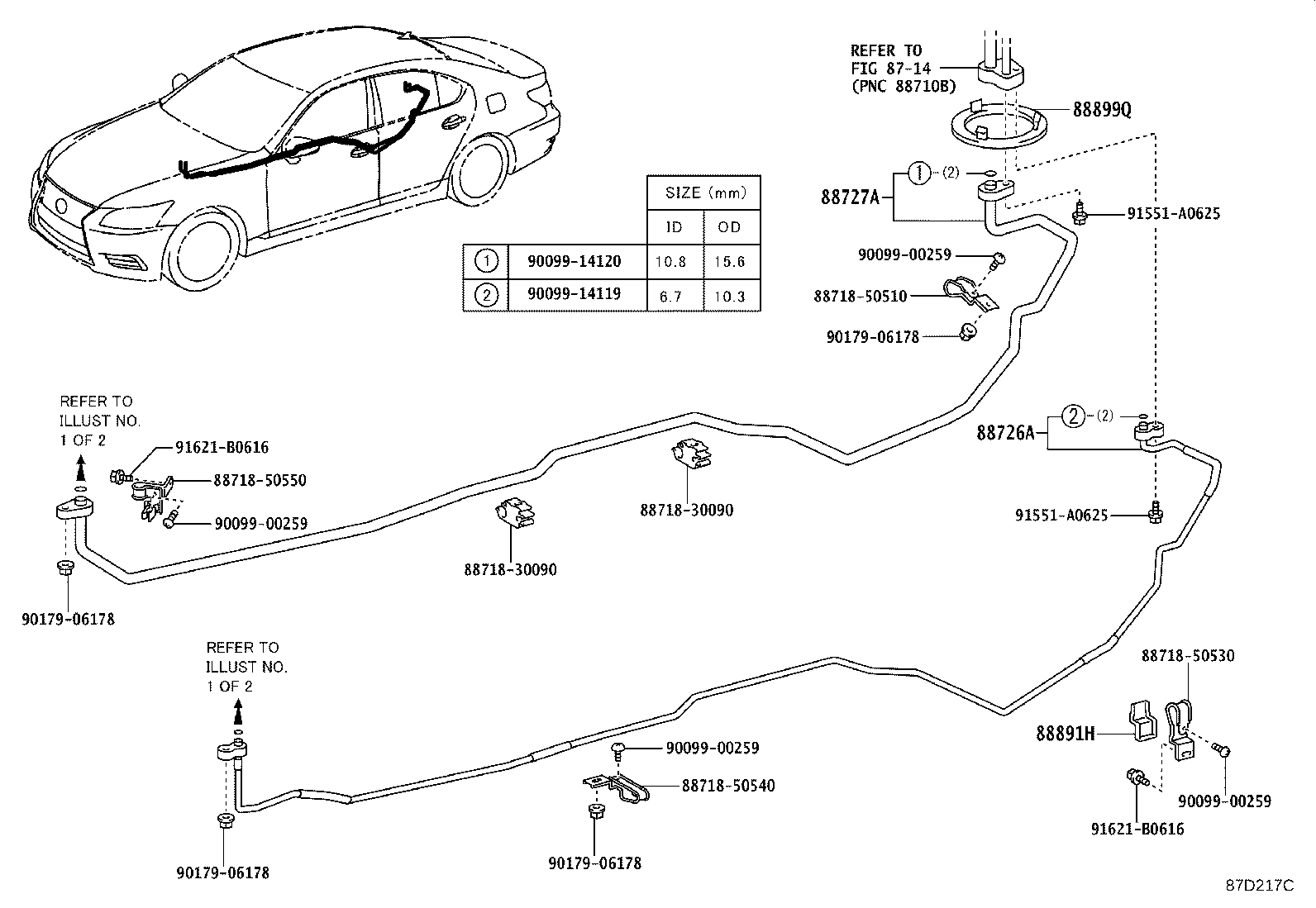

ILLUST NO. 2 OF 2(1209- )USF40,41
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-50300 |
USF40 VERSION L |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-50450 |
USF40 VERSION L |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-50090 |
USF4# VERSION L |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-3A060 |
USF4# VERSION L |
1 | ||
| Common parts | ||||
| 88718-30090 | ||||
| 88718-50510 | ||||
| 88718-50530 | ||||
| 88718-50540 | ||||
| 88718-50550 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90179-06178 | ||||
| 91551-A0625 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
