USF40L-AEZGHA (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )USF40,41

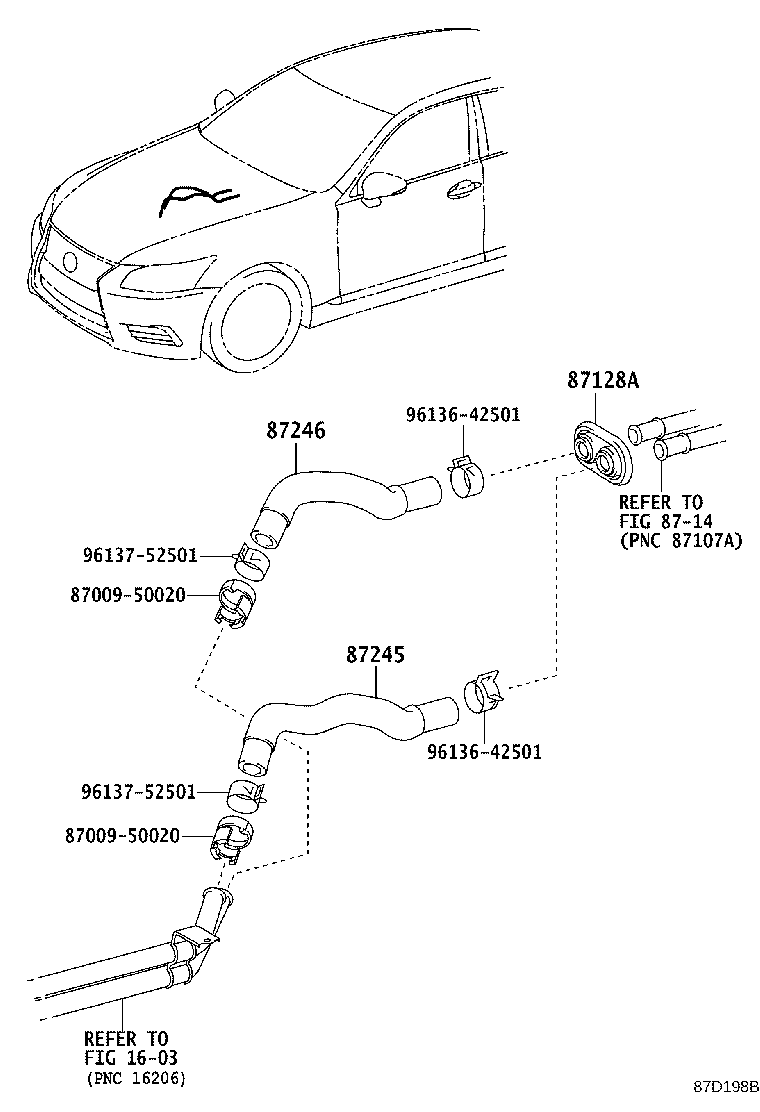

Click highlighted areas on diagram

diagram 1603 8700950020 8700950020 87128A 8714 87245 87246 9613642501 9613642501 9613752501 9613752501
Part # Description Qty Price
87128A - GROMMET, HEATER
87128-30060

USF4#

 1
87128-35020

USF4#

 1
87245 - HOSE, HEATER WATER, INLET
87245-50370

USF40,41

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-50380

USF40,41

 1
Common parts
87009-50020
96136-42501
96137-52501
Linked diagrams
1603
8714
