USF40L-AEZGHA (2012)
Toyota Lexus Ls460/460l

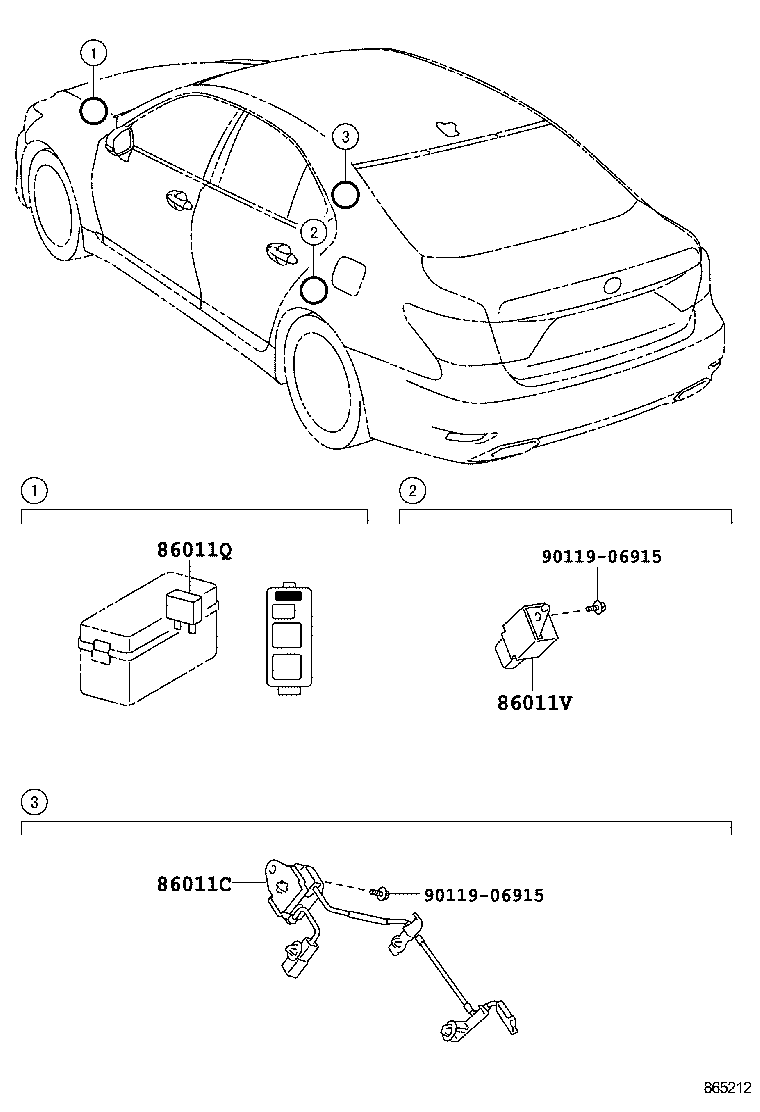

ILLUST NO. 2 OF 2(1209- )
CONDENSER & NOISE FILTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011C - FILTER, NOISE | ||||
| 863B0-50020 |
USF4# |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
USF4# |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04198 |
USF4# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

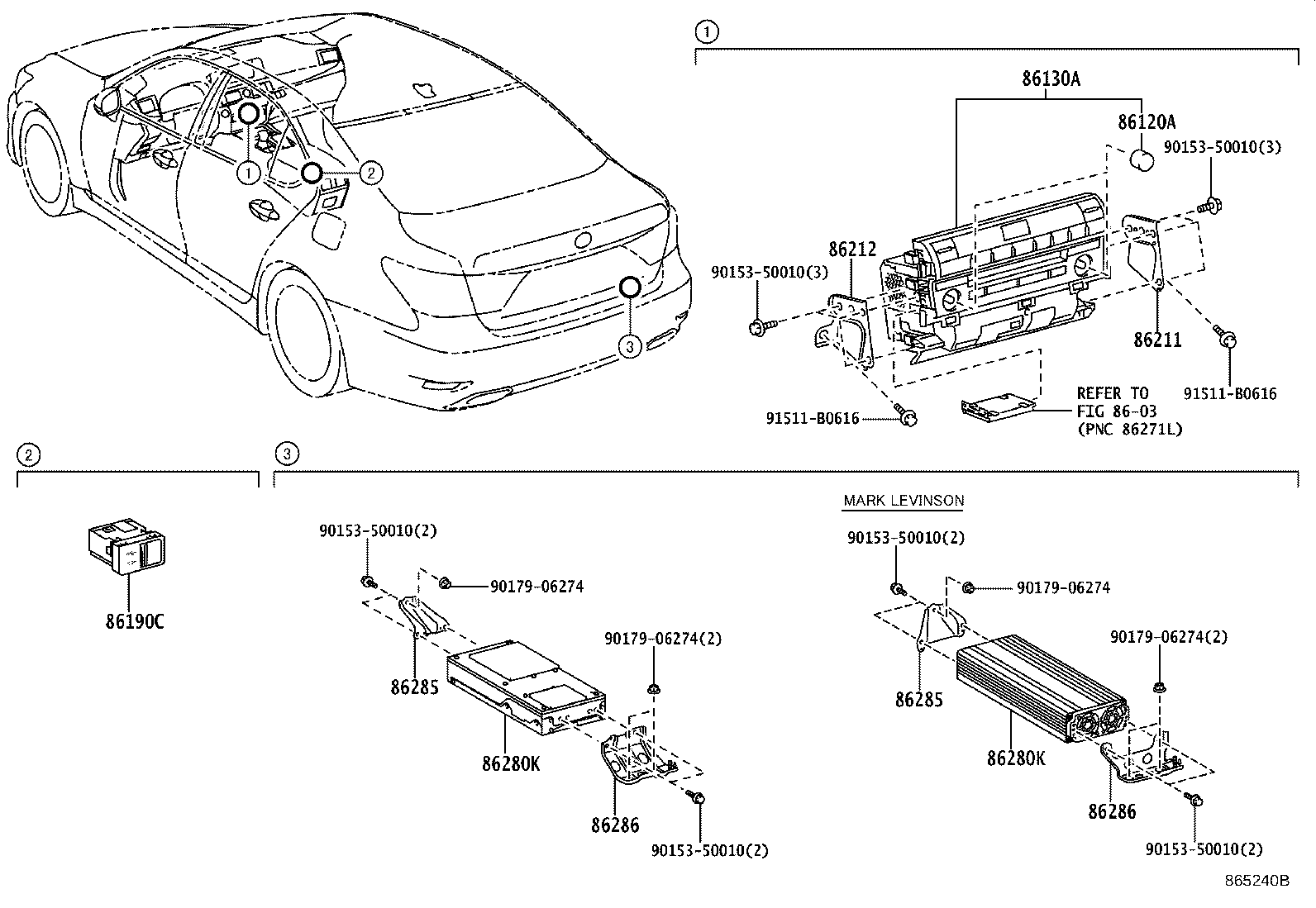

ILLUST NO. 1 OF 2(1209-1410)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22108 |
USF4# |
2 | ||
| 90010-22095 |
USF4# |
2 | ||
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-50030 |
USF40,45,46 PIONEER,ID=P10333,CANADA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50070 |
USF40,41 PIONEER,ID=P10332,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50060 |
USF40,41 PIONEER,ID=P10330,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50040 |
USF40,45,46 PIONEER,ID=P10334,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50380 |
USF40,45,46 PIONEER,ID=P10611,CANADA SPEC |
1 | ||
| 86804-50070 |
USF4# PIONEER,ID=P10332,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50100 |
USF40,41 PIONEER,ID=P10331,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50060 |
USF4# PIONEER,ID=P10330,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP |
1 | ||
| 86804-50080 |
USF40,41,45 PIONEER,ID=P10343,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50400 |
USF4# PIONEER,ID=P10607,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50100 |
USF40,41 PIONEER,ID=P10331,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50100 |
USF4# PIONEER,ID=P10331 |
1 | ||
| 86804-50390 |
USF40,45,46 PIONEER,ID=P10599,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50090 |
USF4# PIONEER,ID=P10329,EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP |
1 | ||
| 86804-50410 |
USF40,41 PIONEER,ID=P10593,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50420 |
USF40,41 PIONEER,ID=P10591,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86130-50340 |
USF40,41 FUJITSU TEN,ID100464,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86130-50410 |
USF40,41 PIONEER,ID=P10888,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50430 |
USF40,41 PIONEER,ID=P10615,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50430 |
USF4# PIONEER,ID=P10615 |
1 | ||
| 86804-50430 |
USF40,41 PIONEER,ID=P10615,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50720 |
USF40,41 PIONEER,ID=P10870,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50700 |
USF40,45,46 PIONEER,ID=P10873,CANADA SPEC |
1 | ||
| 86804-50750 |
USF4# PIONEER,ID=P10877 |
1 | ||
| 86130-50C20 |
USF40,41 PIONEER,ID=P11217,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50720 |
USF4# PIONEER,ID=P10870,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50400 |
USF40,41 PIONEER,ID=P10607,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50750 |
USF40,41 PIONEER,ID=P10877,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B10 |
USF40,45,46 PIONEER,ID=P11206,CANADA SPEC |
1 | ||
| 86130-50E70 |
USF40,41 FUJITSU TEN,ID100601,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50710 |
USF40,45,46 PIONEER,ID=P10862,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86130-50870 |
USF40,41 PIONEER,ID=P11584,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B40 |
USF4# PIONEER,ID=P11202,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF4# PIONEER,ID=P11209 |
1 | ||
| 86804-50D70 |
USF40,45,46 PIONEER,ID=P11575,CANADA SPEC |
1 | ||
| 86130-50B40 |
USF40,41 FUJITSU TEN,ID100724,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D90 |
USF40,41 PIONEER,ID=P11571,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B40 |
USF40,41 PIONEER,ID=P11202,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF40,41 PIONEER,ID=P11209,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D80 |
USF40,45,46 PIONEER,ID=P11565,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50750 |
USF40,41 PIONEER,ID=P10877,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B20 |
USF40,45,46 PIONEER,ID=P11196,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF40,41 PIONEER,ID=P11209,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D90 |
USF4# PIONEER,ID=P11571,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50E00 |
USF40,41 PIONEER,ID=P11578,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50E00 |
USF4# PIONEER,ID=P11578 |
1 | ||
| 86804-50E00 |
USF40,41 PIONEER,ID=P11578,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53051 |
USF4# |
1 | ||
| 86190-30030 |
USF4# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-50080 |
USF4# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-50080 |
USF4# |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0WA80 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-50310 |
USF4# |
1 | ||
| 86280-50340 |
USF4# |
1 | ||
| 86280-0WE00 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0WE00 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0W860 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-50350 |
USF4# |
1 | ||
| 86280-0W860 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0WA80 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0WA80 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-50310 |
USF4# |
1 | ||
| 86280-50340 |
USF4# |
1 | ||
| 86280-0WE00 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0WE00 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0W860 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-50350 |
USF4# |
1 | ||
| 86280-0W860 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0WA80 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-50130 |
USF4# AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285-50130 |
USF40,41,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285-50121 |
USF4# |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-50130 |
USF4# AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285-50130 |
USF40,41,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285-50121 |
USF4# |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-50060 |
USF4# AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86286-50070 |
USF4# |
1 | ||
| 86286-50060 |
USF40,41,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-50060 |
USF4# AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86286-50070 |
USF4# |
1 | ||
| 86286-50060 |
USF40,41,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 91511-B0616 | ||||
| Linked diagrams | ||||
| 8603 | ||||

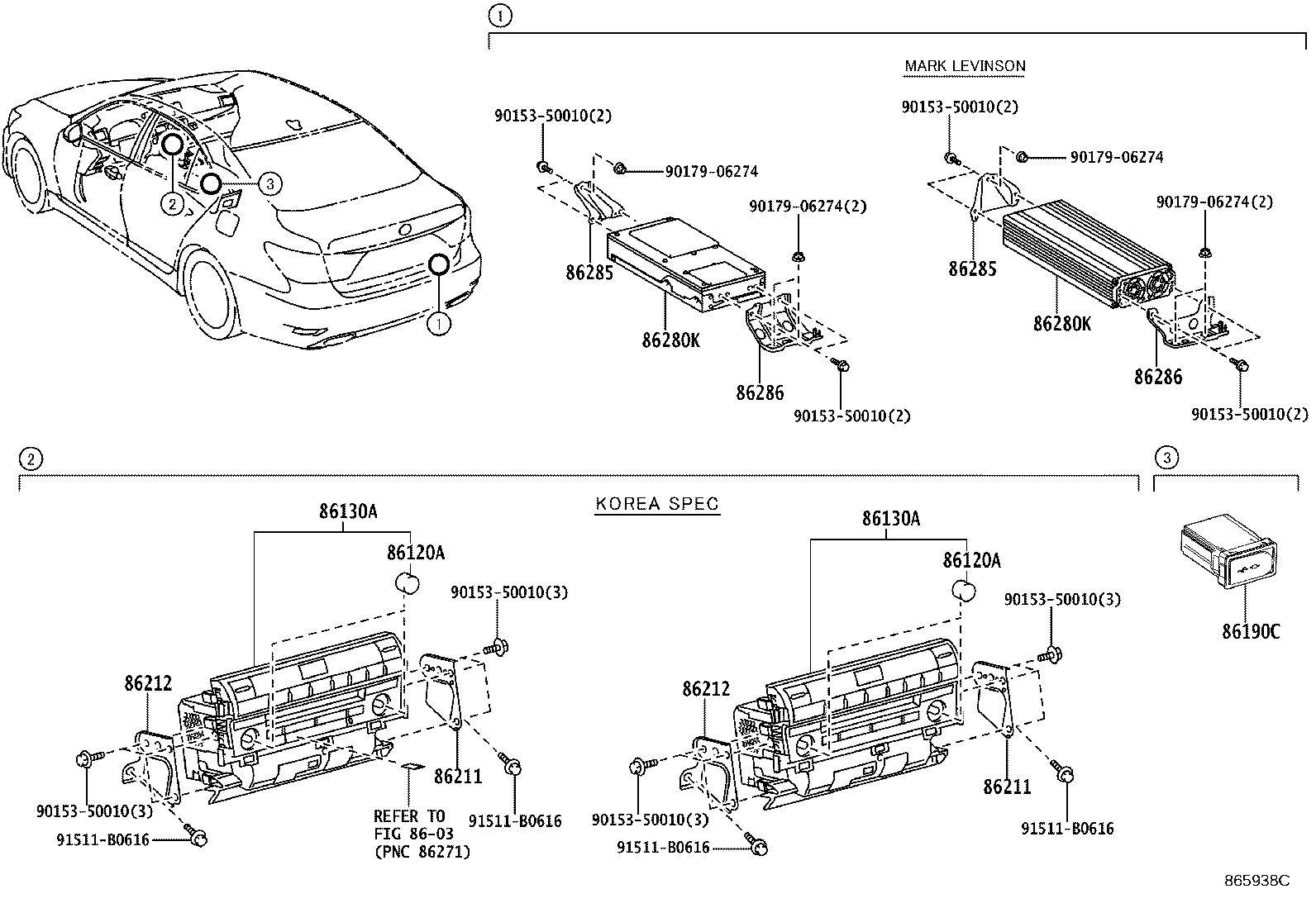

ILLUST NO. 1 OF 2(1410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22108 |
USF4# |
2 | ||
| 90010-22095 |
USF4# |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22108 |
USF4# |
2 | ||
| 90010-22095 |
USF4# |
2 | ||
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-50030 |
USF40,45,46 PIONEER,ID=P10333,CANADA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50070 |
USF40,41 PIONEER,ID=P10332,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50060 |
USF40,41 PIONEER,ID=P10330,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50040 |
USF40,45,46 PIONEER,ID=P10334,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50380 |
USF40,45,46 PIONEER,ID=P10611,CANADA SPEC |
1 | ||
| 86804-50070 |
USF4# PIONEER,ID=P10332,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50100 |
USF40,41 PIONEER,ID=P10331,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50060 |
USF4# PIONEER,ID=P10330,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP |
1 | ||
| 86804-50080 |
USF40,41,45 PIONEER,ID=P10343,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50400 |
USF4# PIONEER,ID=P10607,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50100 |
USF40,41 PIONEER,ID=P10331,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50100 |
USF4# PIONEER,ID=P10331 |
1 | ||
| 86804-50390 |
USF40,45,46 PIONEER,ID=P10599,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50090 |
USF4# PIONEER,ID=P10329,EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP |
1 | ||
| 86804-50410 |
USF40,41 PIONEER,ID=P10593,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50420 |
USF40,41 PIONEER,ID=P10591,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86130-50340 |
USF40,41 FUJITSU TEN,ID100464,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86130-50410 |
USF40,41 PIONEER,ID=P10888,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50430 |
USF40,41 PIONEER,ID=P10615,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50430 |
USF4# PIONEER,ID=P10615 |
1 | ||
| 86804-50430 |
USF40,41 PIONEER,ID=P10615,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50720 |
USF40,41 PIONEER,ID=P10870,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50700 |
USF40,45,46 PIONEER,ID=P10873,CANADA SPEC |
1 | ||
| 86804-50750 |
USF4# PIONEER,ID=P10877 |
1 | ||
| 86130-50C20 |
USF40,41 PIONEER,ID=P11217,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50720 |
USF4# PIONEER,ID=P10870,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50400 |
USF40,41 PIONEER,ID=P10607,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50750 |
USF40,41 PIONEER,ID=P10877,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B10 |
USF40,45,46 PIONEER,ID=P11206,CANADA SPEC |
1 | ||
| 86130-50E70 |
USF40,41 FUJITSU TEN,ID100601,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50710 |
USF40,45,46 PIONEER,ID=P10862,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86130-50870 |
USF40,41 PIONEER,ID=P11584,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B40 |
USF4# PIONEER,ID=P11202,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF4# PIONEER,ID=P11209 |
1 | ||
| 86804-50D70 |
USF40,45,46 PIONEER,ID=P11575,CANADA SPEC |
1 | ||
| 86130-50B40 |
USF40,41 FUJITSU TEN,ID100724,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D90 |
USF40,41 PIONEER,ID=P11571,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B40 |
USF40,41 PIONEER,ID=P11202,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF40,41 PIONEER,ID=P11209,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D80 |
USF40,45,46 PIONEER,ID=P11565,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50750 |
USF40,41 PIONEER,ID=P10877,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B20 |
USF40,45,46 PIONEER,ID=P11196,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF40,41 PIONEER,ID=P11209,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D90 |
USF4# PIONEER,ID=P11571,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50E00 |
USF40,41 PIONEER,ID=P11578,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50E00 |
USF4# PIONEER,ID=P11578 |
1 | ||
| 86804-50E00 |
USF40,41 PIONEER,ID=P11578,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-50030 |
USF40,45,46 PIONEER,ID=P10333,CANADA SPEC&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50070 |
USF40,41 PIONEER,ID=P10332,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50060 |
USF40,41 PIONEER,ID=P10330,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50040 |
USF40,45,46 PIONEER,ID=P10334,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50380 |
USF40,45,46 PIONEER,ID=P10611,CANADA SPEC |
1 | ||
| 86804-50070 |
USF4# PIONEER,ID=P10332,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50100 |
USF40,41 PIONEER,ID=P10331,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50060 |
USF4# PIONEER,ID=P10330,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP |
1 | ||
| 86804-50080 |
USF40,41,45 PIONEER,ID=P10343,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&MAYDAY SYSTEM-WITHOUT BRAZIL TRACKING |
1 | ||
| 86804-50400 |
USF4# PIONEER,ID=P10607,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50100 |
USF40,41 PIONEER,ID=P10331,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50100 |
USF4# PIONEER,ID=P10331 |
1 | ||
| 86804-50390 |
USF40,45,46 PIONEER,ID=P10599,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50090 |
USF4# PIONEER,ID=P10329,EMV & NAVIGATION SYSTEM-HDD NAVIGATION(WITH BLUETOOTH)EXP |
1 | ||
| 86804-50410 |
USF40,41 PIONEER,ID=P10593,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50420 |
USF40,41 PIONEER,ID=P10591,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86130-50340 |
USF40,41 FUJITSU TEN,ID100464,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86130-50410 |
USF40,41 PIONEER,ID=P10888,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50430 |
USF40,41 PIONEER,ID=P10615,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50430 |
USF4# PIONEER,ID=P10615 |
1 | ||
| 86804-50430 |
USF40,41 PIONEER,ID=P10615,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50720 |
USF40,41 PIONEER,ID=P10870,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50700 |
USF40,45,46 PIONEER,ID=P10873,CANADA SPEC |
1 | ||
| 86804-50750 |
USF4# PIONEER,ID=P10877 |
1 | ||
| 86130-50C20 |
USF40,41 PIONEER,ID=P11217,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50720 |
USF4# PIONEER,ID=P10870,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50400 |
USF40,41 PIONEER,ID=P10607,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50750 |
USF40,41 PIONEER,ID=P10877,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B10 |
USF40,45,46 PIONEER,ID=P11206,CANADA SPEC |
1 | ||
| 86130-50E70 |
USF40,41 FUJITSU TEN,ID100601,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50710 |
USF40,45,46 PIONEER,ID=P10862,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86130-50870 |
USF40,41 PIONEER,ID=P11584,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B40 |
USF4# PIONEER,ID=P11202,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF4# PIONEER,ID=P11209 |
1 | ||
| 86804-50D70 |
USF40,45,46 PIONEER,ID=P11575,CANADA SPEC |
1 | ||
| 86130-50B40 |
USF40,41 FUJITSU TEN,ID100724,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D90 |
USF40,41 PIONEER,ID=P11571,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B40 |
USF40,41 PIONEER,ID=P11202,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF40,41 PIONEER,ID=P11209,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D80 |
USF40,45,46 PIONEER,ID=P11565,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50750 |
USF40,41 PIONEER,ID=P10877,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50B20 |
USF40,45,46 PIONEER,ID=P11196,CANADA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50B30 |
USF40,41 PIONEER,ID=P11209,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50D90 |
USF4# PIONEER,ID=P11571,AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86804-50E00 |
USF40,41 PIONEER,ID=P11578,KOREA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86804-50E00 |
USF4# PIONEER,ID=P11578 |
1 | ||
| 86804-50E00 |
USF40,41 PIONEER,ID=P11578,USA DEPENDANCY SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION) |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53051 |
USF4# |
1 | ||
| 86190-30030 |
USF4# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-50080 |
USF4# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-50080 |
USF4# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-50080 |
USF4# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-50080 |
USF4# |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0WA80 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-50310 |
USF4# |
1 | ||
| 86280-50340 |
USF4# |
1 | ||
| 86280-0WE00 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0WE00 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0W860 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-50350 |
USF4# |
1 | ||
| 86280-0W860 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0WA80 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0WA80 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-50310 |
USF4# |
1 | ||
| 86280-50340 |
USF4# |
1 | ||
| 86280-0WE00 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0WE00 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0W860 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-50350 |
USF4# |
1 | ||
| 86280-0W860 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86280-0WA80 |
USF40,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-50130 |
USF4# AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285-50130 |
USF40,41,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285-50121 |
USF4# |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-50130 |
USF4# AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285-50130 |
USF40,41,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86285-50121 |
USF4# |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-50060 |
USF4# AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86286-50070 |
USF4# |
1 | ||
| 86286-50060 |
USF40,41,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-50060 |
USF4# AUDIO(OVERSEAS MARKET)-DVD,RBDS,19SPEAKER,MARK LEVINSON |
1 | ||
| 86286-50070 |
USF4# |
1 | ||
| 86286-50060 |
USF40,41,45 AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 91511-B0616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
