USF40L-AEZGHA (2012)
Toyota Lexus Ls460/460l
(1209- )USF40,41

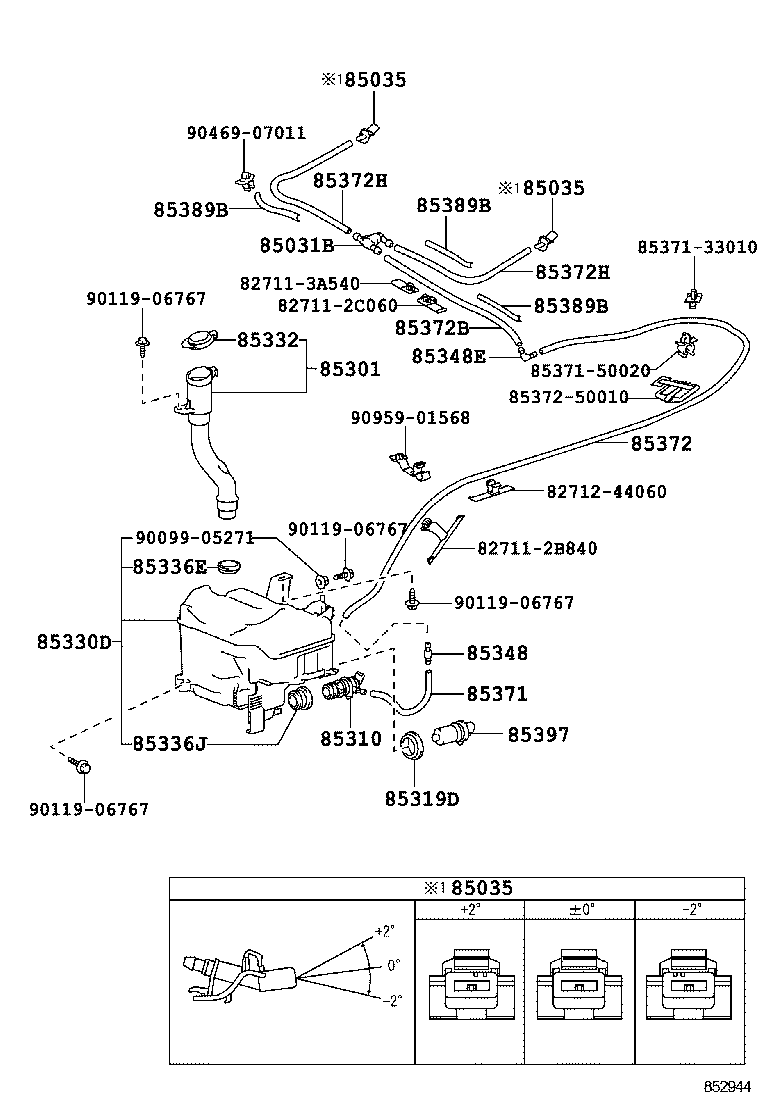

W/O(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85321-28020 |
USF4# |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12320 |
USF4# ANGLE +2 |
2 | ||
| 85381-12300 |
USF4# ANGLE 0 |
2 | ||
| 85381-12310 |
USF4# ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12320 |
USF4# ANGLE +2 |
2 | ||
| 85381-12300 |
USF4# ANGLE 0 |
2 | ||
| 85381-12310 |
USF4# ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12320 |
USF4# ANGLE +2 |
2 | ||
| 85381-12300 |
USF4# ANGLE 0 |
2 | ||
| 85381-12310 |
USF4# ANGLE -2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-50011 |
USF4# |
1 | ||
| 85301-50010 |
USF4# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-60190 |
USF4# |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
USF4# |
1 | ||
| 85330D - JAR ASSY, WASHER | ||||
| 85315-50230 |
USF40,41 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-10270 |
USF4# |
1 | ||
| 85386-50010 |
USF4# |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
USF4# |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60300 |
USF4# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
USF4# |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
USF4# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
USF40 *H,L=130,VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION L&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION L&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION L&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION C&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION C&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION L&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION L&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION L&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,F SPORT |
1 | ||
| 90099-33080 |
USF40 *H,L=130,KOREA SPEC&VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION C&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION L&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40,41 *H,L=130,COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,KOREA SPEC&VERSION C |
1 | ||
| 90099-33080 |
USF40 *H,L=130,KOREA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,F SPORT&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,USA DEPENDANCY SPEC&VERSION L&HEADLAMP-LED & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,USA DEPENDANCY SPEC&VERSION L&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF4# *H,L=130 |
1 | ||
| 90099-33080 |
USF40 *H,L=130,KOREA SPEC&VERSION C&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,USA DEPENDANCY SPEC&VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,USA DEPENDANCY SPEC&VERSION C&HEADLAMP-LED & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,F SPORT FOR USA&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,F SPORT FOR USA |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
USF4# *H,L=1830 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
USF4# *H,L=520 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
USF4# *H,L=600 |
6 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
USF4# *H,L=600 |
6 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-50100 |
USF4# |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-50100 |
USF4# |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-50100 |
USF4# |
2 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
USF4# |
1 | ||
| Common parts | ||||
| 82711-2B840 | ||||
| 82711-2C060 | ||||
| 82711-3A540 | ||||
| 82712-44060 | ||||
| 85371-33010 | ||||
| 85371-50020 | ||||
| 85372-50010 | ||||
| 90099-05271 | ||||
| 90119-06767 | ||||
| 90469-07011 | ||||
| 90959-01568 | ||||
(1209- )

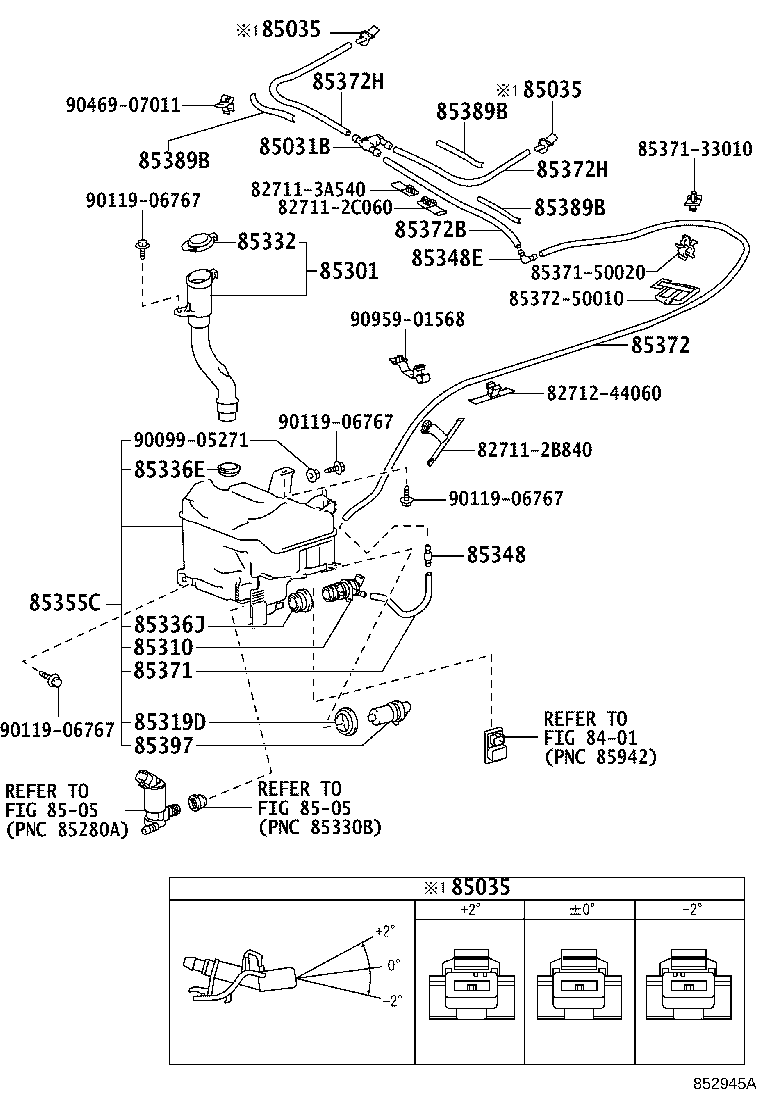

W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85321-28020 |
USF4# |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12320 |
USF4# ANGLE +2 |
2 | ||
| 85381-12300 |
USF4# ANGLE 0 |
2 | ||
| 85381-12310 |
USF4# ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12320 |
USF4# ANGLE +2 |
2 | ||
| 85381-12300 |
USF4# ANGLE 0 |
2 | ||
| 85381-12310 |
USF4# ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12320 |
USF4# ANGLE +2 |
2 | ||
| 85381-12300 |
USF4# ANGLE 0 |
2 | ||
| 85381-12310 |
USF4# ANGLE -2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-50011 |
USF4# |
1 | ||
| 85301-50010 |
USF4# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-60190 |
USF4# |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
USF4# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-10270 |
USF4# |
1 | ||
| 85386-50010 |
USF4# |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
USF4# |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60300 |
USF4# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
USF4# |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
USF4# |
1 | ||
| 85355C - JAR, WASHER, C | ||||
| 85355-50090 |
USF40 CANADA SPEC&VERSION L&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 CANADA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 VERSION L&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 CANADA SPEC&VERSION L&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 CANADA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 VERSION L&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 VERSION C&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 VERSION L&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 KOREA SPEC&VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 85355-50090 |
USF40 VERSION C&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 KOREA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 85355-50090 |
USF40 VERSION L&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 85355-50090 |
USF40 CANADA SPEC&VERSION L&COLD AREA SPEC |
1 | ||
| 85355-50090 |
USF40 CANADA SPEC&VERSION C&COLD AREA SPEC |
1 | ||
| 85355-50090 |
USF40 F SPORT |
1 | ||
| 85355-50090 |
USF40,41 COLD AREA SPEC |
1 | ||
| 85355-50090 |
USF40 USA DEPENDANCY SPEC&VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 85355-50090 |
USF40 F SPORT&COLD AREA SPEC |
1 | ||
| 85355-50090 |
USF40 USA DEPENDANCY SPEC&VERSION L&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 85355-50090 |
USF40 USA DEPENDANCY SPEC&VERSION C&HEADLAMP-LED & *AFLS & *AHB |
1 | ||
| 85355-50090 |
USF40 F SPORT FOR USA&COLD AREA SPEC |
1 | ||
| 85355-50090 |
USF40 USA DEPENDANCY SPEC&VERSION L&HEADLAMP-LED & *AFLS & *AHB |
1 | ||
| 85355-50090 |
USF40 F SPORT FOR USA |
1 | ||
| 85355-50090 |
USF40 KOREA SPEC&VERSION C |
1 | ||
| 85355-50090 |
USF40 KOREA SPEC&VERSION C&COLD AREA SPEC |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
USF40 *H,L=130,VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION L&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION L&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION L&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION C&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION C&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION L&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION L&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,VERSION L&COLD AREA SPEC&HEADLAMP-LED & *AFLS & *AHS |
1 | ||
| 90099-33080 |
USF40 *H,L=130,F SPORT |
1 | ||
| 90099-33080 |
USF40 *H,L=130,KOREA SPEC&VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION C&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,CANADA SPEC&VERSION L&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40,41 *H,L=130,COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,KOREA SPEC&VERSION C |
1 | ||
| 90099-33080 |
USF40 *H,L=130,KOREA SPEC&VERSION C&COLD AREA SPEC&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,F SPORT&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,USA DEPENDANCY SPEC&VERSION L&HEADLAMP-LED & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,USA DEPENDANCY SPEC&VERSION L&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF4# *H,L=130 |
1 | ||
| 90099-33080 |
USF40 *H,L=130,KOREA SPEC&VERSION C&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,USA DEPENDANCY SPEC&VERSION C&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,USA DEPENDANCY SPEC&VERSION C&HEADLAMP-LED & *AFLS & *AHB |
1 | ||
| 90099-33080 |
USF40 *H,L=130,F SPORT FOR USA&COLD AREA SPEC |
1 | ||
| 90099-33080 |
USF40 *H,L=130,F SPORT FOR USA |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
USF4# *H,L=1830 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
USF4# *H,L=520 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
USF4# *H,L=600 |
6 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
USF4# *H,L=600 |
6 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-50100 |
USF4# |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-50100 |
USF4# |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-50100 |
USF4# |
2 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
USF4# |
1 | ||
| Common parts | ||||
| 82711-2B840 | ||||
| 82711-2C060 | ||||
| 82711-3A540 | ||||
| 82712-44060 | ||||
| 85371-33010 | ||||
| 85371-50020 | ||||
| 85372-50010 | ||||
| 90099-05271 | ||||
| 90119-06767 | ||||
| 90469-07011 | ||||
| 90959-01568 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
