USF40L-AEZGHA (2012)
Toyota Lexus Ls460/460l
Production
Sep 2012
-
Aug 2017
Engine
1URFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

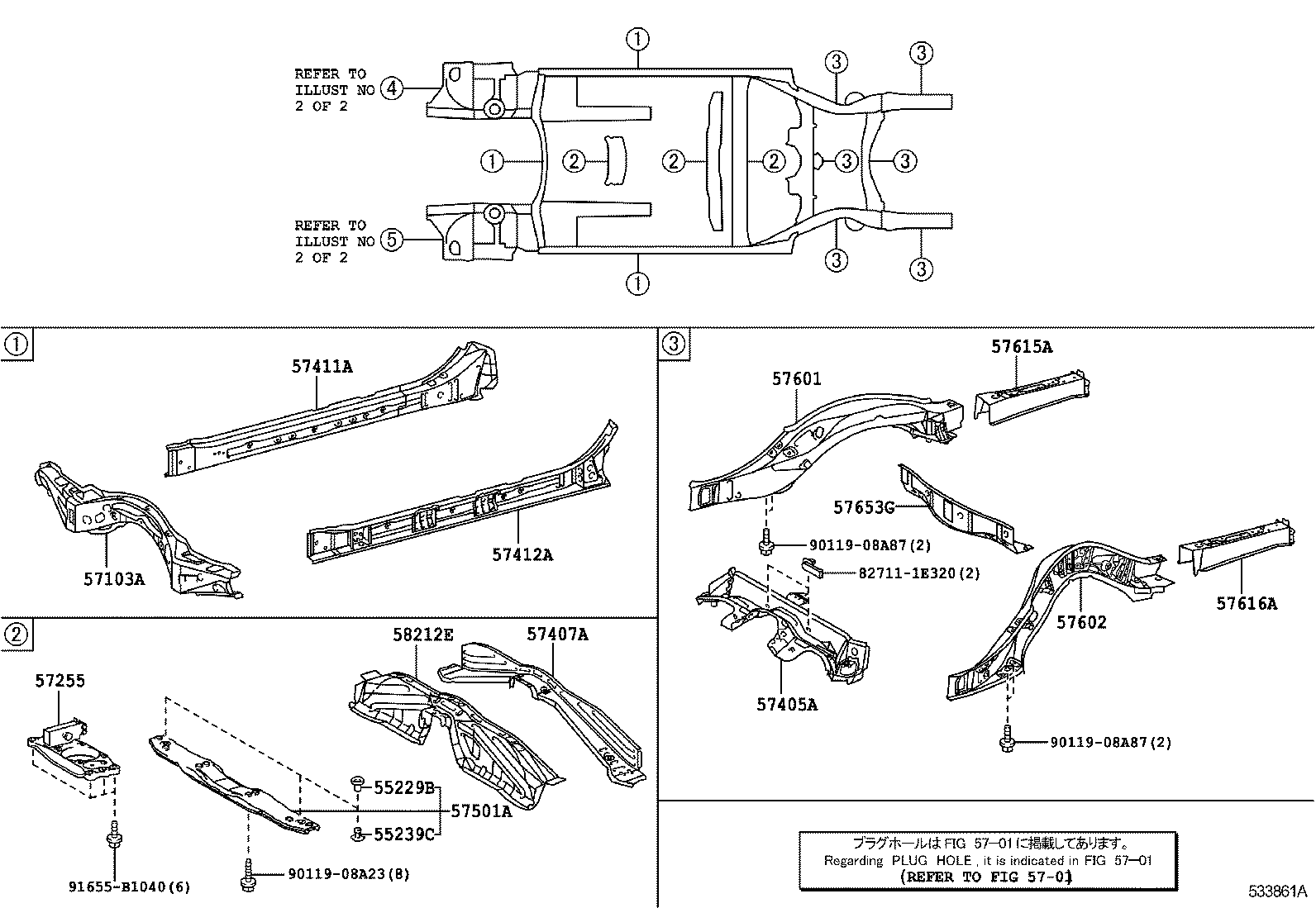

ILLUST NO. 1 OF 2(1209- )USF40,41
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55229B - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
USF4# |
2 | ||
| 55239C - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
USF4# |
2 | ||
| 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 | ||||
| 57103-50030 |
USF40,41 |
1 | ||
| 57255 - MEMBER, ENGINE REAR MOUNTING | ||||
| 57209-50020 |
USF40,41 |
1 | ||
| 57209-50021 |
USF40,41 |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-50020 |
USF4# |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-50060 |
USF4# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-50061 |
USF40,45 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-50051 |
USF40,45 |
1 | ||
| 57501A - BRACE SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57501-50020 |
USF4# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-50910 |
USF4# |
1 | ||
| 57601-50908 |
USF4# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-50910 |
USF4# |
1 | ||
| 57602-50908 |
USF4# |
1 | ||
| 57602-50912 |
USF4# |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-50906 |
USF4# |
1 | ||
| 57615-50907 |
USF4# |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-50907 |
USF4# |
1 | ||
| 57616-50906 |
USF4# |
1 | ||
| 57653G - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-50040 |
USF4# |
1 | ||
| 58212E - PAN, CENTER FLOOR, FRONT | ||||
| 58202-50021 |
USF4# VERSION L |
1 | ||
| 58202-50010 |
USF4# |
1 | ||
| 58202-50020 |
USF4# VERSION L |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90119-08A23 | ||||
| 90119-08A87 | ||||
| 91655-B1040 | ||||
| Linked diagrams | ||||
| 5701 | ||||

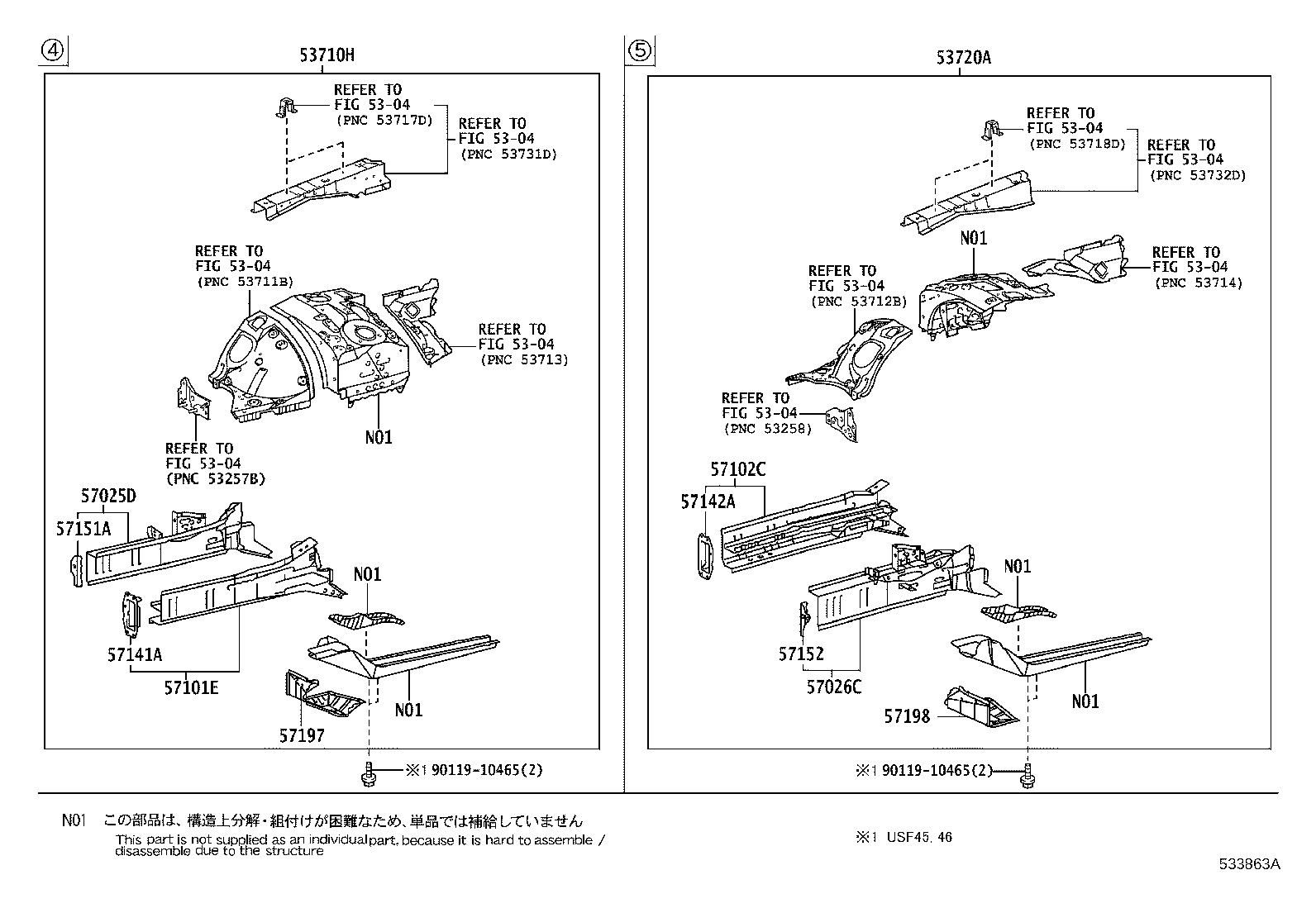

ILLUST NO. 2 OF 2(1209- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53710H - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-50903 |
USF40,41 |
1 | ||
| 53720A - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-50903 |
USF40,41 |
1 | ||
| 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-50010 |
USF4# |
1 | ||
| 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-50010 |
USF4# |
1 | ||
| 57101E - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57101-50190 |
USF4# |
1 | ||
| 57102C - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57102-50150 |
USF4# |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-50040 |
USF4# |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-50040 |
USF4# |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-50040 |
USF4# |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-50030 |
USF4# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-50040 |
USF40,41 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-50040 |
USF40,41 |
1 | ||
| Common parts | ||||
| 90119-10465 | ||||
| Linked diagrams | ||||
| 5304 | ||||
