Toyota Lexus ls460/460l USF40 HOOD & FRONT FENDER

USF40L-AEZGHA (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017

Engine 1URFSE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

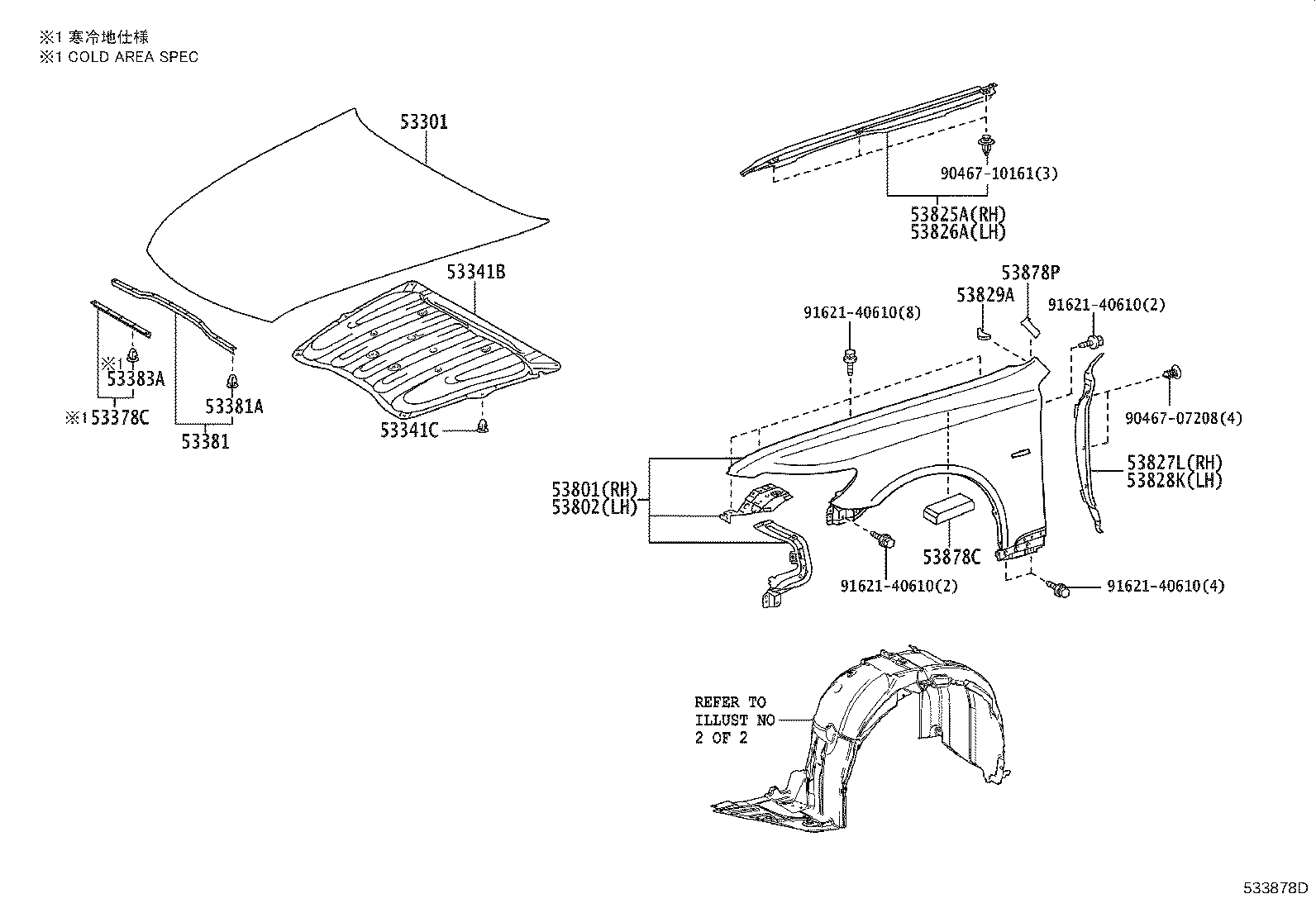

ILLUST NO. 1 OF 2(1209- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-50100	USF4#	09/2012 - 12/2999	1
53341B - INSULATOR, HOOD
53341-50070	USF4#	09/2012 - 12/2999	1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050	USF4#	09/2012 - 12/2999	12
53378C - SEAL, HOOD AIR INTAKE DUCT
53378-50062	USF40,45 COLD AREA SPEC	09/2012 - 12/2999	1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-50080	USF4#	09/2012 - 12/2999	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011	USF4#	09/2012 - 12/2999	8
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08011	USF40,45 COLD AREA SPEC	09/2012 - 12/2999	3
53801 - FENDER SUB-ASSY, FRONT RH
53801-50200	USF4#	09/2012 - 12/2999	1
53801-50210	USF40,45 F SPORT FOR USA	02/2017 - 12/2999	1
53801-50210	USF40,45 THE CRAFTED LINE	10/2014 - 09/2015	1
53801-50210	USF40,45 F SPORT	10/2012 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-50210	USF40,45 THE CRAFTED LINE	10/2014 - 09/2015	1
53802-50200	USF4#	09/2012 - 12/2999	1
53802-50210	USF40,45 F SPORT	10/2012 - 12/2999	1
53802-50210	USF40,45 F SPORT FOR USA	02/2017 - 12/2999	1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53807-50020	USF4#	09/2012 - 12/2999	1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53808-50020	USF4#	09/2012 - 12/2999	1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-50060	USF4#	09/2012 - 12/2999	1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-50060	USF4#	09/2012 - 12/2999	1
53829A - PROTECTOR, FRONT FENDER, LOWER
53829-50010	USF4#	09/2012 - 12/2999	2
53878C - SPACER, FRONT FENDER
55783-30110	USF4#	09/2012 - 12/2999	4
53878P - SPACER, FRONT FENDER
53878-50030	USF4#	09/2012 - 12/2999	2
Common parts
90467-07208
90467-10161
91621-40610

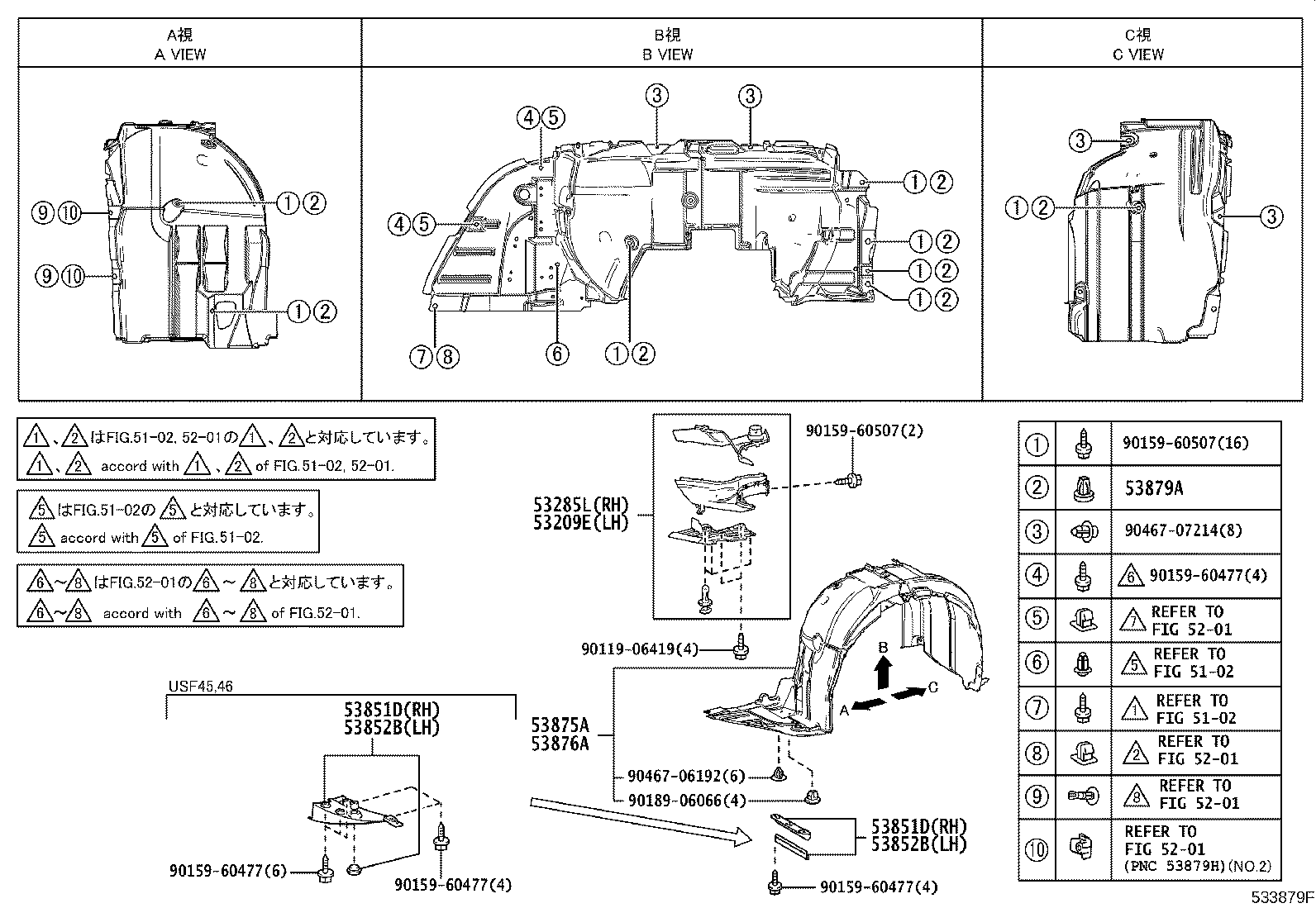

ILLUST NO. 2 OF 2(1209- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53209E - DUCT SUB-ASSY, COOL AIR INTAKE, NO.3
53209-50040	USF40,45 THE CRAFTED LINE	10/2014 - 09/2015	1
53209-50040	USF40,45 F SPORT	10/2012 - 12/2999	1
53209-50040	USF40,45 F SPORT FOR USA	02/2017 - 12/2999	1
53209-50030	USF4#	09/2012 - 12/2999	1
53285L - DUCT, COOL AIR INTAKE, NO.2
53207-50030	USF4#	09/2012 - 12/2999	1
53207-50040	USF40,45 F SPORT FOR USA	02/2017 - 12/2999	1
53207-50040	USF40,45 THE CRAFTED LINE	10/2014 - 09/2015	1
53207-50040	USF40,45 F SPORT	10/2012 - 12/2999	1
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-50080	USF40,41	09/2012 - 12/2999	1
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-50080	USF40,41	09/2012 - 12/2999	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-50070	USF40,41	09/2012 - 12/2999	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-50070	USF40,41	09/2012 - 12/2999	1
53875A - LINER, FRONT FENDER, RH
53805-50080	USF40,45 THE CRAFTED LINE	10/2014 - 09/2015	1
53805-50070	USF4#	09/2012 - 12/2999	1
53805-50080	USF40,45 F SPORT FOR USA	02/2017 - 12/2999	1
53805-50080	USF40,45 F SPORT	10/2012 - 12/2999	1
53876A - LINER, FRONT FENDER, LH
53806-50070	USF4#	09/2012 - 12/2999	1
53806-50080	USF40,45 F SPORT	10/2012 - 12/2999	1
53806-50080	USF40,45 THE CRAFTED LINE	10/2014 - 09/2015	1
53806-50080	USF40,45 F SPORT FOR USA	02/2017 - 12/2999	1
53879A - RETAINER, FRONT FENDER LINER
53879-50010	USF4#	09/2012 - 12/2999	16
Common parts
90119-06419
90159-60477
90159-60507
90189-06066
90467-06192
90467-07214
Linked diagrams
5102
5201

USF40L-AEZGHA (2012)

ILLUST NO. 1 OF 2(1209- )

ILLUST NO. 2 OF 2(1209- )
