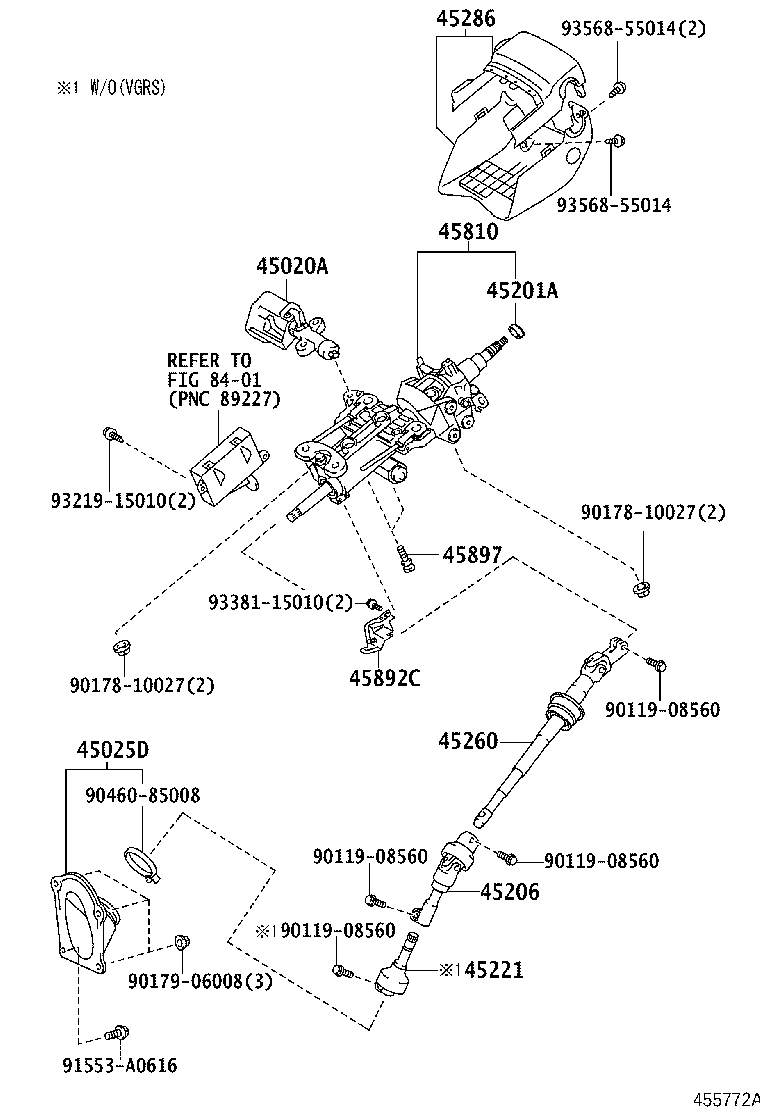

Toyota Lexus ls460/460l USF40 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45020A - ACTUATOR ASSY, STEERING LOCK
45020-30A60	USF4#	09/2012 - 08/2017	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-50120	USF40,41	09/2012 - 12/2999	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-25077	USF4#	09/2012 - 12/2999	1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-50050	USF40,41	09/2012 - 12/2999	1
45221 - SHAFT, STEERING INTERMEDIATE
45297-50030	USF4#	09/2012 - 02/2014	1
45297-50031	USF4#	03/2014 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-50080	USF40,41	09/2012 - 12/2999	1
45286 - COVER, STEERING COLUMN
45024-50903E0	USF4# ORCHID BROWN,TRIM0#	09/2012 - 08/2017	1
45024-50903C0	USF40,45 BLACK,TRIM1#,2#,3#,4#,5#	09/2012 - 08/2017	1
45810 - GEAR ASSY, TILT STEERING, W/MOTOR
45810-50080	USF4#	09/2012 - 12/2999	1
45892C - BRACKET, RETURN SPRING
45892-50020	USF4#	09/2012 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	USF4#	09/2012 - 12/2999	2
Common parts
90119-08560
90178-10027
90179-06008
90460-85008
91553-A0616
93219-15010
93381-15010
93568-55014
Linked diagrams
8401

USF40L-AEZGHA (2012)
