USF40L-AEZGHA (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )

Click highlighted areas on diagram

AA80E,AA80F

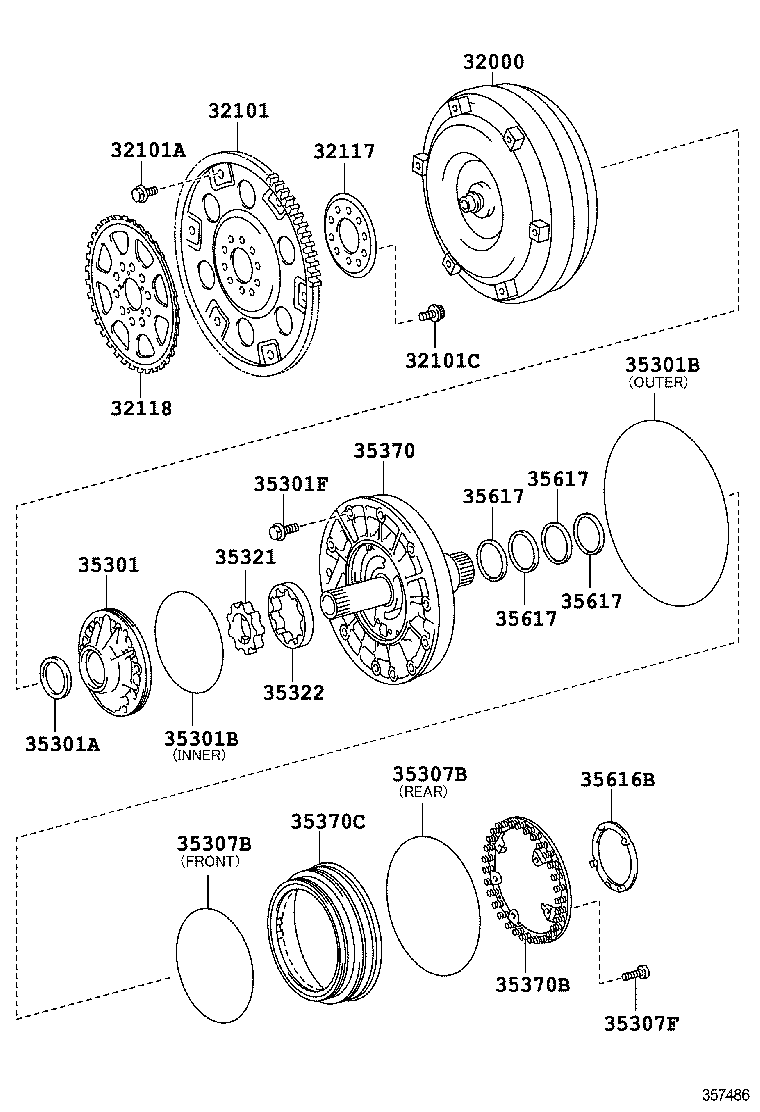

diagram 32000 32101 32101A 32101C 32117 32118 35301 35301A 35301B 35301B 35301F 35307B 35307B 35307F 35321 35322 35370 35370B 35370C 35616B 35617 35617 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-50050

USF4#

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-50021

USF4#

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-10340

USF4#

*10-1.5PX12.8-9.8

 5
90105-10547

USF4#

*10-1.5PX12.8-9.7

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90910-02129

USF4#

*10-1.25PX23-16,(J)

 10
90910-A2002

USF4#

*10-1.25PX23-16,(L)

 10
32117 - SPACER, DRIVE PLATE, REAR
32117-34010

USF4#

 1
32118 - ROTOR, CRANKSHAFT ANGLE SENSOR
32118-34010

USF4#

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-50031

USF4#

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-45032

USF4#

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99087

USF4#

INNER

 1
90301-99171

USF4#

OUTER

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99087

USF4#

INNER

 1
90301-99171

USF4#

OUTER

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08353

USF4#

*8-1.25PX50-30

 11
35307B - RING, SHAFT SNAP (FOR STATOR SHAFT)
90301-99170

USF4#

REAR

 1
90301-99172

USF4#

FRONT

 1
35307B - RING, SHAFT SNAP (FOR STATOR SHAFT)
90301-99170

USF4#

REAR

 1
90301-99172

USF4#

FRONT

 1
35307F - BOLT (FOR STATOR SHAFT)
90148-06001

USF4#

 7
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-50120

USF4#

T=11.66,MARK 4

 1
35321-50110

USF4#

T=11.66,MARK 3

 1
35321-50080

USF4#

T=11.66,MARK 0

 1
35321-50100

USF4#

T=11.66,MARK 2

 1
35321-50140

USF4#

T=11.66,MARK 6

 1
35321-50130

USF4#

T=11.66,MARK 5

 1
35321-50090

USF4#

T=11.66,MARK 1

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-50100

USF4#

T=11.66,MARK 2

 1
35322-50090

USF4#

T=11.66,MARK 1

 1
35322-50080

USF4#

T=11.66,MARK 0

 1
35322-50130

USF4#

T=11.66,MARK 5

 1
35322-50110

USF4#

T=11.66,MARK 3

 1
35322-50140

USF4#

T=11.66,MARK 6

 1
35322-50120

USF4#

T=11.66,MARK 4

 1
35370 - SHAFT ASSY, STATOR
35370-50041

USF4#

 1
35370B - SPRING SUB-ASSY, STATOR SHAFT
35608-50020

USF4#

 1
35370C - PISTON, STATOR SHAFT
35621-50020

USF4#

 1
35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
35616-50010

USF4#

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

USF4#

 4
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

USF4#

 4
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

USF4#

 4
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

USF4#

 4
