USF40L-AEZGHA (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )1URFSE..USF40,41

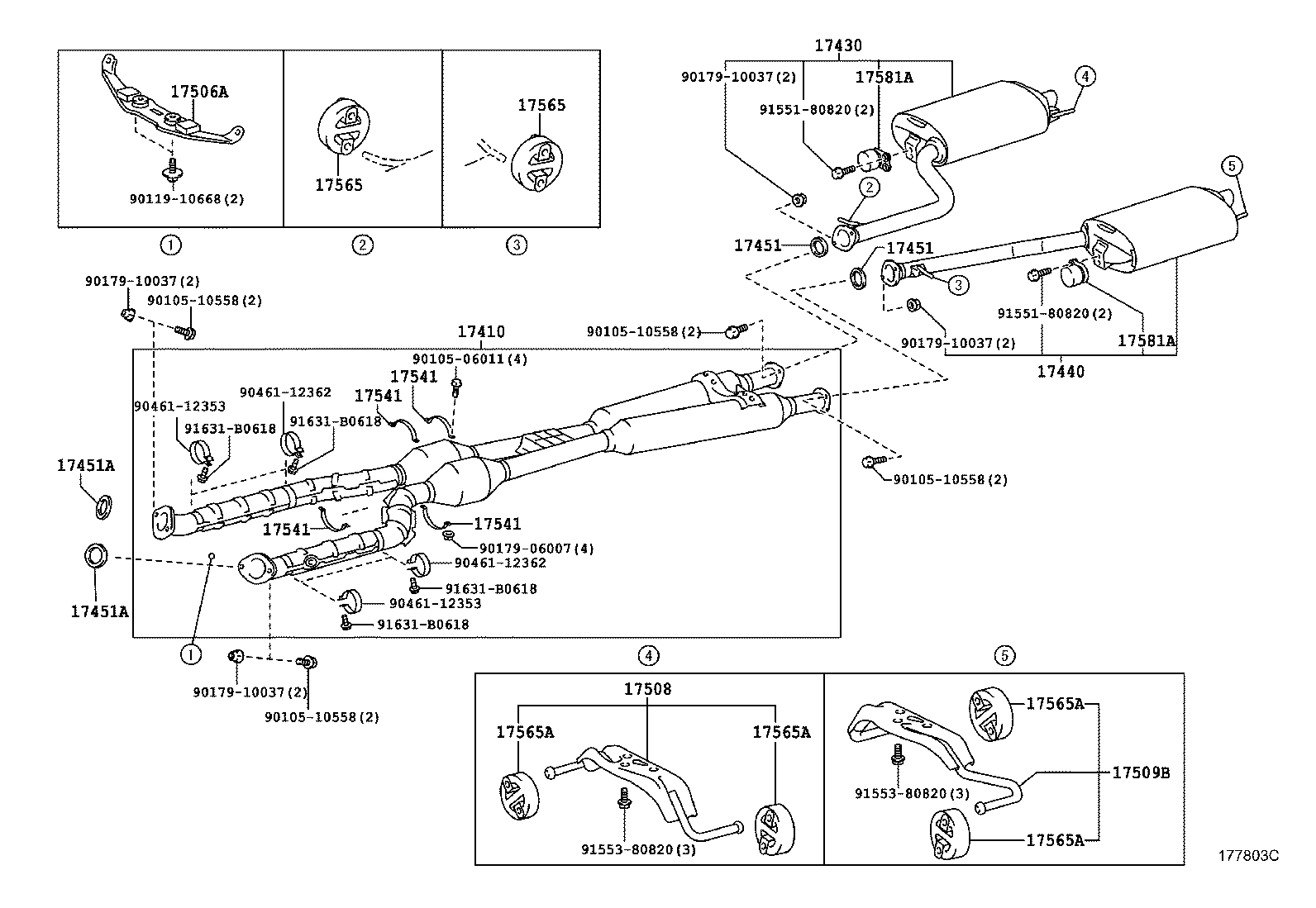

Click highlighted areas on diagram

diagram 17410 17430 17440 17451 17451 17451A 17451A 17506A 17508 17509B 17541 17541 17541 17541 17565 17565 17565A 17565A 17565A 17565A 17581A 17581A 9010506011 9010510558 9010510558 9010510558 9010510558 9011910668 9017906007 9017910037 9017910037 9017910037 9017910037 9046112353 9046112353 9046112362 9046112362 9155180820 9155180820 9155380820 9155380820 91631B0618 91631B0618 91631B0618 91631B0618
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-38460

1URFSE..USF40

*114=TOYOTA/X55/Y,F SPORT

 1
17410-38411

1URFSE..USF40

*114=TOYOTA/X55/Y

 1
17410-38460

1URFSE..USF40

*114=TOYOTA/X55/Y,THE CRAFTED LINE

 1
17410-38460

1URFSE..USF40

*114=TOYOTA/X55/Y,F SPORT FOR USA

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-38560

1URFSE..USF40,41

 1
17430-38510

1URFSE..USF40,41

 1
17430-38680

1URFSE..USF40

THE CRAFTED LINE

 1
17430-38680

1URFSE..USF40

F SPORT

 1
17430-38680

1URFSE..USF40

F SPORT FOR USA

 1
17430-38670

1URFSE..USF40

F SPORT

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-38030

1URFSE..USF40,41

 1
17440-38070

1URFSE..USF40

THE CRAFTED LINE

 1
17440-38070

1URFSE..USF40

F SPORT FOR USA

 1
17440-38010

1URFSE..USF40,41

 1
17440-38060

1URFSE..USF40

F SPORT

 1
17440-38070

1URFSE..USF40

F SPORT

 1
17451 - GASKET, EXHAUST PIPE
90917-06057

1URFSE..USF4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06057

1URFSE..USF4#

 2
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06078

1URFSE..USF4#

 2
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06078

1URFSE..USF4#

 2
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-38091

1URFSE..USF40,41

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-38070

1URFSE..USF4#

 1
17509B - SUPPORT, EXHAUST PIPE NO.4
17509-38020

1URFSE..USF4#

 1
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-68010

1URFSE..USF40,41

 4
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-68010

1URFSE..USF40,41

 4
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-68010

1URFSE..USF40,41

 4
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-68010

1URFSE..USF40,41

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010

1URFSE..USF4#

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010

1URFSE..USF4#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74290

1URFSE..USF4#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74290

1URFSE..USF4#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74290

1URFSE..USF4#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74290

1URFSE..USF4#

 4
17581A - DAMPER, EXHAUST PIPE
17581-46130

1URFSE..USF4#

 2
17581A - DAMPER, EXHAUST PIPE
17581-46130

1URFSE..USF4#

 2
Common parts
90105-06011
90105-10558
90119-10668
90179-06007
90179-10037
90461-12353
90461-12362
91551-80820
91553-80820
91631-B0618
