USF40L-AEZGHA (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )1URFSE..USF40,41

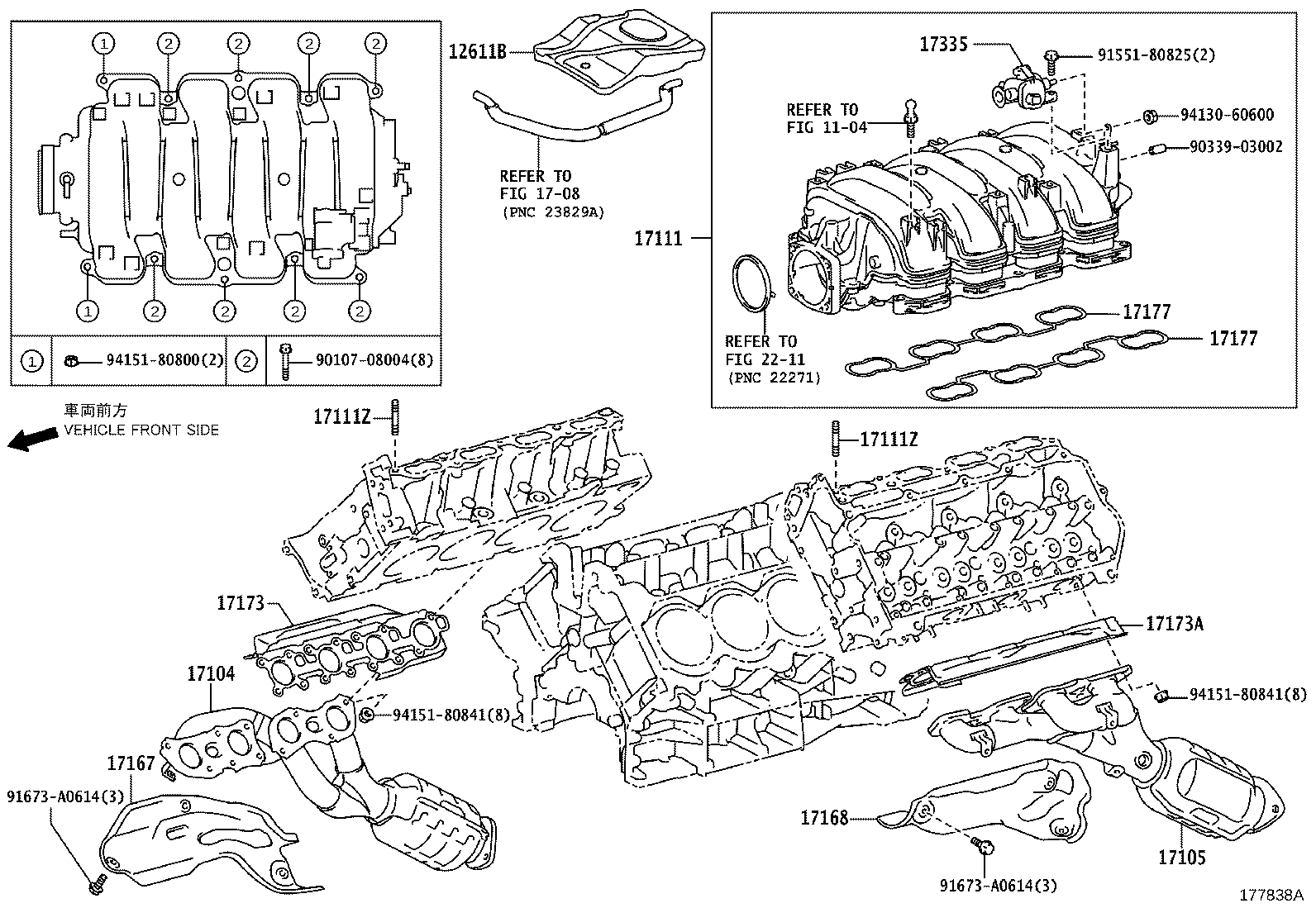

Click highlighted areas on diagram

diagram 1104 12611B 1708 17104 17105 17111 17111Z 17111Z 17167 17168 17173 17173A 17177 17177 17335 2211 9010708004 9033903002 9155180825 91673A0614 91673A0614 9413060600 9415180800 9415180841 9415180841
Part # Description Qty Price
12611B - COVER, ENGINE, NO.1
12611-38020

1URFSE..USF4#

 1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17104-38020

1URFSE..USF40,41

*114=TOYOTA/R38020/Y

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17105-38020

1URFSE..USF40,41

*114=TOYOTA/L38020/Y

 1
17111 - MANIFOLD, INTAKE
17120-38021

1URFSE..USF4#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

1URFSE..USF4#

 2
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

1URFSE..USF4#

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-38070

1URFSE..USF40,41

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-38080

1URFSE..USF40,41

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-38030

1URFSE..USF40,41

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-38030

1URFSE..USF40,41

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-38020

1URFSE..USF4#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-38020

1URFSE..USF4#

 2
17335 - ACTUATOR, INTAKE AIR CONTROL VALVE
17335-38020

1URFSE..USF4#

 1
Common parts
90107-08004
90339-03002
91551-80825
91673-A0614
94130-60600
94151-80800
94151-80841
Linked diagrams
1104
1708
2211
