USF40L-AEZGHA (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )1URFSE..USF40,41

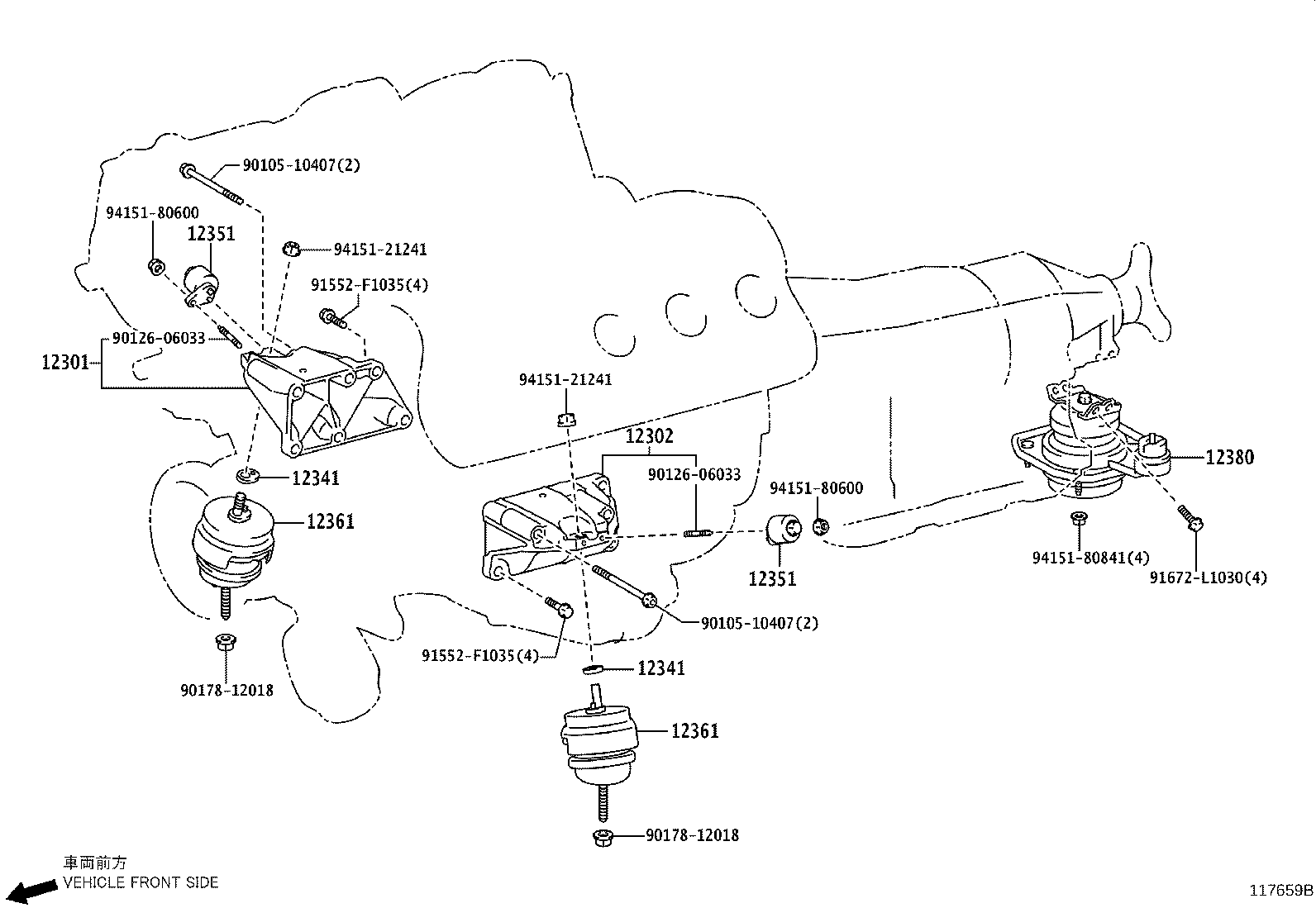

Click highlighted areas on diagram

diagram 12301 12302 12341 12341 12351 12351 12361 12361 12380 9010510407 9010510407 9012606033 9012606033 9017812018 9017812018 91552F1035 91552F1035 91672L1030 9415121241 9415121241 9415180600 9415180600 9415180841
Part # Description Qty Price
12301 - BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH
12301-38190

1URFSE..USF40,41

 1
12302 - BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT LH
12302-38170

1URFSE..USF40,41

 1
12341 - SPACER, ENGINE MOUNTING
12319-38010

1URFSE..USF40,41

 2
12341 - SPACER, ENGINE MOUNTING
12319-38010

1URFSE..USF40,41

 2
12351 - DAMPER, ENGINE MOUNTING
12351-38010

1URFSE..USF40,41

 2
12351 - DAMPER, ENGINE MOUNTING
12351-38010

1URFSE..USF40,41

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38221

1URFSE..USF40,41

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38221

1URFSE..USF40,41

 2
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-38031

1URFSE..USF40,41

 1
12380-38030

1URFSE..USF40,41

 1
Common parts
90105-10407
90126-06033
90178-12018
91552-F1035
91672-L1030
94151-21241
94151-80600
94151-80841
