USF40L-AEZGHA (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

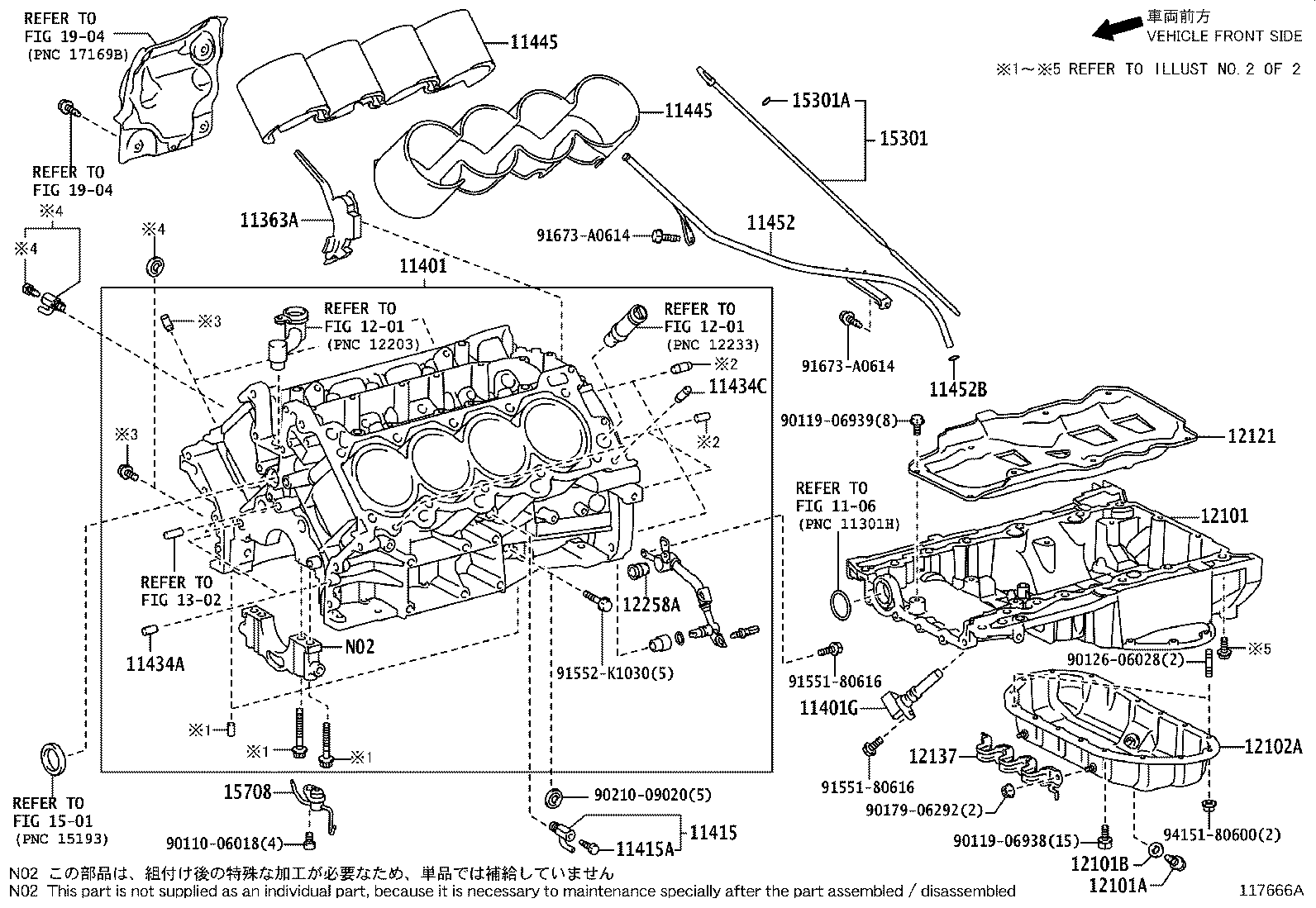

ILLUST NO. 1 OF 2(1209- )1URFSE..USF40,41

Click highlighted areas on diagram

diagram 1106 11363A 11401 11401G 11415 11415A 11434A 11434C 11445 11445 11452 11452B 1201 1201 12101 12101A 12101B 12102A 12121 12137 12258A 1302 1501 15301 15301A 15708 1904 1904 9011006018 9011906938 9011906939 9012606028 9017906292 9021009020 9155180616 9155180616 91552K1030 91673A0614 91673A0614 9415180600
Part # Description Qty Price
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-38020

1URFSE..USF4#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39A06

1URFSE..USF40,41

 1
11401-39A07

1URFSE..USF40,41

 1
11401G - SENSOR, CRANK POSITION
90919-05071

1URFSE..USF4#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

1URFSE..USF4#

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1URFSE..USF4#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

1URFSE..USF4#

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

1URFSE..USF4#

L=18,OD=8

 4
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-38010

1URFSE..USF4#

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-38010

1URFSE..USF4#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-38041

1URFSE..USF40,41

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-09028

1URFSE..USF4#

 1
12101 - PAN SUB-ASSY, OIL
12111-38120

1URFSE..USF40,41

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1URFSE..USF4#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1URFSE..USF4#

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-38021

1URFSE..USF40,41

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-38080

1URFSE..USF40,41

 1
12137 - PROTECTOR, OIL PAN
12137-38020

1URFSE..USF40,41

 1
12258A - GASKET, OIL RETURN PIPE
12269-38010

1URFSE..USF4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-38050

1URFSE..USF40,41

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

1URFSE..USF4#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-38030

1URFSE..USF4#

 4
15708-38020

1URFSE..USF4#

 4
Common parts
90110-06018
90119-06938
90119-06939
90126-06028
90179-06292
90210-09020
91551-80616
91552-K1030
91673-A0614
94151-80600
Linked diagrams
1106
1201
1302
1501
1904

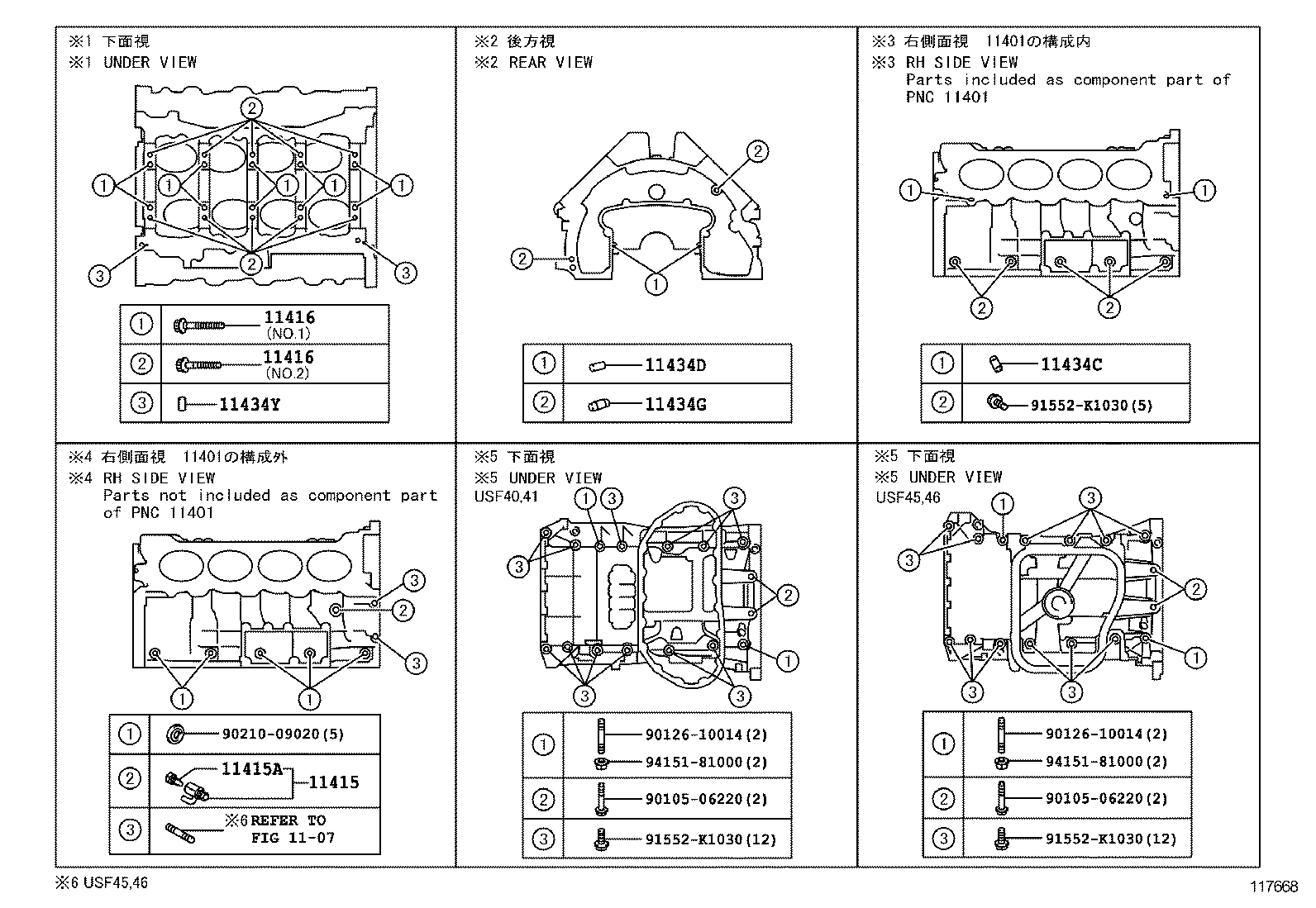

ILLUST NO. 2 OF 2(1209- )

Click highlighted areas on diagram

diagram 1107 11415 11415A 11416 11416 11434C 11434D 11434G 11434Y 9010506220 9010506220 9012610014 9012610014 9021009020 91552K1030 91552K1030 91552K1030 9415181000 9415181000
Part # Description Qty Price
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

1URFSE..USF4#

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1URFSE..USF4#

 2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02154

1URFSE..USF4#

NO.1

 10
90910-02165

1URFSE..USF4#

NO.2

 10
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02154

1URFSE..USF4#

NO.1

 10
90910-02165

1URFSE..USF4#

NO.2

 10
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

1URFSE..USF4#

L=18,OD=8

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097

1URFSE..USF4#

L=12,OD=4.0

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

1URFSE..USF4#

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

1URFSE..USF4#

 2
Common parts
90105-06220
90126-10014
90210-09020
91552-K1030
94151-81000
Linked diagrams
1107
