UCF30L-AETGKK (2003)
Toyota Lexus Ls430

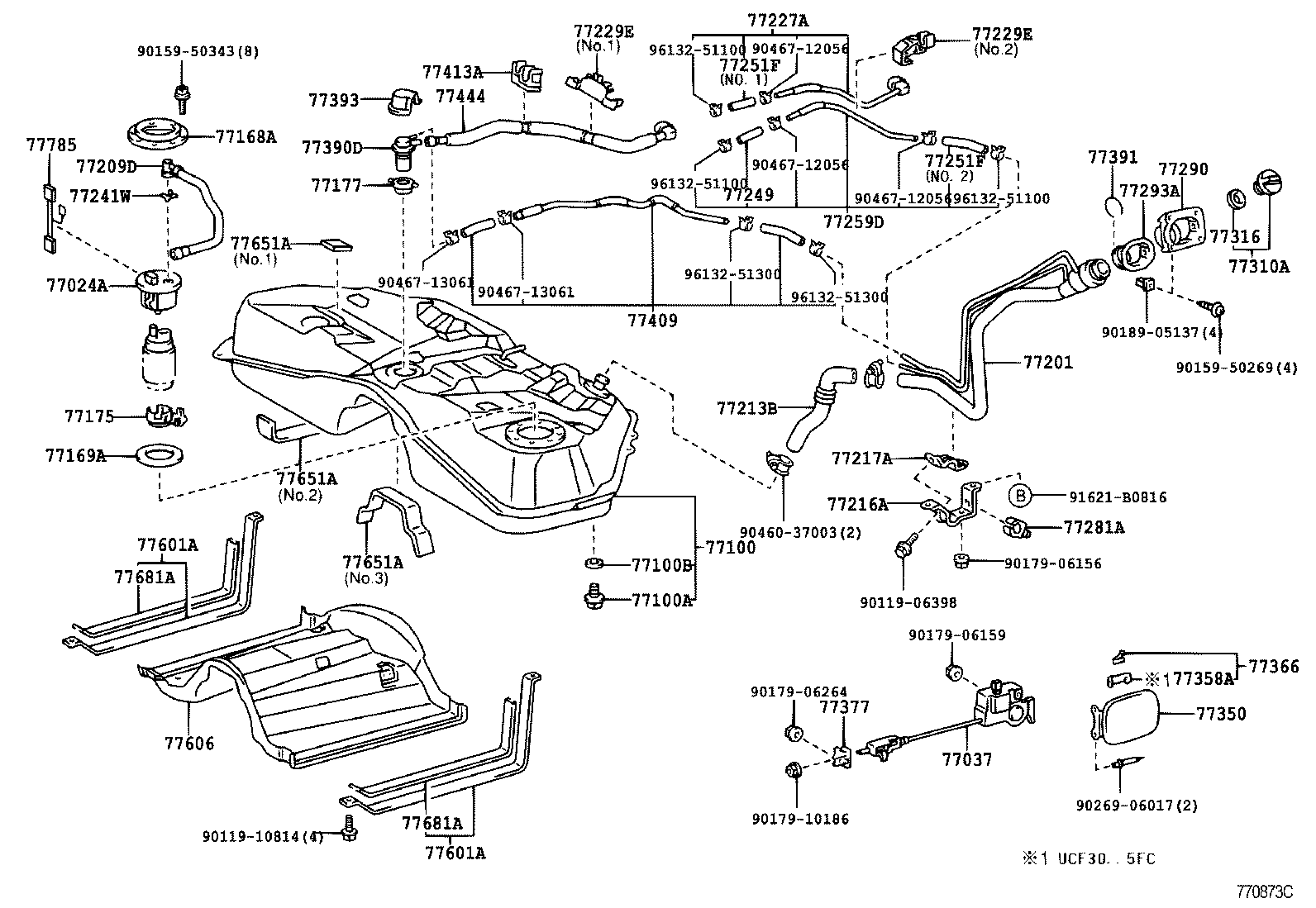

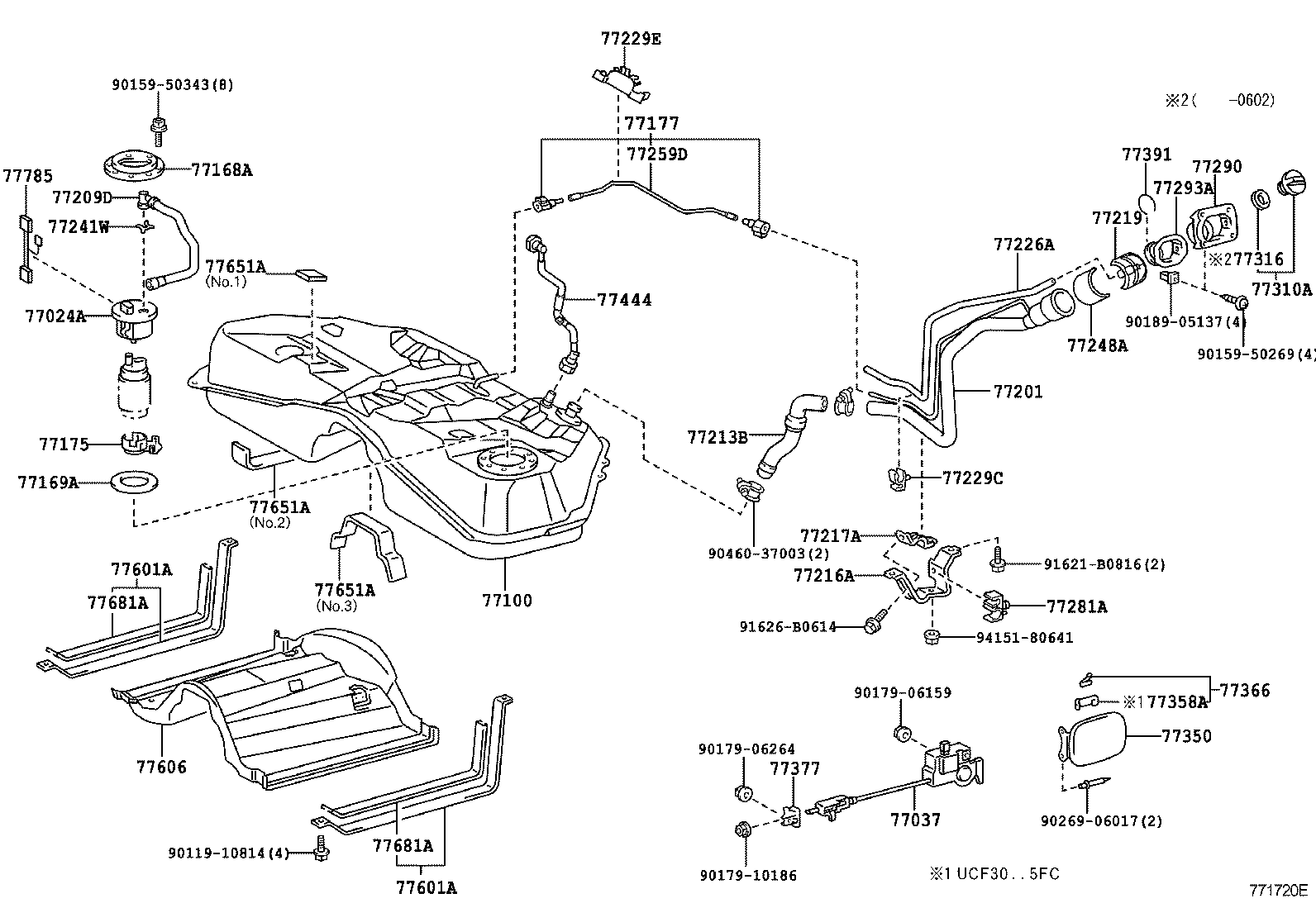

ILLUST NO. 1 OF 2(0008-0507)
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30040 |
UCF30 |
1 | ||
| 77024-30070 |
UCF30 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77030-50010 |
UCF30 |
1 | ||
| 77030-50010 |
UCF30 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-50100 |
UCF30 |
1 | ||
| 77001-50120 |
UCF30 |
1 | ||
| 77001-50101 |
UCF30 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
UCF30 |
1 | ||
| 90105-12116 |
UCF30 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
UCF30 |
1 | ||
| 90430-12245 |
UCF30 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-12240 |
UCF30 |
1 | ||
| 77168-33050 |
UCF30 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
UCF30 |
1 | ||
| 77169-33030 |
UCF30 |
1 | ||
| 77169-33020 |
UCF30 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30030 |
UCF30 |
1 | ||
| 77175-30050 |
UCF30 |
1 | ||
| 77177 - GASKET, CHECK VALVE | ||||
| 77177-33010 |
UCF30 |
1 | ||
| 77177-33010 |
UCF30 |
1 | ||
| 77019-50020 |
UCF30 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-50080 |
UCF30 |
1 | ||
| 77201-50080 |
UCF30 |
1 | ||
| 77201-50130 |
UCF30 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-50010 |
UCF30 |
1 | ||
| 77209-50010 |
UCF30 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-50020 |
UCF30 |
1 | ||
| 77213-50030 |
UCF30 |
1 | ||
| 77213-50020 |
UCF30 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-50020 |
UCF30 |
1 | ||
| 77216-50020 |
UCF30 |
1 | ||
| 77216-50030 |
UCF30 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-50050 |
UCF30 |
1 | ||
| 77217-50050 |
UCF30 |
1 | ||
| 77217-50060 |
UCF30 |
1 | ||
| 77227A - TUBE, FUEL TANK EVAPORATION VENT | ||||
| 77227-50010 |
UCF30 |
1 | ||
| 77227-50010 |
UCF30 |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-50030 |
UCF30 NO.2:REFER ILLUST. |
1 | ||
| 77229-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER ILLUST. |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-50030 |
UCF30 NO.2:REFER ILLUST. |
1 | ||
| 77229-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER ILLUST. |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
UCF30 |
1 | ||
| 77241-33011 |
UCF30 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95337-06006 |
UCF30 |
1 | ||
| 95337-06006 |
UCF30 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95337-06007 |
UCF30 L=70 |
1 | ||
| 95337-06009 |
UCF30 L=90 |
1 | ||
| 95337-06009 |
UCF30 L=90 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95337-06007 |
UCF30 L=70 |
1 | ||
| 95337-06009 |
UCF30 L=90 |
1 | ||
| 95337-06009 |
UCF30 L=90 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-50070 |
UCF30 |
1 | ||
| 77259-50070 |
UCF30 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-50030 |
UCF30 |
1 | ||
| 77229-21010 |
UCF30 |
1 | ||
| 77281-50030 |
UCF30 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-50040 |
UCF30 |
1 | ||
| 77290-50040 |
UCF30 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-50040 |
UCF30 |
1 | ||
| 77293-50040 |
UCF30 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52040 |
UCF30 |
1 | ||
| 77300-50010 |
UCF30 |
1 | ||
| 77300-50010 |
UCF30 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
UCF30 |
1 | ||
| 77316-52020 |
UCF30 |
1 | ||
| 77316-16010 |
UCF30 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-50040 |
UCF30 |
1 | ||
| 77350-50040 |
UCF30 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-48010 |
UCF30 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30070 |
UCF30 |
1 | ||
| 77360-30080 |
UCF30 |
1 | ||
| 77360-30080 |
UCF30 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22060 |
UCF30 |
1 | ||
| 77377-22060 |
UCF30 |
1 | ||
| 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK | ||||
| 77390-50020 |
UCF30 |
1 | ||
| 77390-50020 |
UCF30 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-30020 |
UCF30 |
1 | ||
| 77391-30020 |
UCF30 |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-42010 |
UCF30 |
1 | ||
| 77393-42010 |
UCF30 |
1 | ||
| 77409 - HOSE SUB-ASSY, FUEL, NO.3 | ||||
| 77409-50010 |
UCF30 |
1 | ||
| 77409-50010 |
UCF30 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-50010 |
UCF30 |
1 | ||
| 77413-50010 |
UCF30 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-50020 |
UCF30 |
1 | ||
| 77404-50040 |
UCF30 |
1 | ||
| 77404-50020 |
UCF30 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-50011 |
UCF30 |
2 | ||
| 77601-50010 |
UCF30 |
2 | ||
| 77601-50010 |
UCF30 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-50011 |
UCF30 |
2 | ||
| 77601-50010 |
UCF30 |
2 | ||
| 77601-50010 |
UCF30 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-50040 |
UCF30 |
1 | ||
| 77606-50040 |
UCF30 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
UCF30 NO.1:REFER TO ILLUSTRATION |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER TO ILLUSTRATION |
3 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
UCF30 NO.1:REFER TO ILLUSTRATION |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER TO ILLUSTRATION |
3 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
UCF30 NO.1:REFER TO ILLUSTRATION |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER TO ILLUSTRATION |
3 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
UCF30 |
2 | ||
| 77681-32060 |
UCF30 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
UCF30 |
2 | ||
| 77681-32060 |
UCF30 |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
UCF30 |
1 | ||
| 77785-52020 |
UCF30 |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-10814 | ||||
| 90159-50269 | ||||
| 90159-50343 | ||||
| 90179-06156 | ||||
| 90179-06159 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05137 | ||||
| 90269-06017 | ||||
| 90460-37003 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 91621-B0816 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||

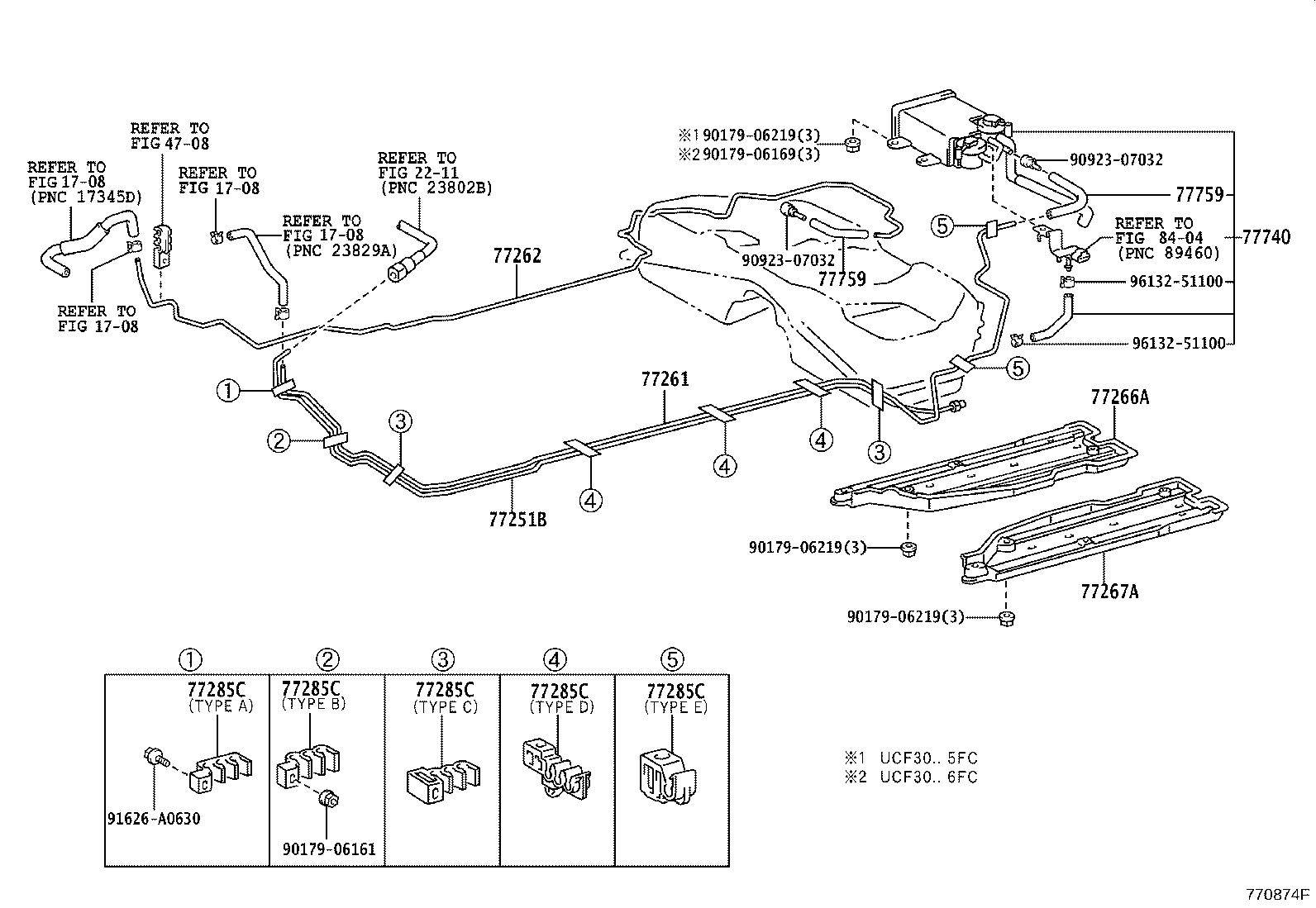

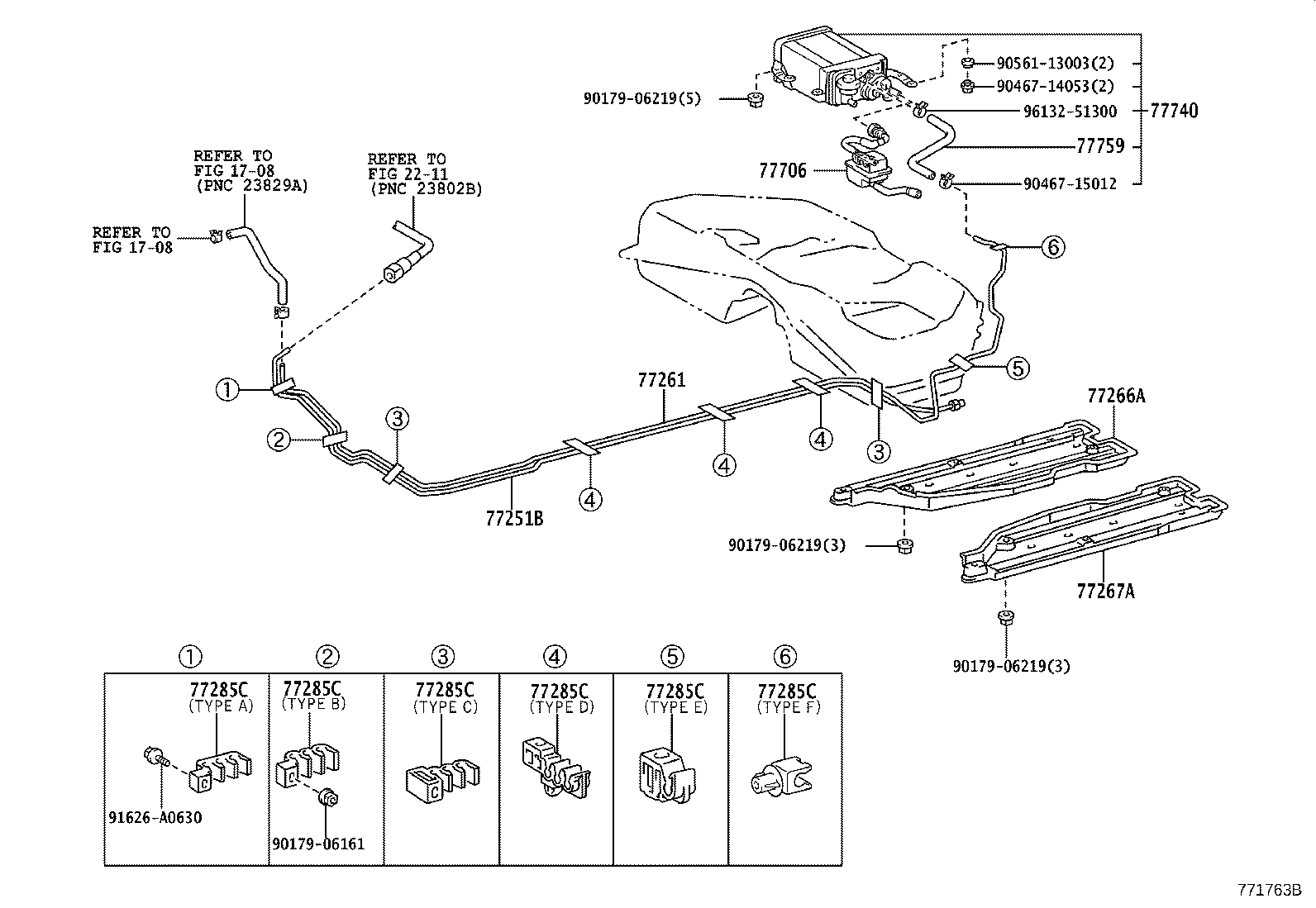

ILLUST NO. 2 OF 2(0008-0507)
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-50080 |
UCF30 |
1 | ||
| 77251-50080 |
UCF30 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-50050 |
UCF30 |
1 | ||
| 77261-50070 |
UCF30 |
1 | ||
| 77261-50050 |
UCF30 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-50060 |
UCF30 |
1 | ||
| 77262-50060 |
UCF30 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-50040 |
UCF30 |
1 | ||
| 77266-50040 |
UCF30 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-50050 |
UCF30 |
1 | ||
| 77267-50050 |
UCF30 |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-50090 |
UCF30 |
1 | ||
| 77740-50092 |
UCF30 |
1 | ||
| 77740-50110 |
UCF30 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-50020 |
UCF30 |
1 | ||
| 77759-48020 |
UCF30 L=180 |
1 | ||
| 77759-48020 |
UCF30 L=180 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-50020 |
UCF30 |
1 | ||
| 77759-48020 |
UCF30 L=180 |
1 | ||
| 77759-48020 |
UCF30 L=180 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06169 | ||||
| 90179-06219 | ||||
| 90923-07032 | ||||
| 91626-A0630 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 4708 | ||||
| 8404 | ||||
ILLUST NO. 1 OF 2(0507- )
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30040 |
UCF30 |
1 | ||
| 77024-30070 |
UCF30 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77030-50010 |
UCF30 |
1 | ||
| 77030-50010 |
UCF30 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-50100 |
UCF30 |
1 | ||
| 77001-50120 |
UCF30 |
1 | ||
| 77001-50101 |
UCF30 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-12240 |
UCF30 |
1 | ||
| 77168-33050 |
UCF30 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
UCF30 |
1 | ||
| 77169-33030 |
UCF30 |
1 | ||
| 77169-33020 |
UCF30 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30030 |
UCF30 |
1 | ||
| 77175-30050 |
UCF30 |
1 | ||
| 77177 - GASKET, CHECK VALVE | ||||
| 77177-33010 |
UCF30 |
1 | ||
| 77177-33010 |
UCF30 |
1 | ||
| 77019-50020 |
UCF30 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-50080 |
UCF30 |
1 | ||
| 77201-50080 |
UCF30 |
1 | ||
| 77201-50130 |
UCF30 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-50010 |
UCF30 |
1 | ||
| 77209-50010 |
UCF30 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-50020 |
UCF30 |
1 | ||
| 77213-50030 |
UCF30 |
1 | ||
| 77213-50020 |
UCF30 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-50020 |
UCF30 |
1 | ||
| 77216-50020 |
UCF30 |
1 | ||
| 77216-50030 |
UCF30 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-50050 |
UCF30 |
1 | ||
| 77217-50050 |
UCF30 |
1 | ||
| 77217-50060 |
UCF30 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-21010 |
UCF30 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-50030 |
UCF30 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-50040 |
UCF30 |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-50030 |
UCF30 NO.2:REFER ILLUST. |
1 | ||
| 77229-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER ILLUST. |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
1 | ||
| 77229-50020 |
UCF30 NO.1:REFER TO ILLUSTRATION |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
UCF30 |
1 | ||
| 77241-33011 |
UCF30 |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-21010 |
UCF30 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-50070 |
UCF30 |
1 | ||
| 77259-50070 |
UCF30 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-50030 |
UCF30 |
1 | ||
| 77229-21010 |
UCF30 |
1 | ||
| 77281-50030 |
UCF30 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-50040 |
UCF30 |
1 | ||
| 77290-50040 |
UCF30 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-50040 |
UCF30 |
1 | ||
| 77293-50040 |
UCF30 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52040 |
UCF30 |
1 | ||
| 77300-50010 |
UCF30 |
1 | ||
| 77300-50010 |
UCF30 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
UCF30 |
1 | ||
| 77316-52020 |
UCF30 |
1 | ||
| 77316-16010 |
UCF30 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-50040 |
UCF30 |
1 | ||
| 77350-50040 |
UCF30 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-48010 |
UCF30 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30070 |
UCF30 |
1 | ||
| 77360-30080 |
UCF30 |
1 | ||
| 77360-30080 |
UCF30 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22060 |
UCF30 |
1 | ||
| 77377-22060 |
UCF30 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-30020 |
UCF30 |
1 | ||
| 77391-30020 |
UCF30 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-50020 |
UCF30 |
1 | ||
| 77404-50040 |
UCF30 |
1 | ||
| 77404-50020 |
UCF30 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-50011 |
UCF30 |
2 | ||
| 77601-50010 |
UCF30 |
2 | ||
| 77601-50010 |
UCF30 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-50011 |
UCF30 |
2 | ||
| 77601-50010 |
UCF30 |
2 | ||
| 77601-50010 |
UCF30 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-50040 |
UCF30 |
1 | ||
| 77606-50040 |
UCF30 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
UCF30 NO.1:REFER TO ILLUSTRATION |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER TO ILLUSTRATION |
3 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
UCF30 NO.1:REFER TO ILLUSTRATION |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER TO ILLUSTRATION |
3 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
UCF30 NO.1:REFER TO ILLUSTRATION |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-20090 |
UCF30 NO.1:REFER ILLUST. |
6 | ||
| 77651-50030 |
UCF30 NO.2:REFER TO ILLUSTRATION |
2 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER ILLUST. |
3 | ||
| 77652-50030 |
UCF30 NO.3:REFER TO ILLUSTRATION |
3 | ||
| 77651-50030 |
UCF30 NO.2:REFER ILLUST. |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
UCF30 |
2 | ||
| 77681-32060 |
UCF30 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
UCF30 |
2 | ||
| 77681-32060 |
UCF30 |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
UCF30 |
1 | ||
| 77785-52020 |
UCF30 |
1 | ||
| Common parts | ||||
| 90119-10814 | ||||
| 90159-50269 | ||||
| 90159-50343 | ||||
| 90179-06159 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05137 | ||||
| 90269-06017 | ||||
| 90460-37003 | ||||
| 91621-B0816 | ||||
| 91626-B0614 | ||||
| 94151-80641 | ||||
ILLUST NO. 2 OF 2(0507- )
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-50080 |
UCF30 |
1 | ||
| 77251-50080 |
UCF30 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-50050 |
UCF30 |
1 | ||
| 77261-50070 |
UCF30 |
1 | ||
| 77261-50050 |
UCF30 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-50040 |
UCF30 |
1 | ||
| 77266-50040 |
UCF30 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-50050 |
UCF30 |
1 | ||
| 77267-50050 |
UCF30 |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77289-50020 |
UCF30 TYPE D:REFER TO ILLUSTRATION |
3 | ||
| 77289-50030 |
UCF30 TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 77298-30140 |
UCF30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-50020 |
UCF30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-30140 |
UCF30 TYPE B:REFER ILLUST. |
1 | ||
| 77285-50030 |
UCF30 TYPE E:REFER ILLUST. |
2 | ||
| 77285-50030 |
UCF30 TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 77298-50020 |
UCF30 TYPE A:REFER ILLUST. |
1 | ||
| 77289-50030 |
UCF30 TYPE C:REFER ILLUST. |
2 | ||
| 77289-50020 |
UCF30 TYPE D:REFER ILLUST. |
3 | ||
| 77286-30120 |
UCF30 TYPE F:REFER ILLUST. |
1 | ||
| 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER | ||||
| 77706-50010 |
UCF30 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-50090 |
UCF30 |
1 | ||
| 77740-50092 |
UCF30 |
1 | ||
| 77740-50110 |
UCF30 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-50020 |
UCF30 |
1 | ||
| 77759-48020 |
UCF30 L=180 |
1 | ||
| 77759-48020 |
UCF30 L=180 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06219 | ||||
| 90467-14053 | ||||
| 90467-15012 | ||||
| 90561-13003 | ||||
| 91626-A0630 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
