UCF30L-AETGKA (2003)
Toyota Lexus Ls430
Production
Jul 2003
-
Aug 2006
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )

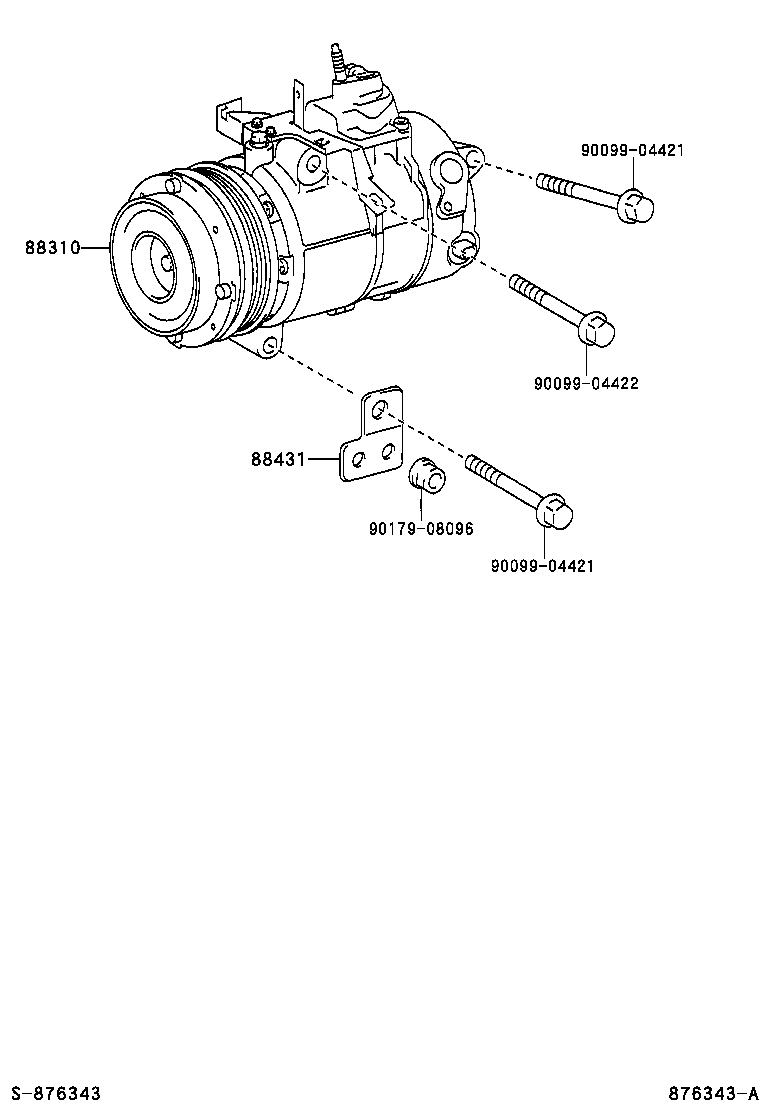

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310 - COMPRESSOR ASSY, W/PULLEY | ||||
| 88310-50150 |
UCF30 |
1 | ||
| 88310-50152 |
UCF30 |
1 | ||
| 88310-50151 |
UCF30 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88433-50010 |
UCF30 |
1 | ||
| 88433-50010 |
UCF30 |
1 | ||
| Common parts | ||||
| 90099-04421 | ||||
| 90099-04422 | ||||
| 90179-08096 | ||||
