UCF30L-AETGKA (2003)
Toyota Lexus Ls430

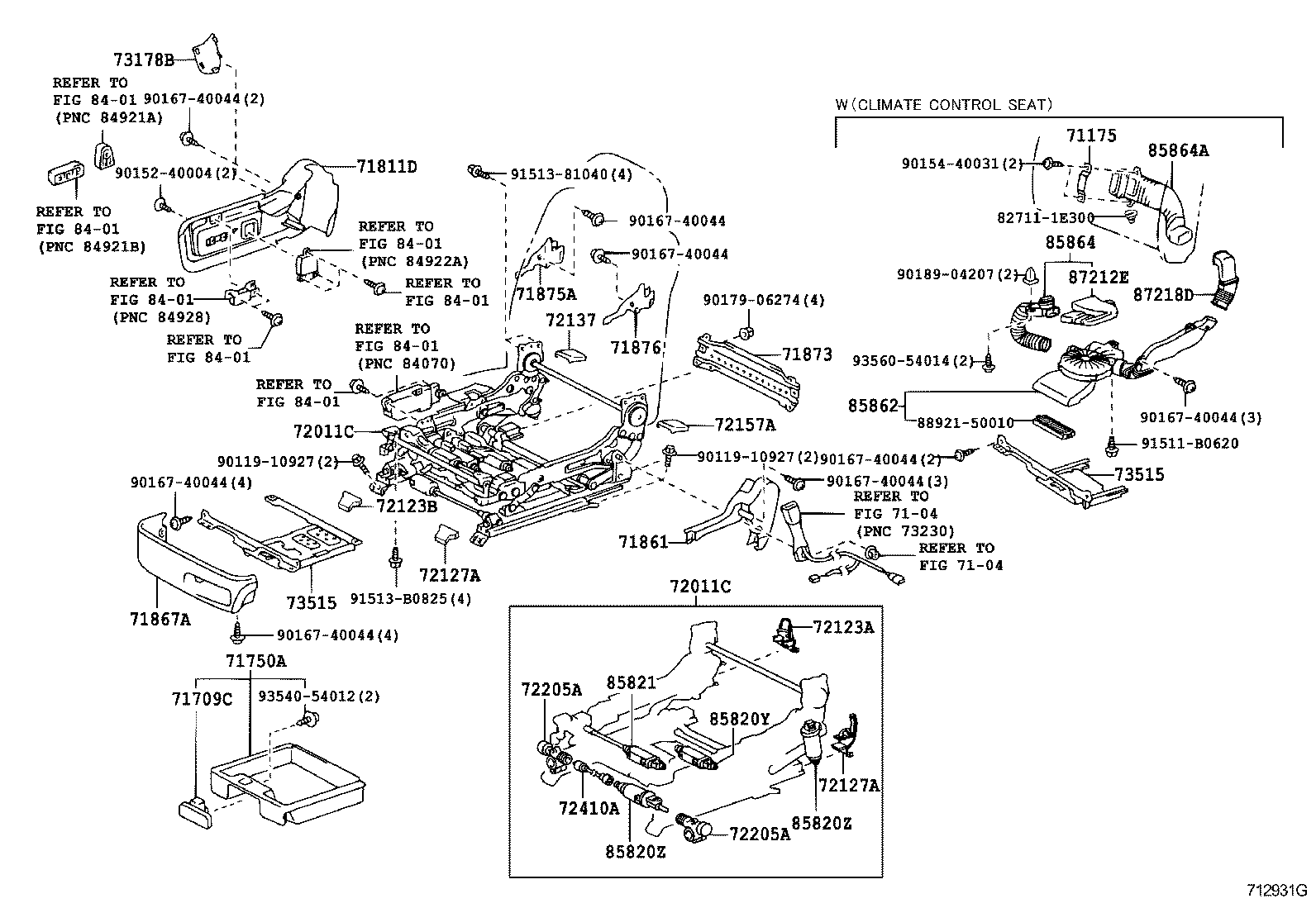

ILLUST NO. 2 OF 2(0307- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71175 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE RH | ||||
| 71175-50010 |
UCF30 |
1 | ||
| 71175-50010 |
UCF30 |
1 | ||
| 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 71709-50020 |
UCF30 |
1 | ||
| 71709-50020 |
UCF30 |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-50020 |
UCF30 |
1 | ||
| 71750-50020 |
UCF30 |
1 | ||
| 71750-50040 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 71750-50040 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-50090A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71811-50090A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71811-50091A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71811-50090B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-50090C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71811-50091C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71811-50091B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71811-50091A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-50010A2 |
UCF30 W(CLIMATE CONTROL SEAT),IVORY,TRIM04 |
1 | ||
| 71861-50010C1 |
UCF30 W(CLIMATE CONTROL SEAT),BLACK,TRIM20,27,29 |
1 | ||
| 71861-50010A3 |
UCF30 W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05 |
1 | ||
| 71861-50020B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-50020A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71861-50020C1 |
UCF30 BLACK,TRIM2# |
1 | ||
| 71861-50020A3 |
UCF30..USA ECRU,TRIM03 |
1 | ||
| 71861-50021C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71861-50011B2 |
UCF30 W(CLIMATE CONTROL SEAT),NEW GRAY,TRIM1# |
1 | ||
| 71861-50011A3 |
UCF30 W(CLIMATE CONTROL SEAT),ECRU,TRIM00,08 |
1 | ||
| 71861-50021A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71861-50021B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71861-50011A4 |
UCF30 W(CLIMATE CONTROL SEAT),NEW IVORY,TRIM07 |
1 | ||
| 71861-50010B1 |
UCF30 W(CLIMATE CONTROL SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-50011C1 |
UCF30 W(CLIMATE CONTROL SEAT),BLACK,TRIM21,24,25 |
1 | ||
| 71861-50021A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-50030B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71867-50030C1 |
UCF30 BLACK,TRIM20,21,22,24,25 |
1 | ||
| 71867-50030A4 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 71867-50030A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71867-50030A3 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 71867-50030A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71867-50030B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71867-50030C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-50010 |
UCF30 |
1 | ||
| 71873-50020 |
UCF30 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-50010A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71875-50010B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-50010A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71875-50010C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71875-50011B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71875-50011A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71875-50011C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71875-50011A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-50010A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71876-50010B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-50010A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71876-50010C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71876-50011B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71876-50011C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71876-50011A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71876-50011A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-50010 |
UCF30 |
1 | ||
| 72010-50070 |
UCF30 |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-50010 |
UCF30 |
1 | ||
| 72010-50070 |
UCF30 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-50010 |
UCF30 |
1 | ||
| 72123-50010 |
UCF30 |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72127-50020B0 |
UCF30 MD.CHARCOAL,TRIM1# |
2 | ||
| 72127-50020A1 |
UCF30 ECRU,TRIM03,05 |
2 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM20,27,29 |
2 | ||
| 72127-50020A2 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72127-50020B1 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72127-50020A1 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72127-50020A0 |
UCF30 IVORY,TRIM04 |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-50020A1 |
UCF30 ECRU,TRIM03,05 |
2 | ||
| 72127-50020B1 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72127-50020A1 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM20,27,29 |
2 | ||
| 72127-50020A0 |
UCF30 IVORY,TRIM04 |
2 | ||
| 72127-50030 |
UCF30 |
1 | ||
| 72127-50030 |
UCF30 |
1 | ||
| 72127-50020B0 |
UCF30 MD.CHARCOAL,TRIM1# |
2 | ||
| 72127-50020A2 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-50020A1 |
UCF30 ECRU,TRIM03,05 |
2 | ||
| 72127-50020B1 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72127-50020A1 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM20,27,29 |
2 | ||
| 72127-50020A0 |
UCF30 IVORY,TRIM04 |
2 | ||
| 72127-50030 |
UCF30 |
1 | ||
| 72127-50030 |
UCF30 |
1 | ||
| 72127-50020B0 |
UCF30 MD.CHARCOAL,TRIM1# |
2 | ||
| 72127-50020A2 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-50030A2 |
UCF30 IVORY,TRIM04 |
2 | ||
| 72137-50030C1 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72137-50030A3 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72137-50030A3 |
UCF30 ECRU,TRIM03,05 |
2 | ||
| 72137-50030B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72137-50030A4 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72137-50030B1 |
UCF30 MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-50030C1 |
UCF30 BLACK,TRIM20,27,29 |
2 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-50030B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72137-50030A4 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72137-50030A3 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72137-50030C1 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-50050 |
UCF30 |
2 | ||
| 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-50050 |
UCF30 |
2 | ||
| 72410A - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.1 | ||||
| 72410-50010 |
UCF30 |
2 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-50020A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 73178-50020A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 73178-50020C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 73178-50020A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 73178-50020B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 73178-50020A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 73178-50020C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 73178-50020B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-50020 |
UCF30 |
1 | ||
| 73507-50030 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 73507-50020 |
UCF30 |
1 | ||
| 73507-50030 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-50020 |
UCF30 |
1 | ||
| 73507-50030 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 73507-50020 |
UCF30 |
1 | ||
| 73507-50030 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
UCF30 |
2 | ||
| 85820-30710 |
UCF30 |
2 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85820-50320 |
UCF30 |
4 | ||
| 85820-50320 |
UCF30 |
4 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85820-50320 |
UCF30 |
4 | ||
| 85820-50320 |
UCF30 |
4 | ||
| 85821 - MOTOR ASSY, POWER SEAT | ||||
| 85820-50450 |
UCF30 |
3 | ||
| 85820-50450 |
UCF30 |
3 | ||
| 85862 - BLOWER, SEAT CLIMATE CONTROL, RH | ||||
| 85862-50040 |
UCF30 |
1 | ||
| 85862-50010 |
UCF30 |
1 | ||
| 85864 - CONTROLLER, SEAT CLIMATE CONTROL,RH | ||||
| 85864-50010 |
UCF30 |
1 | ||
| 85864-50010 |
UCF30 |
1 | ||
| 85864A - CONTROLLER, SEAT CLIMATE CONTROL, RH | ||||
| 85864-50020 |
UCF30 |
1 | ||
| 85864-50020 |
UCF30 |
1 | ||
| 87212E - DUCT, AIR, REAR RH | ||||
| 87212-50040 |
UCF30 |
1 | ||
| 87218D - DUCT, AIR, RR NO.6 | ||||
| 87218-50020 |
UCF30 |
1 | ||
| 87218-50020 |
UCF30 |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 88921-50010 | ||||
| 90119-10927 | ||||
| 90152-40004 | ||||
| 90154-40031 | ||||
| 90167-40044 | ||||
| 90179-06274 | ||||
| 90189-04207 | ||||
| 91511-B0620 | ||||
| 91513-81040 | ||||
| 91513-B0825 | ||||
| 93540-54012 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||

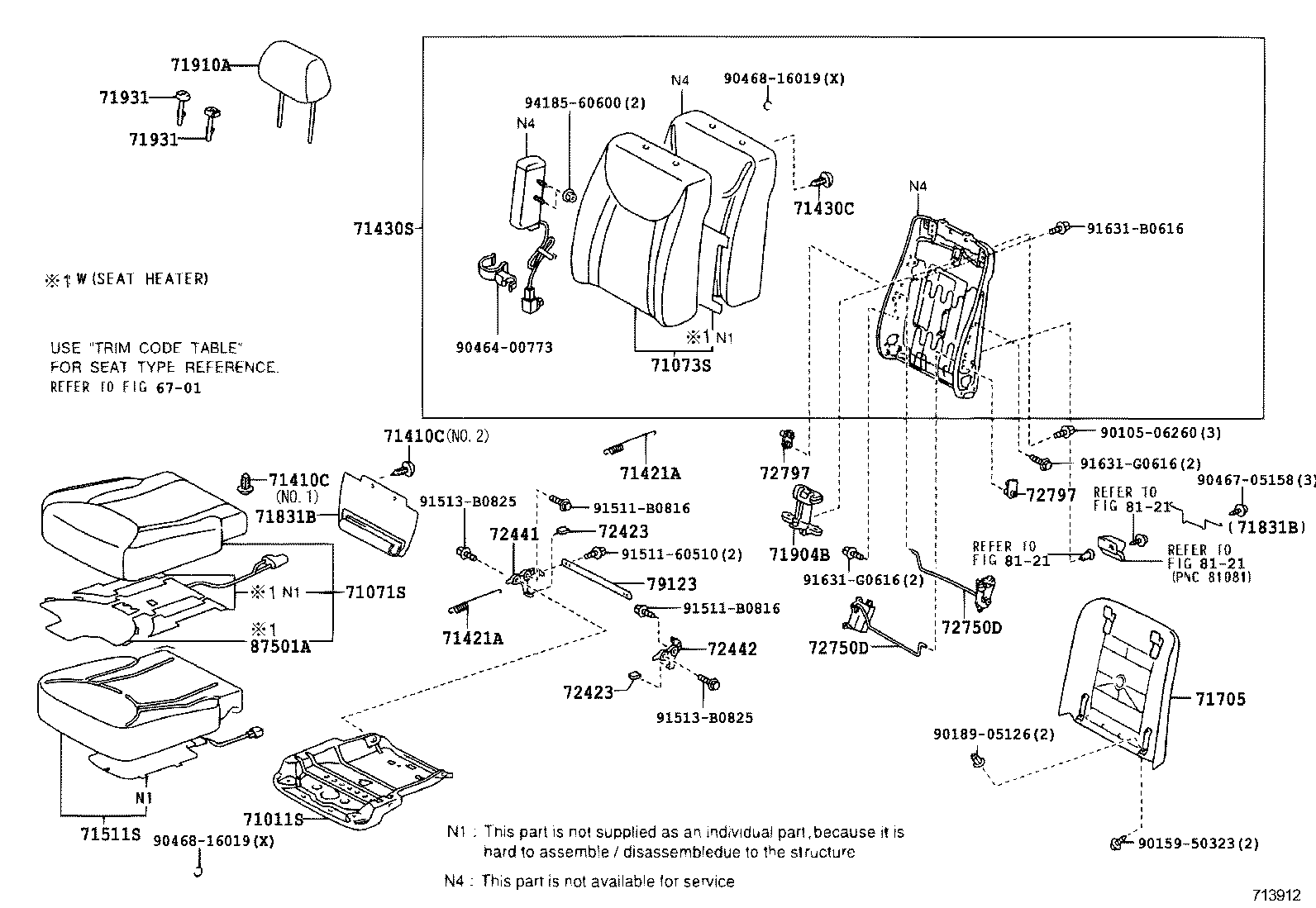

ILLUST NO. 1 OF 2(0307- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-50070 |
UCF30 |
1 | ||
| 71011-50070 |
UCF30 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-50310A1 |
UCF30..USA SEAT = TYPE C-*104,IVORY,TRIM04 |
1 | ||
| 71071-50310A0 |
UCF30..USA SEAT = TYPE C-*104,ECRU,TRIM03 |
1 | ||
| 71071-50420C3 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71071-50340A0 |
UCF30..USA SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03 |
1 | ||
| 71071-50310B0 |
UCF30..USA SEAT = TYPE C-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-50340A1 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04 |
1 | ||
| 71071-50370C1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71071-50310C0 |
UCF30..USA SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71071-50370A3 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04 |
1 | ||
| 71071-50340C0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71071-50380E0 |
UCF30 SEAT = TYPE A-*104,SADDLE TAN,TRIM2# |
1 | ||
| 71071-50400C1 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71071-50430A0 |
UCF30..USA SEAT = TYPE A-*104,NEW IVORY,TRIM01,07 |
1 | ||
| 71071-50470C0 |
UCF30..USA SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71071-50430A1 |
UCF30..USA SEAT = TYPE A-*104,ECRU,TRIM00 |
1 | ||
| 71071-50370A2 |
UCF30 SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05 |
1 | ||
| 71071-50400C1 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM20,29 |
1 | ||
| 71071-50430B0 |
UCF30..USA SEAT = TYPE A-*104,NEW GRAY,TRIM1# |
1 | ||
| 71071-50440C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71071-50440A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00 |
1 | ||
| 71071-50430C0 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71071-50440A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),NEW IVORY,TRIM01,07 |
1 | ||
| 71071-50460E0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),SADDLE TAN,TRIM2# |
1 | ||
| 71071-50480A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00,08 |
1 | ||
| 71071-50480A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM07 |
1 | ||
| 71071-50390B1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),CHARCOAL,TRIM1# |
1 | ||
| 71071-50400D0 |
UCF30 SEAT = TYPE A-*104,BORDEAUX,TRIM27 |
1 | ||
| 71071-50360B0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),CHARCOAL,TRIM1# |
1 | ||
| 71071-50461E0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),SADDLE TAN,TRIM2# |
1 | ||
| 71071-50381E0 |
UCF30 SEAT = TYPE A-*104,SADDLE TAN,TRIM2# |
1 | ||
| 71071-50450A1 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM00,02,08 |
1 | ||
| 71071-50471C0 |
UCF30..USA SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71071-50450A0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW IVORY,TRIM01,07 |
1 | ||
| 71071-50401C1 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71071-50450B0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW GRAY,TRIM1# |
1 | ||
| 71071-50490B0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),GRAY,TRIM1# |
1 | ||
| 71071-50490B0 |
UCF30..USA GRAY,TRIM1# |
1 | ||
| 71071-50480C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71071-50450C0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71071-50360B1 |
UCF30..USA SEAT = TYPE A-*104 & W(SEAT HEATER),NEW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-50730C0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-50730B0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),CHARCOAL,TRIM1# |
1 | ||
| 71073-50780A3 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04 |
1 | ||
| 71073-50720A0 |
UCF30..USA SEAT = TYPE C-*104,ECRU,TRIM03 |
1 | ||
| 71073-50830C2 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-50720B0 |
UCF30..USA SEAT = TYPE C-*104,CHARCOAL,TRIM10 |
1 | ||
| 71073-50780B1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),CHARCOAL,TRIM1# |
1 | ||
| 71073-50730A0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03 |
1 | ||
| 71073-50730A1 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04 |
1 | ||
| 71073-50740C1 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM20,29 |
1 | ||
| 71073-50720C0 |
UCF30..USA SEAT = TYPE C-*104,BLACK,TRIM24 |
1 | ||
| 71073-50780A2 |
UCF30 SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05 |
1 | ||
| 71073-50740D0 |
UCF30 SEAT = TYPE A-*104,BORDEAUX,TRIM27 |
1 | ||
| 71073-50B30C0 |
UCF30..USA SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-50A20A1 |
UCF30..USA SEAT = TYPE A-*104,ECRU,TRIM00 |
1 | ||
| 71073-50A40C0 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71073-50780C1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71073-50B40E0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71073-50A20B0 |
UCF30..USA SEAT = TYPE A-*104,NEW GRAY,TRIM1# |
1 | ||
| 71073-50A20A0 |
UCF30..USA SEAT = TYPE A-*104,NEW IVORY,TRIM07 |
1 | ||
| 71073-50720A1 |
UCF30..USA SEAT = TYPE C-*104,IVORY,TRIM04 |
1 | ||
| 71073-50A90A1 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM00,08 |
1 | ||
| 71073-50A30B0 |
UCF30 SEAT = TYPE B-*104 & W(SEAT HEATER),NEW GRAY,TRIM1# |
1 | ||
| 71073-50B10A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),ECRU,TRIM00,08 |
1 | ||
| 71073-50A50E0 |
UCF30 SEAT = TYPE A-*104,SADDLE TAN,TRIM2# |
1 | ||
| 71073-50A90A0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW IVORY,TRIM07 |
1 | ||
| 71073-50A90C0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71073-50A30A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00 |
1 | ||
| 71073-50A30C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-50A30A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),NEW IVORY,TRIM07 |
1 | ||
| 71073-50A20C0 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-50B10C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71073-50B10B0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),GRAY,TRIM1# |
1 | ||
| 71073-50A51E0 |
UCF30 SEAT = TYPE A-*104,SADDLE TAN,TRIM2# |
1 | ||
| 71073-50B10A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),IVORY,TRIM07 |
1 | ||
| 71073-50A90B0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW GRAY,TRIM1# |
1 | ||
| 71073-50A41C0 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71073-50B31C0 |
UCF30..USA SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-50B41E0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25,NO.1 |
10 | ||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25,NO.1 |
10 | ||
| 90467-08056C0 |
UCF30 BLACK,TRIM03,04,05,1#,20,27&062 ,066 ,1C0 ,202 ,3P2 ,3P4 ,4P7 ,6S5 ,6S6 ,8P8,NO.2 |
4 | ||
| 90467-08056C0 |
UCF30 BLACK,TRIM00,07,08,1#,21,24,25,NO.2 |
4 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25,NO.1 |
10 | ||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25,NO.1 |
10 | ||
| 90467-08056C0 |
UCF30 BLACK,TRIM03,04,05,1#,20,27&062 ,066 ,1C0 ,202 ,3P2 ,3P4 ,4P7 ,6S5 ,6S6 ,8P8,NO.2 |
4 | ||
| 90467-08056C0 |
UCF30 BLACK,TRIM00,07,08,1#,21,24,25,NO.2 |
4 | ||
| 71421A - SPRING, FRONT SEAT CUSHION | ||||
| 71421-50030 |
UCF30 |
2 | ||
| 71421-50030 |
UCF30 |
2 | ||
| 71421A - SPRING, FRONT SEAT CUSHION | ||||
| 71421-50030 |
UCF30 |
2 | ||
| 71421-50030 |
UCF30 |
2 | ||
| 71430C - CLIP | ||||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25 |
8 | ||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25 |
8 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-5A160A2 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04 |
1 | ||
| 71430-5A160A1 |
UCF30..USA SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03 |
1 | ||
| 71430-5A280C2 |
UCF30..USA SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-5A160B0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),MD. CHARCOL,TRIM1# |
1 | ||
| 71430-5A090C2 |
UCF30..USA W(CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK/BLACK,TRIM20,29 |
1 | ||
| 71430-5A030A0 |
UCF30..USA SEAT = TYPE C-*104,ECRU,TRIM03 |
1 | ||
| 71430-5A160C0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-5A180A3 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04 |
1 | ||
| 71430-5A030C0 |
UCF30..USA SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71430-5A180A2 |
UCF30 W(CLIMATE CONTROL SEAT) & SEAT = TYPE B OR C-*104,ECRU,TRIM03,05 |
1 | ||
| 71430-5A090C1 |
UCF30 W(CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK/BORDEAUX,TRIM27 |
1 | ||
| 71430-5A030B0 |
UCF30..USA SEAT = TYPE C-*104,MD. CHARCOL,TRIM1# |
1 | ||
| 71430-5A030A1 |
UCF30..USA SEAT = TYPE C-*104,IVORY,TRIM04 |
1 | ||
| 71430-50C20C2 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2# |
1 | ||
| 71430-50A80B0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71430-50B00C0 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,BLACK,TRIM2# |
1 | ||
| 71430-50A80A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00 |
1 | ||
| 71430-5A180C1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71430-50C10C2 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2# |
1 | ||
| 71430-50A90A1 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM01,07 |
1 | ||
| 71430-5A180B1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),MD. CHARCOL,TRIM1# |
1 | ||
| 71430-50B10B0 |
UCF30..USA SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71430-50B80C0 |
UCF30..USA SEAT = TYPE B-*104,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-50B60A2 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),ECRU,TRIM00,08 |
1 | ||
| 71430-50B10A0 |
UCF30..USA SEAT = TYPE A-*104,ECRU,TRIM00 |
1 | ||
| 71430-50B60A3 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),IVORY,TRIM07 |
1 | ||
| 71430-50B10A1 |
UCF30..USA SEAT = TYPE A-*104,IVORY,TRIM01,07 |
1 | ||
| 71430-50A90B0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),GRAY,TRIM1# |
1 | ||
| 71430-50A80C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-50A90A0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM00,02,08 |
1 | ||
| 71430-50B81C0 |
UCF30..USA SEAT = TYPE B-*104,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-50A90C0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71430-50C11C1 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2# |
1 | ||
| 71430-50B10C0 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM20,24 |
1 | ||
| 71430-50B01C0 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,BLACK,TRIM2# |
1 | ||
| 71430-50A80A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM07 |
1 | ||
| 71430-50C21C1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2# |
1 | ||
| 71430-50B60B1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),GRAY,TRIM1# |
1 | ||
| 71430-50B60C1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-50140 |
UCF30 |
1 | ||
| 71511-50160 |
UCF30 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-50200A7 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71705-50200E0 |
UCF30 SADDLE TAN,TRIM25 |
1 | ||
| 71705-50200A6 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71705-50200D2 |
UCF30 BORDEAUX,TRIM27 |
1 | ||
| 71705-50200C5 |
UCF30 BLACK,TRIM20,29 |
1 | ||
| 71705-50200B3 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-50200B4 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71705-50200 |
UCF30..USA |
1 | ||
| 71705-50200C5 |
UCF30 BLACK,TRIM21,24 |
1 | ||
| 71705-50200A7 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71705-50200A8 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-50030A0 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71831-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 71831-50030C0 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71831-50020A0 |
UCF30 ECRU,TRIM03 |
1 | ||
| 71831-50030A1 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71831-50020A1 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71831-50030B0 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71831-50020B0 |
UCF30 CHARCOAL,TRIM11 |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-50030A0 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71831-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 71831-50030C0 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71831-50020A0 |
UCF30 ECRU,TRIM03 |
1 | ||
| 71831-50030A1 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71831-50020A1 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71831-50030B0 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71831-50020B0 |
UCF30 CHARCOAL,TRIM11 |
1 | ||
| 71904B - ADJUSTER SUB-ASSY, FRONT SEAT HEADREST | ||||
| 71904-50100 |
UCF30 DRIVER |
1 | ||
| 71904-50100 |
UCF30 LH |
1 | ||
| 71904-50110 |
UCF30 PASSENGER |
1 | ||
| 71904-50110 |
UCF30 RH |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50330A0 |
UCF30 ECRU,TRIM03,05 |
2 | ||
| 71910-50450C1 |
UCF30..USA BLACK,TRIM20,29 |
2 | ||
| 71910-50330A1 |
UCF30 IVORY,TRIM04 |
2 | ||
| 71910-50450C2 |
UCF30 BLACK/BORDEAUX,TRIM27 |
2 | ||
| 71910-50330C0 |
UCF30 BLACK,TRIM2# |
2 | ||
| 71910-50470B0 |
UCF30 MD. CHARCOL,TRIM1# |
2 | ||
| 71910-50550A0 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71910-50440C2 |
UCF30 BLACK,SADDLE TAN,TRIM2# |
2 | ||
| 71910-50550A1 |
UCF30 IVORY,TRIM07 |
1 | ||
| 71910-50550A0 |
UCF30 ECRU,TRIM00,08 |
2 | ||
| 71910-50550B0 |
UCF30 GRAY,TRIM1# |
1 | ||
| 71910-50450C1 |
UCF30 BLACK,TRIM21 |
2 | ||
| 71910-50550C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 71910-50550C0 |
UCF30 BLACK,TRIM20,24 |
2 | ||
| 71910-50550A1 |
UCF30 IVORY,TRIM07 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50030C0 |
UCF30 W/O(LOCK),BLACK,TRIM20,27,29 |
4 | ||
| 71931-50030A1 |
UCF30 W/O(LOCK),ECRU,TRIM00,08 |
4 | ||
| 71931-50030A2 |
UCF30 W/O(LOCK),NEW IVORY,TRIM07 |
4 | ||
| 71931-50030B1 |
UCF30 W/O(LOCK),NEW GRAY,TRIM1# |
4 | ||
| 71931-50030A0 |
UCF30 W/O(LOCK),IVORY,TRIM04 |
4 | ||
| 71931-50030C0 |
UCF30 W/O(LOCK),BLACK,TRIM21,24,25 |
4 | ||
| 71931-50030B0 |
UCF30 W/O(LOCK),MD.CHARCOAL,TRIM1# |
4 | ||
| 71931-50030A1 |
UCF30 W/O(LOCK),ECRU,TRIM03,05 |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50030C0 |
UCF30 W/O(LOCK),BLACK,TRIM20,27,29 |
4 | ||
| 71931-50030A1 |
UCF30 W/O(LOCK),ECRU,TRIM00,08 |
4 | ||
| 71931-50030A2 |
UCF30 W/O(LOCK),NEW IVORY,TRIM07 |
4 | ||
| 71931-50030B1 |
UCF30 W/O(LOCK),NEW GRAY,TRIM1# |
4 | ||
| 71931-50030A0 |
UCF30 W/O(LOCK),IVORY,TRIM04 |
4 | ||
| 71931-50030C0 |
UCF30 W/O(LOCK),BLACK,TRIM21,24,25 |
4 | ||
| 71931-50030B0 |
UCF30 W/O(LOCK),MD.CHARCOAL,TRIM1# |
4 | ||
| 71931-50030A1 |
UCF30 W/O(LOCK),ECRU,TRIM03,05 |
4 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UCF30 |
2 | ||
| 72423-50010 |
UCF30 |
2 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UCF30 |
2 | ||
| 72423-50010 |
UCF30 |
2 | ||
| 72441 - LINK, VERTICAL TRAVEL | ||||
| 72441-50020 |
UCF30 |
1 | ||
| 72441-50020 |
UCF30 |
1 | ||
| 72442 - LINK, FRONT SEAT TRAVEL, NO.2 | ||||
| 72442-50020 |
UCF30 |
1 | ||
| 72442-50020 |
UCF30 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50050 |
UCF30 |
1 | ||
| 72750-50050 |
UCF30 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50050 |
UCF30 |
1 | ||
| 72750-50050 |
UCF30 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50020 |
UCF30 |
1 | ||
| 72797-50020 |
UCF30 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50020 |
UCF30 |
1 | ||
| 72797-50020 |
UCF30 |
1 | ||
| 79123 - PLATE, NO.1 SEAT CUSHION | ||||
| 79123-50010 |
UCF30 |
1 | ||
| 79123-50010 |
UCF30 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-50010 |
UCF30 |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90159-50323 | ||||
| 90189-05126 | ||||
| 90464-00773 | ||||
| 90467-05158 | ||||
| 90468-16019 | ||||
| 91511-60510 | ||||
| 91511-B0816 | ||||
| 91513-B0825 | ||||
| 91631-B0616 | ||||
| 91631-G0616 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 8121 | ||||
ILLUST NO. 1 OF 2(0307- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-50070 |
UCF30 |
1 | ||
| 71012-50070 |
UCF30 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-50310A1 |
UCF30..USA SEAT = TYPE C-*104,IVORY,TRIM04 |
1 | ||
| 71072-50410C3 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072-50310A0 |
UCF30..USA SEAT = TYPE C-*104,ECRU,TRIM03 |
1 | ||
| 71072-50340C0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71072-50310C0 |
UCF30..USA SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71072-50310B0 |
UCF30..USA SEAT = TYPE C-*104,CHARCOAL,TRIM1# |
1 | ||
| 71072-50340A1 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04 |
1 | ||
| 71072-50400D0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BORDEAUX,TRIM27 |
1 | ||
| 71072-50370C1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71072-50380E0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71072-50400C1 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71072-50370A2 |
UCF30 SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05 |
1 | ||
| 71072-50390B1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),CHARCOAL,TRIM1# |
1 | ||
| 71072-50470C0 |
UCF30..USA SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71072-50390B2 |
UCF30 SEAT = TYPE A-*104 & W(FRONT CLIMATE CONTROL SEAT & SEAT HEATER),NEW GRAY,TRIM1# |
1 | ||
| 71072-50400C1 |
UCF30..USA SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM20,29 |
1 | ||
| 71072-50370A3 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04 |
1 | ||
| 71072-50480E0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71072-50340A0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03 |
1 | ||
| 71072-50450A0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW IVORY,TRIM0# |
1 | ||
| 71072-50450C0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71072-50440C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71072-50360B0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),CHARCOAL,TRIM1# |
1 | ||
| 71072-50440A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00 |
1 | ||
| 71072-50401C1 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71072-50430A0 |
UCF30..USA SEAT = TYPE A-*104,NEW IVORY,TRIM0# |
1 | ||
| 71072-50460A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),IVORY,TRIM07 |
1 | ||
| 71072-50430C0 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072-50430A1 |
UCF30..USA SEAT = TYPE A-*104,ECRU,TRIM00 |
1 | ||
| 71072-50360B2 |
UCF30..USA SEAT = TYPE A-*104 & W(SEAT HEATER),NEW GRAY,TRIM1# |
1 | ||
| 71072-50450A1 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM0# |
1 | ||
| 71072-50440A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),NEW IVORY,TRIM0# |
1 | ||
| 71072-50471C0 |
UCF30..USA SEAT = TYPE B-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71072-50481E0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71072-50460C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71072-50490B0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-50381E0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71072-50430B0 |
UCF30..USA SEAT = TYPE A-*104,NEW GRAY,TRIM1# |
1 | ||
| 71072-50460A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),ECRU,TRIM00,08 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-50650C2 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074-50470A0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03 |
1 | ||
| 71074-50470A1 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04 |
1 | ||
| 71074-50440A1 |
UCF30..USA SEAT = TYPE C-*104,IVORY,TRIM04 |
1 | ||
| 71074-50440B0 |
UCF30..USA SEAT = TYPE C-*104,CHARCOAL,TRIM1# |
1 | ||
| 71074-50440A0 |
UCF30..USA SEAT = TYPE C-*104,ECRU,TRIM03 |
1 | ||
| 71074-50470B0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),CHARCOAL,TRIM1# |
1 | ||
| 71074-50520A3 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04 |
1 | ||
| 71074-50470C0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71074-50520C1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71074-50560C1 |
UCF30..USA SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM20,29 |
1 | ||
| 71074-50560D0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BORDEAUX,TRIM27 |
1 | ||
| 71074-50520A2 |
UCF30 SEAT = TYPE B OR TYPE C-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05 |
1 | ||
| 71074-50820C0 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71074-50760E0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71074-50850C0 |
UCF30..USA SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-50520B1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),CHARCOAL,TRIM1# |
1 | ||
| 71074-50440C0 |
UCF30..USA SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71074-50860E0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71074-50860B0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),NEW GRAY,TRIM1# |
1 | ||
| 71074-50720C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71074-50860C1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM24 |
1 | ||
| 71074-50750B0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW GRAY,TRIM1# |
1 | ||
| 71074-50720A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00 |
1 | ||
| 71074-50840B0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),GRAY,TRIM1# |
1 | ||
| 71074-50720B0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),NEW GRAY,TRIM1# |
1 | ||
| 71074-50840A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),ECRU,TRIM00,08 |
1 | ||
| 71074-50840A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),IVORY,TRIM07 |
1 | ||
| 71074-50761E0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71074-50700B0 |
UCF30..USA SEAT = TYPE A-*104,NEW GRAY,TRIM1# |
1 | ||
| 71074-50700C0 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074-50700A1 |
UCF30..USA SEAT = TYPE A-*104,ECRU,TRIM00 |
1 | ||
| 71074-50840C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71074-50750C0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71074-50720A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),NEW IVORY,TRIM07 |
1 | ||
| 71074-50861E0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER & REAR CLIMATE CONTROL SEAT),SADDLE TAN,TRIM2# |
1 | ||
| 71074-50821C0 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71074-50851C0 |
UCF30..USA SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-50750A1 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM00,08 |
1 | ||
| 71074-50750A0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),NEW IVORY,TRIM07 |
1 | ||
| 71074-50700A0 |
UCF30..USA SEAT = TYPE A-*104,NEW IVORY,TRIM07 |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25,NO.1 |
10 | ||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25,NO.1 |
10 | ||
| 90467-08056C0 |
UCF30 BLACK,TRIM03,04,05,1#,20,27&062 ,066 ,1C0 ,202 ,3P2 ,3P4 ,4P7 ,6S5 ,6S6 ,8P8,NO.2 |
4 | ||
| 90467-08056C0 |
UCF30 BLACK,TRIM00,07,08,1#,21,24,25,NO.2 |
4 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25,NO.1 |
10 | ||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25,NO.1 |
10 | ||
| 90467-08056C0 |
UCF30 BLACK,TRIM03,04,05,1#,20,27&062 ,066 ,1C0 ,202 ,3P2 ,3P4 ,4P7 ,6S5 ,6S6 ,8P8,NO.2 |
4 | ||
| 90467-08056C0 |
UCF30 BLACK,TRIM00,07,08,1#,21,24,25,NO.2 |
4 | ||
| 71421B - SPRING, FRONT SEAT CUSHION | ||||
| 71421-50030 |
UCF30 |
2 | ||
| 71421-50030 |
UCF30 |
2 | ||
| 71421B - SPRING, FRONT SEAT CUSHION | ||||
| 71421-50030 |
UCF30 |
2 | ||
| 71421-50030 |
UCF30 |
2 | ||
| 71430C - CLIP | ||||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25 |
8 | ||
| 90467-05096A0 |
UCF30 IVORY,TRIM00,07,08,1#,21,24,25 |
8 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-5A200C2 |
UCF30..USA SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71440-5A210A1 |
UCF30..USA SEAT = TYPE C-*104 & W(SEAT HEATER),ECRU,TRIM03 |
1 | ||
| 71440-5A210C0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-5A200A5 |
UCF30..USA SEAT = TYPE C-*104,IVORY,TRIM04 |
1 | ||
| 71440-5A210B0 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),MD. CHARCOL,TRIM1# |
1 | ||
| 71440-5A290C1 |
UCF30 W(CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK/BORDEAUX,TRIM27 |
1 | ||
| 71440-5A410C3 |
UCF30..USA SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-5A200B2 |
UCF30..USA SEAT = TYPE C-*104,MD. CHARCOL,TRIM1# |
1 | ||
| 71440-5A200A4 |
UCF30..USA SEAT = TYPE C-*104,ECRU,TRIM03 |
1 | ||
| 71440-5A210A2 |
UCF30 SEAT = TYPE C-*104 & W(SEAT HEATER),IVORY,TRIM04 |
1 | ||
| 71440-5A370A3 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM04 |
1 | ||
| 71440-50B00C0 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,BLACK,TRIM2# |
1 | ||
| 71440-5A370A2 |
UCF30 W(CLIMATE CONTROL SEAT) & SEAT = TYPE B OR C-*104,ECRU,TRIM03,05 |
1 | ||
| 71440-5A290C2 |
UCF30..USA W(CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK/BLACK,TRIM20,29 |
1 | ||
| 71440-50C50C2 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,SADDLE TAN,TRIM2# |
1 | ||
| 71440-50B90C0 |
UCF30..USA SEAT = TYPE B-*104,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-5A370B1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 71440-50C40C2 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2# |
1 | ||
| 71440-50A70C0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-50A70A1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71440-50A80B0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),GRAY,TRIM1# |
1 | ||
| 71440-50A80C0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71440-50A90A1 |
UCF30..USA SEAT = TYPE A-*104,IVORY,TRIM01,07 |
1 | ||
| 71440-5A370C1 |
UCF30 SEAT = TYPE C-*104 & W(CLIMATE CONTROL SEAT),BLACK,TRIM2# |
1 | ||
| 71440-50A70B0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-50B91C0 |
UCF30..USA SEAT = TYPE B-*104,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-50A80A0 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),ECRU,TRIM00,02,08 |
1 | ||
| 71440-50B80A3 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM07 |
1 | ||
| 71440-50A70A0 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00 |
1 | ||
| 71440-50B01C0 |
UCF30 SEAT = TYPE B-*104 & W(CLIMATE CONTROL SEAT),BLACK,BLACK,TRIM2# |
1 | ||
| 71440-50A90B0 |
UCF30..USA SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71440-50A90A0 |
UCF30..USA SEAT = TYPE A-*104,ECRU,TRIM00 |
1 | ||
| 71440-50C41C1 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),BLACK,SADDLE TAN,TRIM2# |
1 | ||
| 71440-50C51C1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,SADDLE TAN,TRIM2# |
1 | ||
| 71440-50A90C0 |
UCF30..USA SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71440-50B80C1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-50B80B1 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71440-50B80A2 |
UCF30 SEAT = TYPE A-*104 & W(SEAT HEATER),ECRU,TRIM00,08 |
1 | ||
| 71440-50A80A1 |
UCF30 SEAT = TYPE A-*104 & W(CLIMATE CONTROL SEAT),IVORY,TRIM01,07 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-50150 |
UCF30 |
1 | ||
| 71512-50120 |
UCF30 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-50200A6 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71705-50200A7 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71705-50200A7 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71705-50200C5 |
UCF30 BLACK,TRIM20,29 |
1 | ||
| 71705-50200B3 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-50200B4 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71705-50200 |
UCF30..USA |
1 | ||
| 71705-50200E0 |
UCF30 SADDLE TAN,TRIM25 |
1 | ||
| 71705-50200C5 |
UCF30 BLACK,TRIM21,24 |
1 | ||
| 71705-50200A8 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71705-50200D2 |
UCF30 BORDEAUX,TRIM27 |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-50030A0 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71831-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 71831-50030C0 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71831-50020A0 |
UCF30 ECRU,TRIM03 |
1 | ||
| 71831-50030A1 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71831-50020A1 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71831-50030B0 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71831-50020B0 |
UCF30 CHARCOAL,TRIM11 |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-50020B0 |
UCF30 CHARCOAL,TRIM11 |
1 | ||
| 71831-50020A0 |
UCF30 ECRU,TRIM03 |
1 | ||
| 71831-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 71831-50020A1 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71831-50030C0 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71831-50030B0 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71831-50030A1 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71831-50030A0 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71904B - ADJUSTER SUB-ASSY, FRONT SEAT HEADREST | ||||
| 71904-50100 |
UCF30 DRIVER |
1 | ||
| 71904-50100 |
UCF30 LH |
1 | ||
| 71904-50110 |
UCF30 PASSENGER |
1 | ||
| 71904-50110 |
UCF30 RH |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50330A0 |
UCF30 ECRU,TRIM03,05 |
2 | ||
| 71910-50450C1 |
UCF30..USA BLACK,TRIM20,29 |
2 | ||
| 71910-50330A1 |
UCF30 IVORY,TRIM04 |
2 | ||
| 71910-50450C2 |
UCF30 BLACK/BORDEAUX,TRIM27 |
2 | ||
| 71910-50330C0 |
UCF30 BLACK,TRIM2# |
2 | ||
| 71910-50470B0 |
UCF30 MD. CHARCOL,TRIM1# |
2 | ||
| 71910-50550A0 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71910-50440C2 |
UCF30 BLACK,SADDLE TAN,TRIM2# |
2 | ||
| 71910-50550A1 |
UCF30 IVORY,TRIM07 |
1 | ||
| 71910-50550A0 |
UCF30 ECRU,TRIM00,08 |
2 | ||
| 71910-50550B0 |
UCF30 GRAY,TRIM1# |
1 | ||
| 71910-50450C1 |
UCF30 BLACK,TRIM21 |
2 | ||
| 71910-50550C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 71910-50550C0 |
UCF30 BLACK,TRIM20,24 |
2 | ||
| 71910-50550A1 |
UCF30 IVORY,TRIM07 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50030C0 |
UCF30 W/O(LOCK),BLACK,TRIM20,27,29 |
4 | ||
| 71931-50030A1 |
UCF30 W/O(LOCK),ECRU,TRIM00,08 |
4 | ||
| 71931-50030A2 |
UCF30 W/O(LOCK),NEW IVORY,TRIM07 |
4 | ||
| 71931-50030B1 |
UCF30 W/O(LOCK),NEW GRAY,TRIM1# |
4 | ||
| 71931-50030A0 |
UCF30 W/O(LOCK),IVORY,TRIM04 |
4 | ||
| 71931-50030C0 |
UCF30 W/O(LOCK),BLACK,TRIM21,24,25 |
4 | ||
| 71931-50030B0 |
UCF30 W/O(LOCK),MD.CHARCOAL,TRIM1# |
4 | ||
| 71931-50030A1 |
UCF30 W/O(LOCK),ECRU,TRIM03,05 |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-50030C0 |
UCF30 W/O(LOCK),BLACK,TRIM20,27,29 |
4 | ||
| 71931-50030A1 |
UCF30 W/O(LOCK),ECRU,TRIM00,08 |
4 | ||
| 71931-50030A2 |
UCF30 W/O(LOCK),NEW IVORY,TRIM07 |
4 | ||
| 71931-50030B1 |
UCF30 W/O(LOCK),NEW GRAY,TRIM1# |
4 | ||
| 71931-50030A0 |
UCF30 W/O(LOCK),IVORY,TRIM04 |
4 | ||
| 71931-50030C0 |
UCF30 W/O(LOCK),BLACK,TRIM21,24,25 |
4 | ||
| 71931-50030B0 |
UCF30 W/O(LOCK),MD.CHARCOAL,TRIM1# |
4 | ||
| 71931-50030A1 |
UCF30 W/O(LOCK),ECRU,TRIM03,05 |
4 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UCF30 |
2 | ||
| 72423-50010 |
UCF30 |
2 | ||
| 72423 - HOOK, VERTICAL ADJUSTER SPRING | ||||
| 72423-50010 |
UCF30 |
2 | ||
| 72423-50010 |
UCF30 |
2 | ||
| 72441A - LINK, FRONT SEAT TRAVEL, NO.1 | ||||
| 72441-50020 |
UCF30 |
1 | ||
| 72441-50020 |
UCF30 |
1 | ||
| 72442A - LINK, FRONT SEAT TRAVEL, NO.2 | ||||
| 72442-50020 |
UCF30 |
1 | ||
| 72442-50020 |
UCF30 |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50040 |
UCF30 UPPER |
1 | ||
| 72760-50050 |
UCF30 LOWER |
1 | ||
| 72760-50040 |
UCF30 UPPER |
1 | ||
| 72760-50050 |
UCF30 LOWER |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50040 |
UCF30 UPPER |
1 | ||
| 72760-50050 |
UCF30 LOWER |
1 | ||
| 72760-50040 |
UCF30 UPPER |
1 | ||
| 72760-50050 |
UCF30 LOWER |
1 | ||
| 72797A - SPACER, LUMBAR SUPPORT | ||||
| 72797-50020 |
UCF30 |
2 | ||
| 72797-50020 |
UCF30 |
2 | ||
| 72797A - SPACER, LUMBAR SUPPORT | ||||
| 72797-50020 |
UCF30 |
2 | ||
| 72797-50020 |
UCF30 |
2 | ||
| 79123A - PLATE, NO.1 SEAT CUSHION | ||||
| 79123-50010 |
UCF30 |
1 | ||
| 79123-50010 |
UCF30 |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-50010 |
UCF30 |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90159-50323 | ||||
| 90189-05126 | ||||
| 90464-00773 | ||||
| 90467-05158 | ||||
| 90468-16019 | ||||
| 91511-60510 | ||||
| 91511-B0816 | ||||
| 91513-B0825 | ||||
| 91631-B0616 | ||||
| 91631-G0616 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 8121 | ||||
ILLUST NO. 2 OF 2(0307- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71176-50010 |
UCF30 |
1 | ||
| 71176-50010 |
UCF30 |
1 | ||
| 71709D - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 71709-50020 |
UCF30 |
1 | ||
| 71709-50020 |
UCF30 |
1 | ||
| 71750B - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-50020 |
UCF30 |
1 | ||
| 71750-50040 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 71750-50040 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 71750-50020 |
UCF30 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-50090A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71812-50090B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-50090A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71812-50091C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71812-50091B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71812-50090C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71812-50091A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71812-50091A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-50010A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71832-50010A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71832-50010C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71832-50010B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71832-50010A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71832-50010B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71832-50010A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71832-50010C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-50010A2 |
UCF30 W(CLIMATE CONTROL SEAT),IVORY,TRIM04 |
1 | ||
| 71862-50010A3 |
UCF30 W(CLIMATE CONTROL SEAT),ECRU,TRIM03,05 |
1 | ||
| 71862-50020A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71862-50010C1 |
UCF30 W(CLIMATE CONTROL SEAT),BLACK,TRIM20,27,29 |
1 | ||
| 71862-50020C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71862-50020B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-50020A3 |
UCF30..USA ECRU,TRIM03 |
1 | ||
| 71862-50010B1 |
UCF30 W(CLIMATE CONTROL SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-50011A4 |
UCF30 W(CLIMATE CONTROL SEAT),NEW IVORY,TRIM07 |
1 | ||
| 71862-50021A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71862-50011A3 |
UCF30 W(CLIMATE CONTROL SEAT),ECRU,TRIM00,08 |
1 | ||
| 71862-50021A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71862-50021B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71862-50011B2 |
UCF30 W(CLIMATE CONTROL SEAT),NEW GRAY,TRIM1# |
1 | ||
| 71862-50021C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71862-50011C1 |
UCF30 W(CLIMATE CONTROL SEAT),BLACK,TRIM21,24,25 |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-50020A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71868-50020B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71868-50020A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71868-50020A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71868-50020C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71868-50020A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71868-50020B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71868-50020C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-50010 |
UCF30 |
1 | ||
| 71873-50020 |
UCF30 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-50010A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71875-50011A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 71875-50011A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71875-50010A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71875-50010B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-50011B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71875-50010C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71875-50011C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-50010C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 71876-50010B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-50011C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 71876-50011B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 71876-50010A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 71876-50011A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 71876-50010A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 71876-50011A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-50010 |
UCF30 |
1 | ||
| 72020-50060 |
UCF30 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-50010 |
UCF30 |
1 | ||
| 72020-50060 |
UCF30 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72127-50020A1 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72123-50010 |
UCF30 |
1 | ||
| 72127-50020A2 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72123-50010 |
UCF30 |
1 | ||
| 72127-50020B1 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72127-50020A1 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72123-50010 |
UCF30 |
1 | ||
| 72127-50020A2 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72123-50010 |
UCF30 |
1 | ||
| 72127-50020B1 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-50020A1 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72127-50020A2 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72127-50020B1 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72128-50020 |
UCF30 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72128-50020 |
UCF30 |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-50020A1 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72127-50020A2 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72127-50020B1 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72128-50020 |
UCF30 |
1 | ||
| 72127-50020C0 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72128-50020 |
UCF30 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-50030A4 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72137-50030A3 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72137-50030B1 |
UCF30 MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-50030C1 |
UCF30 BLACK,TRIM20,27,29 |
2 | ||
| 72137-50030A3 |
UCF30 ECRU,TRIM03,05 |
2 | ||
| 72137-50030C1 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72137-50030A2 |
UCF30 IVORY,TRIM04 |
2 | ||
| 72137-50030B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72137-50030B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 72137-50030A4 |
UCF30 NEW IVORY,TRIM01,07 |
1 | ||
| 72137-50030C1 |
UCF30 BLACK,TRIM2# |
1 | ||
| 72137-50030A3 |
UCF30 ECRU,TRIM00,02,08 |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72205-50050 |
UCF30 INNER |
1 | ||
| 72205-50050 |
UCF30..USA DRIVER SIDE,INNER |
1 | ||
| 72205-50060 |
UCF30 OUTER |
1 | ||
| 72205-50060 |
UCF30..USA DRIVER SIDE,OUTER |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72205-50050 |
UCF30 INNER |
1 | ||
| 72205-50050 |
UCF30..USA DRIVER SIDE,INNER |
1 | ||
| 72205-50060 |
UCF30 OUTER |
1 | ||
| 72205-50060 |
UCF30..USA DRIVER SIDE,OUTER |
1 | ||
| 72410A - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.1 | ||||
| 72410-50010 |
UCF30 |
2 | ||
| 73179A - CAP, SEAT BELT ANCHOR COVER, LH | ||||
| 73179-50010A2 |
UCF30 IVORY,TRIM04 |
1 | ||
| 73179-50010C1 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 73179-50010A3 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 73179-50010A3 |
UCF30 ECRU,TRIM00,08 |
1 | ||
| 73179-50010C1 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 73179-50010B1 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 73179-50010A4 |
UCF30 NEW IVORY,TRIM07 |
1 | ||
| 73179-50010B2 |
UCF30 NEW GRAY,TRIM1# |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73508-50020 |
UCF30 |
1 | ||
| 73508-50010 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 73508-50010 |
UCF30 W(CLIMATE CONTROL SEAT) |
1 | ||
| 73508-50020 |
UCF30 |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
UCF30 |
2 | ||
| 85820-30710 |
UCF30 |
2 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85820-50320 |
UCF30 |
4 | ||
| 85820-50320 |
UCF30 |
4 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85820-50320 |
UCF30 |
4 | ||
| 85820-50320 |
UCF30 |
4 | ||
| 85821 - MOTOR ASSY, POWER SEAT | ||||
| 85820-50450 |
UCF30 |
3 | ||
| 85820-50450 |
UCF30 |
3 | ||
| 85821 - MOTOR ASSY, POWER SEAT | ||||
| 85820-50450 |
UCF30 |
3 | ||
| 85820-50450 |
UCF30 |
3 | ||
| 85863 - BLOWER, SEAT CLIMATE CONTROL, LH | ||||
| 85863-50010 |
UCF30 |
1 | ||
| 85863-50040 |
UCF30 |
1 | ||
| 85865 - CONTROLLER, SEAT CLIMATE CONTROL,LH | ||||
| 85865-50010 |
UCF30 |
1 | ||
| 85865-50010 |
UCF30 |
1 | ||
| 85865A - CONTROLLER, SEAT CLIMATE CONTROL, LH | ||||
| 85865-50020 |
UCF30 |
1 | ||
| 85865-50020 |
UCF30 |
1 | ||
| 87213C - DUCT, AIR, REAR LH | ||||
| 87213-50040 |
UCF30 |
1 | ||
| 87218E - DUCT, AIR, RR NO.6 | ||||
| 87218-50030 |
UCF30 |
1 | ||
| 87218-50030 |
UCF30 |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 88921-50010 | ||||
| 90119-06871 | ||||
| 90119-10927 | ||||
| 90152-40004 | ||||
| 90154-40031 | ||||
| 90167-40044 | ||||
| 90179-06274 | ||||
| 90189-04207 | ||||
| 91511-B0620 | ||||
| 91513-81040 | ||||
| 91513-B0825 | ||||
| 93540-54012 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
