UCF30L-AETGKA (2003)
Toyota Lexus Ls430
Production
Jul 2003
-
Aug 2006
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

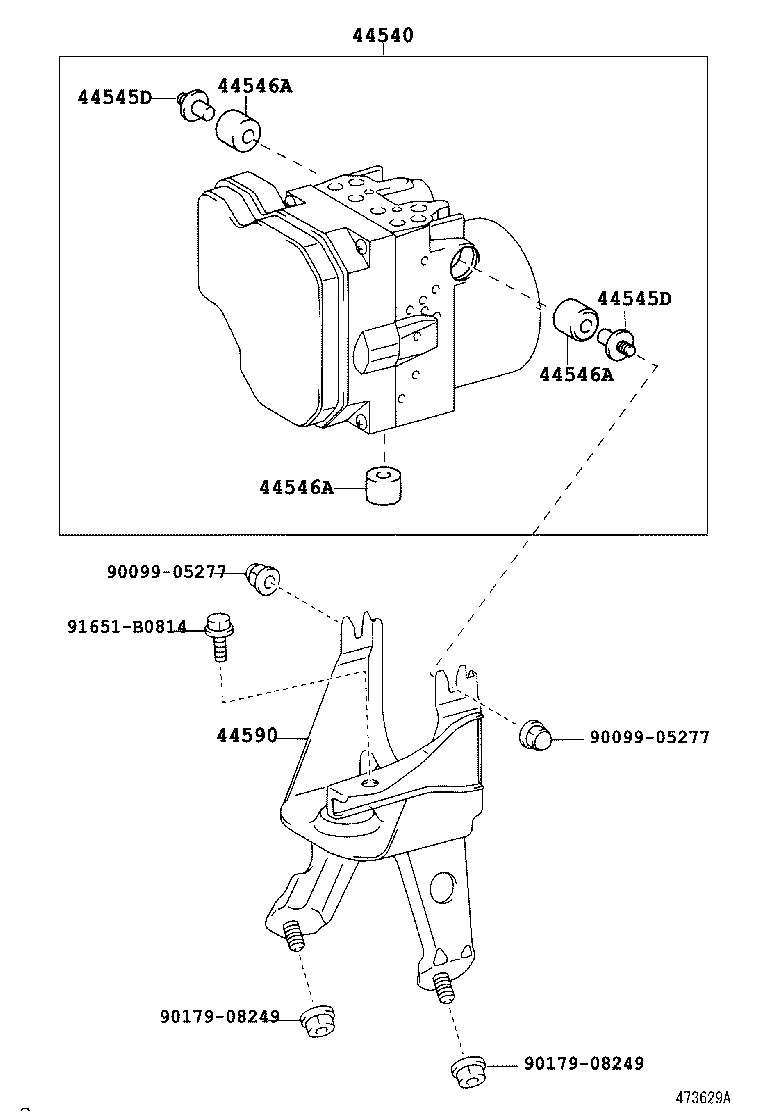

ILLUST NO. 2 OF 2(0307- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-50010 |
UCF30 |
1 | ||
| 44050-50040 |
UCF30 W(RADAR CRUISE CONTROL) |
1 | ||
| 44050-50030 |
UCF30 W(CRUISE CONTROL) |
1 | ||
| 44050-50041 |
UCF30 W(RADAR CRUISE CONTROL) |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
UCF30 |
2 | ||
| 44545-42020 |
UCF30 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
UCF30 |
2 | ||
| 44545-42020 |
UCF30 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
UCF30 |
3 | ||
| 44546-42020 |
UCF30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
UCF30 |
3 | ||
| 44546-42020 |
UCF30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
UCF30 |
3 | ||
| 44546-42020 |
UCF30 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-50040 |
UCF30 |
1 | ||
| 44590-50050 |
UCF30 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90179-08249 | ||||
| 91651-B0814 | ||||

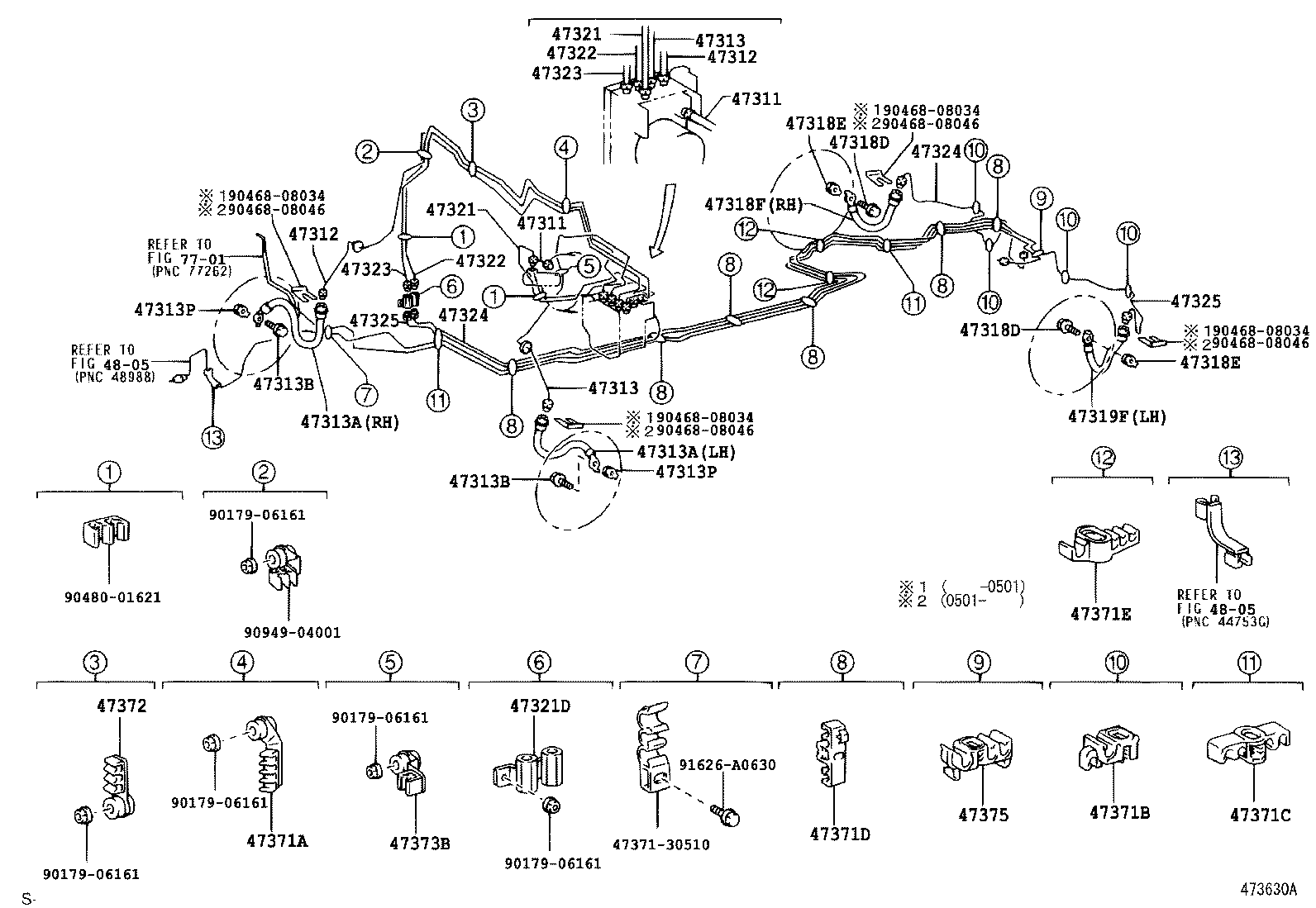

ILLUST NO. 1 OF 2(0307- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-50060 |
UCF30 |
1 | ||
| 47311-50080 |
UCF30 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-50060 |
UCF30 |
1 | ||
| 47311-50080 |
UCF30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50200 |
UCF30 |
1 | ||
| 47312-50220 |
UCF30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50200 |
UCF30 |
1 | ||
| 47312-50220 |
UCF30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50180 |
UCF30 |
1 | ||
| 47313-50150 |
UCF30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50180 |
UCF30 |
1 | ||
| 47313-50150 |
UCF30 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C57 |
UCF30 |
2 | ||
| 90947-02C57 |
UCF30 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C57 |
UCF30 |
2 | ||
| 90947-02C57 |
UCF30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
UCF30 |
2 | ||
| 90401-10058 |
UCF30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
UCF30 |
2 | ||
| 90401-10058 |
UCF30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
UCF30 |
2 | ||
| 47389-50020 |
UCF30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
UCF30 |
2 | ||
| 47389-50020 |
UCF30 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
UCF30 |
2 | ||
| 90401-10058 |
UCF30 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
UCF30 |
2 | ||
| 90401-10058 |
UCF30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
UCF30 |
2 | ||
| 47389-50020 |
UCF30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
UCF30 |
2 | ||
| 47389-50020 |
UCF30 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02B87 |
UCF30 |
1 | ||
| 90947-02B87 |
UCF30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02B87 |
UCF30 |
1 | ||
| 90947-02B87 |
UCF30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-50070 |
UCF30 |
1 | ||
| 47321-50050 |
UCF30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-50070 |
UCF30 |
1 | ||
| 47321-50050 |
UCF30 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10158 |
UCF30 |
1 | ||
| 90412-10158 |
UCF30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50180 |
UCF30 |
1 | ||
| 47322-50210 |
UCF30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50180 |
UCF30 |
1 | ||
| 47322-50210 |
UCF30 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-50070 |
UCF30 |
1 | ||
| 47323-50040 |
UCF30 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-50070 |
UCF30 |
1 | ||
| 47323-50040 |
UCF30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-50130 |
UCF30 |
1 | ||
| 47324-50130 |
UCF30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-50130 |
UCF30 |
1 | ||
| 47324-50130 |
UCF30 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-50070 |
UCF30 |
1 | ||
| 47325-50070 |
UCF30 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-50070 |
UCF30 |
1 | ||
| 47325-50070 |
UCF30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04005 |
UCF30 |
1 | ||
| 90949-04005 |
UCF30 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01C22 |
UCF30 |
4 | ||
| 90949-01C22 |
UCF30 |
4 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01C41 |
UCF30 |
2 | ||
| 90949-01C41 |
UCF30 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01C42 |
UCF30 |
6 | ||
| 90949-01C42 |
UCF30 |
6 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01C43 |
UCF30 |
2 | ||
| 90949-01C43 |
UCF30 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-04006 |
UCF30 |
1 | ||
| 90949-04006 |
UCF30 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-50300 |
UCF30 |
1 | ||
| 47372-50300 |
UCF30 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-30460 |
UCF30 |
1 | ||
| 47371-30460 |
UCF30 |
1 | ||
| Common parts | ||||
| 47371-30510 | ||||
| 90179-06161 | ||||
| 90468-08034 | ||||
| 90468-08046 | ||||
| 90480-01621 | ||||
| 90949-04001 | ||||
| 91626-A0630 | ||||
| Linked diagrams | ||||
| 4805 | ||||
| 7701 | ||||
