UCF30L-AETGKA (2003)
Toyota Lexus Ls430
Production
Jul 2003
-
Aug 2006
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )

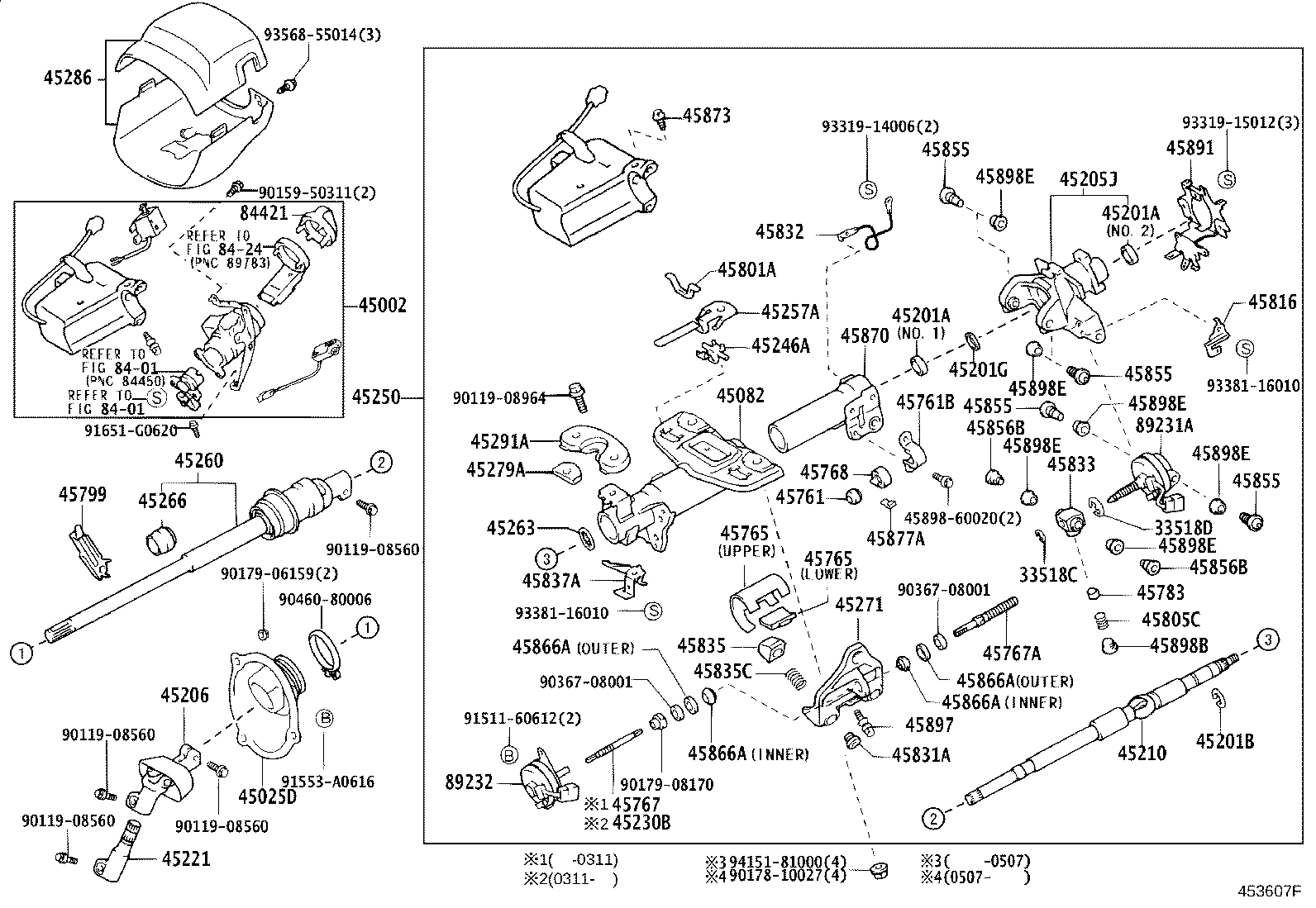

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33518C - E RING (FOR TILT MOTOR SHAFT, UPPER) | ||||
| 90523-06019 |
UCF30 |
1 | ||
| 90523-06019 |
UCF30 |
1 | ||
| 33518D - E RING (FOR TILT MOTOR SHAFT, LOWER) | ||||
| 90523-08001 |
UCF30 |
1 | ||
| 90523-08001 |
UCF30 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-50060 |
UCF30 |
1 | ||
| 45025-50060 |
UCF30 |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-50120 |
UCF30 |
1 | ||
| 45082-50100 |
UCF30 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UCF30 |
2 | ||
| 90363-18005 |
UCF30 NO.2 |
1 | ||
| 90363-25077 |
UCF30 NO.1 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UCF30 |
2 | ||
| 90363-18005 |
UCF30 NO.2 |
1 | ||
| 90363-25077 |
UCF30 NO.1 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90905-20003 |
UCF30 T=0.5,LOWER |
1 | ||
| 90520-17042 |
UCF30 T=1.20,UPPER |
1 | ||
| 90520-17042 |
UCF30 T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
UCF30 |
1 | ||
| 45820-50010 |
UCF30 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-30320 |
UCF30 |
1 | ||
| 45205-50020 |
UCF30 |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-50020 |
UCF30 |
1 | ||
| 45206-50020 |
UCF30 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-50050 |
UCF30 |
1 | ||
| 45210-50060 |
UCF30 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45297-50010 |
UCF30 |
1 | ||
| 45297-50010 |
UCF30 |
1 | ||
| 45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL | ||||
| 45230-50020 |
UCF30 |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-50040 |
UCF30 |
2 | ||
| 45246-28040 |
UCF30 |
2 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-50160 |
UCF30 |
1 | ||
| 45250-50200 |
UCF30 |
1 | ||
| 45250-50210 |
UCF30 W(SMART KEY SYSTEM) |
1 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
UCF30 |
2 | ||
| 45257-28010 |
UCF30 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-50070 |
UCF30 |
1 | ||
| 45260-50070 |
UCF30 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-50010 |
UCF30 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-30010 |
UCF30 |
1 | ||
| 45266-30010 |
UCF30 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-60030 |
UCF30 |
1 | ||
| 45271-60030 |
UCF30 |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
UCF30 |
1 | ||
| 45279-33030 |
UCF30 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-50090 |
UCF30 |
1 | ||
| 45280-50090 |
UCF30 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-50950B0 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-50950C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 45286-50950E0 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 45286-50913B1 |
UCF30 MD.GRAY,TRIM10 |
1 | ||
| 45286-50913E1 |
UCF30 CLOVE BROWN,TRIM00 |
1 | ||
| 45286-50950E1 |
UCF30 CLOVE BROWN,TRIM03,05 |
1 | ||
| 45286-50913C0 |
UCF30 BLACK,TRIM21,24 |
1 | ||
| 45286-50913E0 |
UCF30 SANDAL WOOD,TRIM07 |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-33020 |
UCF30 |
1 | ||
| 45291-33020 |
UCF30 |
1 | ||
| 45761 - SLIDER, TELESCOPIC STEERING | ||||
| 45761-60010 |
UCF30 |
1 | ||
| 45761-60010 |
UCF30 |
1 | ||
| 45761B - SUPPORT, TELESCOPIC STEERING SLIDER | ||||
| 45766-60010 |
UCF30 |
1 | ||
| 45766-60011 |
UCF30 |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-60021 |
UCF30 LOWER |
2 | ||
| 45765-60011 |
UCF30 UPPER |
1 | ||
| 45765-60021 |
UCF30 LOWER |
2 | ||
| 45765-60011 |
UCF30 UPPER |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-60021 |
UCF30 LOWER |
2 | ||
| 45765-60011 |
UCF30 UPPER |
1 | ||
| 45765-60021 |
UCF30 LOWER |
2 | ||
| 45765-60011 |
UCF30 UPPER |
1 | ||
| 45767 - CABLE, TELESCOPIC STEERING COLUMN | ||||
| 45767-50010 |
UCF30 |
1 | ||
| 45767-50010 |
UCF30 |
1 | ||
| 45767A - SCREW, TELESCOPIC STEERING | ||||
| 45811-60010 |
UCF30 |
1 | ||
| 45811-60010 |
UCF30 |
1 | ||
| 45768 - BUSH, TELESCOPIC STEERING | ||||
| 45768-60011 |
UCF30 |
1 | ||
| 45768-60011 |
UCF30 |
1 | ||
| 45783 - STOPPER, TILT STEERING, NO.1 | ||||
| 45783-60010 |
UCF30 |
1 | ||
| 45783-60010 |
UCF30 |
1 | ||
| 45799 - CLAMP, STEERING INTERMEDIATE SHAFT, LH | ||||
| 45799-50010 |
UCF30 |
1 | ||
| 45799-50010 |
UCF30 |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
UCF30 |
2 | ||
| 45875-12010 |
UCF30 |
2 | ||
| 45805C - SPRING, COMPRESSION(FOR TILT STEERING SUPPORT) | ||||
| 90504-14007 |
UCF30 |
1 | ||
| 90504-14007 |
UCF30 |
1 | ||
| 45816 - BRACKET, WIRE HARNESS | ||||
| 45816-60020 |
UCF30 |
1 | ||
| 45816-50030 |
UCF30 |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-60010 |
UCF30 |
2 | ||
| 45831-60010 |
UCF30 |
2 | ||
| 45832 - CABLE, TILT STEERING SUPPORT BOND | ||||
| 45832-60010 |
UCF30 |
1 | ||
| 45832-60010 |
UCF30 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-60010 |
UCF30 |
1 | ||
| 45833-60010 |
UCF30 |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-60010 |
UCF30 |
2 | ||
| 45835-60010 |
UCF30 |
2 | ||
| 45835C - SPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK) | ||||
| 90501-23140 |
UCF30 |
2 | ||
| 90501-23140 |
UCF30 |
2 | ||
| 45837A - BRACKET, STEERLNG LOWER TUBE, NO.1 | ||||
| 45837-50030 |
UCF30 |
1 | ||
| 45837-30020 |
UCF30 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-60010 |
UCF30 |
2 | ||
| 45856-60010 |
UCF30 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-60010 |
UCF30 |
2 | ||
| 45856-60010 |
UCF30 |
2 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-50030 |
UCF30 |
1 | ||
| 45870-50030 |
UCF30 |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-60010 |
UCF30 |
1 | ||
| 45873-60010 |
UCF30 |
1 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-60011 |
UCF30 |
1 | ||
| 45877-60011 |
UCF30 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-30040 |
UCF30 |
1 | ||
| 45891-50040 |
UCF30 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
UCF30 |
2 | ||
| 45897-12020 |
UCF30 |
2 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-60010 |
UCF30 |
1 | ||
| 45898-60010 |
UCF30 |
1 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 89231A - MOTOR, POWER TILT | ||||
| 89231-50050 |
UCF30 |
1 | ||
| 89231-50060 |
UCF30 |
1 | ||
| 89232 - MOTOR, POWER TELESCOPIC | ||||
| 89232-50041 |
UCF30 |
1 | ||
| 89232-50050 |
UCF30 |
1 | ||
| Common parts | ||||
| 45898-60020 | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90178-10027 | ||||
| 90179-06159 | ||||
| 90179-08170 | ||||
| 90367-08001 | ||||
| 90460-80006 | ||||
| 91511-60612 | ||||
| 91553-A0616 | ||||
| 93319-14006 | ||||
| 93319-15012 | ||||
| 93381-16010 | ||||
| 93568-55014 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0307- )
Click highlighted areas on diagram
W(SMART KEY SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33518C - E RING (FOR TILT MOTOR SHAFT, UPPER) | ||||
| 90523-06019 |
UCF30 |
1 | ||
| 90523-06019 |
UCF30 |
1 | ||
| 33518D - E RING (FOR TILT MOTOR SHAFT, LOWER) | ||||
| 90523-08001 |
UCF30 |
1 | ||
| 90523-08001 |
UCF30 |
1 | ||
| 45002 - ACTUATOR & SWITCH SET, STEERING LOCK | ||||
| 45002-50021 |
UCF30 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-50060 |
UCF30 |
1 | ||
| 45025-50060 |
UCF30 |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-50120 |
UCF30 |
1 | ||
| 45082-50100 |
UCF30 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UCF30 |
2 | ||
| 90363-18005 |
UCF30 NO.2 |
1 | ||
| 90363-25077 |
UCF30 NO.1 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UCF30 |
2 | ||
| 90363-18005 |
UCF30 NO.2 |
1 | ||
| 90363-25077 |
UCF30 NO.1 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90905-20003 |
UCF30 T=0.5,LOWER |
1 | ||
| 90520-17042 |
UCF30 T=1.20,UPPER |
1 | ||
| 90520-17042 |
UCF30 T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
UCF30 |
1 | ||
| 45820-50010 |
UCF30 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-30320 |
UCF30 |
1 | ||
| 45205-50020 |
UCF30 |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-50020 |
UCF30 |
1 | ||
| 45206-50020 |
UCF30 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-50050 |
UCF30 |
1 | ||
| 45210-50060 |
UCF30 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45297-50010 |
UCF30 |
1 | ||
| 45297-50010 |
UCF30 |
1 | ||
| 45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL | ||||
| 45230-50020 |
UCF30 |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-50040 |
UCF30 |
2 | ||
| 45246-28040 |
UCF30 |
2 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-50160 |
UCF30 |
1 | ||
| 45250-50200 |
UCF30 |
1 | ||
| 45250-50210 |
UCF30 W(SMART KEY SYSTEM) |
1 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
UCF30 |
2 | ||
| 45257-28010 |
UCF30 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-50070 |
UCF30 |
1 | ||
| 45260-50070 |
UCF30 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-50010 |
UCF30 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-30010 |
UCF30 |
1 | ||
| 45266-30010 |
UCF30 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-60030 |
UCF30 |
1 | ||
| 45271-60030 |
UCF30 |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
UCF30 |
1 | ||
| 45279-33030 |
UCF30 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-50950B0 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-50950C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 45286-50950E0 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 45286-50913B1 |
UCF30 MD.GRAY,TRIM10 |
1 | ||
| 45286-50913E1 |
UCF30 CLOVE BROWN,TRIM00 |
1 | ||
| 45286-50950E1 |
UCF30 CLOVE BROWN,TRIM03,05 |
1 | ||
| 45286-50913C0 |
UCF30 BLACK,TRIM21,24 |
1 | ||
| 45286-50913E0 |
UCF30 SANDAL WOOD,TRIM07 |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-33020 |
UCF30 |
1 | ||
| 45291-33020 |
UCF30 |
1 | ||
| 45761 - SLIDER, TELESCOPIC STEERING | ||||
| 45761-60010 |
UCF30 |
1 | ||
| 45761-60010 |
UCF30 |
1 | ||
| 45761B - SUPPORT, TELESCOPIC STEERING SLIDER | ||||
| 45766-60010 |
UCF30 |
1 | ||
| 45766-60011 |
UCF30 |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-60021 |
UCF30 LOWER |
2 | ||
| 45765-60011 |
UCF30 UPPER |
1 | ||
| 45765-60021 |
UCF30 LOWER |
2 | ||
| 45765-60011 |
UCF30 UPPER |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-60021 |
UCF30 LOWER |
2 | ||
| 45765-60011 |
UCF30 UPPER |
1 | ||
| 45765-60021 |
UCF30 LOWER |
2 | ||
| 45765-60011 |
UCF30 UPPER |
1 | ||
| 45767 - CABLE, TELESCOPIC STEERING COLUMN | ||||
| 45767-50010 |
UCF30 |
1 | ||
| 45767-50010 |
UCF30 |
1 | ||
| 45767A - SCREW, TELESCOPIC STEERING | ||||
| 45811-60010 |
UCF30 |
1 | ||
| 45811-60010 |
UCF30 |
1 | ||
| 45768 - BUSH, TELESCOPIC STEERING | ||||
| 45768-60011 |
UCF30 |
1 | ||
| 45768-60011 |
UCF30 |
1 | ||
| 45783 - STOPPER, TILT STEERING, NO.1 | ||||
| 45783-60010 |
UCF30 |
1 | ||
| 45783-60010 |
UCF30 |
1 | ||
| 45799 - CLAMP, STEERING INTERMEDIATE SHAFT, LH | ||||
| 45799-50010 |
UCF30 |
1 | ||
| 45799-50010 |
UCF30 |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
UCF30 |
2 | ||
| 45875-12010 |
UCF30 |
2 | ||
| 45805C - SPRING, COMPRESSION(FOR TILT STEERING SUPPORT) | ||||
| 90504-14007 |
UCF30 |
1 | ||
| 90504-14007 |
UCF30 |
1 | ||
| 45816 - BRACKET, WIRE HARNESS | ||||
| 45816-60020 |
UCF30 |
1 | ||
| 45816-50030 |
UCF30 |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-60010 |
UCF30 |
2 | ||
| 45831-60010 |
UCF30 |
2 | ||
| 45832 - CABLE, TILT STEERING SUPPORT BOND | ||||
| 45832-60010 |
UCF30 |
1 | ||
| 45832-60010 |
UCF30 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-60010 |
UCF30 |
1 | ||
| 45833-60010 |
UCF30 |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-60010 |
UCF30 |
2 | ||
| 45835-60010 |
UCF30 |
2 | ||
| 45835C - SPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK) | ||||
| 90501-23140 |
UCF30 |
2 | ||
| 90501-23140 |
UCF30 |
2 | ||
| 45837A - BRACKET, STEERLNG LOWER TUBE, NO.1 | ||||
| 45837-50030 |
UCF30 |
1 | ||
| 45837-30020 |
UCF30 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45855-60010 |
UCF30 OD=11.993-11.979 |
4 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-60010 |
UCF30 |
2 | ||
| 45856-60010 |
UCF30 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-60010 |
UCF30 |
2 | ||
| 45856-60010 |
UCF30 |
2 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60020 |
UCF30 OUTER |
2 | ||
| 45866-60010 |
UCF30 INNER |
2 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-50030 |
UCF30 |
1 | ||
| 45870-50030 |
UCF30 |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-60010 |
UCF30 |
1 | ||
| 45873-60010 |
UCF30 |
1 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-60011 |
UCF30 |
1 | ||
| 45877-60011 |
UCF30 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-30040 |
UCF30 |
1 | ||
| 45891-50040 |
UCF30 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
UCF30 |
2 | ||
| 45897-12020 |
UCF30 |
2 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-60010 |
UCF30 |
1 | ||
| 45898-60010 |
UCF30 |
1 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-08124 |
UCF30 |
6 | ||
| 90389-08124 |
UCF30 |
6 | ||
| 84421 - KNOB, STARTER SWITCH | ||||
| 84421-50021 |
UCF30 |
1 | ||
| 89231A - MOTOR, POWER TILT | ||||
| 89231-50050 |
UCF30 |
1 | ||
| 89231-50060 |
UCF30 |
1 | ||
| 89232 - MOTOR, POWER TELESCOPIC | ||||
| 89232-50041 |
UCF30 |
1 | ||
| 89232-50050 |
UCF30 |
1 | ||
| Common parts | ||||
| 45898-60020 | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90159-50311 | ||||
| 90178-10027 | ||||
| 90179-06159 | ||||
| 90179-08170 | ||||
| 90367-08001 | ||||
| 90460-80006 | ||||
| 91511-60612 | ||||
| 91553-A0616 | ||||
| 91651-G0620 | ||||
| 93319-14006 | ||||
| 93319-15012 | ||||
| 93381-16010 | ||||
| 93568-55014 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8424 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
