UCF30L-AETGKA (2003)
Toyota Lexus Ls430
Production
Jul 2003
-
Aug 2006
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )

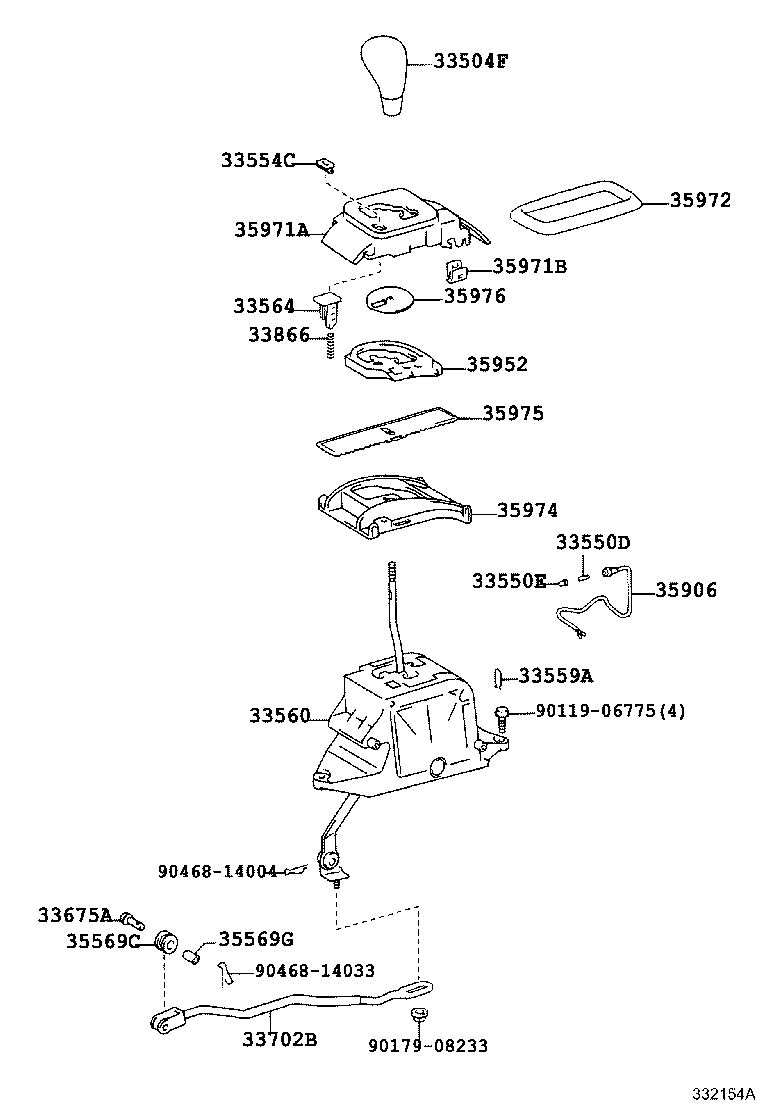

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-50050B0 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 33504-50050E0 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 33504-50050E1 |
UCF30 CLOVEBROWN,TRIM05 |
1 | ||
| 33504-50050E2 |
UCF30 CLOVEBROWN,TRIM03 |
1 | ||
| 33504-50050E2 |
UCF30 CLOVEBROWN,TRIM00,08 |
1 | ||
| 33504-50050C0 |
UCF30 BLACK,TRIM27,29 |
1 | ||
| 33504-50050B1 |
UCF30 MD.GRAY,TRIM1# |
1 | ||
| 33504-50050C1 |
UCF30 BLACK,TRIM20 |
1 | ||
| 33504-50050C4 |
UCF30 BLACK,TRIM21,24,25 |
1 | ||
| 33504-50050E3 |
UCF30 SANDAL WOOD,TRIM07 |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
UCF30 14V 1.4W |
1 | ||
| 90981-11018 |
UCF30 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
UCF30 |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-50040 |
UCF30 |
1 | ||
| 33554-50050 |
UCF30 |
1 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-30030 |
UCF30 |
1 | ||
| 33559-30030 |
UCF30 |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-50010 |
UCF30 |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-50040 |
UCF30 |
1 | ||
| 33564-50060 |
UCF30 |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-35010 |
UCF30 |
1 | ||
| 33726-30020 |
UCF30 |
1 | ||
| 33726-35010 |
UCF30 |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-50060 |
UCF30 |
1 | ||
| 33702-50070 |
UCF30 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-50010 |
UCF30 |
1 | ||
| 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
UCF30 |
1 | ||
| 90480-17013 |
UCF30 |
1 | ||
| 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
UCF30 |
1 | ||
| 90560-08091 |
UCF30 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-50050 |
UCF30 |
1 | ||
| 35906-50060 |
UCF30 |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-50010 |
UCF30 |
1 | ||
| 35952-50030 |
UCF30 |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-50050 |
UCF30 |
1 | ||
| 35971-50020 |
UCF30 |
1 | ||
| 35971B - CLIP, BEZEL | ||||
| 33593-50020 |
UCF30 |
4 | ||
| 33593-50040 |
UCF30 |
3 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 35972-50120 |
UCF30 |
1 | ||
| 35972-50130 |
UCF30 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-50020 |
UCF30 |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-50030 |
UCF30 |
1 | ||
| 35975-30270 |
UCF30 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-50020 |
UCF30 |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90179-08233 | ||||
| 90468-14004 | ||||
| 90468-14033 | ||||
