UCF30L-AEAGKK (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0307)

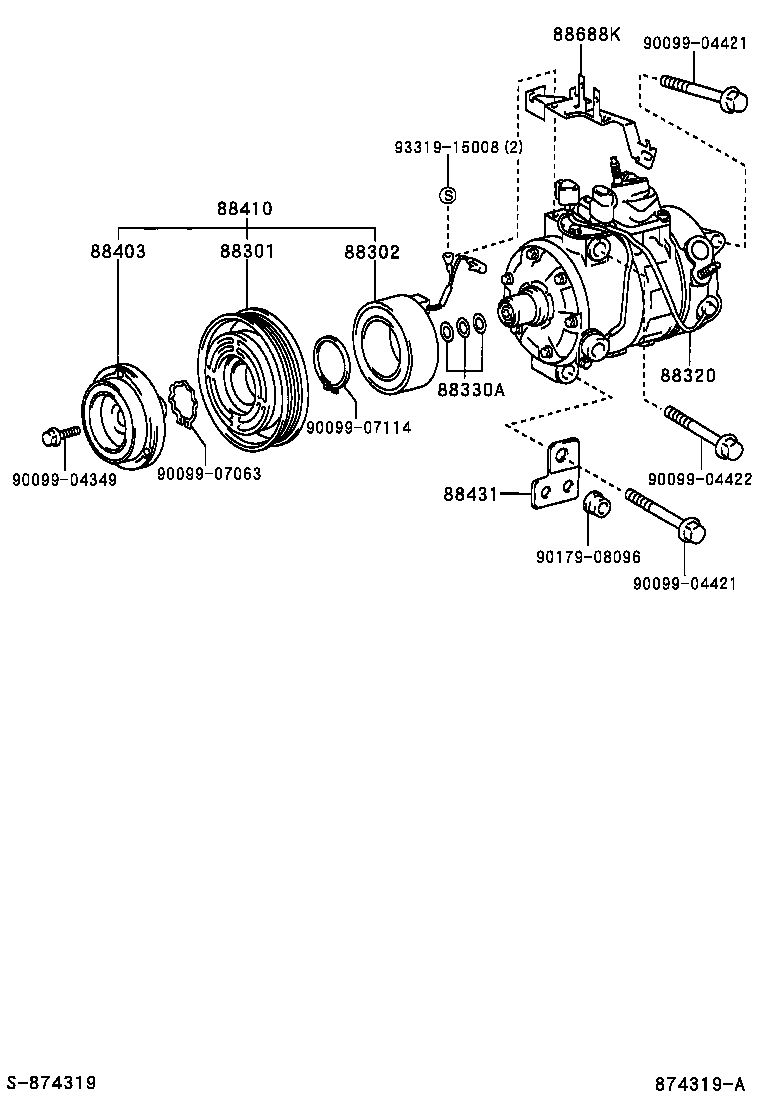

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88688K 9009904349 9009904421 9009904421 9009904422 9009907063 9009907114 9017908096 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-3A050

UCF30

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-26060

UCF30

 1
88320 - COMPRESSOR ASSY, COOLER
88320-50100

UCF30

 1
88320-50101

UCF30

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

UCF30

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-3A100

UCF30

 1
88410 - CLUTCH ASSY, MAGNET
88410-3A260

UCF30

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88433-50010

UCF30

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-3A610

UCF30

 1
Common parts
90099-04349
90099-04421
90099-04422
90099-07063
90099-07114
90179-08096
93319-15008
