UCF30L-AEAGKK (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

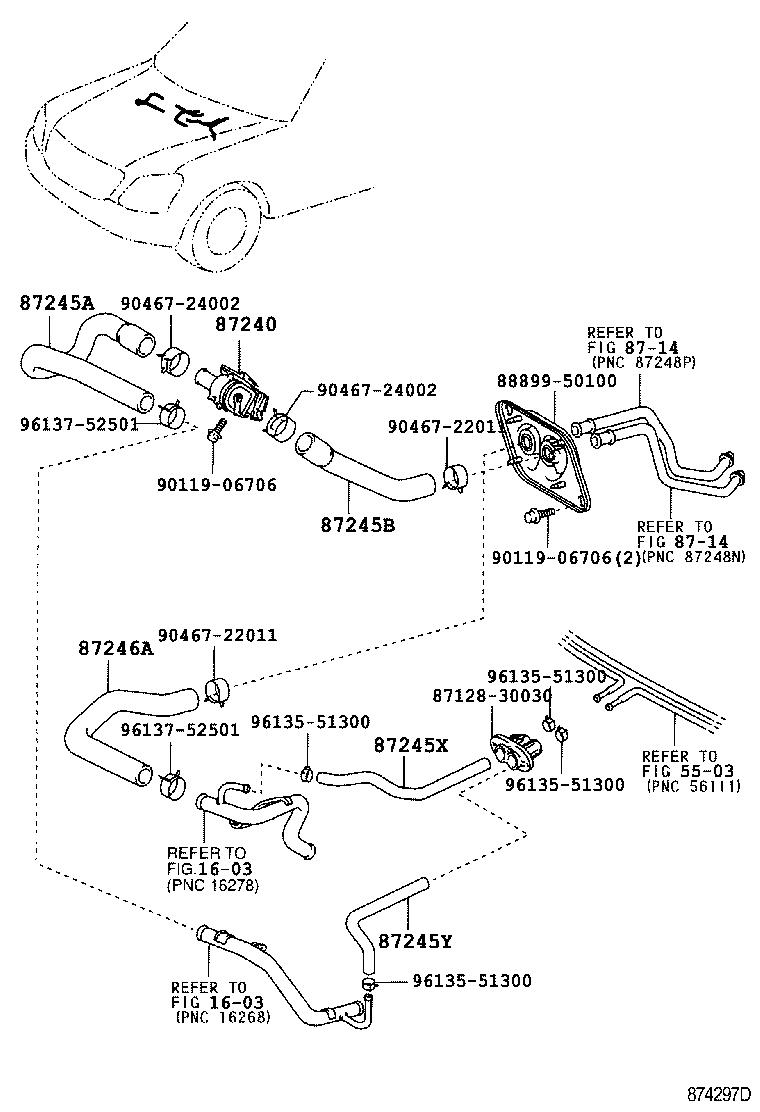

Click highlighted areas on diagram

diagram 1603 1603 5503 8712830030 8714 8714 87240 87245A 87245B 87245X 87245Y 87246A 8889950100 9011906706 9011906706 9046722011 9046722011 9046724002 9046724002 9613551300 9613551300 9613551300 9613551300 9613752501 9613752501
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-50130

UCF30

 1
87245A - HOSE, HEATER WATER, INLET A
87245-50340

UCF30

 1
87245B - HOSE, HEATER WATER, INLET B
87245-50360

UCF30

 1
87245X - HOSE, HEATER WATER
87242-50060

UCF30..CND

 1
87245Y - HOSE, HEATER WATER
87243-50060

UCF30..CND

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-50350

UCF30

 1
Common parts
87128-30030
88899-50100
90119-06706
90467-22011
90467-24002
96135-51300
96137-52501
Linked diagrams
1603
5503
8714
