UCF30L-AEAGKK (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

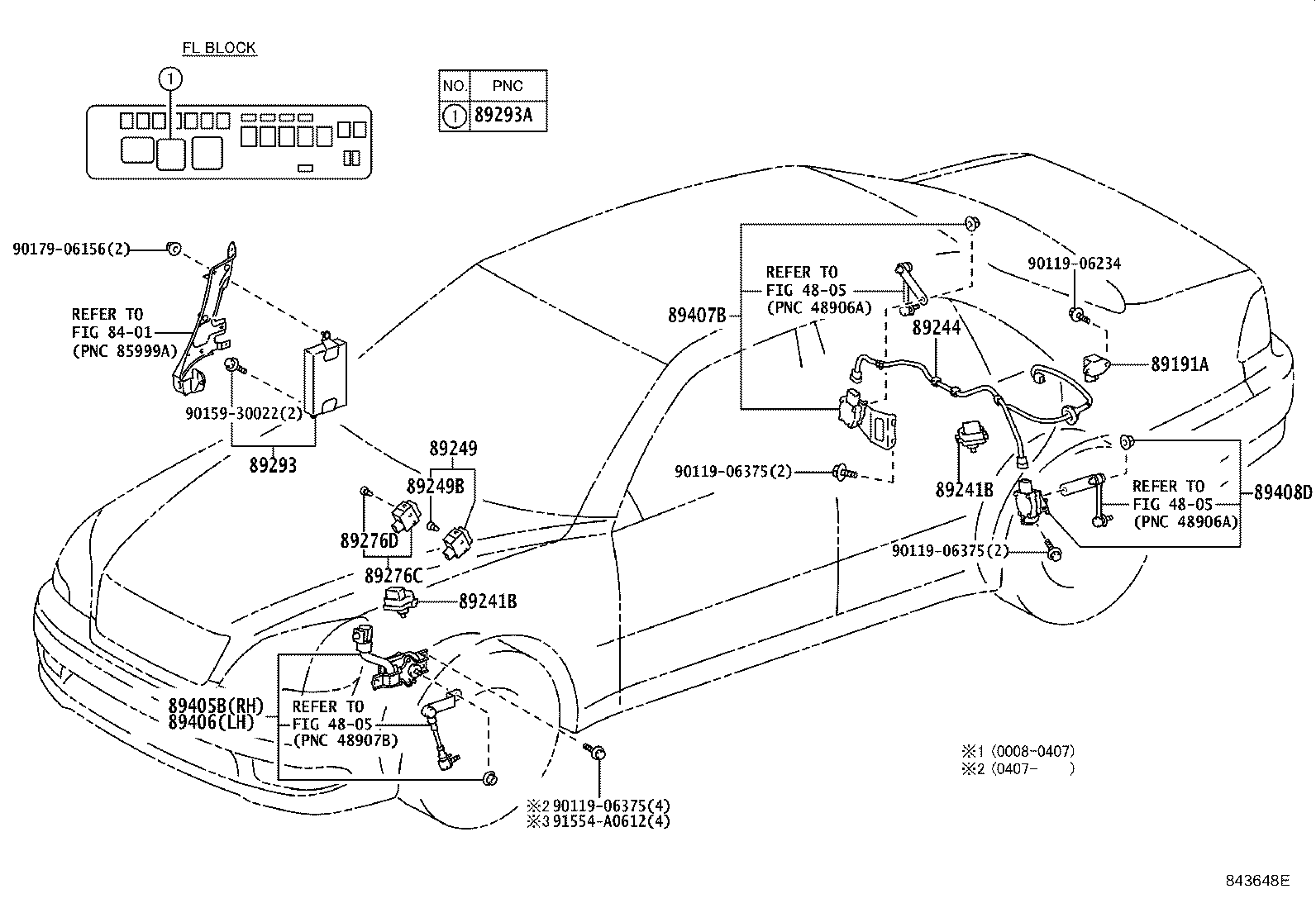

Click highlighted areas on diagram

diagram 4805 4805 4805 8401 89191A 89241B 89241B 89244 89249 89249B 89276C 89276D 89293 89293A 89405B 89406 89407B 89408D 9011906234 9011906375 9011906375 9011906375 9015930022 9017906156 91554A0612
Part # Description Qty Price
89191A - SENSOR, ACCELERATION
89191-30020

UCF30

 1
89241B - ACTUATOR, ABSORBER CONTROL
89241-30040

UCF30

 4
89241B - ACTUATOR, ABSORBER CONTROL
89241-30040

UCF30

 4
89244 - WIRE, ABSORBER CONTROL, REAR
89244-50010

UCF30

 1
89249 - SWITCH, ABSORBER CONTROL
89249-50020

UCF30

 1
89249B - BULB, ABSORBER CONTROL SWITCH
90010-01059

UCF30

14V0.84W,W/GREEN CAP

 1
89276C - SWITCH, HEIGHT CONTROL
89276-50020

UCF30

 1
89276D - BULB, (FOR HEIGHT CONTROL SWITCH)
90010-01059

UCF30

14V0.84W,W/GREEN CAP

 1
89293 - COMPUTER, SUSPENSION CONTROL
89293-50110

UCF30

 1
89293-50111

UCF30

 1
89293A - RELAY, SUSPENSION CONTROL
90987-02006

UCF30

 1
89405B - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH
89405-50060

UCF30

 1
89406 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH
89406-50060

UCF30

 1
89407B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH
89407-50060

UCF30

 1
89408D - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
89408-50060

UCF30

 1
Common parts
90119-06234
90119-06375
90159-30022
90179-06156
91554-A0612
Linked diagrams
4805
8401
