UCF30L-AEAGKK (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

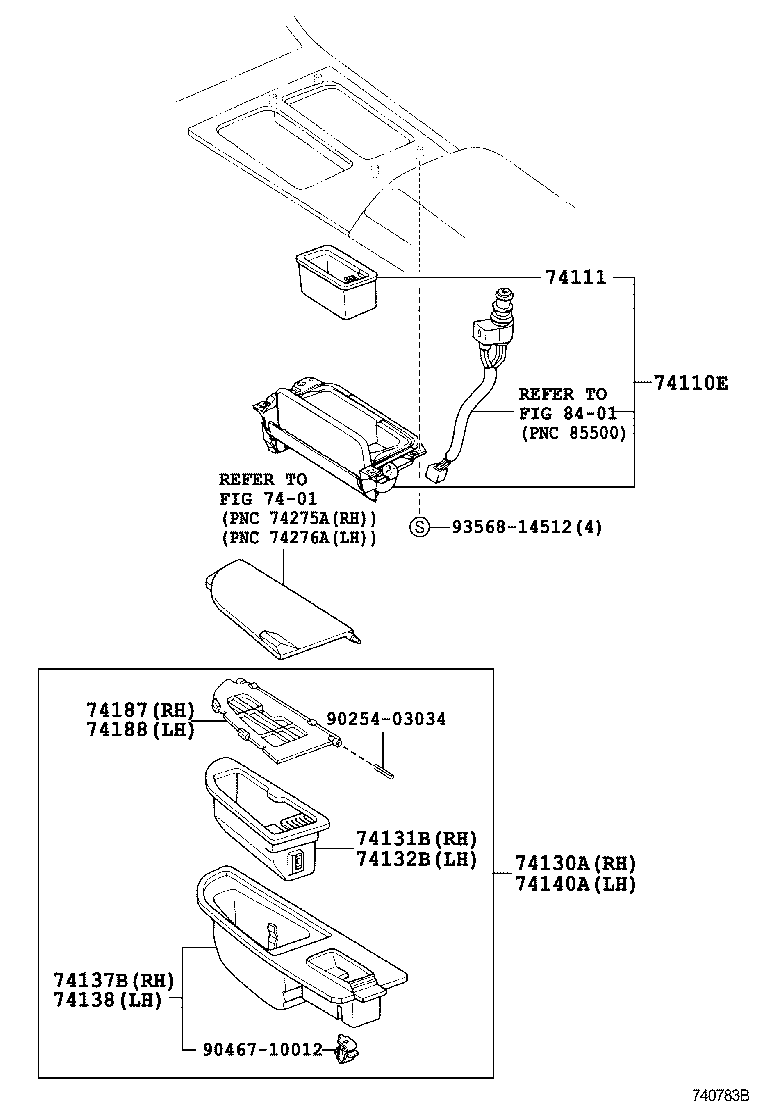

Click highlighted areas on diagram

diagram 7401 74110E 74111 74130A 74131B 74132B 74137B 74138 74140A 74187 74188 8401 9025403034 9046710012 9356814512
Part # Description Qty Price
74110E - RECEPTACLE ASSY, FRONT ASH
74110-50080D0

UCF30

BORDEAUX,TRIM27,29

 1
74110-50080E0

UCF30

MD.BROWN,TRIM04,1#

 1
74110-50080E1

UCF30

LIGHTBROWN,TRIM03,20

 1
74110-50080B0

UCF30

RIGHTGRAY,TRIM05

 1
74111 - BOX, FRONT ASH RECEPTACLE
74111-50030

UCF30

 1
74130A - RECEPTACLE ASSY, REAR ASH, RH
74130-50030

UCF30

 1
74131B - BOX, REAR ASH RECEPTACLE, RH
74131-50020

UCF30

 1
74132B - BOX, REAR ASH RECEPTACLE, LH
74132-50020

UCF30

 1
74137B - RETAINER, REAR ASH RECEPTACLE, INNER
74137-50030

UCF30

 1
74138 - RETAINER, REAR ASH RECEPTACLE, INNER LH
74138-50030

UCF30

 1
74140A - RECEPTACLE ASSY, REAR ASH, LH
74140-50030

UCF30

 1
74187 - PROTECTOR, REAR ASH RECEPTACLE
74187-50010

UCF30

 1
74188 - PROTECTOR, REAR ASH RECEPTACLE, NO.2
74188-50010

UCF30

 1
Common parts
90254-03034
90467-10012
93568-14512
Linked diagrams
7401
8401
