UCF30L-AEAGKK (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

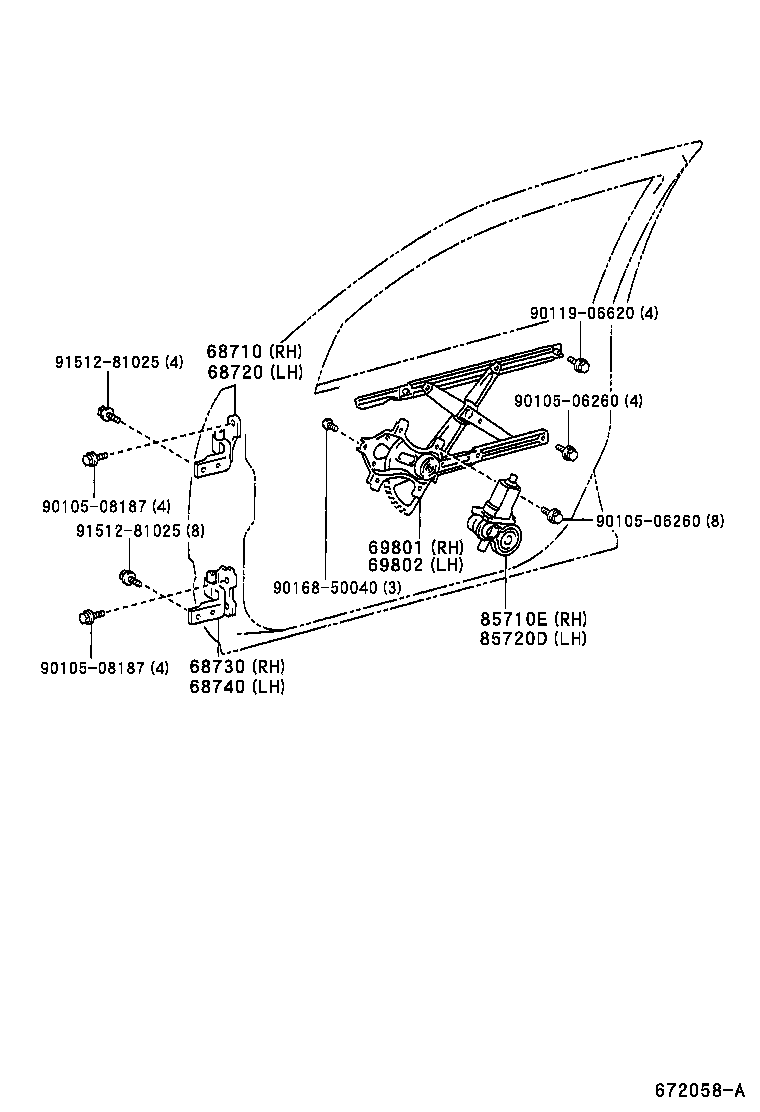

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 85710E 85720D 9010506260 9010506260 9010508187 9010508187 9011906620 9016850040 9151281025 9151281025
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-50040

UCF30

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-50040

UCF30

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-50030

UCF30

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-50030

UCF30

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-50030

UCF30

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-50030

UCF30

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-50080

UCF30

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-50080

UCF30

 1
Common parts
90105-06260
90105-08187
90119-06620
90168-50040
91512-81025
