UCF30L-AEAGKK (2000)
Toyota Lexus Ls430

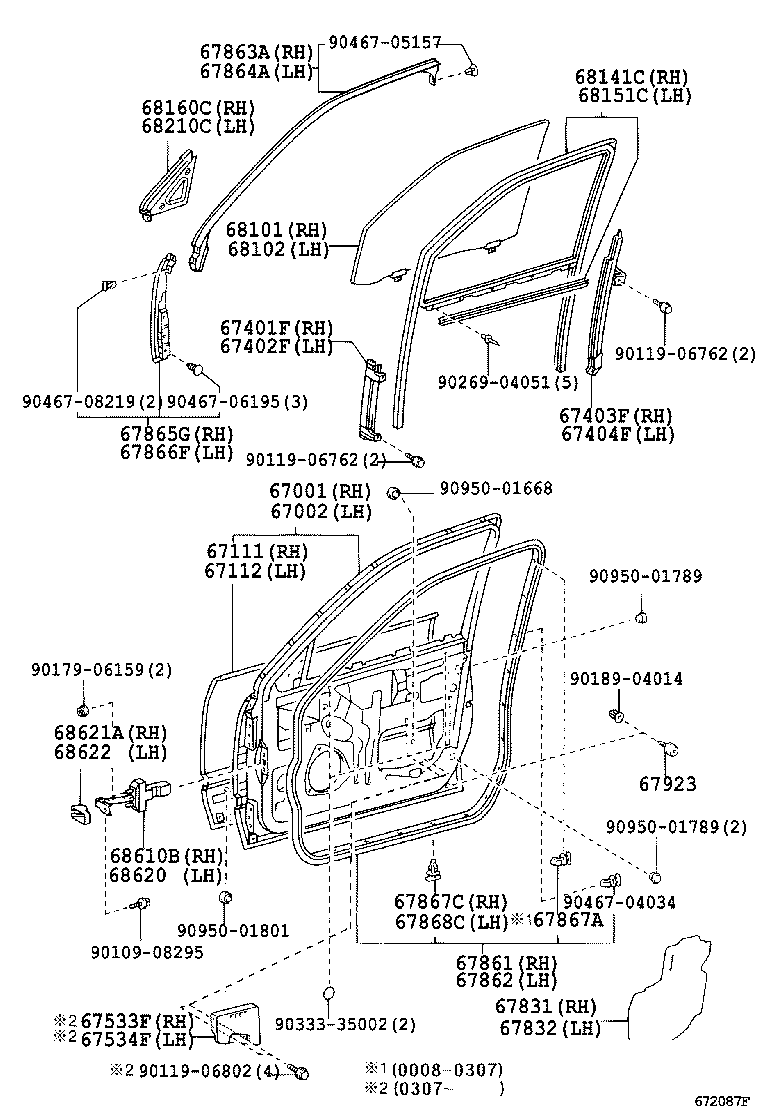

ILLUST NO. 2 OF 4(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-50040 |
UCF30..CND |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-50040 |
UCF30..CND |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-50030 |
UCF30 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-50030 |
UCF30 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-50010 |
UCF30 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-50010 |
UCF30 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-50010 |
UCF30 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-50010 |
UCF30 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-50030 |
UCF30 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-50010 |
UCF30 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-50030 |
UCF30 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-50030 |
UCF30 |
1 | ||
| 67863A - WEATHERSTRIP, FRONT DOOR, UPPER RH | ||||
| 67863-50030 |
UCF30 |
1 | ||
| 67864A - WEATHERSTRIP, FRONT DOOR, UPPER, LH | ||||
| 67864-50030 |
UCF30 |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-50010 |
UCF30 |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-50010 |
UCF30 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52010 |
UCF30 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
UCF30 |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
UCF30 |
16 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-30080 |
UCF30 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-50170 |
UCF30 *UVCTT,T=5.0,GREEN |
1 | ||
| 68101-50150 |
UCF30 *UVCTL,T=5.1,GREEN |
1 | ||
| 68101-50180 |
UCF30 *UVCTL,T=5.1,GREEN |
1 | ||
| 68101-50140 |
UCF30 *UVCTT,T=5.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-50140 |
UCF30 *UVCTT,T=5.0,GREEN |
1 | ||
| 68102-50180 |
UCF30 *UVCTL,T=5.1,GREEN |
1 | ||
| 68102-50150 |
UCF30 *UVCTL,T=5.1,GREEN |
1 | ||
| 68102-50170 |
UCF30 *UVCTT,T=5.0,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-50012 |
UCF30 |
1 | ||
| 68141-50011 |
UCF30 |
1 | ||
| 68141-50010 |
UCF30 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-50010 |
UCF30 |
1 | ||
| 68151-50011 |
UCF30 |
1 | ||
| 68151-50012 |
UCF30 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-50040 |
UCF30 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-50040 |
UCF30 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-50030 |
UCF30 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-50030 |
UCF30 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-33010 |
UCF30 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-33010 |
UCF30 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06762 | ||||
| 90119-06802 | ||||
| 90179-06159 | ||||
| 90189-04014 | ||||
| 90269-04051 | ||||
| 90333-35002 | ||||
| 90467-04034 | ||||
| 90467-05157 | ||||
| 90467-06195 | ||||
| 90467-08219 | ||||
| 90950-01668 | ||||
| 90950-01789 | ||||
| 90950-01801 | ||||

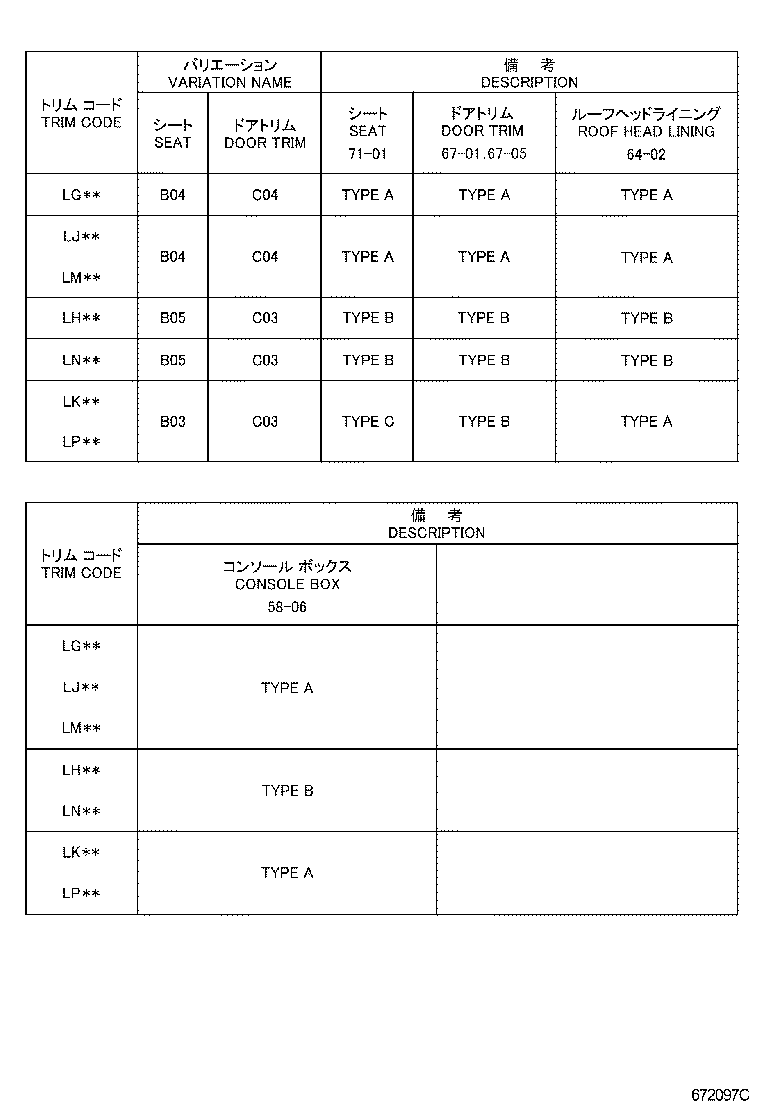

ILLUST NO. 3 OF 4(0008-0307)
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|

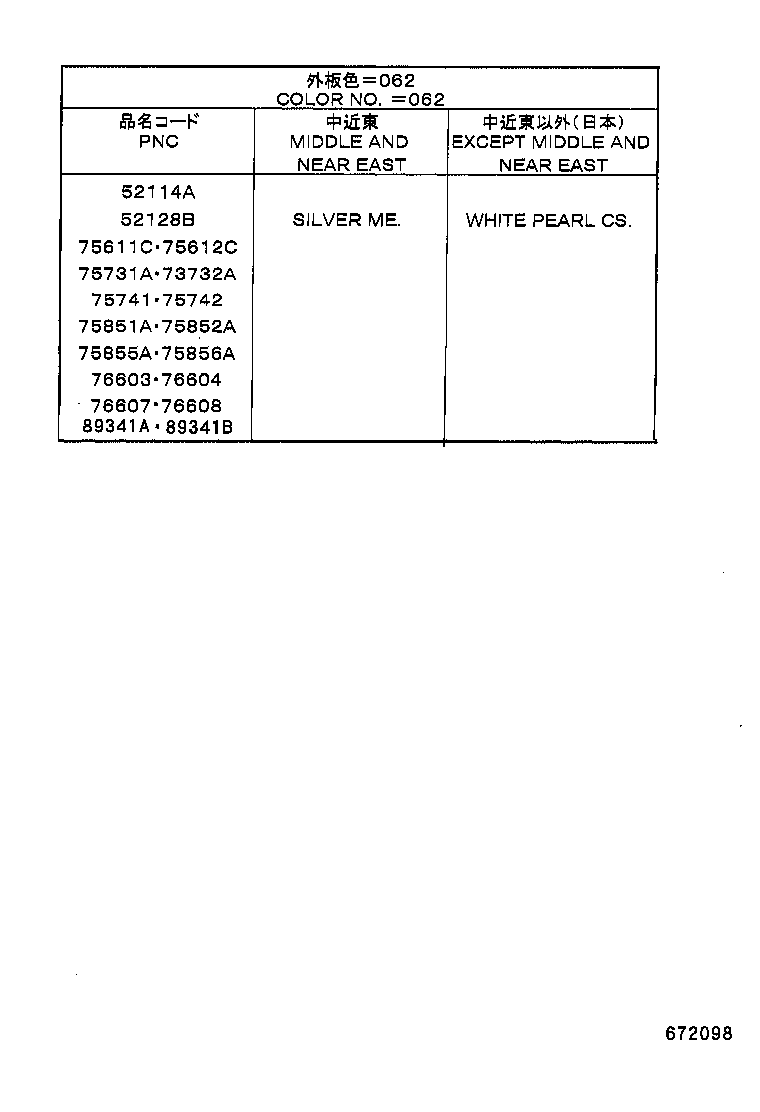

ILLUST NO. 4 OF 4(0008- )
| Part # | Description | Qty | Price |
|---|

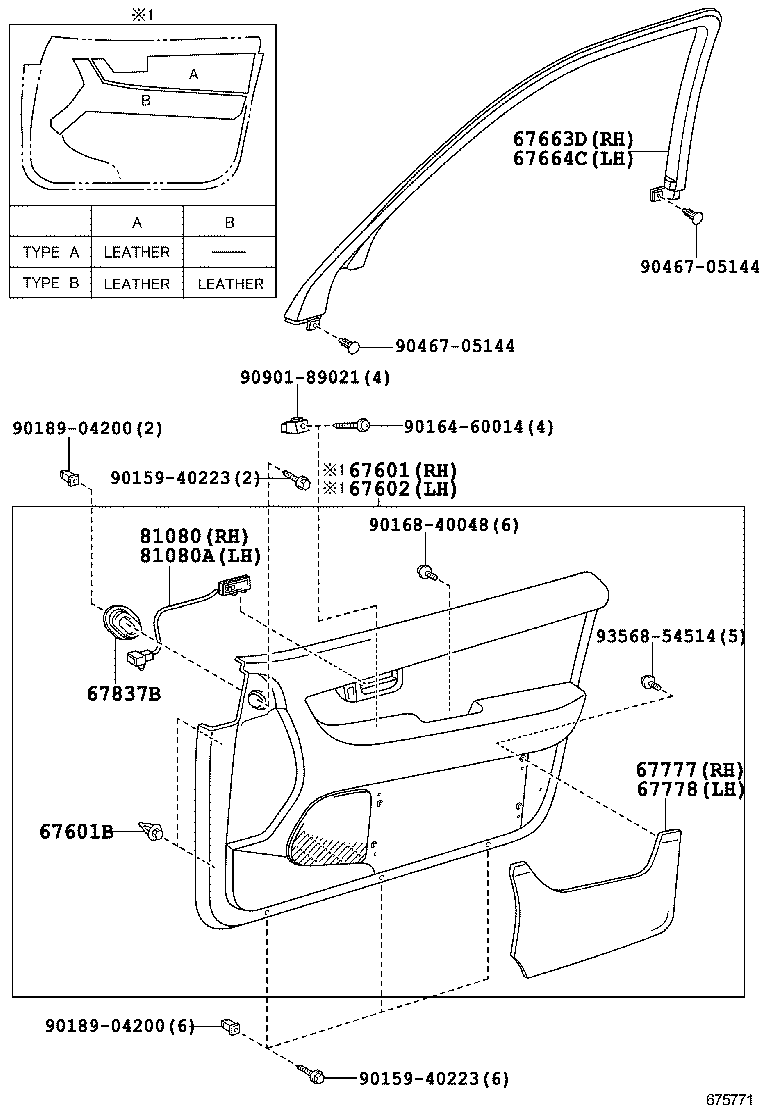

ILLUST NO. 1 OF 4(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-50370A4 |
UCF30 TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,ECRU,TRIM03 |
1 | ||
| 67610-50370B2 |
UCF30 TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,MD CHARCOAL,TRIM1# |
1 | ||
| 67610-50380C6 |
UCF30 TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK/BORDEAUX,TRIM27 |
1 | ||
| 67610-50370C2 |
UCF30 TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 67610-50370A5 |
UCF30 TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM04 |
1 | ||
| 67610-50380C7 |
UCF30 TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK/BLACK,TRIM29 |
1 | ||
| 67610-50410A2 |
UCF30 TRIM = TYPE B-*104 & TYPE B:REFER TO ILLUSTRATION,ECRU/ECRU,TRIM05 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
UCF30 |
8 | ||
| 90467-10161 |
UCF30 |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-50370A5 |
UCF30 TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM04 |
1 | ||
| 67620-50370A4 |
UCF30 TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,ECRU,TRIM03 |
1 | ||
| 67620-50370C2 |
UCF30 TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 67620-50380C6 |
UCF30 TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK/BORDEAUX,TRIM27 |
1 | ||
| 67620-50380C7 |
UCF30 TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK/BLACK,TRIM29 |
1 | ||
| 67620-50370B2 |
UCF30 TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,MD CHARCOAL,TRIM1# |
1 | ||
| 67620-50410A2 |
UCF30 TRIM = TYPE B-*104 & TYPE B:REFER TO ILLUSTRATION,ECRU/ECRU,TRIM05 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-50030B0 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 67663-50030E0 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 67663-50030C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 67663-50030E1 |
UCF30 CLOVEBROWN,TRIM03,05 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-50030E1 |
UCF30 CLOVEBROWN,TRIM03,05 |
1 | ||
| 67664-50030E0 |
UCF30 SANDAL WOOD,TRIM04 |
1 | ||
| 67664-50030B0 |
UCF30 DK.CHARCOAL,TRIM1# |
1 | ||
| 67664-50030C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-50010A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 67770-50010B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 67770-50010A1 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 67770-50010C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-50010B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 67780-50010A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 67780-50010A1 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 67780-50010C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-50040B0 |
UCF30 DARK CHARCOAL,TRIM1# |
2 | ||
| 67837-50040E1 |
UCF30 SANDAL WOOD,TRIM04 |
2 | ||
| 67837-50040E0 |
UCF30 CLOVE BROWN,TRIM03,05 |
2 | ||
| 67837-50040C0 |
UCF30 BLACK,TRIM20,27,29 |
2 | ||
| 81080 - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-50010 |
UCF30 |
1 | ||
| 81080A - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-50020 |
UCF30 |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90164-60014 | ||||
| 90168-40048 | ||||
| 90189-04200 | ||||
| 90467-05144 | ||||
| 90901-89021 | ||||
| 93568-54514 | ||||
