UCF30L-AEAGKK (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )

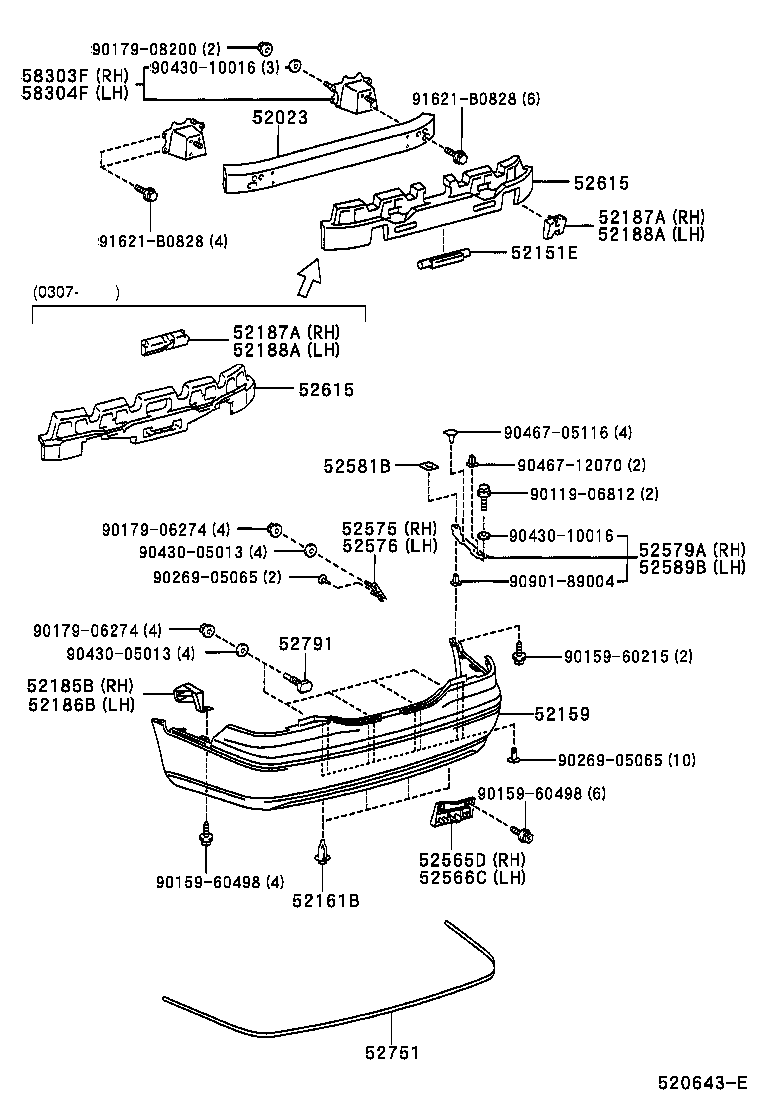

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52171-50080 |
UCF30 |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52151-50010 |
UCF30 NO PAINT REQ. |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-50905 |
UCF30 PAINT REQ.,W(BACK SONAR) |
1 | ||
| 52159-50904 |
UCF30 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
UCF30 |
4 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-50020 |
UCF30 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52186-50010 |
UCF30 |
1 | ||
| 52187A - REINFORCEMENT, REAR BUMPER ARM, RH | ||||
| 52187-50010 |
UCF30 |
1 | ||
| 52187A - REINFORCEMENT, REAR BUMPER ARM, RH | ||||
| 52187-50010 |
UCF30 |
1 | ||
| 52188A - REINFORCEMENT, REAR BUMPER ARM, LH | ||||
| 52188-50020 |
UCF30 |
1 | ||
| 52188A - REINFORCEMENT, REAR BUMPER ARM, LH | ||||
| 52188-50020 |
UCF30 |
1 | ||
| 52565D - RETAINER, REAR BUMPER, LOWER RH | ||||
| 52565-50040 |
UCF30 |
1 | ||
| 52566C - RETAINER, REAR BUMPER, LOWER LH | ||||
| 52566-50020 |
UCF30 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-50030 |
UCF30 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52575-50030 |
UCF30 |
1 | ||
| 52579A - RETAINER, REAR BUMPER SIDE, NO.3 RH | ||||
| 52579-50010 |
UCF30 |
1 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-51010 |
UCF30 |
2 | ||
| 52589B - RETAINER, REAR BUMPER SIDE, NO.3 LH | ||||
| 52589-50030 |
UCF30 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-50040 |
UCF30 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-50040 |
UCF30 |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-50030 |
UCF30 |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-50010 |
UCF30 |
4 | ||
| 58303F - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH | ||||
| 58303-50020 |
UCF30 |
1 | ||
| 58304F - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-50020 |
UCF30 |
1 | ||
| Common parts | ||||
| 90119-06812 | ||||
| 90159-60215 | ||||
| 90159-60498 | ||||
| 90179-06274 | ||||
| 90179-08200 | ||||
| 90269-05065 | ||||
| 90430-05013 | ||||
| 90430-10016 | ||||
| 90467-05116 | ||||
| 90467-12070 | ||||
| 90901-89004 | ||||
| 91621-B0828 | ||||
