UCF30L-AEAGKK (2000)
Toyota Lexus Ls430
Production
Aug 2000
-
Jul 2003
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0008-0307)

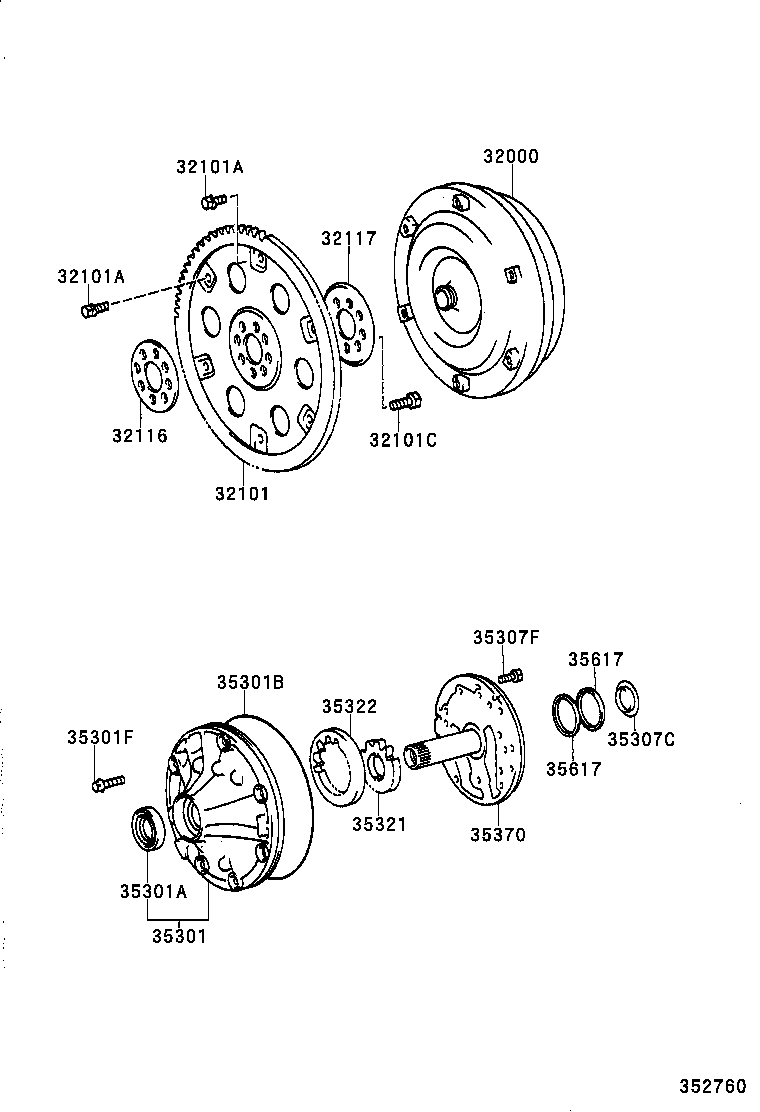

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-50030 |
UCF30 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-50010 |
UCF30 |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-09006 |
UCF30 *9-1.25PX11-8.5,YELLOW |
5 | ||
| 90105-09005 |
UCF30 *9-1.25PX11-8,BLACK |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-09006 |
UCF30 *9-1.25PX11-8.5,YELLOW |
5 | ||
| 90105-09005 |
UCF30 *9-1.25PX11-8,BLACK |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90910-02129 |
UCF30 *10-1.25PX23-16 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-50010 |
UCF30 |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-50010 |
UCF30 |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-50020 |
UCF30 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38029 |
UCF30 |
1 | ||
| 90311-38087 |
UCF30 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99033 |
UCF30 |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08091 |
UCF30 *8-1.25PX35-35 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-30340 |
UCF30 T=3.7 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90105-06126 |
UCF30 |
13 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-30060 |
UCF30 T=11.721-11.730 |
1 | ||
| 35321-30040 |
UCF30 T=11.700-11.709 |
1 | ||
| 35321-30050 |
UCF30 T=11.710-11.720 |
1 | ||
| 35321-30030 |
UCF30 T=11.690-11.699 |
1 | ||
| 35321-30070 |
UCF30 T=11.731-11.740 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-30020 |
UCF30 T=11.690-11.699 |
1 | ||
| 35322-30060 |
UCF30 T=11.731-11.740 |
1 | ||
| 35322-30030 |
UCF30 T=11.700-11.709 |
1 | ||
| 35322-30050 |
UCF30 T=11.721-11.730 |
1 | ||
| 35322-30040 |
UCF30 T=11.710-11.720 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-50020 |
UCF30 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50010 |
UCF30 |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50010 |
UCF30 |
2 | ||
