UCF30L-AEAGKK (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

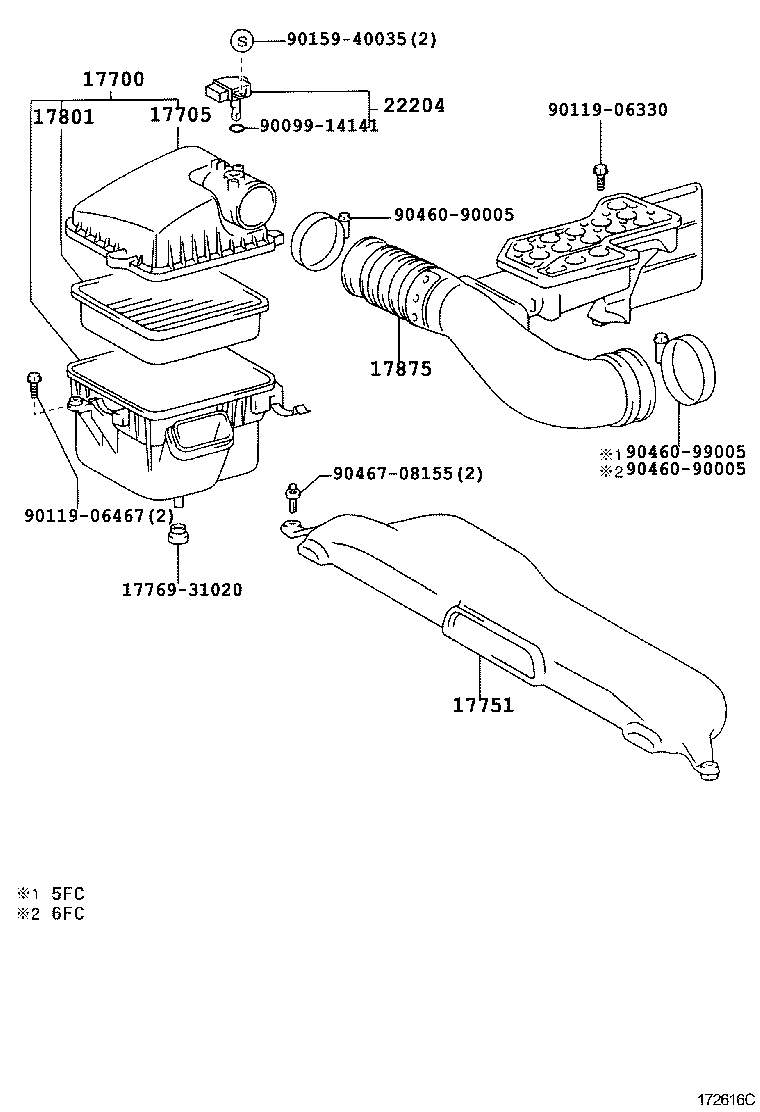

Click highlighted areas on diagram

diagram 17700 17705 17751 1776931020 17801 17875 22204 9009914141 9011906330 9011906467 9015940035 9046090005 9046090005 9046099005 9046708155
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-50230

3UZFE..UCF30

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50140

3UZFE..UCF30

 1
17751 - INLET, AIR CLEANER, NO.1
17750-50030

3UZFE..UCF30

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50030

3UZFE..UCF30

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-50240

3UZFE..UCF30

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

3UZFE..UCF30

 1
Common parts
17769-31020
90099-14141
90119-06330
90119-06467
90159-40035
90460-90005
90460-99005
90467-08155
