UCF30L-AEAGKA (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

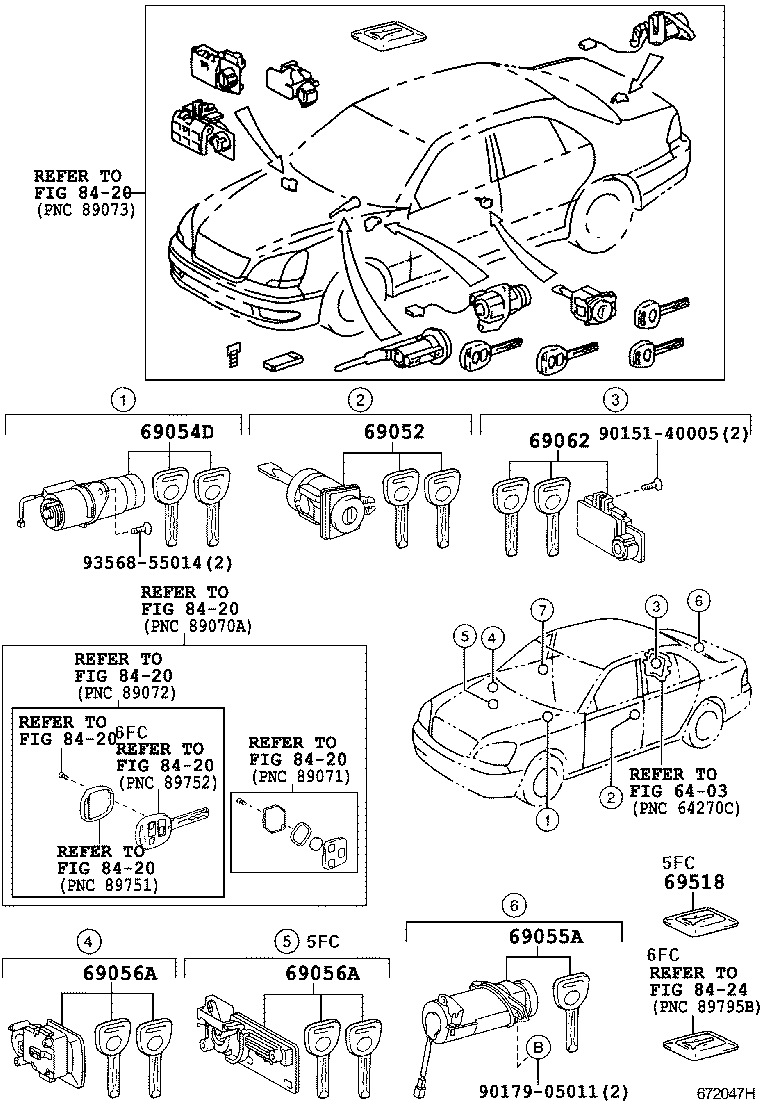

Click highlighted areas on diagram

diagram 6403 69052 69054D 69055A 69056A 69056A 69062 69518 8420 8420 8420 8420 8420 8420 8420 8424 9015140005 9017905011 9356855014
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-50130

UCF30

 1
69054D - CYLINDER & KEY SET, LUGGAGE OPENER CANCEL
69053-50080

UCF30

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-50140

UCF30

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-50130

UCF30

UPPER

 1
69056-50140

UCF30

LOWER

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-50130

UCF30

UPPER

 1
69056-50140

UCF30

LOWER

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-50150

UCF30

 1
69518 - CARD, SPARE KEY
69518-50012

UCF30

 1
Common parts
90151-40005
90179-05011
93568-55014
Linked diagrams
6403
8420
8424
