UCF30L-AEAGKA (2000)
Toyota Lexus Ls430
(0008- )

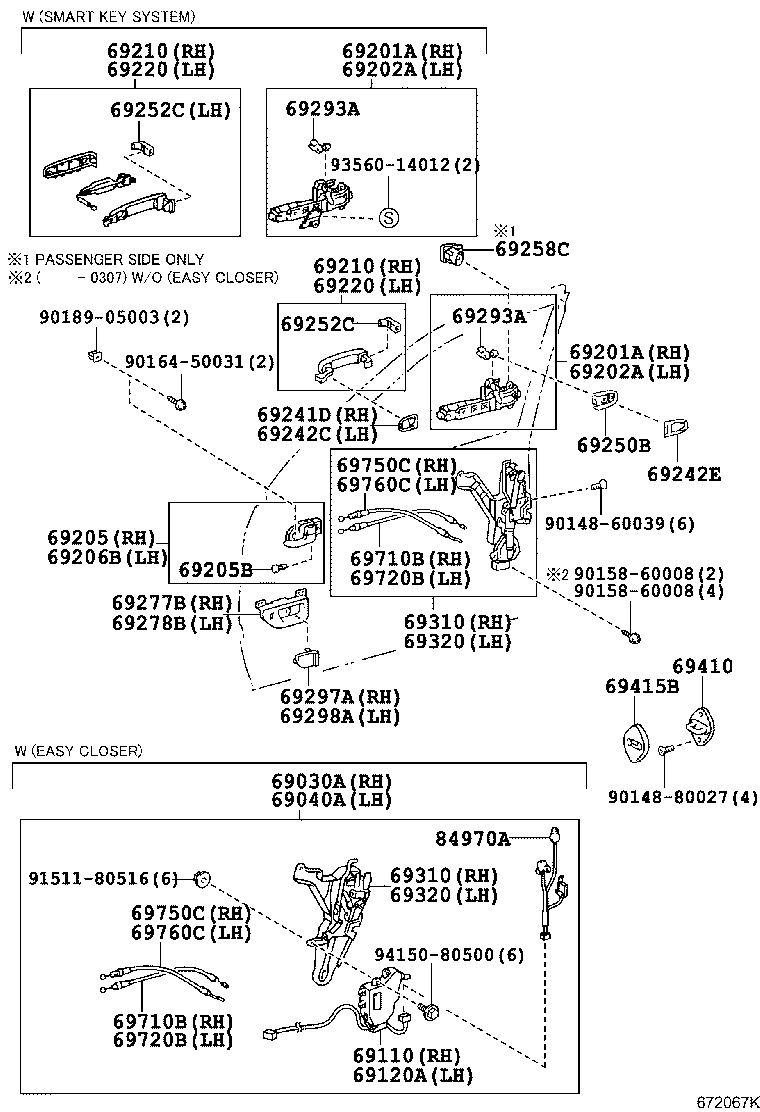

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-50260 |
UCF30 |
1 | ||
| 69030-50200 |
UCF30 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-50200 |
UCF30 |
1 | ||
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-50030 |
UCF30 |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-50030 |
UCF30 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-50011 |
UCF30 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-50011 |
UCF30 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-50011 |
UCF30 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-50011 |
UCF30 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-50030A1 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 69205-50030B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 69205-50030A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 69205-50030C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
UCF30 |
4 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-50030B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 69206-50030C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 69206-50030A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 69206-50030A1 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-50050D1 |
UCF30 ROSE M.M.,3P4 |
1 | ||
| 69210-50050A0 |
UCF30 WHITE PEARL CS.,062 |
1 | ||
| 69210-50050A1 |
UCF30 IVORY PEARL CS.,066 |
1 | ||
| 69210-50050D0 |
UCF30 BORDEAUX MC.,3P2 |
1 | ||
| 69210-50050E0 |
UCF30 BEIGE ME.,4P7 |
1 | ||
| 69210-50050J0 |
UCF30 DARK BLUE MC.,8P8 |
1 | ||
| 69210-50050C0 |
UCF30 BLACK,202 |
1 | ||
| 69210-50050G0 |
UCF30 GREEN M.M.,6S5 |
1 | ||
| 69210-50050G1 |
UCF30 DARK GREEN MC.,6S6 |
1 | ||
| 69210-50050J2 |
UCF30 LT. BLUE M.M.,8P7 |
1 | ||
| 69210-50050B1 |
UCF30 SILVER ME.,1C0 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-50050D1 |
UCF30 ROSE M.M.,3P4 |
1 | ||
| 69210-50050A0 |
UCF30 WHITE PEARL CS.,062 |
1 | ||
| 69210-50050A1 |
UCF30 IVORY PEARL CS.,066 |
1 | ||
| 69210-50050D0 |
UCF30 BORDEAUX MC.,3P2 |
1 | ||
| 69210-50050E0 |
UCF30 BEIGE ME.,4P7 |
1 | ||
| 69210-50050J0 |
UCF30 DARK BLUE MC.,8P8 |
1 | ||
| 69210-50050C0 |
UCF30 BLACK,202 |
1 | ||
| 69210-50050G0 |
UCF30 GREEN M.M.,6S5 |
1 | ||
| 69210-50050G1 |
UCF30 DARK GREEN MC.,6S6 |
1 | ||
| 69210-50050J2 |
UCF30 LT. BLUE M.M.,8P7 |
1 | ||
| 69210-50050B1 |
UCF30 SILVER ME.,1C0 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-50050A0 |
UCF30 WHITE PEARL CS.,062 |
1 | ||
| 69210-50050D1 |
UCF30 ROSE M.M.,3P4 |
1 | ||
| 69210-50050D0 |
UCF30 BORDEAUX MC.,3P2 |
1 | ||
| 69210-50050E0 |
UCF30 BEIGE ME.,4P7 |
1 | ||
| 69210-50050J2 |
UCF30 LT. BLUE M.M.,8P7 |
1 | ||
| 69210-50050A1 |
UCF30 IVORY PEARL CS.,066 |
1 | ||
| 69210-50050B1 |
UCF30 SILVER ME.,1C0 |
1 | ||
| 69210-50050G0 |
UCF30 GREEN M.M.,6S5 |
1 | ||
| 69210-50050C0 |
UCF30 BLACK,202 |
1 | ||
| 69210-50050G1 |
UCF30 DARK GREEN MC.,6S6 |
1 | ||
| 69210-50050J0 |
UCF30 DARK BLUE MC.,8P8 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-50050A0 |
UCF30 WHITE PEARL CS.,062 |
1 | ||
| 69210-50050D1 |
UCF30 ROSE M.M.,3P4 |
1 | ||
| 69210-50050D0 |
UCF30 BORDEAUX MC.,3P2 |
1 | ||
| 69210-50050E0 |
UCF30 BEIGE ME.,4P7 |
1 | ||
| 69210-50050J2 |
UCF30 LT. BLUE M.M.,8P7 |
1 | ||
| 69210-50050A1 |
UCF30 IVORY PEARL CS.,066 |
1 | ||
| 69210-50050B1 |
UCF30 SILVER ME.,1C0 |
1 | ||
| 69210-50050G0 |
UCF30 GREEN M.M.,6S5 |
1 | ||
| 69210-50050C0 |
UCF30 BLACK,202 |
1 | ||
| 69210-50050G1 |
UCF30 DARK GREEN MC.,6S6 |
1 | ||
| 69210-50050J0 |
UCF30 DARK BLUE MC.,8P8 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-50020 |
UCF30 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69241-50020 |
UCF30 |
1 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-50020 |
UCF30 |
2 | ||
| 69250B - COVER ASSY, DOOR OUTSIDE HANDLE | ||||
| 69250-50011A0 |
UCF30 WHITE PEARL CS.,062,DRIVER SIDE |
1 | ||
| 69250-50021D1 |
UCF30 ROSE M.M.,3P4,PASSENGER SIDE |
1 | ||
| 69250-50011D1 |
UCF30 ROSE M.M.,3P4,DRIVER SIDE |
1 | ||
| 69250-50011A1 |
UCF30 IVORY PEARL CS.,066,DRIVER SIDE |
1 | ||
| 69250-50011C0 |
UCF30 BLACK,202,DRIVER SIDE |
1 | ||
| 69250-50011J0 |
UCF30 DARK BLUE MC.,8P8,DRIVER SIDE |
1 | ||
| 69250-50011E0 |
UCF30 BEIGE ME.,4P7,DRIVER SIDE |
1 | ||
| 69250-50011G1 |
UCF30 DARK GREEN M.M.,6S6,DRIVER SIDE |
1 | ||
| 69250-50021A1 |
UCF30 IVORY PEARL CS.,066,PASSENGER SIDE |
1 | ||
| 69250-50011D0 |
UCF30 BORDEAUX MC.,3P2,DRIVER SIDE |
1 | ||
| 69250-50021E0 |
UCF30 BEIGE ME.,4P7,PASSENGER SIDE |
1 | ||
| 69250-50011J2 |
UCF30 LT. BLUE M.M.,8P7,DRIVER SIDE |
1 | ||
| 69250-50021G0 |
UCF30 GREEN M.M.,6S5,PASSENGER SIDE |
1 | ||
| 69250-50021C0 |
UCF30 BLACK,202,PASSENGER SIDE |
1 | ||
| 69250-50011G0 |
UCF30 GREEN M.M.,6S5,DRIVER SIDE |
1 | ||
| 69250-50021J0 |
UCF30 DARK BLUE MC.,8P8,PASSENGER SIDE |
1 | ||
| 69250-50011B1 |
UCF30 SILVER ME.,1C0,DRIVER SIDE |
1 | ||
| 69250-50021A0 |
UCF30 WHITE PEARL CS.,062,PASSENGER SIDE |
1 | ||
| 69250-50021B1 |
UCF30 SILVER ME.,1C0,PASSENGER SIDE |
1 | ||
| 69250-50021D0 |
UCF30 BORDEAUX MC.,3P2,PASSENGER SIDE |
1 | ||
| 69250-50021G1 |
UCF30 DARK GREEN M.M.,6S6,PASSENGER SIDE |
1 | ||
| 69250-50021J2 |
UCF30 LT. BLUE M.M.,8P7,PASSENGER SIDE |
1 | ||
| 69252C - GUIDE, DOOR OUTSIDE HANDLE | ||||
| 69252-50011 |
UCF30 |
2 | ||
| 69252-50010 |
UCF30 |
2 | ||
| 69252C - GUIDE, DOOR OUTSIDE HANDLE | ||||
| 69252-50011 |
UCF30 |
2 | ||
| 69252-50010 |
UCF30 |
2 | ||
| 69258C - RETAINER, DOOR OUTSIDE HANDLE, RH | ||||
| 69259-50011 |
UCF30 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-50080A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 69277-50080A1 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 69277-50080B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 69277-50080C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-50080A1 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 69278-50080C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 69278-50080A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 69278-50080B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
UCF30 LH |
1 | ||
| 69293-12050 |
UCF30 RH |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
UCF30 LH |
1 | ||
| 69293-12050 |
UCF30 RH |
1 | ||
| 69297A - BEZEL, DOOR INSIDE HANDLE, NO.2 RH | ||||
| 69297-50020C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 69297-50020A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 69297-50020A1 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 69297-50020B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 69298A - BEZEL, DOOR INSIDE HANDLE, NO.2 LH | ||||
| 69298-50020A1 |
UCF30 ECRU,TRIM03,05 |
1 | ||
| 69298-50020A0 |
UCF30 IVORY,TRIM04 |
1 | ||
| 69298-50020C0 |
UCF30 BLACK,TRIM20,27,29 |
1 | ||
| 69298-50020B0 |
UCF30 MD.CHARCOAL,TRIM1# |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-50030 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69030-50250 |
UCF30 |
1 | ||
| 69030-50180 |
UCF30 |
1 | ||
| 69310-50090 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69030-50251 |
UCF30 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-50030 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69030-50250 |
UCF30 |
1 | ||
| 69030-50180 |
UCF30 |
1 | ||
| 69310-50090 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69030-50251 |
UCF30 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-50030 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69040-50181 |
UCF30 |
1 | ||
| 69040-50180 |
UCF30 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-50030 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69040-50181 |
UCF30 |
1 | ||
| 69040-50180 |
UCF30 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-51010 |
UCF30 |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-30020 |
UCF30 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-50010 |
UCF30 |
1 | ||
| 69710-50020 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-50010 |
UCF30 |
1 | ||
| 69710-50020 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-50020 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69710-50010 |
UCF30 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-50020 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69710-50010 |
UCF30 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-50030 |
UCF30 |
1 | ||
| 69750-50040 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-50030 |
UCF30 |
1 | ||
| 69750-50040 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-50040 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69750-50030 |
UCF30 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-50040 |
UCF30 W(EASY CLOSER) |
1 | ||
| 69750-50030 |
UCF30 |
1 | ||
| 84970A - SWITCH ASSY, COMBINATION | ||||
| 84970-50010 |
UCF30 RH |
1 | ||
| 84970-50020 |
UCF30 LH |
1 | ||
| Common parts | ||||
| 90148-60039 | ||||
| 90148-80027 | ||||
| 90158-60008 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
| 91511-80516 | ||||
| 93560-14012 | ||||
| 94150-80500 | ||||
