UCF30L-AEAGKA (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

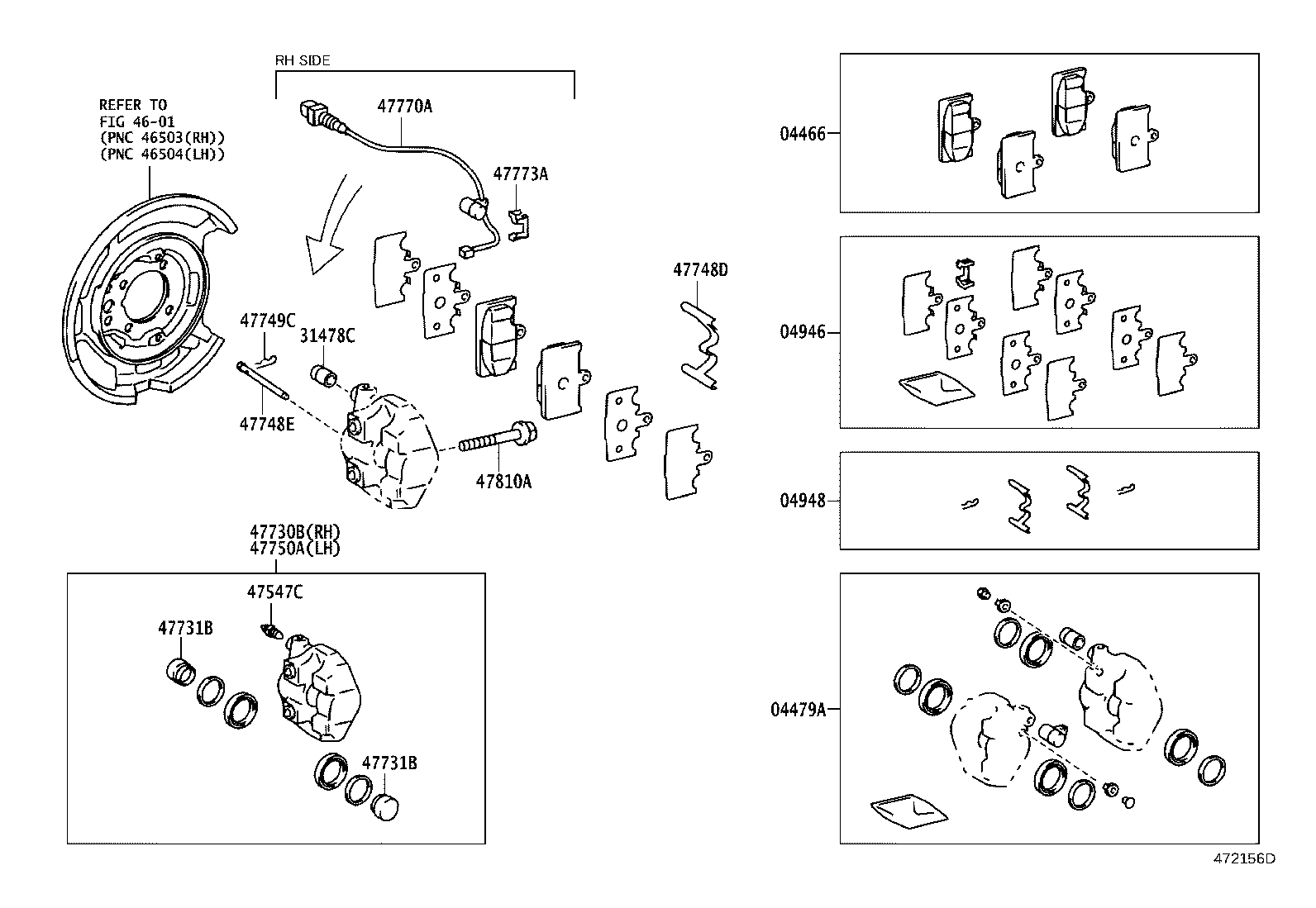

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47730B 47731B 47731B 47748D 47748E 47749C 47750A 47770A 47773A 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-50091

UCF30

MARK AK PA561

 1
04466-50090

UCF30

MARK AK PA544

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-50140

UCF30

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-50040

UCF30

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-50050

UCF30

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-14010

UCF30

 1
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-50010

UCF30

 2
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-50160

UCF30

 1
47731B - PISTON, REAR DISC BRAKE
47731-50070

UCF30

 4
47731B - PISTON, REAR DISC BRAKE
47731-50070

UCF30

 4
47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748-50030

UCF30

 2
47748E - PIN, W/HOLE(FOR REAR DISC BRAKE)
47735-50030

UCF30

 2
47749C - CLIP, PIN HOLD
47749-50030

UCF30

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-50150

UCF30

 1
47770A - WIRE ASSY, PAD WEAR INDICATOR, RH
47770-50060

UCF30

 1
47773A - RETAINER, PAD WEAR INDICATOR
47773-50030

UCF30

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-14152

UCF30

 4
Linked diagrams
4601
