UCF30L-AEAGKA (2000)

Toyota Lexus Ls430

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

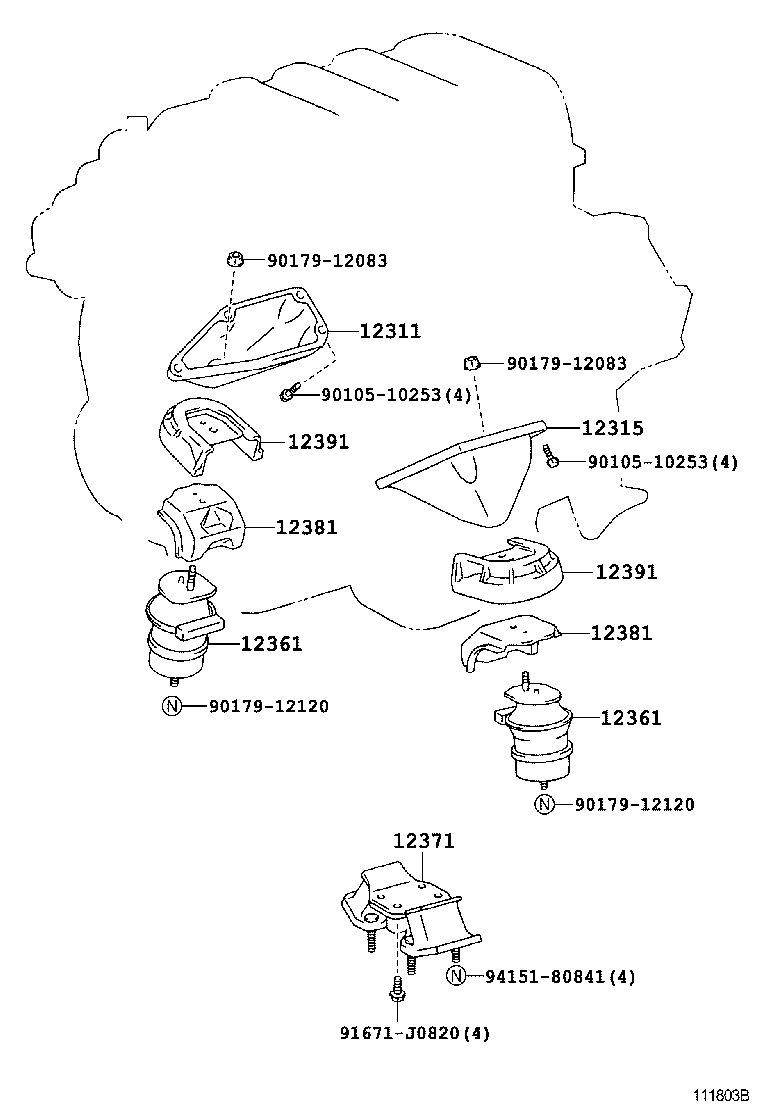

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12391 12391 9010510253 9010510253 9017912083 9017912083 9017912120 9017912120 91671J0820 9415180841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-50130

3UZFE..UCF30

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-50100

3UZFE..UCF30

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50170

3UZFE..UCF30

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50170

3UZFE..UCF30

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-50140

3UZFE..UCF30

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-50130

3UZFE..UCF30

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-50130

3UZFE..UCF30

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-50050

3UZFE..UCF30

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-50050

3UZFE..UCF30

 2
Common parts
90105-10253
90179-12083
90179-12120
91671-J0820
94151-80841
