UCF20L-AEPGKK (1994)

Toyota Lexus Ls400

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9410- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

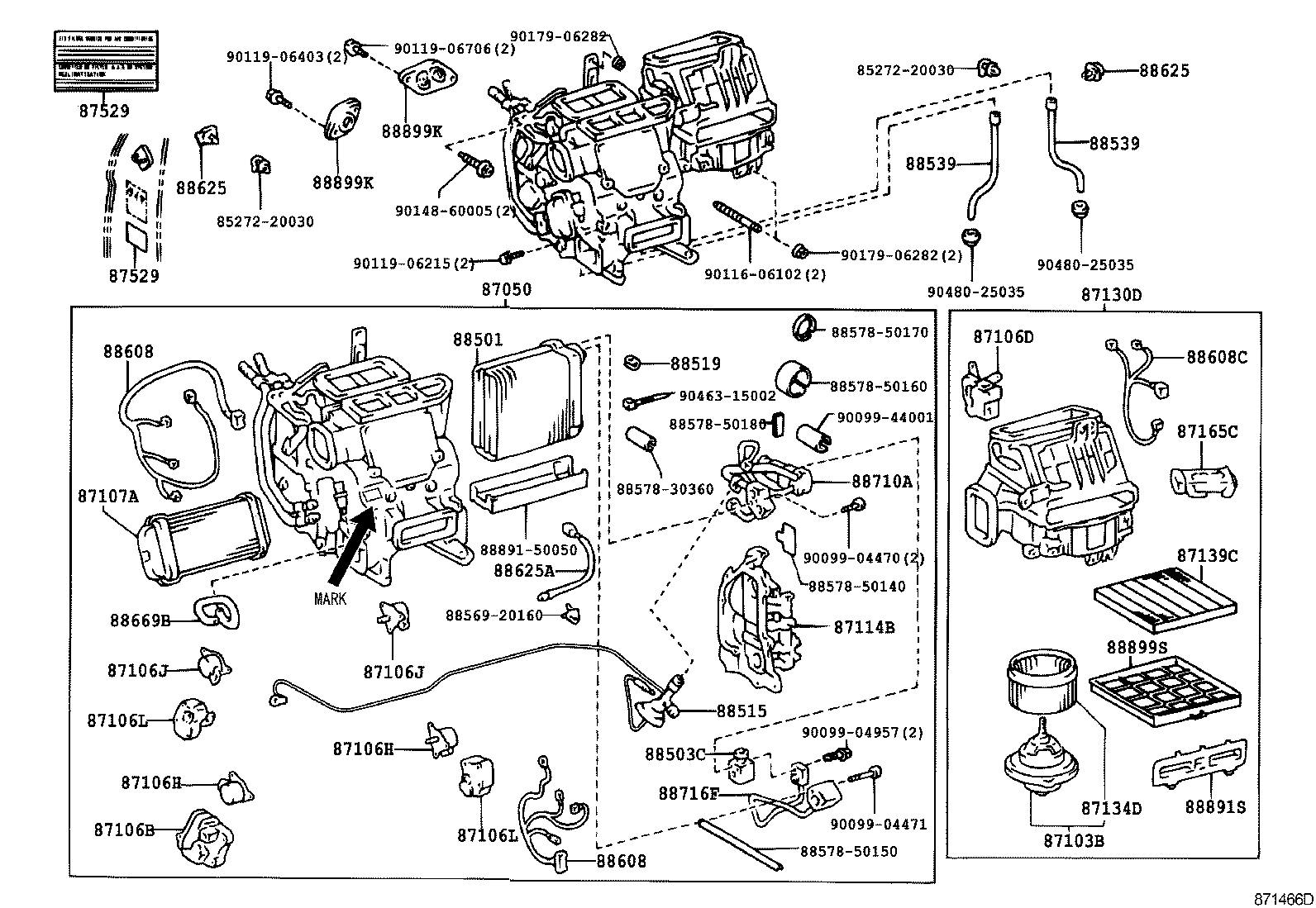

ILLUST NO. 1 OF 3(9410- )

Click highlighted areas on diagram

diagram 8527220030 8527220030 87050 87103B 87106B 87106D 87106H 87106H 87106J 87106J 87106L 87106L 87107A 87114B 87130D 87134D 87139C 87165C 87529 87529 88501 88503C 88515 88519 88539 88539 8856920160 8857830360 8857850140 8857850150 8857850160 8857850170 8857850180 88608 88608 88608C 88625 88625 88625A 88669B 88710A 88716F 8889150050 88891S 88899K 88899K 88899S 9009904470 9009904471 9009904957 9009944001 9011606102 9011906215 9011906403 9011906706 9014860005 9017906282 9017906282 9046315002 9048025035 9048025035
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-50011

UCF20

 1
87050-50010

UCF20

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-50030

UCF20

 1
87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106-50220

UCF20

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-50240

UCF20

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-50170

UCF20

 2
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-50170

UCF20

 2
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-50160

UCF20

 2
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-50160

UCF20

 2
87106L - SERVO SUB-ASSY, DAMPER
87106-50190

UCF20

PASSENGER SIDE

 1
87106-50180

UCF20

DRIVER SIDE

 1
87106L - SERVO SUB-ASSY, DAMPER
87106-50190

UCF20

PASSENGER SIDE

 1
87106-50180

UCF20

DRIVER SIDE

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-50030

UCF20

 1
87114B - COVER, HEATER
87114-50010

UCF20

 1
87130D - BLOWER ASSY
87130-50010

UCF20

 1
87134D - FAN, BLOWER, NO.2
87134-50010

UCF20

 1
87139C - FILTER, CLEAN AIR
87139-50010

UCF20

 1
87165C - CONTROL, BLOWER MOTOR
87165-50010

UCF20

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-50130

UCF20

 1
88503C - REGULATOR SUB-ASSY, PRESSURE
88503-50170

UCF20

 1
88515 - VALVE, COOLER EXPANSION
88515-50150

UCF20

 1
88519 - HOLDER, REMOTE BULB
88519-22030

UCF20

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-50040

UCF20

 2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-50040

UCF20

 2
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-50220

UCF20

DRIVER SIDE

 1
88608-50150

UCF20

PASSENGER SIDE

 1
88608-50140

UCF20

DRIVER SIDE

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-50220

UCF20

DRIVER SIDE

 1
88608-50150

UCF20

PASSENGER SIDE

 1
88608-50140

UCF20

DRIVER SIDE

 1
88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-50180

UCF20

 1
88625 - THERMISTOR, COOLER, NO.1
88625-50130

UCF20

 2
88625 - THERMISTOR, COOLER, NO.1
88625-50130

UCF20

 2
88625A - THERMISTOR, COOLER NO.2
88625-50140

UCF20

 1
88669B - HOSE, COOLER AIR
88669-50030

UCF20

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-50480

UCF20

MARK 050 OR 052 OR 055:REFER TO ILLUST.

 1
88710-50481

UCF20

MARK 056:REFER TO ILLUST.

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-50340

UCF20

 1
88891S - COVER, COOLER, NO.1
88891-50030

UCF20

 1
88899K - PLATE, COVER
88899-50030

UCF20

HEATER

 1
88899-50020

UCF20

COOLER

 1
88899K - PLATE, COVER
88899-50030

UCF20

HEATER

 1
88899-50020

UCF20

COOLER

 1
88899S - FRAME, FRONT COOLER
88899-50050

UCF20

 1
Common parts
85272-20030
88569-20160
88578-30360
88578-50140
88578-50150
88578-50160
88578-50170
88578-50180
88891-50050
90099-04470
90099-04471
90099-04957
90099-44001
90116-06102
90119-06215
90119-06403
90119-06706
90148-60005
90179-06282
90463-15002
90480-25035
