UCF20L-AEPGKK (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410-9707)

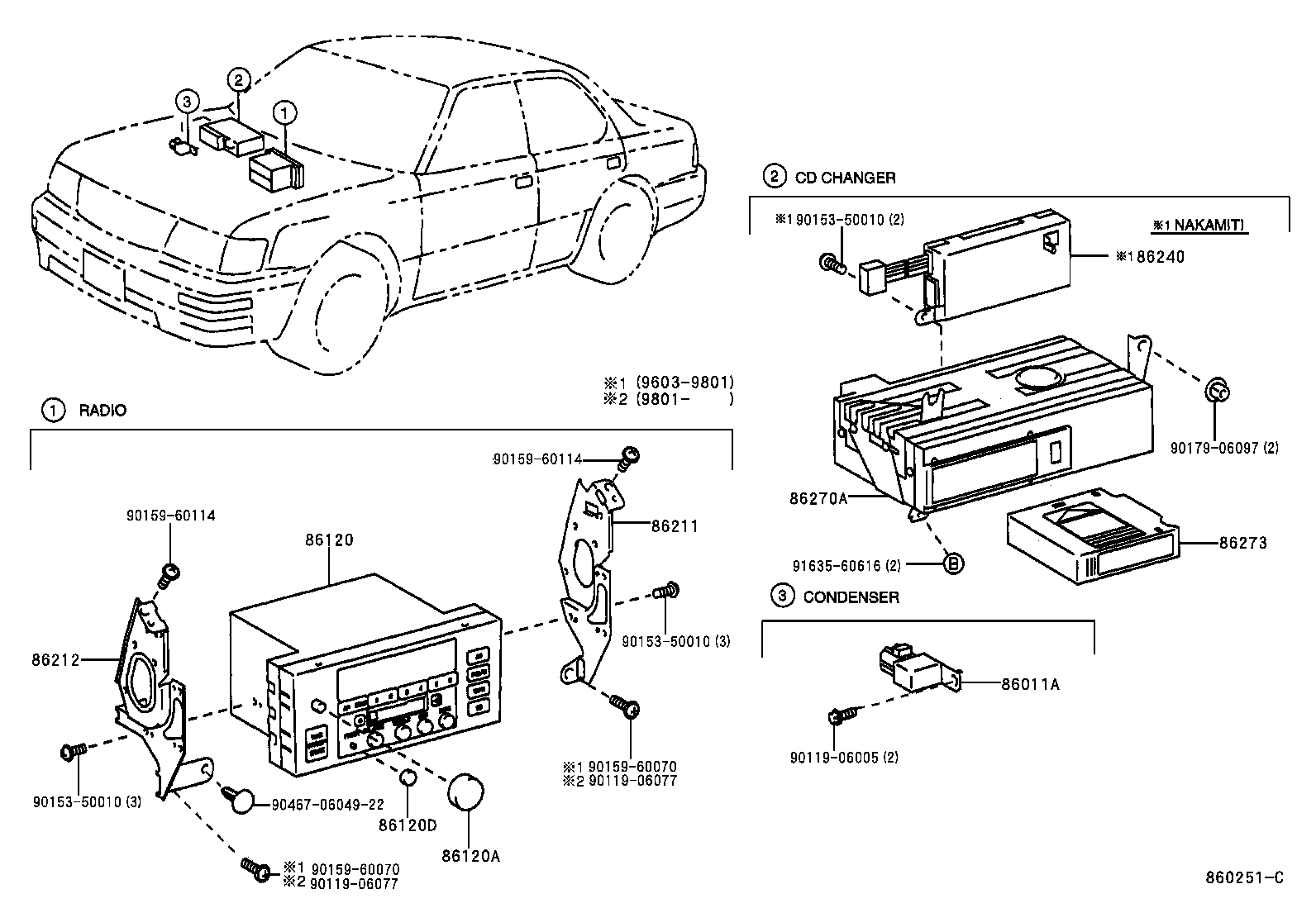

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04077 |
UCF20 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-50370 |
UCF20..CND |
1 | ||
| 86120-50371 |
UCF20..CND |
1 | ||
| 86120-50361 |
UCF20 PIONEER |
1 | ||
| 86120-50362 |
UCF20 PIONEER |
1 | ||
| 86120-50371 |
UCF20 NAKAMICHI |
1 | ||
| 86120-50372 |
UCF20 NAKAMICHI |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86127-50040 |
UCF20..CND |
1 | ||
| 86127-50090 |
UCF20 PIONEER |
1 | ||
| 86127-50040 |
UCF20 RADIO----NAKAMICHI |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86127-50060 |
UCF20 |
5 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-50030 |
UCF20 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-50030 |
UCF20 |
1 | ||
| 86240 - EQUALIZER ASSY,STEREO COMPONENT | ||||
| 86240-50010 |
UCF20 |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-50100 |
UCF20 NAKAMICHI |
1 | ||
| 86270-50090 |
UCF20 PIONEER |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-50050 |
UCF20 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06077 | ||||
| 90153-50010 | ||||
| 90159-60070 | ||||
| 90159-60114 | ||||
| 90179-06097 | ||||
| 90467-0604922 | ||||
| 91635-60616 | ||||
