UCF20L-AEPGKK (1994)
Toyota Lexus Ls400

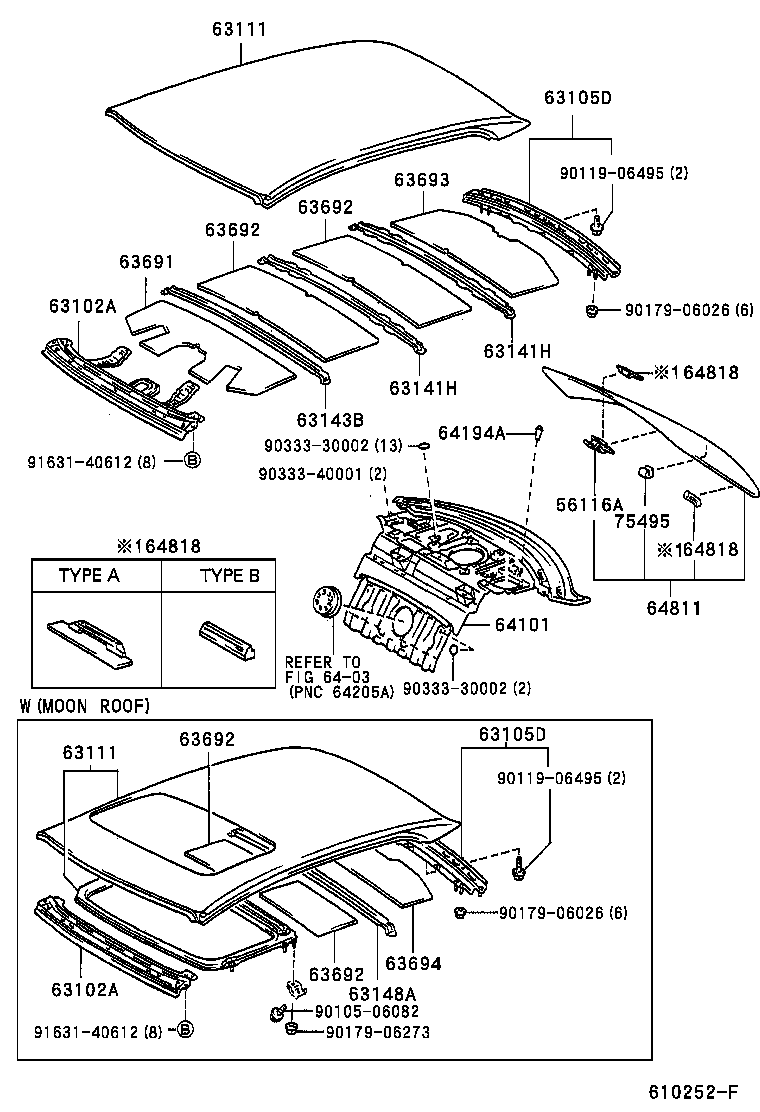

ILLUST NO. 1 OF 2(9410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56116A - SPACER, WINDSHIELD GLASS | ||||
| 56116-22080 |
UCF20 |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-50030 |
UCF20 |
1 | ||
| 63102-50040 |
UCF20 W(MOON ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-50030 |
UCF20 |
1 | ||
| 63102-50040 |
UCF20 W(MOON ROOF) |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-50020 |
UCF20 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-50020 |
UCF20 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-50030 |
UCF20 |
1 | ||
| 63111-50900 |
UCF20 W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-50030 |
UCF20 |
1 | ||
| 63111-50900 |
UCF20 W(MOON ROOF) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-50020 |
UCF20 |
2 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-50020 |
UCF20 |
2 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-50020 |
UCF20 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-50020 |
UCF20 |
1 | ||
| 63691 - PAD, ROOF SILENCER, NO.21 | ||||
| 63691-50020 |
UCF20 |
1 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-50010 |
UCF20 |
2 | ||
| 63692-50020 |
UCF20 W(MOON ROOF) |
2 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-50010 |
UCF20 |
2 | ||
| 63692-50020 |
UCF20 W(MOON ROOF) |
2 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-50010 |
UCF20 |
2 | ||
| 63692-50020 |
UCF20 W(MOON ROOF) |
2 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-50010 |
UCF20 |
2 | ||
| 63692-50020 |
UCF20 W(MOON ROOF) |
2 | ||
| 63693 - PAD, ROOF SILENCER, NO.23 | ||||
| 63693-50010 |
UCF20 |
1 | ||
| 63694 - PAD, ROOF SILENCER, NO.24 | ||||
| 63694-50010 |
UCF20 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-50100 |
UCF20 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64810-50200 |
UCF20 *TT,T=4.0,GRAY |
1 | ||
| 64810-50180 |
UCF20 *TT,T=4.0,GREEN |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56115-30090 |
UCF20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 64818-50030 |
UCF20 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56115-30090 |
UCF20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 64818-50030 |
UCF20 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56115-30090 |
UCF20 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 64818-50030 |
UCF20 TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 75495 - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-50030 |
UCF20 |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90119-06495 | ||||
| 90179-06026 | ||||
| 90179-06273 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 6403 | ||||

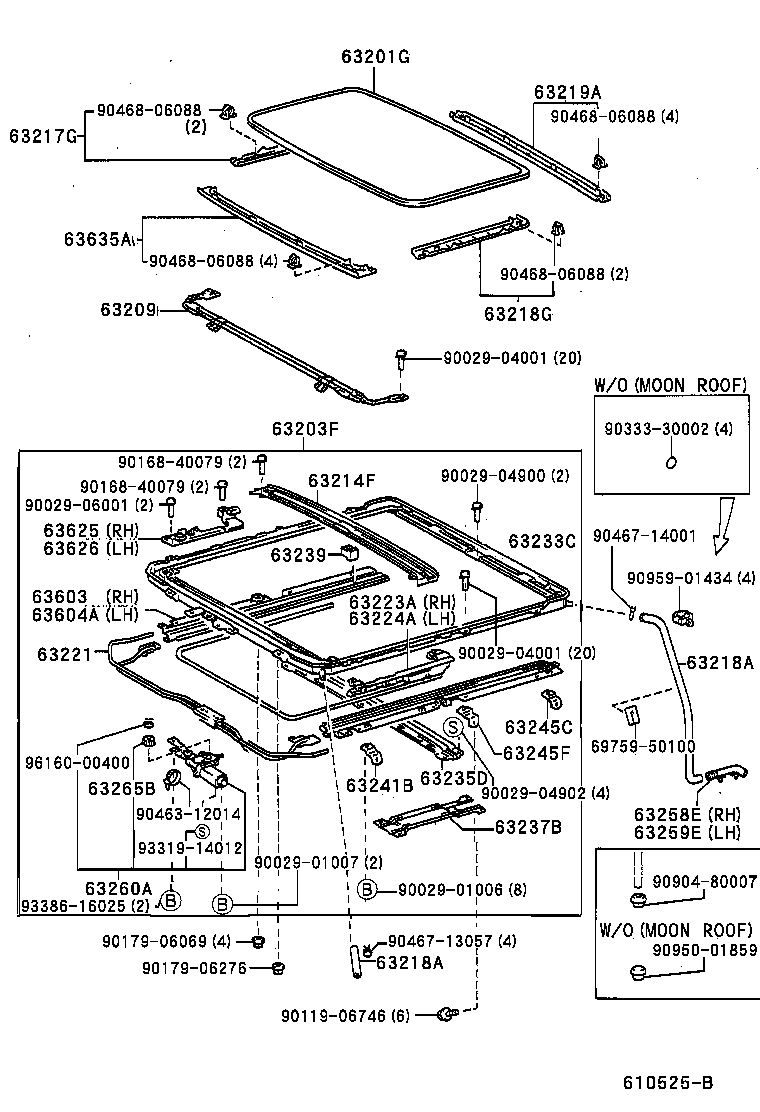

ILLUST NO. 2 OF 2(9410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-50130 |
UCF20 *TEM,T=4.0 |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-50020 |
UCF20 |
1 | ||
| 63203-50021 |
UCF20 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-50020 |
UCF20 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-50020 |
UCF20 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-50020G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 63217-50020A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 63217-50020B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-50040 |
UCF20 L=1755,REAR |
2 | ||
| 63249-50041 |
UCF20 L=1715,REAR |
2 | ||
| 63249-50010 |
UCF20 L=65,FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-50040 |
UCF20 L=1755,REAR |
2 | ||
| 63249-50041 |
UCF20 L=1715,REAR |
2 | ||
| 63249-50010 |
UCF20 L=65,FRONT |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-50020A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 63218-50020B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 63218-50020G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-50020G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 63219-50020A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 63219-50020B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-50020 |
UCF20 |
1 | ||
| 63223A - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-50030 |
UCF20 |
1 | ||
| 63224A - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-50020 |
UCF20 |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-50020 |
UCF20 |
1 | ||
| 63235D - FRAME, SLIDING ROOF HOUSING, CENTER | ||||
| 63235-50020 |
UCF20 |
1 | ||
| 63237B - FRAME, SLIDING ROOF HOUSING, REAR | ||||
| 63237-50020 |
UCF20 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-50010 |
UCF20 |
2 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-50020 |
UCF20 |
2 | ||
| 63245C - BRACKET, REMOVABLE ROOF, NO.1 | ||||
| 63245-50010 |
UCF20 |
2 | ||
| 63245F - BRACKET, SLIDING REAR MOUNTING | ||||
| 63245-50020 |
UCF20 |
2 | ||
| 63258E - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-50020 |
UCF20 |
1 | ||
| 63259E - STRENGTH, ROOF PANEL, CENTER NO.9 | ||||
| 63259-50020 |
UCF20 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-50030 |
UCF20 |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
UCF20 |
1 | ||
| 63603 - RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH | ||||
| 63603-50020 |
UCF20 |
1 | ||
| 63603-50021 |
UCF20 |
1 | ||
| 63604A - RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH | ||||
| 63604-50021 |
UCF20 |
1 | ||
| 63604-50020 |
UCF20 |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-50020 |
UCF20 |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-50010 |
UCF20 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-50020G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 63635-50020B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 63635-50020A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 69759-50100 | ||||
| 90029-01006 | ||||
| 90029-01007 | ||||
| 90029-04001 | ||||
| 90029-04900 | ||||
| 90029-04902 | ||||
| 90029-06001 | ||||
| 90119-06746 | ||||
| 90168-40079 | ||||
| 90179-06069 | ||||
| 90179-06276 | ||||
| 90333-30002 | ||||
| 90463-12014 | ||||
| 90467-13057 | ||||
| 90467-14001 | ||||
| 90468-06088 | ||||
| 90904-80007 | ||||
| 90950-01859 | ||||
| 90959-01434 | ||||
| 93319-14012 | ||||
| 93386-16025 | ||||
| 96160-00400 | ||||
