UCF20L-AEPGKK (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )

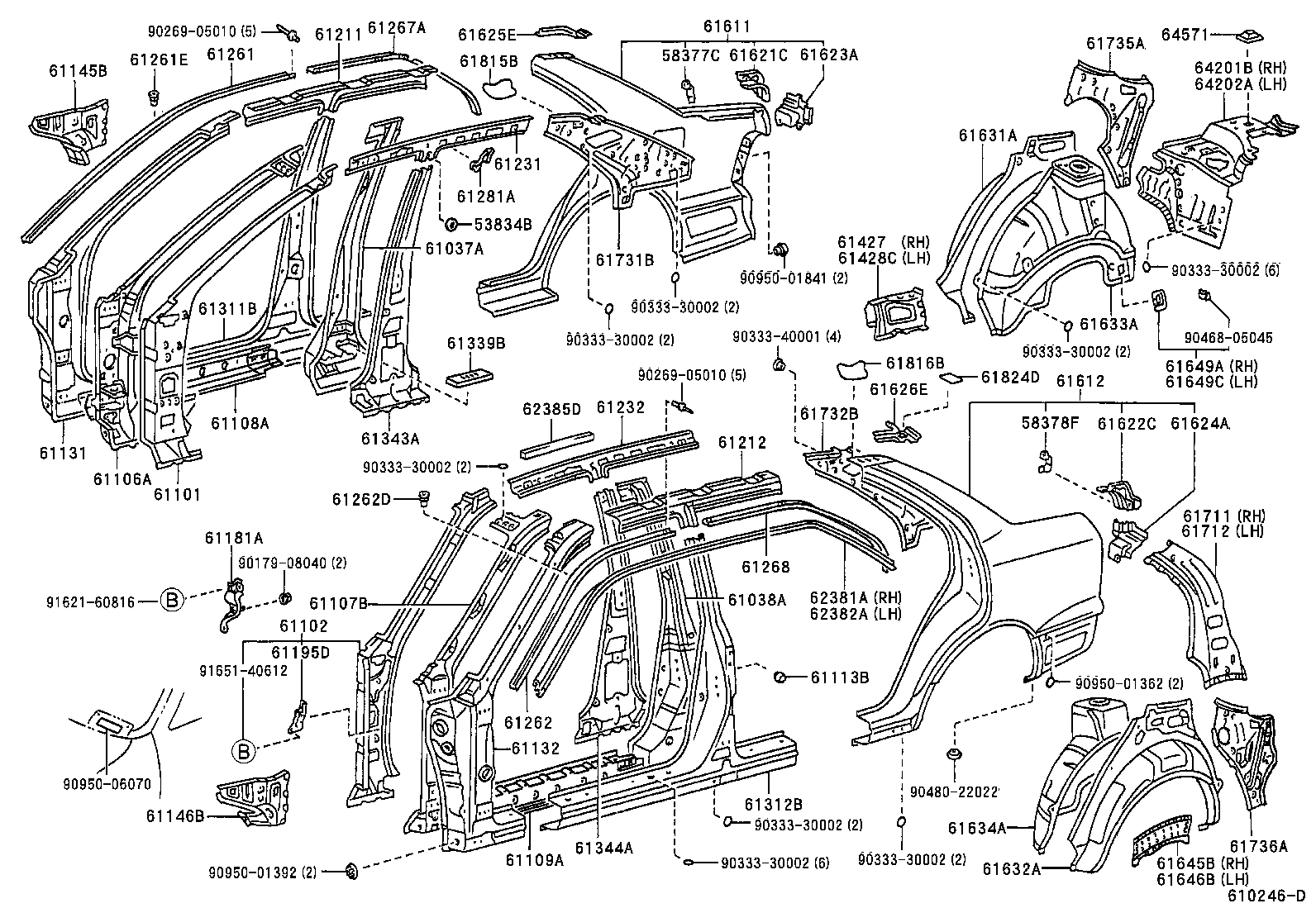

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53834B - PLATE, FRONT FENDER SUPPORT | ||||
| 53834-30040 |
UCF20 T=2.0 |
1 | ||
| 53834-30050 |
UCF20 T=1.0 |
1 | ||
| 58377C - RETAINER, LOWER BACK TRIM, RH | ||||
| 58377-50020 |
UCF20 |
1 | ||
| 58378F - RETAINER, LOWER BACK TRIM, LH | ||||
| 58378-50020 |
UCF20 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-50022 |
UCF20 |
1 | ||
| 61037-50020 |
UCF20 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-50020 |
UCF20 |
1 | ||
| 61038-50022 |
UCF20 |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-50050 |
UCF20 |
1 | ||
| 61101-50060 |
UCF20 W(MOON ROOF) |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-50050 |
UCF20 |
1 | ||
| 61102-50051 |
UCF20 |
1 | ||
| 61102-50060 |
UCF20 W(MOON ROOF) |
1 | ||
| 61102-50061 |
UCF20 W(MOON ROOF) |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-50011 |
UCF20 |
1 | ||
| 61106-50010 |
UCF20 |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-50011 |
UCF20 |
1 | ||
| 61107-50011 |
UCF20 |
1 | ||
| 61107-50010 |
UCF20 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-50010 |
UCF20 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-50010 |
UCF20 |
1 | ||
| 61113B - CUSHION(FOR CENTER PILLER) | ||||
| 90541-10027 |
UCF20 |
2 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-50021 |
UCF20 |
1 | ||
| 61131-50020 |
UCF20 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-50020 |
UCF20 |
1 | ||
| 61132-50021 |
UCF20 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-50020 |
UCF20 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-50020 |
UCF20 |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 61181-50020 |
UCF20 |
1 | ||
| 61195D - BRACKET, COWL SIDE TRIM, LH | ||||
| 61195-50030 |
UCF20 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-50020 |
UCF20 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-50020 |
UCF20 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-50020 |
UCF20 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-50020 |
UCF20 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-50020 |
UCF20 |
1 | ||
| 61261E - POP NUT | ||||
| 61159-50020 |
UCF20 |
3 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-50020 |
UCF20 |
1 | ||
| 61262D - POP NUT | ||||
| 61159-50020 |
UCF20 |
3 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-50020 |
UCF20 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-50020 |
UCF20 |
1 | ||
| 61281A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-50020 |
UCF20 |
2 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-50010 |
UCF20 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-50010 |
UCF20 |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-50020 |
UCF20 |
2 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-50020 |
UCF20 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-50020 |
UCF20 |
1 | ||
| 61344-50021 |
UCF20 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-50010 |
UCF20 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-50010 |
UCF20 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-50030 |
UCF20 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-50051 |
UCF20 |
1 | ||
| 61602-50050 |
UCF20 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-50020 |
UCF20 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-50020 |
UCF20 |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-50010 |
UCF20 |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-50010 |
UCF20 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-50010 |
UCF20 |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-50010 |
UCF20 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-50010 |
UCF20 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-50010 |
UCF20 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-50928 |
UCF20 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-50918 |
UCF20 |
1 | ||
| 61649A - PLATE, QUARTER WHEEL HOUSE | ||||
| 61649-50010 |
UCF20 |
1 | ||
| 61649C - PLATE, QUARTER WHEEL HOUSE, LH | ||||
| 61649-50010 |
UCF20 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-50020 |
UCF20 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-50020 |
UCF20 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-50010 |
UCF20 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-50010 |
UCF20 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-50010 |
UCF20 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-50010 |
UCF20 |
1 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-50030 |
UCF20 |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61816-50030 |
UCF20 |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50020 |
UCF20 |
2 | ||
| 62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-50031 |
UCF20 |
1 | ||
| 62381-50030 |
UCF20 |
1 | ||
| 62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-50030 |
UCF20 |
1 | ||
| 62382-50031 |
UCF20 |
1 | ||
| 62385D - SEAL, SIDE WINDOW, NO.1 | ||||
| 62385-50010 |
UCF20 |
2 | ||
| 64201B - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH | ||||
| 64201-50900 |
UCF20 |
1 | ||
| 64202A - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH | ||||
| 64202-50900 |
UCF20 |
1 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-50010 |
UCF20 |
2 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90269-05010 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90468-05045 | ||||
| 90480-22022 | ||||
| 90950-01362 | ||||
| 90950-01392 | ||||
| 90950-01841 | ||||
| 90950-06070 | ||||
| 91621-60816 | ||||
| 91651-40612 | ||||
