UCF20L-AEPGKK (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )

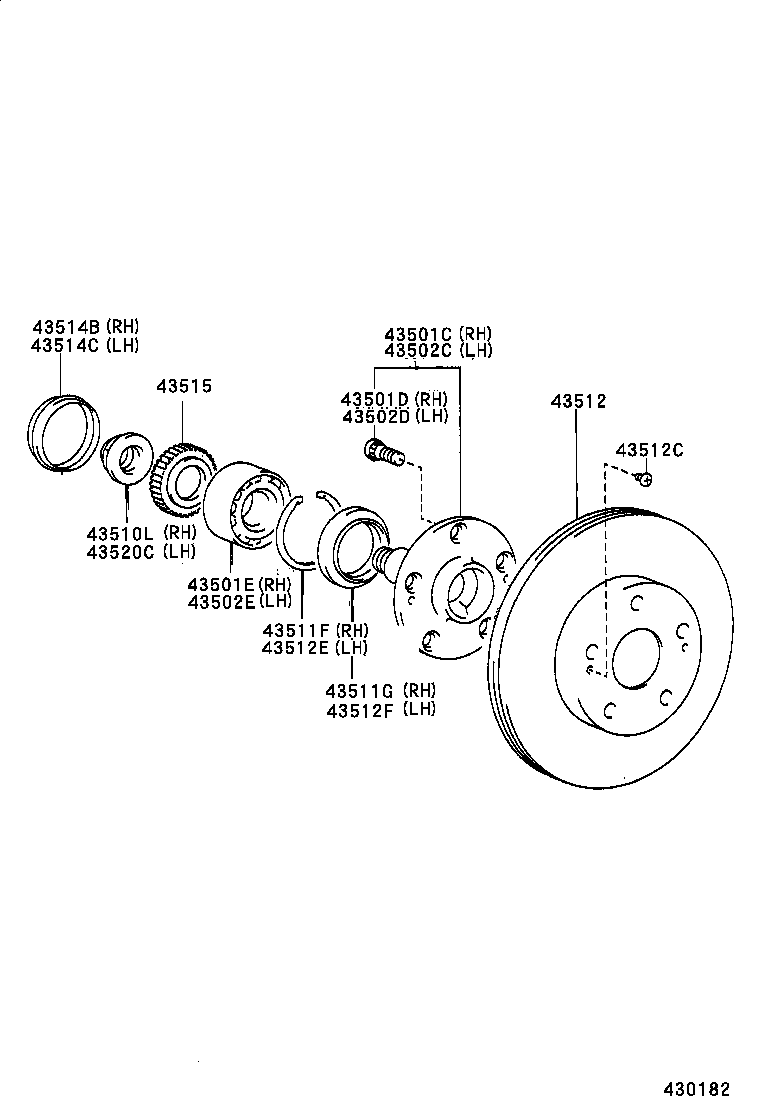

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-50021 |
UCF20 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02070 |
UCF20 |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90903-63006 |
UCF20 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-50021 |
UCF20 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02070 |
UCF20 |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90903-63006 |
UCF20 |
1 | ||
| 43510L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-24005 |
UCF20 |
1 | ||
| 43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-82001 |
UCF20 |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90311-50016 |
UCF20 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-50150 |
UCF20 |
2 | ||
| 43512-50130 |
UCF20 |
2 | ||
| 43512-50151 |
UCF20 |
2 | ||
| 43512-50152 |
UCF20 |
2 | ||
| 43512C - SCREW (FOR FRONT DISC) | ||||
| 90155-60002 |
UCF20 |
2 | ||
| 43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-82001 |
UCF20 |
1 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90311-50016 |
UCF20 |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-50010 |
UCF20 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-50010 |
UCF20 |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-50010 |
UCF20 |
2 | ||
| 43520C - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-24005 |
UCF20 |
1 | ||
