UCF20L-AEPGKA (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )

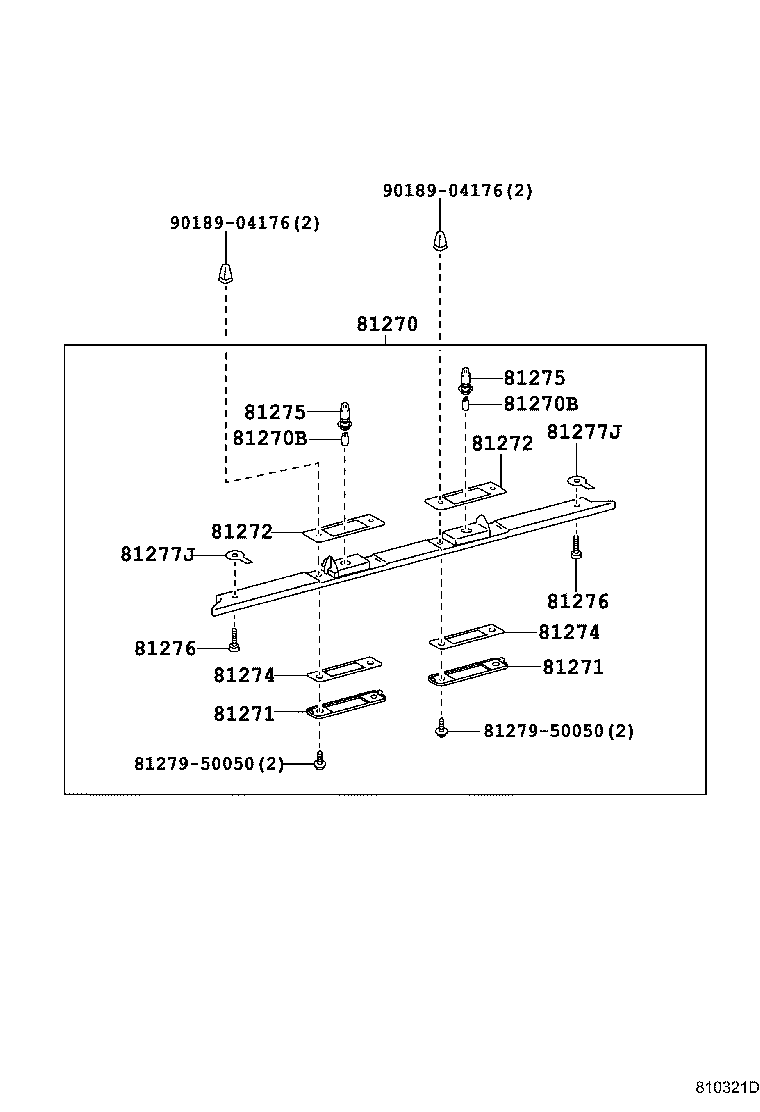

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-50050 |
UCF20 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
UCF20 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
UCF20 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-50050 |
UCF20 RH |
1 | ||
| 81278-50050 |
UCF20 LH |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-50050 |
UCF20 RH |
1 | ||
| 81278-50050 |
UCF20 LH |
1 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-50050 |
UCF20 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-50050 |
UCF20 |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-50050 |
UCF20 |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-50050 |
UCF20 |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-99011 |
UCF20 |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-99011 |
UCF20 |
2 | ||
| 81276 - RIM, LICENSE PLATE LAMP | ||||
| 81276-50050 |
UCF20 |
2 | ||
| 81276 - RIM, LICENSE PLATE LAMP | ||||
| 81276-50050 |
UCF20 |
2 | ||
| 81277J - GASKET, LICENSE PLATE LAMP BODY, NO.2 | ||||
| 81277-50050 |
UCF20 |
2 | ||
| 81277J - GASKET, LICENSE PLATE LAMP BODY, NO.2 | ||||
| 81277-50050 |
UCF20 |
2 | ||
| Common parts | ||||
| 81279-50050 | ||||
| 90189-04176 | ||||
