UCF20L-AEPGKA (1994)
Toyota Lexus Ls400

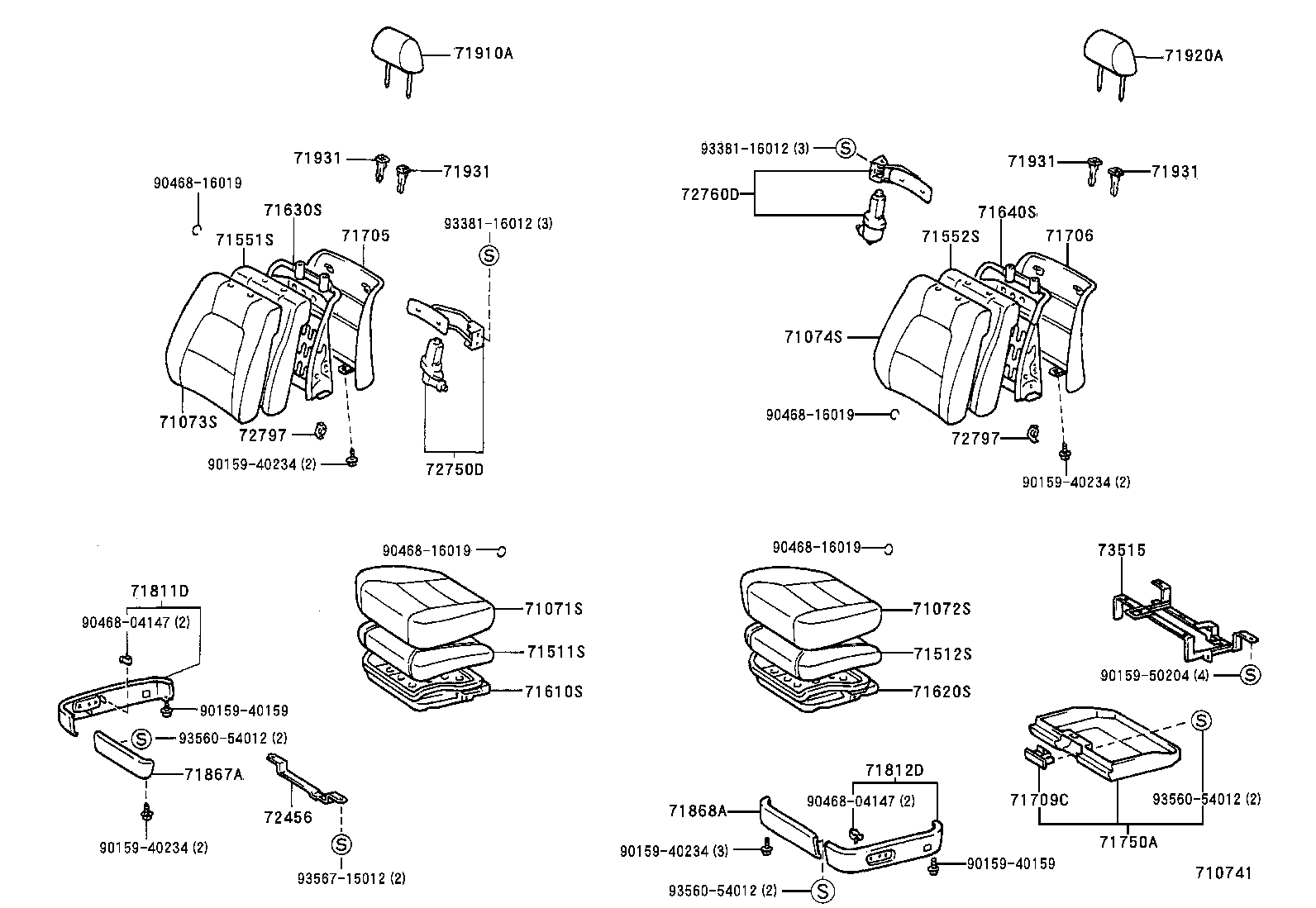

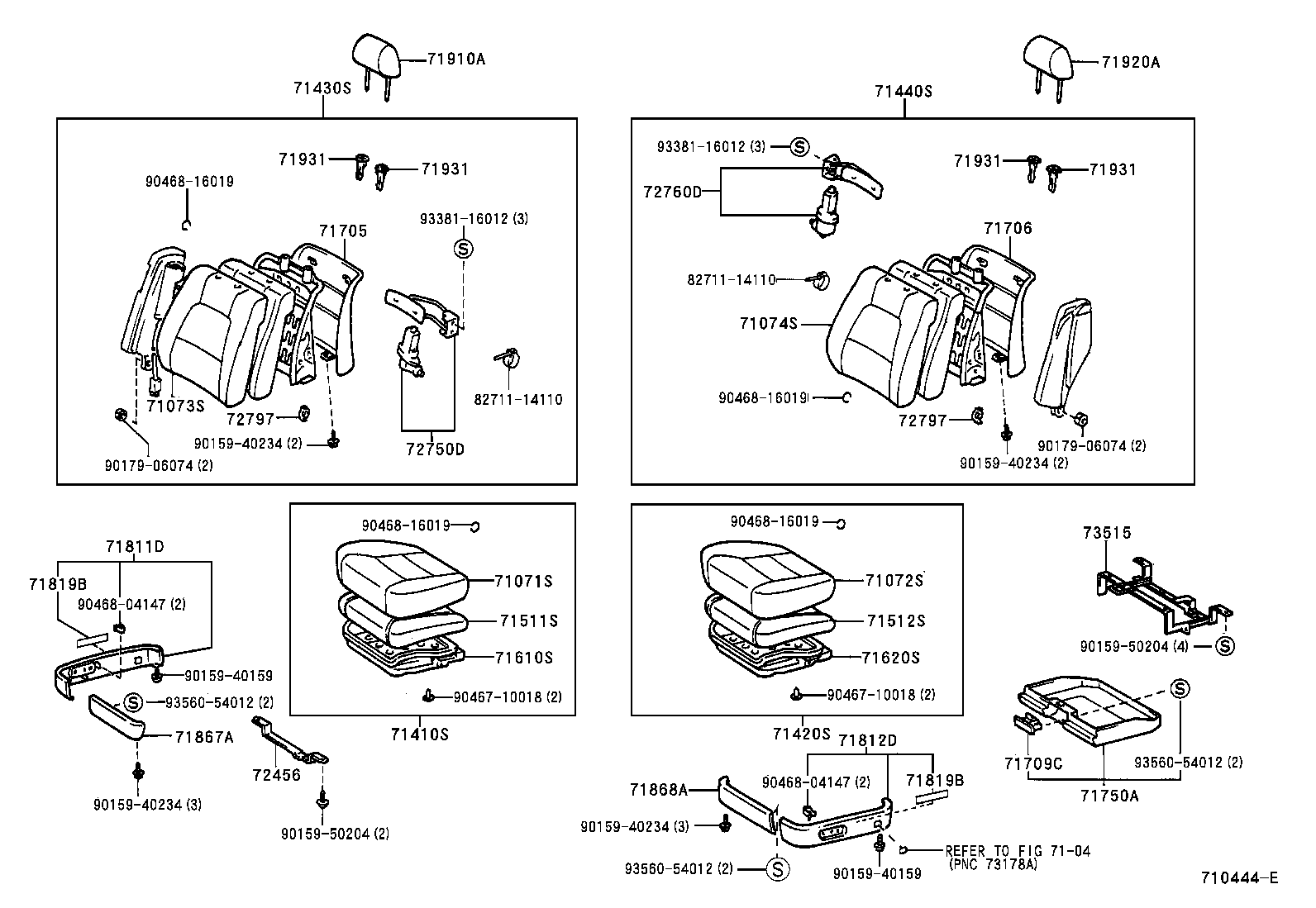

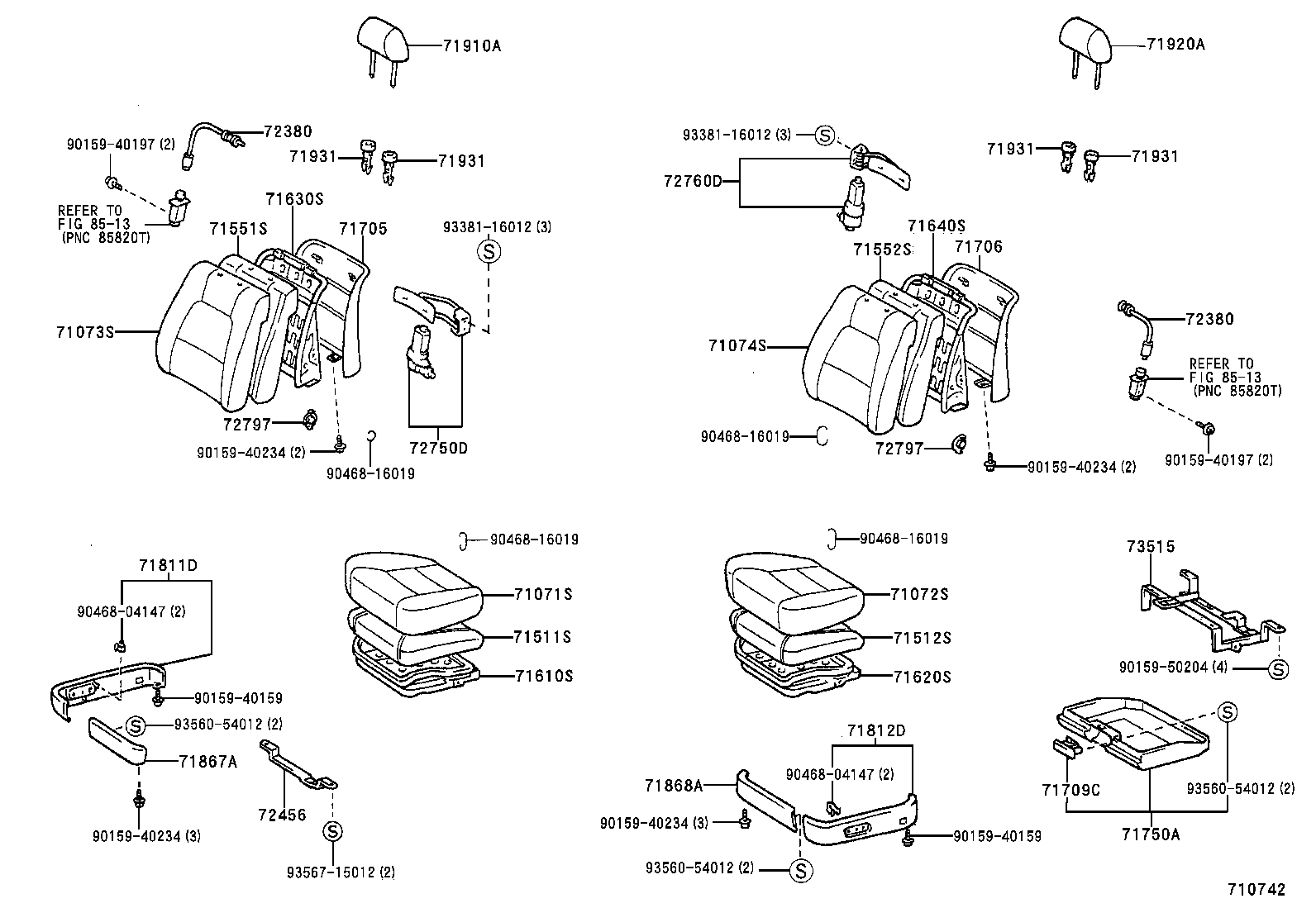

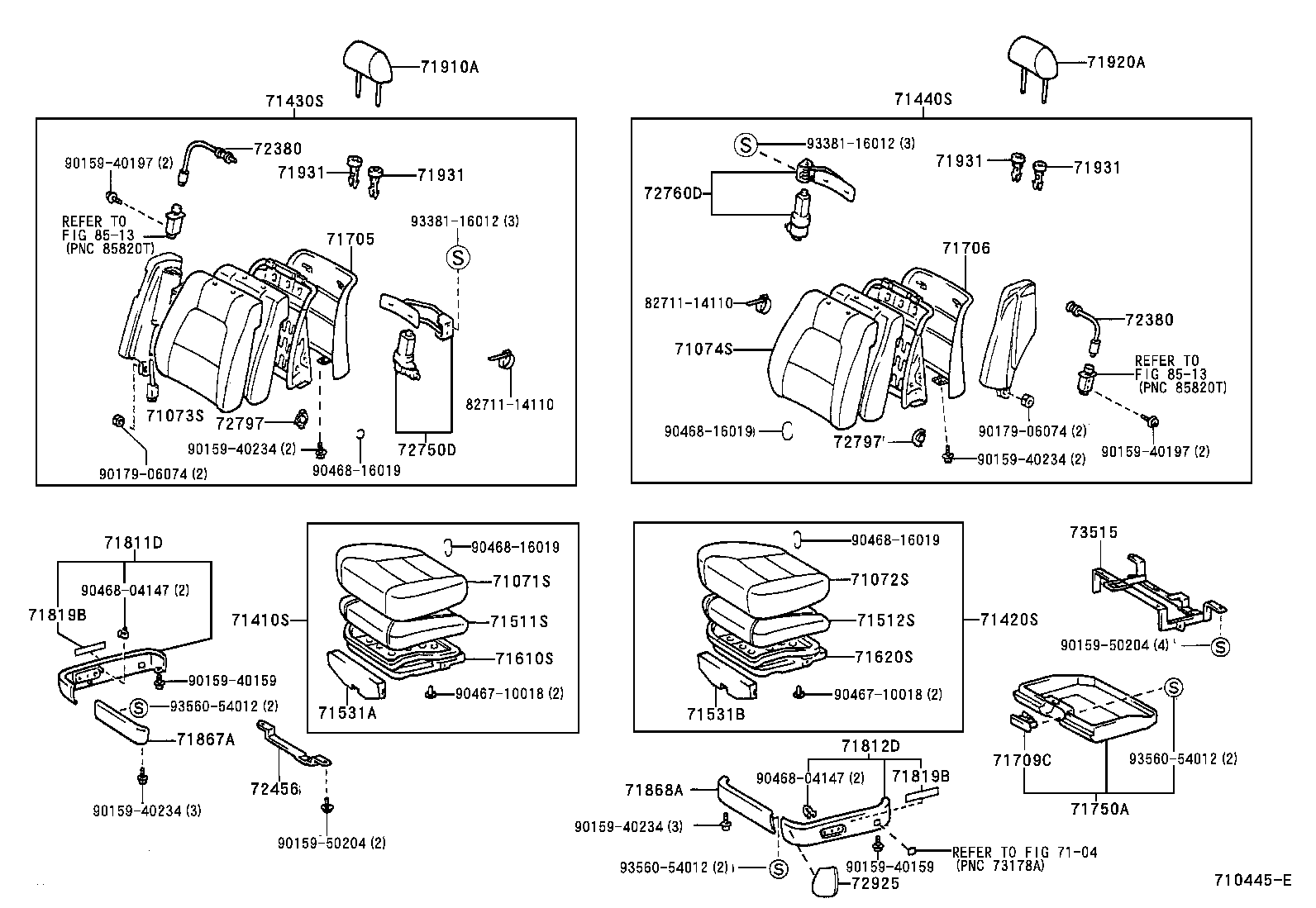

ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71071-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71071-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71071-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71071-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71071-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71071-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71071-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71071-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71071-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71071-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71072-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71072-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-50410B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71073-50410A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71073-50411A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71073-50410G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71073-50410C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71073-50560G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71073-50411C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71073-50560A0 |
UCF20..USA COACH EDITION,IVORT,TRIM01 |
1 | ||
| 71073-50411B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71073-50560C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71073-50411G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71074-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71074-50340A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71074-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71074-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71074-50151C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71074-50151B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71074-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71074-50340G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71074-50340C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71074-50151G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-50220B0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),BLUE GRAY,TRIM1# |
1 | ||
| 71410-50140A0 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUSTER SYSTEM),IVORY,TRIM0# |
1 | ||
| 71410-50140B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71410-50220G0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),AGATE,TRIM6# |
1 | ||
| 71410-50140G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71410-50680A0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),IVORY,TRIM01 |
1 | ||
| 71410-50680C0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),BLACY,TRIM21 |
1 | ||
| 71410-50140C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71410-50670C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71410-50220A0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),IVORY,TRIM0# |
1 | ||
| 71410-50220C0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),BLACK,TRIM2# |
1 | ||
| 71410-50670A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71410-50670G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71410-50680G0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),AGATE,TRIM61 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-50460A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71420-50460G0 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUSTER SYSTEM),AGATE,TRIM6# |
1 | ||
| 71420-50520B0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),BLUE GRAY,TRIM1# |
1 | ||
| 71420-50460B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71420-50520C0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),BLACK,TRIM2# |
1 | ||
| 71420-50720G0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),AGATE,TRIM61 |
1 | ||
| 71420-50710A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71420-50710C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71420-50710G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71420-50460C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71420-50520G0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),AGATE,TRIM6# |
1 | ||
| 71420-50520A0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),IVORY,TRIM0# |
1 | ||
| 71420-50720C0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),BLACK,TRIM21 |
1 | ||
| 71420-50720A0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),IVORY,TRIM01 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-50620A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71430-50610B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71430-50620G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71430-50610G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71430-50620C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71430-50620B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71430-50610C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71040-50050C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71430-50630A0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71040-50070G0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),AGATE,TRIM61 |
1 | ||
| 71430-50630C0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71040-50050A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71040-50050G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71430-50630B0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),BLUE GRAY,TRIM1# |
1 | ||
| 71040-50060C0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),BLACK,TRIM21 |
1 | ||
| 71040-50060G0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),AGATE,TRIM61 |
1 | ||
| 71430-50610A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71430-50630G0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),AGATE,TRIM6# |
1 | ||
| 71040-50060A0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),IVORY,TRIM01 |
1 | ||
| 71040-50070A0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),IVORY,TRIM01 |
1 | ||
| 71040-50070C0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),BLACK,TRIM21 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-50450G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71440-50450A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71440-50450C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71440-50600A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71440-50450B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71440-50600C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71440-5A120A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71440-5A130G0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),AGATE,TRIM61 |
1 | ||
| 71440-50670C0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-5A130A0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),IVORY,TRIM01 |
1 | ||
| 71440-50600G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71440-5A120C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71440-50670G0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),AGATE,TRIM6# |
1 | ||
| 71440-5A120G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71440-50670B0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),BLUE GRAY,TRIM1# |
1 | ||
| 71440-5A140C0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),BLACK,TRIM21 |
1 | ||
| 71440-50600B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71440-5A130C0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),BLACK,TRIM21 |
1 | ||
| 71440-50670A0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71440-5A140A0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),IVORY,TRIM01 |
1 | ||
| 71440-5A140G0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),AGATE,TRIM61 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71515-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71511-50060 |
UCF20..USA |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71516-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71512-50060 |
UCF20..USA |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-50090 |
UCF20 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-50090 |
UCF20 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71705-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71705-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71705-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71705-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71705-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 71709-50020 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71709-50010 |
UCF20 |
1 | ||
| 71709-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM & HEATER) |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-50010 |
UCF20 |
1 | ||
| 71750-50030 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71750-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71811-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71811-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71811-50060B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71811-50060G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71811-50060A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71811-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71811-50060C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71812-50050A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71812-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71812-50050B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71812-50050C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71812-50050G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-50010A0 |
UCF20 IVORY,TRIM0# |
2 | ||
| 71819-50010C0 |
UCF20 BLACK,TRIM2# |
2 | ||
| 71819-50010G0 |
UCF20 AGATE,TRIM6# |
2 | ||
| 71819-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
2 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-50010A0 |
UCF20 IVORY,TRIM0# |
2 | ||
| 71819-50010C0 |
UCF20 BLACK,TRIM2# |
2 | ||
| 71819-50010G0 |
UCF20 AGATE,TRIM6# |
2 | ||
| 71819-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
2 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71867-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71867-50010G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71867-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71868-50010G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71868-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71868-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50250G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71910-50260A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71910-50260C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71910-50250A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71910-50260B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71910-50260G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71910-50250C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71910-50250B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-50250G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71910-50250B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71910-50250A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71910-50260C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71910-50260A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71910-50260G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71910-50250C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71910-50260B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 72456 - BRACKET, SEAT FRAME SET, NO.2 | ||||
| 72456-50010 |
UCF20 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50030 |
UCF20 |
1 | ||
| 72750-50031 |
UCF20 |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50031 |
UCF20 |
1 | ||
| 72760-50030 |
UCF20 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72797-50010 |
UCF20..USA |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72797-50010 |
UCF20..USA |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-50010 |
UCF20 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90159-40159 | ||||
| 90159-40234 | ||||
| 90159-50204 | ||||
| 90179-06074 | ||||
| 90467-10018 | ||||
| 90468-04147 | ||||
| 90468-16019 | ||||
| 93381-16012 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 2(9608- )
MEMORY ADJUST SYSTEM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71071-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71071-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71071-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71071-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71071-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71071-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71071-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71071-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71071-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71071-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71072-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71072-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-50410B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71073-50410A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71073-50411A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71073-50410G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71073-50410C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71073-50560G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71073-50411C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71073-50560A0 |
UCF20..USA COACH EDITION,IVORT,TRIM01 |
1 | ||
| 71073-50411B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71073-50560C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71073-50411G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71074-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71074-50340A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71074-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71074-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71074-50151C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71074-50151B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71074-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71074-50340G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71074-50340C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71074-50151G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-50220B0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),BLUE GRAY,TRIM1# |
1 | ||
| 71410-50140A0 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUSTER SYSTEM),IVORY,TRIM0# |
1 | ||
| 71410-50140B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71410-50220G0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),AGATE,TRIM6# |
1 | ||
| 71410-50140G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71410-50680A0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),IVORY,TRIM01 |
1 | ||
| 71410-50680C0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),BLACY,TRIM21 |
1 | ||
| 71410-50140C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71410-50670C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71410-50220A0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),IVORY,TRIM0# |
1 | ||
| 71410-50220C0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),BLACK,TRIM2# |
1 | ||
| 71410-50670A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71410-50670G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71410-50680G0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),AGATE,TRIM61 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-50460A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71420-50460G0 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUSTER SYSTEM),AGATE,TRIM6# |
1 | ||
| 71420-50520B0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),BLUE GRAY,TRIM1# |
1 | ||
| 71420-50460B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71420-50520C0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),BLACK,TRIM2# |
1 | ||
| 71420-50720G0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),AGATE,TRIM61 |
1 | ||
| 71420-50710A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71420-50710C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71420-50710G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71420-50460C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71420-50520G0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),AGATE,TRIM6# |
1 | ||
| 71420-50520A0 |
UCF20..USA W(MEMORY ADJUSTER SYSTEM & SEAT HEATHER),IVORY,TRIM0# |
1 | ||
| 71420-50720C0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),BLACK,TRIM21 |
1 | ||
| 71420-50720A0 |
UCF20..USA COACH EDITION;W(SEAT HEATER),IVORY,TRIM01 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-50620A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71430-50610B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71430-50620G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71430-50610G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71430-50620C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71430-50620B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71430-50610C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71040-50050C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71430-50630A0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71040-50070G0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),AGATE,TRIM61 |
1 | ||
| 71430-50630C0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71040-50050A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71040-50050G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71430-50630B0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),BLUE GRAY,TRIM1# |
1 | ||
| 71040-50060C0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),BLACK,TRIM21 |
1 | ||
| 71040-50060G0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),AGATE,TRIM61 |
1 | ||
| 71430-50610A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71430-50630G0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),AGATE,TRIM6# |
1 | ||
| 71040-50060A0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),IVORY,TRIM01 |
1 | ||
| 71040-50070A0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),IVORY,TRIM01 |
1 | ||
| 71040-50070C0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),BLACK,TRIM21 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-50450G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71440-50450A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71440-50450C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71440-50600A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71440-50450B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71440-50600C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71440-5A120A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71440-5A130G0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),AGATE,TRIM61 |
1 | ||
| 71440-50670C0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-5A130A0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),IVORY,TRIM01 |
1 | ||
| 71440-50600G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71440-5A120C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71440-50670G0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),AGATE,TRIM6# |
1 | ||
| 71440-5A120G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71440-50670B0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),BLUE GRAY,TRIM1# |
1 | ||
| 71440-5A140C0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),BLACK,TRIM21 |
1 | ||
| 71440-50600B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71440-5A130C0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM),BLACK,TRIM21 |
1 | ||
| 71440-50670A0 |
UCF20 ***,W(MEMORY ADJUST SYSTEM & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71440-5A140A0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),IVORY,TRIM01 |
1 | ||
| 71440-5A140G0 |
UCF20..USA COACH EDITION;W(MEMORY ADJUST SYSTEM);W(SEAT HEATER),AGATE,TRIM61 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71515-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71511-50060 |
UCF20..USA |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71516-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71512-50060 |
UCF20..USA |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-50090 |
UCF20 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-50090 |
UCF20 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71705-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71705-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71705-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71705-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71705-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 71709-50020 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71709-50010 |
UCF20 |
1 | ||
| 71709-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM & HEATER) |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-50010 |
UCF20 |
1 | ||
| 71750-50030 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71750-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71811-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71811-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71811-50060B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71811-50060G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71811-50060A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71811-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71811-50060C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71812-50050A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71812-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71812-50050B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71812-50050C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71812-50050G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-50010A0 |
UCF20 IVORY,TRIM0# |
2 | ||
| 71819-50010C0 |
UCF20 BLACK,TRIM2# |
2 | ||
| 71819-50010G0 |
UCF20 AGATE,TRIM6# |
2 | ||
| 71819-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
2 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-50010A0 |
UCF20 IVORY,TRIM0# |
2 | ||
| 71819-50010C0 |
UCF20 BLACK,TRIM2# |
2 | ||
| 71819-50010G0 |
UCF20 AGATE,TRIM6# |
2 | ||
| 71819-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
2 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71867-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71867-50010G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71867-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71868-50010G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71868-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71868-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50250G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71910-50260A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71910-50260C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71910-50250A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71910-50260B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71910-50260G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71910-50250C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71910-50250B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-50250G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71910-50250B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71910-50250A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71910-50260C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71910-50260A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71910-50260G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71910-50250C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71910-50260B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-50040 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-50040 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72456 - BRACKET, SEAT FRAME SET, NO.2 | ||||
| 72456-50010 |
UCF20 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50030 |
UCF20 |
1 | ||
| 72750-50031 |
UCF20 |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50031 |
UCF20 |
1 | ||
| 72760-50030 |
UCF20 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72797-50010 |
UCF20..USA |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72797-50010 |
UCF20..USA |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-50010 |
UCF20 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90159-40159 | ||||
| 90159-40197 | ||||
| 90159-40234 | ||||
| 90159-50204 | ||||
| 90179-06074 | ||||
| 90467-10018 | ||||
| 90468-04147 | ||||
| 90468-16019 | ||||
| 93381-16012 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8513 | ||||

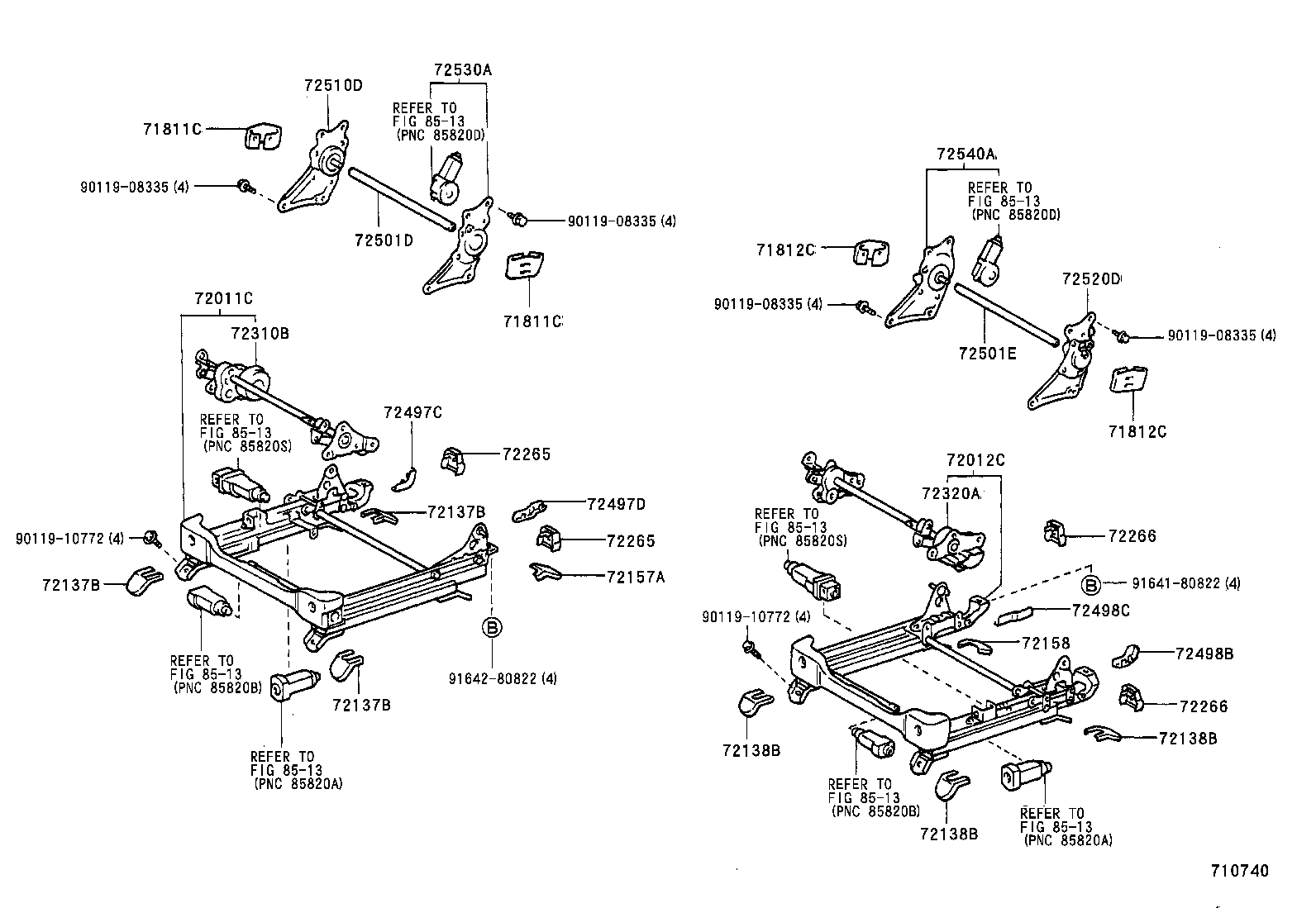

ILLUST NO. 2 OF 2(9410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71721-50010A0 |
UCF20 IVORY,TRIM0#,RH |
1 | ||
| 71721-50020B0 |
UCF20 BLUE GRAY,TRIM1#,LH |
1 | ||
| 71721-50010C0 |
UCF20 BLACK,TRIM2#,RH |
1 | ||
| 71721-50020A0 |
UCF20 IVORY,TRIM0#,LH |
1 | ||
| 71721-50010G0 |
UCF20 AGATE,TRIM6#,RH |
1 | ||
| 71721-50020G0 |
UCF20 AGATE,TRIM6#,LH |
1 | ||
| 71721-50010B0 |
UCF20 BLUE GRAY,TRIM1#,RH |
1 | ||
| 71721-50020C0 |
UCF20 BLACK,TRIM2#,LH |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71721-50010A0 |
UCF20 IVORY,TRIM0#,RH |
1 | ||
| 71721-50020B0 |
UCF20 BLUE GRAY,TRIM1#,LH |
1 | ||
| 71721-50010C0 |
UCF20 BLACK,TRIM2#,RH |
1 | ||
| 71721-50020A0 |
UCF20 IVORY,TRIM0#,LH |
1 | ||
| 71721-50010G0 |
UCF20 AGATE,TRIM6#,RH |
1 | ||
| 71721-50020G0 |
UCF20 AGATE,TRIM6#,LH |
1 | ||
| 71721-50010B0 |
UCF20 BLUE GRAY,TRIM1#,RH |
1 | ||
| 71721-50020C0 |
UCF20 BLACK,TRIM2#,LH |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71721-50010B0 |
UCF20 BLUE GRAY,TRIM1#,RH |
1 | ||
| 71721-50010A0 |
UCF20 IVORY,TRIM0#,RH |
1 | ||
| 71721-50020B0 |
UCF20 BLUE GRAY,TRIM1#,LH |
1 | ||
| 71721-50020A0 |
UCF20 IVORY,TRIM0#,LH |
1 | ||
| 71721-50010C0 |
UCF20 BLACK,TRIM2#,RH |
1 | ||
| 71721-50020G0 |
UCF20 AGATE,TRIM6#,LH |
1 | ||
| 71721-50020C0 |
UCF20 BLACK,TRIM2#,LH |
1 | ||
| 71721-50010G0 |
UCF20 AGATE,TRIM6#,RH |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71721-50010B0 |
UCF20 BLUE GRAY,TRIM1#,RH |
1 | ||
| 71721-50010A0 |
UCF20 IVORY,TRIM0#,RH |
1 | ||
| 71721-50020B0 |
UCF20 BLUE GRAY,TRIM1#,LH |
1 | ||
| 71721-50020A0 |
UCF20 IVORY,TRIM0#,LH |
1 | ||
| 71721-50010C0 |
UCF20 BLACK,TRIM2#,RH |
1 | ||
| 71721-50020G0 |
UCF20 AGATE,TRIM6#,LH |
1 | ||
| 71721-50020C0 |
UCF20 BLACK,TRIM2#,LH |
1 | ||
| 71721-50010G0 |
UCF20 AGATE,TRIM6#,RH |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72011-50041 |
UCF20 |
1 | ||
| 72011-50040 |
UCF20 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72012-50050 |
UCF20 |
1 | ||
| 72012-50051 |
UCF20 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-50020A0 |
UCF20 IVORY,TRIM0# |
3 | ||
| 72137-50020B0 |
UCF20 BLUE GRAY,TRIM1# |
3 | ||
| 72137-50020C0 |
UCF20 BLACK,TRIM2# |
3 | ||
| 72137-50020G0 |
UCF20 AGATE,TRIM6# |
3 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-50020A0 |
UCF20 IVORY,TRIM0# |
3 | ||
| 72137-50020B0 |
UCF20 BLUE GRAY,TRIM1# |
3 | ||
| 72137-50020C0 |
UCF20 BLACK,TRIM2# |
3 | ||
| 72137-50020G0 |
UCF20 AGATE,TRIM6# |
3 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-50020A0 |
UCF20 IVORY,TRIM0# |
3 | ||
| 72137-50020B0 |
UCF20 BLUE GRAY,TRIM1# |
3 | ||
| 72137-50020C0 |
UCF20 BLACK,TRIM2# |
3 | ||
| 72137-50020G0 |
UCF20 AGATE,TRIM6# |
3 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-50020A0 |
UCF20 IVORY,TRIM0# |
3 | ||
| 72137-50020B0 |
UCF20 BLUE GRAY,TRIM1# |
3 | ||
| 72137-50020G0 |
UCF20 AGATE,TRIM6# |
3 | ||
| 72137-50020C0 |
UCF20 BLACK,TRIM2# |
3 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-50020A0 |
UCF20 IVORY,TRIM0# |
3 | ||
| 72137-50020B0 |
UCF20 BLUE GRAY,TRIM1# |
3 | ||
| 72137-50020G0 |
UCF20 AGATE,TRIM6# |
3 | ||
| 72137-50020C0 |
UCF20 BLACK,TRIM2# |
3 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-50020A0 |
UCF20 IVORY,TRIM0# |
3 | ||
| 72137-50020B0 |
UCF20 BLUE GRAY,TRIM1# |
3 | ||
| 72137-50020G0 |
UCF20 AGATE,TRIM6# |
3 | ||
| 72137-50020C0 |
UCF20 BLACK,TRIM2# |
3 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 72157-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 72157-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 72157-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 72158-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 72158-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 72158-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-50030 |
UCF20 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-50030 |
UCF20 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-50030 |
UCF20 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-50030 |
UCF20 |
2 | ||
| 72310B - ADJUSTER ASSY, FRONT SEAT VERTICAL, RH | ||||
| 72310-50030 |
UCF20 |
1 | ||
| 72320A - ADJUSTER ASSY, FRONT SEAT VERTICAL, LH | ||||
| 72320-50030 |
UCF20 |
1 | ||
| 72497C - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-50030 |
UCF20 |
1 | ||
| 72497D - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72498-50030 |
UCF20 |
1 | ||
| 72498B - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-50040 |
UCF20 |
1 | ||
| 72498C - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72498-50040 |
UCF20 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-50020 |
UCF20 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-50020 |
UCF20 |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-50040 |
UCF20 |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-50060 |
UCF20 |
1 | ||
| 72530A - ADJUSTER ASSY, RECLINING SEAT, INNER RH | ||||
| 72530-50020 |
UCF20 |
1 | ||
| 72540A - ADJUSTER ASSY, RECLINING SEAT, INNER LH | ||||
| 72540-50040 |
UCF20..USA |
1 | ||
| 72540-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-10772 | ||||
| 91641-80822 | ||||
| 91642-80822 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 1 OF 2(9410-9608)USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71071-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71071-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71071-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71071-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71071-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71071-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71071-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71071-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71071-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71071-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71072-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71072-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-50410B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71073-50410A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71073-50411A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71073-50410G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71073-50410C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71073-50560G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71073-50411C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71073-50560A0 |
UCF20..USA COACH EDITION,IVORT,TRIM01 |
1 | ||
| 71073-50411B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71073-50560C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71073-50411G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71074-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71074-50340A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71074-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71074-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71074-50151C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71074-50151B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71074-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71074-50340G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71074-50340C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71074-50151G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71515-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71511-50060 |
UCF20..USA |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71516-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71512-50060 |
UCF20..USA |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-50100 |
UCF20..USA |
1 | ||
| 71555-50060 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-50100 |
UCF20..USA |
1 | ||
| 71555-50060 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-50090 |
UCF20 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-50090 |
UCF20 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-50090 |
UCF20 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-50140 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71630-50130 |
UCF20..USA |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-50180 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71630-50130 |
UCF20..USA |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71705-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71705-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71705-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71705-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71705-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 71709-50020 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71709-50010 |
UCF20 |
1 | ||
| 71709-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM & HEATER) |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-50010 |
UCF20 |
1 | ||
| 71750-50030 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71750-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71811-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71811-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71811-50060B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71811-50060G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71811-50060A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71811-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71811-50060C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71812-50050A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71812-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71812-50050B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71812-50050C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71812-50050G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71867-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71867-50010G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71867-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71868-50010G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71868-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71868-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50250G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71910-50260A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71910-50260C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71910-50250A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71910-50260B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71910-50260G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71910-50250C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71910-50250B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-50250G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71910-50250B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71910-50250A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71910-50260C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71910-50260A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71910-50260G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71910-50250C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71910-50260B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 72456 - BRACKET, SEAT FRAME SET, NO.2 | ||||
| 72456-50010 |
UCF20 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50030 |
UCF20 |
1 | ||
| 72750-50031 |
UCF20 |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50031 |
UCF20 |
1 | ||
| 72760-50030 |
UCF20 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72797-50010 |
UCF20..USA |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72797-50010 |
UCF20..USA |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-50010 |
UCF20 |
1 | ||
| Common parts | ||||
| 90159-40159 | ||||
| 90159-40234 | ||||
| 90159-50204 | ||||
| 90468-04147 | ||||
| 90468-16019 | ||||
| 93381-16012 | ||||
| 93560-54012 | ||||
| 93567-15012 | ||||
ILLUST NO. 1 OF 2(9410-9608)
MEMORY ADJUST SYSTEM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71071-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71071-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71071-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71071-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71071-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71071-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71071-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71071-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71071-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71071-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71072-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71072-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-50170A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50170G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50171A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71072-50280A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71072-50171B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50170C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50170B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71072-50280C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71072-50171C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71072-50171G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71072-50280G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-50410B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71073-50410A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71073-50411A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71073-50410G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71073-50410C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71073-50560G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71073-50411C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71073-50560A0 |
UCF20..USA COACH EDITION,IVORT,TRIM01 |
1 | ||
| 71073-50411B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71073-50560C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71073-50411G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71074-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71074-50340A0 |
UCF20..USA COACH EDITION,IVORY,TRIM01 |
1 | ||
| 71074-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71074-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71074-50151C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71074-50151B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71074-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71074-50340G0 |
UCF20..USA COACH EDITION,AGATE,TRIM61 |
1 | ||
| 71074-50340C0 |
UCF20..USA COACH EDITION,BLACK,TRIM21 |
1 | ||
| 71074-50151G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71515-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71511-50060 |
UCF20..USA |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71516-50050 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71512-50060 |
UCF20..USA |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-50100 |
UCF20..USA |
1 | ||
| 71555-50060 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-50100 |
UCF20..USA |
1 | ||
| 71555-50060 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-50090 |
UCF20 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-50090 |
UCF20 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-50140 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71630-50130 |
UCF20..USA |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-50180 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71630-50130 |
UCF20..USA |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71705-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71705-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-50150A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71705-50150G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71705-50150C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71705-50150B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71705-50151A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 71709-50020 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71709-50010 |
UCF20 |
1 | ||
| 71709-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM & HEATER) |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-50010 |
UCF20 |
1 | ||
| 71750-50030 |
UCF20..USA TAIWAN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 71750-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM & SEAT HEATER) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71811-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71811-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71811-50060B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71811-50060G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71811-50060A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71811-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71811-50060C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-50030B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71812-50050A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71812-50030C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71812-50050B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71812-50050C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71812-50030G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71812-50050G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71867-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71867-50010G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71867-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 71868-50010G0 |
UCF20 AGATE,TRIM6# |
1 | ||
| 71868-50010B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 71868-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-50250G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71910-50260A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71910-50260C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71910-50250A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71910-50260B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71910-50260G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71910-50250C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71910-50250B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-50250G0 |
UCF20..USA AGATE,TRIM6# |
1 | ||
| 71910-50250B0 |
UCF20..USA BLUE GRAY,TRIM1# |
1 | ||
| 71910-50250A0 |
UCF20..USA IVORY,TRIM0# |
1 | ||
| 71910-50260C0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
1 | ||
| 71910-50260A0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
1 | ||
| 71910-50260G0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
1 | ||
| 71910-50250C0 |
UCF20..USA BLACK,TRIM2# |
1 | ||
| 71910-50260B0 |
UCF20..USA W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020G0 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040B0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLUE GRAY,TRIM1# |
4 | ||
| 71930-12070C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020G0 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070P6 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040A0 |
UCF20..USA W/O(LOCK),W(MEMORY ADJUST SYSTEM),IVORY,TRIM0# |
4 | ||
| 71931-12040A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-32020C0 |
UCF20..USA W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-50040C0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),BLACK,TRIM2# |
4 | ||
| 71931-32020C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020B2 |
UCF20..USA W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
UCF20..USA W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040P6 |
UCF20..USA W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-50040G0 |
UCF20 W/O(LOCK),W(MEMORY ADJUST SYSTEM),AGATE,TRIM6# |
4 | ||
| 71931-32020A0 |
UCF20..USA W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070A0 |
UCF20..USA W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G5 |
UCF20..USA W/O(LOCK),AGATE,TRIM6# |
2 | ||
| 71930-12070G5 |
UCF20..USA W(LOCK),AGATE,TRIM6# |
2 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-50040 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-50040 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72456 - BRACKET, SEAT FRAME SET, NO.2 | ||||
| 72456-50010 |
UCF20 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50030 |
UCF20 |
1 | ||
| 72750-50031 |
UCF20 |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50031 |
UCF20 |
1 | ||
| 72760-50030 |
UCF20 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72797-50010 |
UCF20..USA |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
UCF20..USA W(MEMORY ADJUST SYSTEM) |
2 | ||
| 72797-50010 |
UCF20..USA |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-50010 |
UCF20 |
1 | ||
| Common parts | ||||
| 90159-40159 | ||||
| 90159-40197 | ||||
| 90159-40234 | ||||
| 90159-50204 | ||||
| 90468-04147 | ||||
| 90468-16019 | ||||
| 93381-16012 | ||||
| 93560-54012 | ||||
| 93567-15012 | ||||
| Linked diagrams | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
