UCF20L-AEAGKA (1997)
Toyota Lexus Ls400
Production
Jul 1997
-
Aug 2000
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )USA

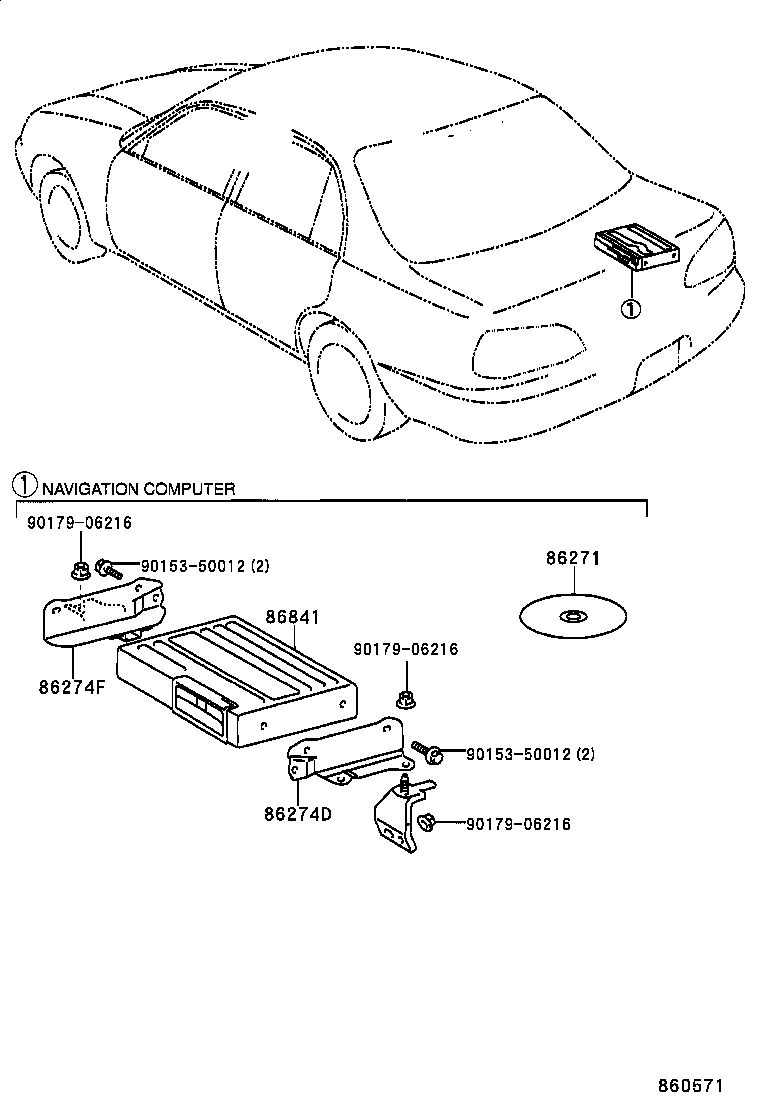

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86271 - DISC, DISC PLAYER | ||||
| 86271-30372 |
UCF20..USA |
1 | ||
| 86271-30374 |
UCF20..USA |
1 | ||
| 86271-30371 |
UCF20..USA |
1 | ||
| 86271-30373 |
UCF20..USA |
1 | ||
| 86271-30370 |
UCF20..USA |
1 | ||
| 86274D - BRACKET, DISC PLAYER | ||||
| 86274-50100 |
UCF20..USA |
1 | ||
| 86274F - BRACKET, DISC PLAYER, NO.2 | ||||
| 86274-50110 |
UCF20..USA |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86841-50040 |
UCF20..USA |
1 | ||
| Common parts | ||||
| 90153-50012 | ||||
| 90179-06216 | ||||
(9707- )

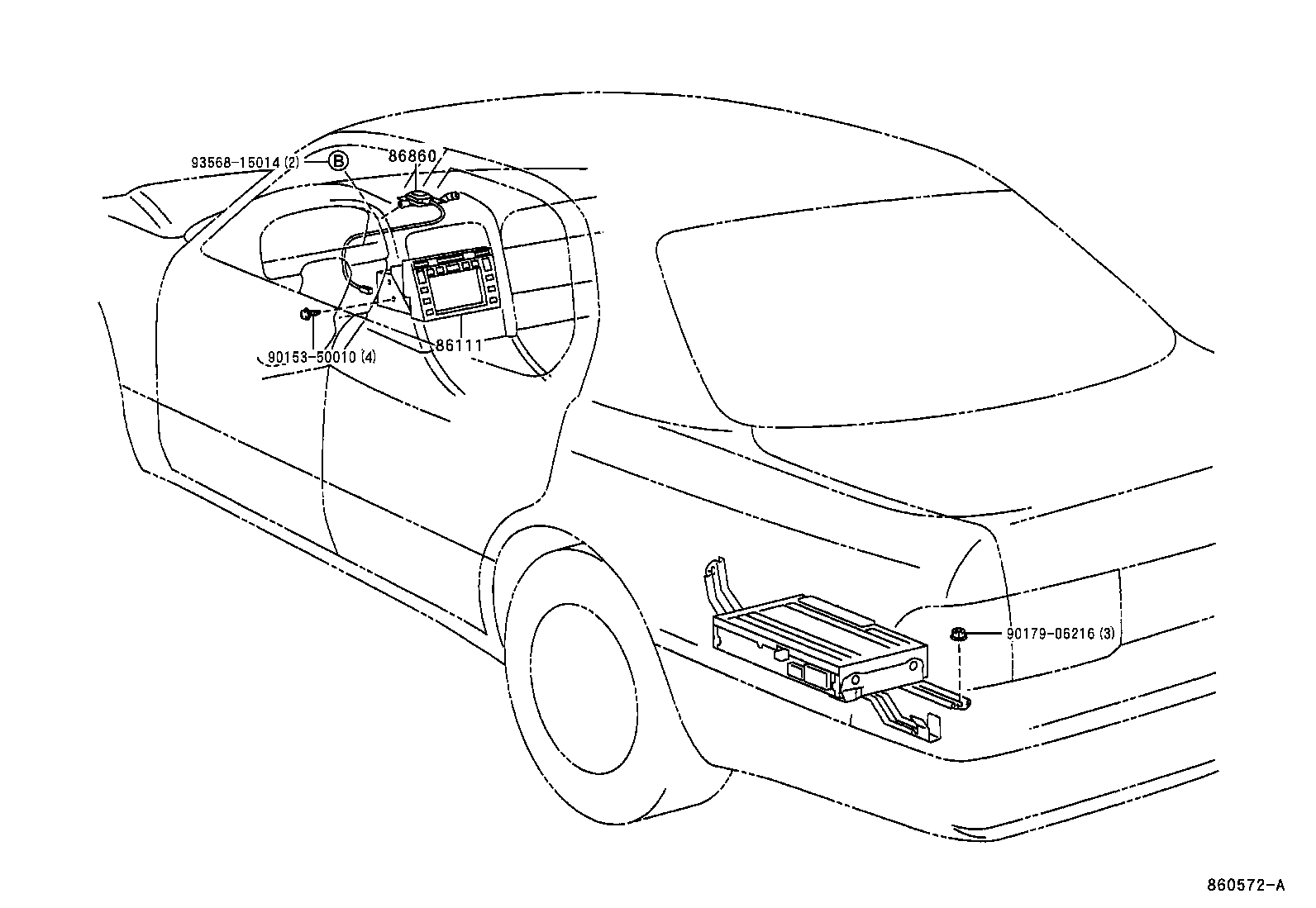

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86111 - MULTI-DISPLAY | ||||
| 86111-50070 |
UCF20..USA FUJITSU TEN |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-50050 |
UCF20..USA |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06216 | ||||
| 93568-15014 | ||||
