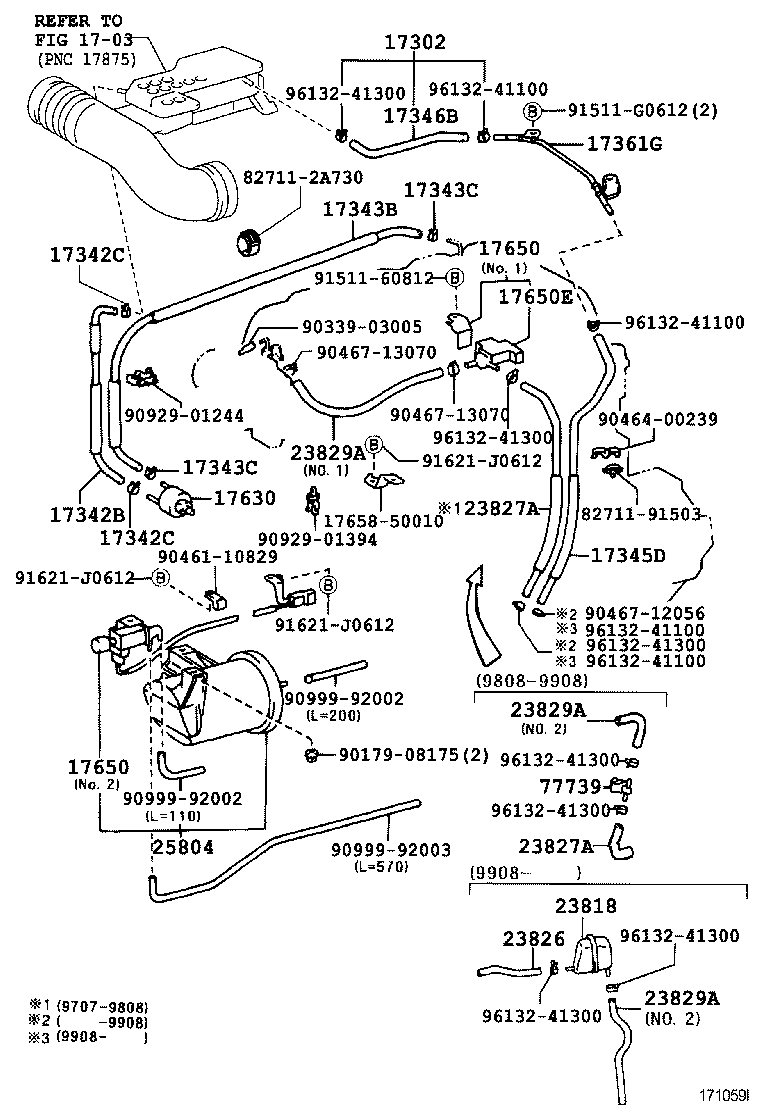

Toyota Lexus ls400 UCF20 VACUUM PIPING

Part #	Description	Period	Qty
17302 - HOSE SUB-ASSY, AIR
17302-50170	1UZFE..UCF20	08/1997 - 08/1999	1
17302-50180	1UZFE..UCF20	08/1999 - 12/2999	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50090	1UZFE..UCF20	07/1997 - 12/2999	1
17342-50010	1UZFE..UCF20	10/1994 - 07/1997	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF20	10/1994 - 12/2999	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF20	10/1994 - 12/2999	2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50010	1UZFE..UCF20	10/1994 - 07/1997	1
17343-50070	1UZFE..UCF20	07/1997 - 12/2999	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF20	10/1994 - 12/2999	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF20	10/1994 - 12/2999	2
17345D - HOSE, AIR, NO.5
17345-50040	1UZFE..UCF20	07/1997 - 08/1999	1
17345-50020	1UZFE..UCF20..USA CALIFORNIA SPEC	10/1994 - 08/1995	1
17345-50041	1UZFE..UCF20	08/1999 - 12/2999	1
17346B - HOSE, AIR, NO.6
17346-50040	1UZFE..UCF20	08/1999 - 12/2999	1
17346-50020	1UZFE..UCF20	07/1997 - 08/1999	1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-50010	1UZFE..UCF20	07/1997 - 07/2000	1
17361-50030	1UZFE..UCF20	07/2000 - 08/2000	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1UZFE..UCF20	10/1994 - 04/1995	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50060	1UZFE..UCF20 NO.1	10/1994 - 07/1997	1
25860-50070	1UZFE..UCF20 NO.2	10/1994 - 07/1997	1
25860-50100	1UZFE..UCF20 NO.1	07/1997 - 12/2999	1
25860-50120	1UZFE..UCF20 NO.2	07/1997 - 06/1998	1
25860-50121	1UZFE..UCF20 NO.2	06/1998 - 12/2999	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50060	1UZFE..UCF20 NO.1	10/1994 - 07/1997	1
25860-50070	1UZFE..UCF20 NO.2	10/1994 - 07/1997	1
25860-50100	1UZFE..UCF20 NO.1	07/1997 - 12/2999	1
25860-50120	1UZFE..UCF20 NO.2	07/1997 - 06/1998	1
25860-50121	1UZFE..UCF20 NO.2	06/1998 - 12/2999	1
17650E - VALVE, VACUUM SWITCHING
90910-12173	1UZFE..UCF20	07/1997 - 12/2999	1
23818 - PIPE, FUEL VAPOR FEED
23818-46110	1UZFE..UCF20	08/1999 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-50030	1UZFE..UCF20	08/1999 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-50081	1UZFE..UCF20	08/1999 - 12/2999	1
23827-50010	1UZFE..UCF20..USA CALIFORNIA SPEC	10/1994 - 08/1995	1
23827-50080	1UZFE..UCF20	08/1998 - 08/1999	1
23827-50030	1UZFE..UCF20	07/1997 - 08/1998	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-50081	1UZFE..UCF20	08/1999 - 12/2999	1
23827-50010	1UZFE..UCF20..USA CALIFORNIA SPEC	10/1994 - 08/1995	1
23827-50080	1UZFE..UCF20	08/1998 - 08/1999	1
23827-50030	1UZFE..UCF20	07/1997 - 08/1998	1
23829A - HOSE, FUEL VAPOR FEED
23829-50070	1UZFE..UCF20 NO.1	07/1997 - 12/2999	1
23829-50090	1UZFE..UCF20 NO.2	08/1998 - 08/1999	1
23829-50100	1UZFE..UCF20	08/1999 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23829-50070	1UZFE..UCF20 NO.1	07/1997 - 12/2999	1
23829-50090	1UZFE..UCF20 NO.2	08/1998 - 08/1999	1
23829-50100	1UZFE..UCF20	08/1999 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23829-50070	1UZFE..UCF20 NO.1	07/1997 - 12/2999	1
23829-50090	1UZFE..UCF20 NO.2	08/1998 - 08/1999	1
23829-50100	1UZFE..UCF20	08/1999 - 12/2999	1
25804 - VALVE SET, VACUUM CONTROL
25804-50010	1UZFE..UCF20	07/1997 - 06/1998	1
25804-50011	1UZFE..UCF20	06/1998 - 12/2999	1
77739 - VALVE, EVAP SERVICE PORT
77739-33010	UCF20	08/1998 - 12/2999	1
Common parts
17658-50010
82711-2A730
82711-91503
90179-08175
90339-03005
90461-10829
90464-00239
90467-12056
90467-13070
90929-01244
90929-01394
90999-92002
90999-92003
91511-60812
91511-G0612
91621-J0612
96132-41100
96132-41300
Linked diagrams
1703

UCF20L-AEAGKA (1997)

(9707- )
