UCF20L-AEAGKA (1997)
Toyota Lexus Ls400
Production
Jul 1997
-
Aug 2000
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )

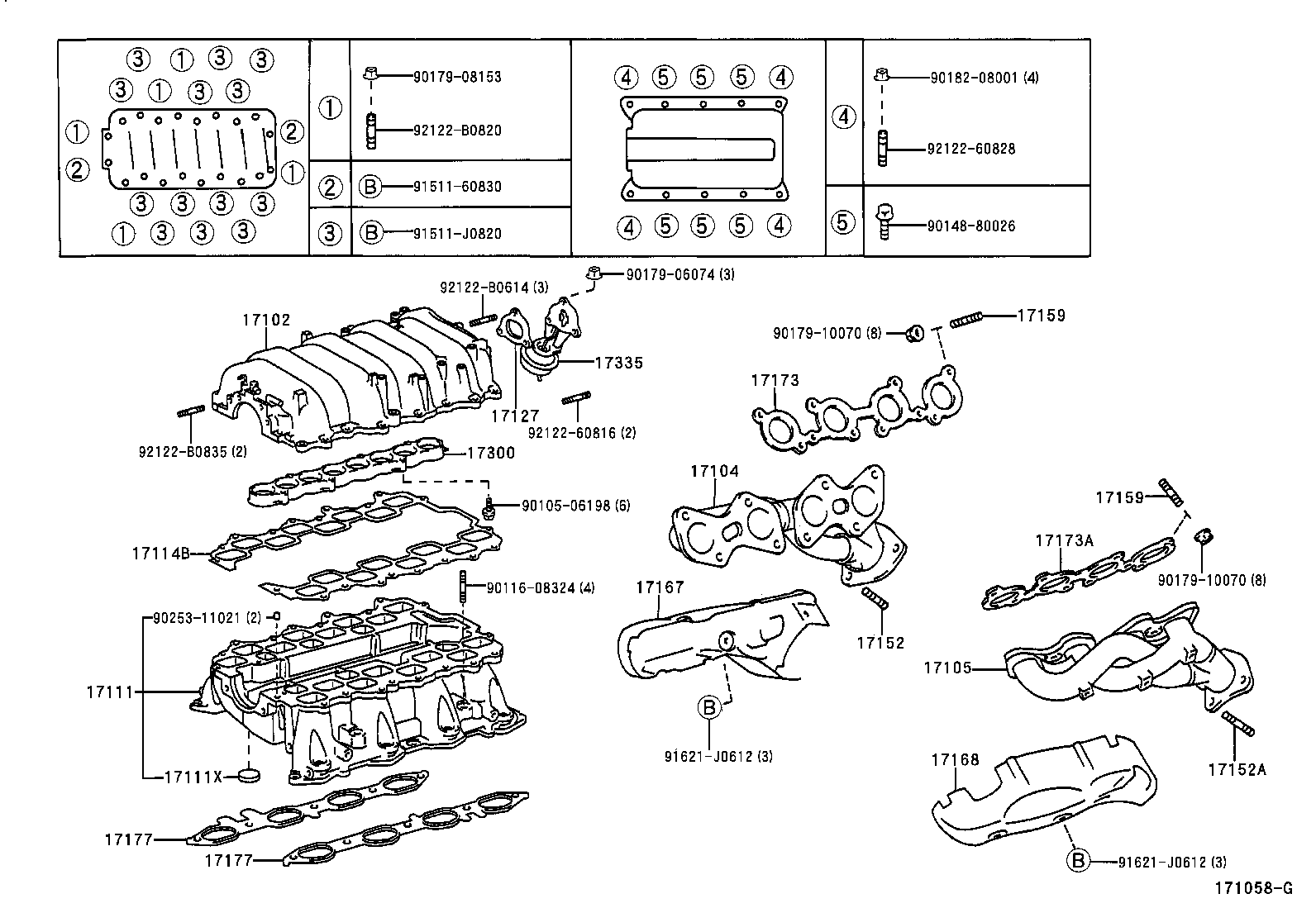

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17102 - MANIFOLD SUB-ASSY, INTAKE, UPPER | ||||
| 17102-50010 |
1UZFE..UCF20 |
1 | ||
| 17102-50012 |
1UZFE..UCF20 |
1 | ||
| 17102-50011 |
1UZFE..UCF20 |
1 | ||
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17104-50070 |
1UZFE..UCF20 |
1 | ||
| 17104-50090 |
1UZFE..UCF20 |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17105-50060 |
1UZFE..UCF20 |
1 | ||
| 17105-50090 |
1UZFE..UCF20 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-50020 |
1UZFE..UCF20 |
1 | ||
| 17101-50010 |
1UZFE..UCF20 |
1 | ||
| 17111X - PLUG, TIGHT NO.1(FOR INTAKE MANIFOLD) | ||||
| 96411-42000 |
1UZFE..UCF20 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-50010 |
1UZFE..UCF20 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-50010 |
1UZFE..UCF20 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90126-10006 |
1UZFE..UCF20 |
3 | ||
| 17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90126-10006 |
1UZFE..UCF20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10015 |
1UZFE..UCF20 |
16 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10015 |
1UZFE..UCF20 |
16 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-50070 |
1UZFE..UCF20 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-50060 |
1UZFE..UCF20 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-50020 |
1UZFE..UCF20 |
1 | ||
| 17173-50021 |
1UZFE..UCF20 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-50020 |
1UZFE..UCF20 |
1 | ||
| 17173-50021 |
1UZFE..UCF20 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-50011 |
1UZFE..UCF20 |
2 | ||
| 17171-50020 |
1UZFE..UCF20 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-50011 |
1UZFE..UCF20 |
2 | ||
| 17171-50020 |
1UZFE..UCF20 |
2 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-50010 |
1UZFE..UCF20 |
1 | ||
| 17335 - ACTUATOR, INTAKE AIR CONTROL VALVE | ||||
| 17335-50010 |
1UZFE..UCF20 |
1 | ||
| Common parts | ||||
| 90105-06198 | ||||
| 90116-08324 | ||||
| 90148-80026 | ||||
| 90179-06074 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 90182-08001 | ||||
| 90253-11021 | ||||
| 91511-60830 | ||||
| 91511-J0820 | ||||
| 91621-J0612 | ||||
| 92122-60816 | ||||
| 92122-60828 | ||||
| 92122-B0614 | ||||
| 92122-B0820 | ||||
| 92122-B0835 | ||||
