UCF10L-AEPGKK (1990)
Toyota Lexus Ls400
Production
Aug 1990
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

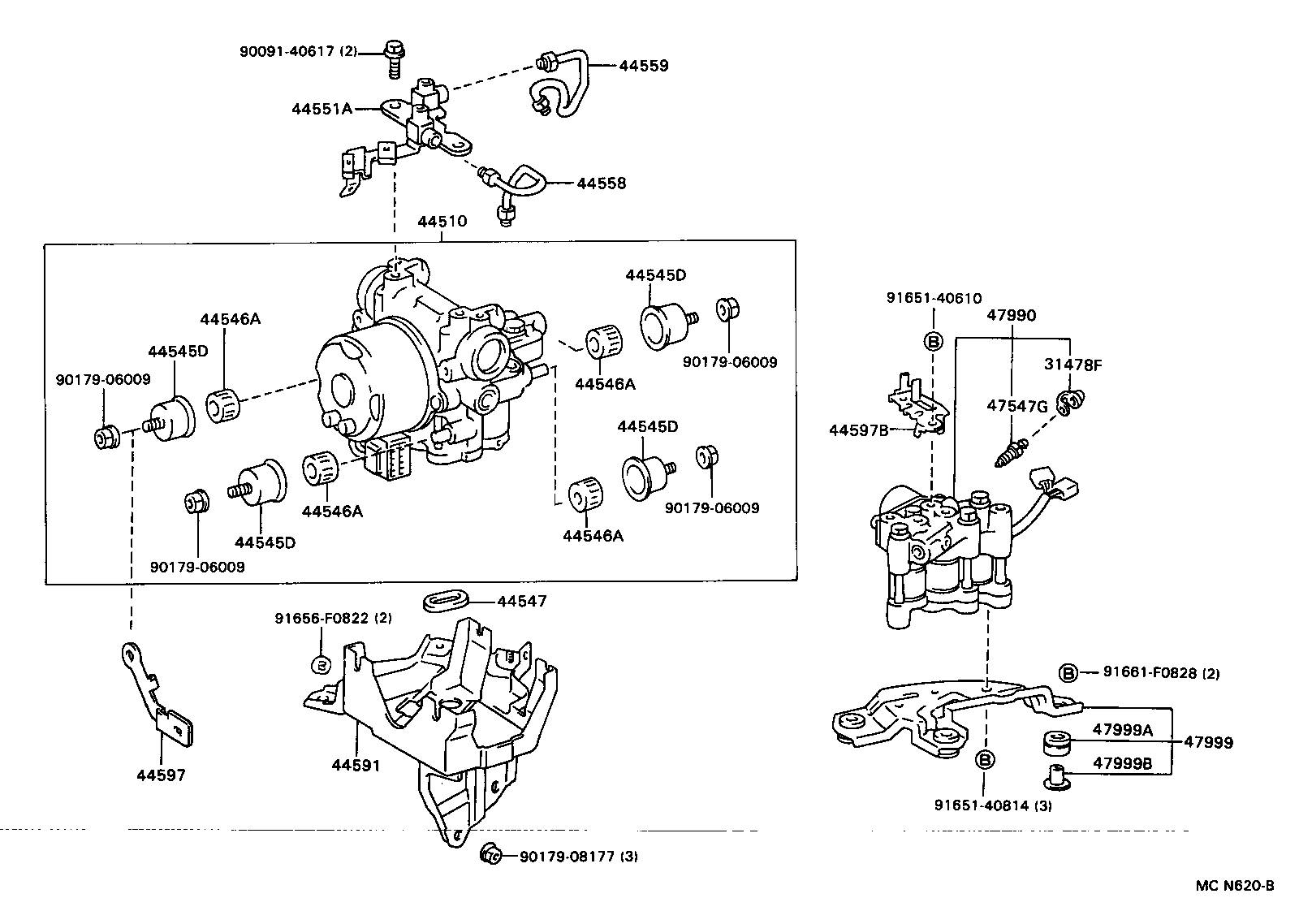

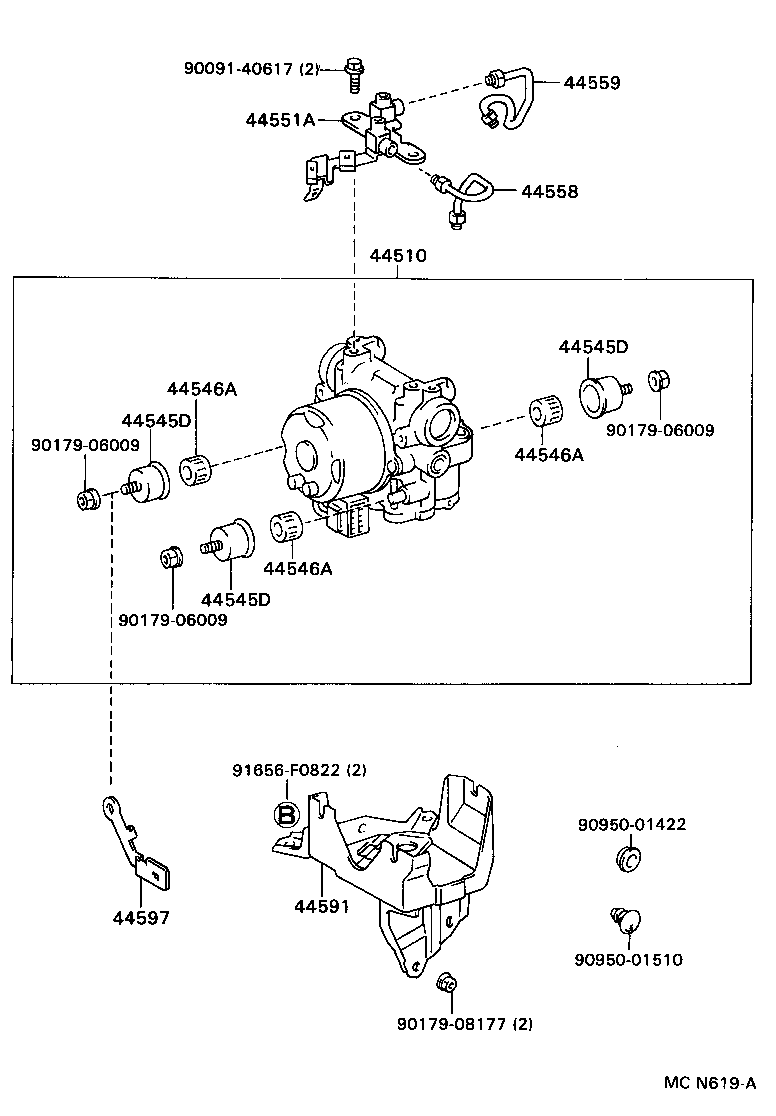

ILLUST NO. 2 OF 2(9208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-50020 |
UCF10 W(*TRC) |
1 | ||
| 44510-50040 |
UCF10..CND |
1 | ||
| 44510-50010 |
UCF10 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10212 |
UCF10 |
1 | ||
| 44558 - TUBE, BRAKE ACTUATOR, NO.8 | ||||
| 44558-50010 |
UCF10 |
1 | ||
| 44559 - TUBE, BRAKE ACTUATOR, NO.9 | ||||
| 44559-50010 |
UCF10 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-50020 |
UCF10 W(*TRC) |
1 | ||
| 44591-50040 |
UCF10..CND |
1 | ||
| 44591-50010 |
UCF10 |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-50010 |
UCF10 |
1 | ||
| 44597-50050 |
UCF10 |
1 | ||
| Common parts | ||||
| 90091-40617 | ||||
| 90179-06009 | ||||
| 90179-08177 | ||||
| 90950-01422 | ||||
| 90950-01510 | ||||
| 91656-F0822 | ||||

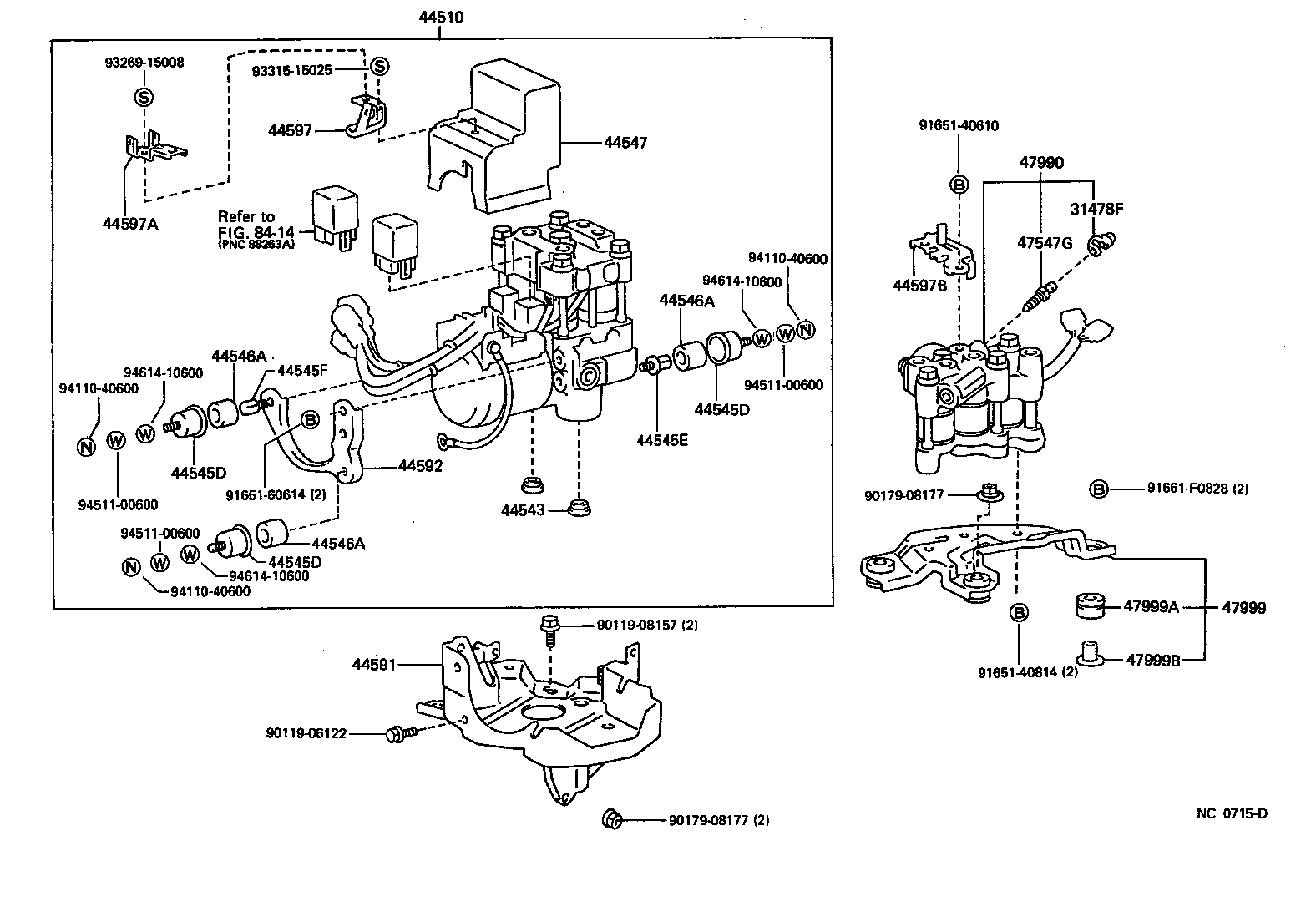

ILLUST NO. 3 OF 3(9208- )
Click highlighted areas on diagram
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) | ||||
| 31478-50010 |
UCF10 |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-50020 |
UCF10 W(*TRC) |
1 | ||
| 44510-50010 |
UCF10 |
1 | ||
| 44510-50040 |
UCF10..CND |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-50010 |
UCF10 |
1 | ||
| 44547-50020 |
UCF10 W(*TRC) |
1 | ||
| 44547-50030 |
UCF10 |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10212 |
UCF10 |
1 | ||
| 44558 - TUBE, BRAKE ACTUATOR, NO.8 | ||||
| 44558-50010 |
UCF10 |
1 | ||
| 44559 - TUBE, BRAKE ACTUATOR, NO.9 | ||||
| 44559-50010 |
UCF10 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-50020 |
UCF10 W(*TRC) |
1 | ||
| 44591-50040 |
UCF10..CND |
1 | ||
| 44591-50010 |
UCF10 |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-50010 |
UCF10 |
1 | ||
| 44597-50050 |
UCF10 |
1 | ||
| 44597B - CLAMP, BRAKE TRACTION ACTUATOR CONNECTOR | ||||
| 44597-50060 |
UCF10 |
1 | ||
| 44597-50020 |
UCF10 |
1 | ||
| 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) | ||||
| 47547-27030 |
UCF10 |
1 | ||
| 47990 - ACTUATOR ASSY, BRAKE TRACTION | ||||
| 47990-50010 |
UCF10 |
1 | ||
| 47990-50030 |
UCF10 |
1 | ||
| 47999 - BRACKET, BRAKE TRACTION ACTUATOR, NO.2 | ||||
| 47999-50010 |
UCF10 |
1 | ||
| 47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 90385-10002 |
UCF10 |
3 | ||
| 47999B - SPACER(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 90561-08002 |
UCF10 |
3 | ||
| Common parts | ||||
| 90091-40617 | ||||
| 90179-06009 | ||||
| 90179-08177 | ||||
| 91651-40610 | ||||
| 91651-40814 | ||||
| 91656-F0822 | ||||
| 91661-F0828 | ||||

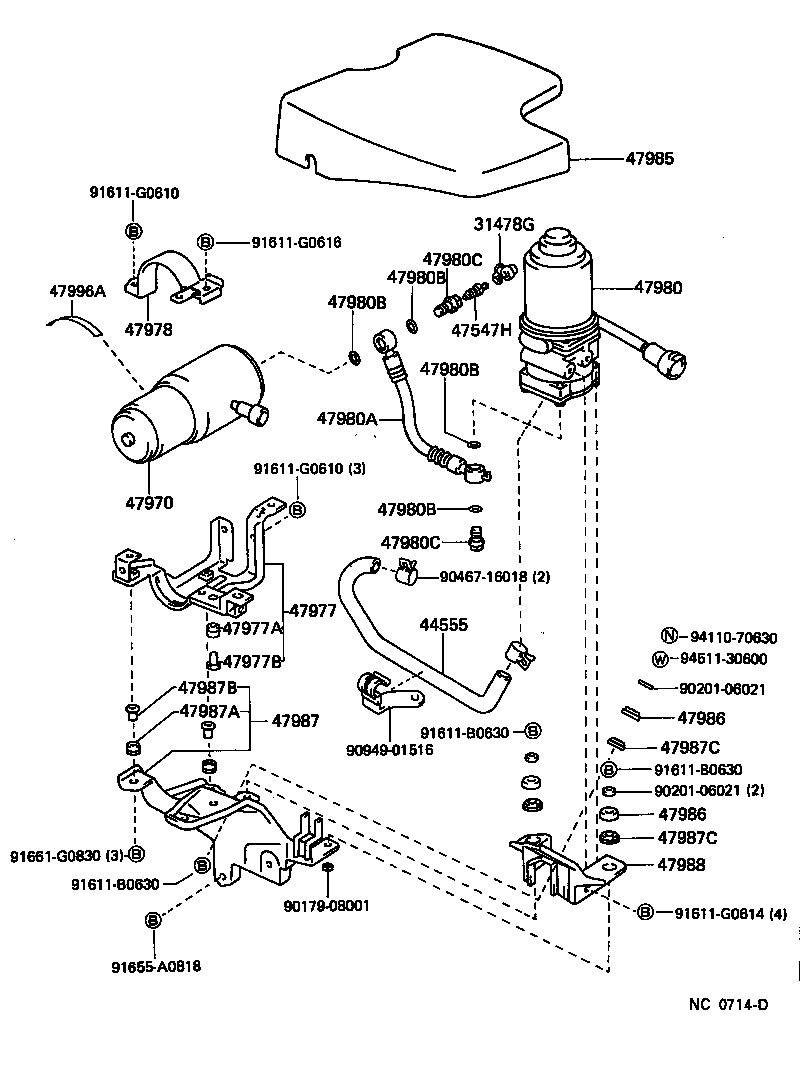

ILLUST NO. 2 OF 3(9208- )
Click highlighted areas on diagram
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-50010 |
UCF10 |
1 | ||
| 44555-50030 |
UCF10 |
1 | ||
| 47970 - ACCUMULATOR ASSY, BRAKE TRACTION | ||||
| 47970-50040 |
UCF10 |
1 | ||
| 47970-50010 |
UCF10 |
1 | ||
| 47975 - BUSH, BRAKE TRACTION ACCUMULATOR | ||||
| 47975-50010 |
UCF10 |
1 | ||
| 47977 - BRACKET, BRAKE TRACTION ACCUMULATOR, NO.1 | ||||
| 47977-50020 |
UCF10 |
1 | ||
| 47977-50010 |
UCF10 |
1 | ||
| 47980 - PUMP ASSY, BRAKE TRACTION | ||||
| 47980-50030 |
UCF10 |
1 | ||
| 47980-50010 |
UCF10 |
1 | ||
| 47980A - HOSE, PRESSURE(FOR BRAKE TRACTION PUMP) | ||||
| 90947-06007 |
UCF10 |
1 | ||
| 90947-06002 |
UCF10 |
1 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13006 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
8 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13006 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
8 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13006 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
8 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13006 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
8 | ||
| 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90401-10039 |
UCF10 |
2 | ||
| 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90401-10039 |
UCF10 |
2 | ||
| 47985 - COVER, BRAKE TRACTION PUMP, NO.1 | ||||
| 47985-50010 |
UCF10 |
1 | ||
| 47986 - COVER, BRAKE TRACTION PUMP, NO.2 | ||||
| 47986-50010 |
UCF10 |
3 | ||
| 47986 - COVER, BRAKE TRACTION PUMP, NO.2 | ||||
| 47986-50010 |
UCF10 |
3 | ||
| 47987 - BRACKET, BRAKE TRACTION PUMP, NO.1 | ||||
| 47987-50030 |
UCF10 |
1 | ||
| 47987-50010 |
UCF10 |
1 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-10023 |
UCF10 |
2 | ||
| 90385-08011 |
UCF10 |
4 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-10023 |
UCF10 |
2 | ||
| 90385-08011 |
UCF10 |
4 | ||
| 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90389-06034 |
UCF10 |
3 | ||
| 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90389-06034 |
UCF10 |
3 | ||
| 47988 - BRACKET, BRAKE TRACTION PUMP, NO.2 | ||||
| 47988-50010 |
UCF10 |
1 | ||
| 47996A - LABEL, BRAKE BLEED NOTICE | ||||
| 47996-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90093-00614 | ||||
| 90179-08001 | ||||
| 90201-06021 | ||||
| 90201-06026 | ||||
| 90467-16018 | ||||
| 90560-06030 | ||||
| 91611-B0630 | ||||
| 91611-G0610 | ||||
| 91611-G0614 | ||||
| 91611-G0625 | ||||
| 91655-A0818 | ||||
| 94110-70630 | ||||
| 94110-70634 | ||||
| 94511-30600 | ||||

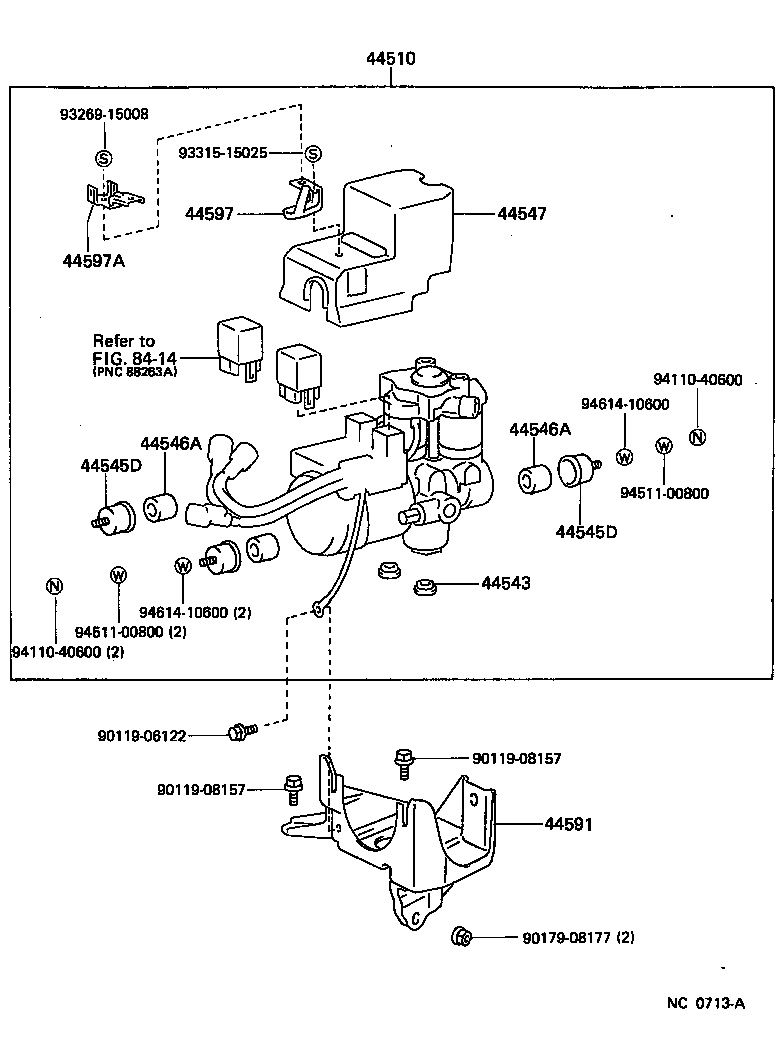

ILLUST NO. 2 OF 2(8905-9208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-50020 |
UCF10 W(*TRC) |
1 | ||
| 44510-50040 |
UCF10..CND |
1 | ||
| 44510-50010 |
UCF10 |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
UCF10 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-50010 |
UCF10 |
1 | ||
| 44547-50020 |
UCF10 W(*TRC) |
1 | ||
| 44547-50030 |
UCF10 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-50020 |
UCF10 W(*TRC) |
1 | ||
| 44591-50040 |
UCF10..CND |
1 | ||
| 44591-50010 |
UCF10 |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-50010 |
UCF10 |
1 | ||
| 44597-50050 |
UCF10 |
1 | ||
| 44597A - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2 | ||||
| 44597-50030 |
UCF10 |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90119-08157 | ||||
| 90179-08177 | ||||
| 93269-15008 | ||||
| 93315-15025 | ||||
| 94110-40600 | ||||
| 94511-00800 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
ILLUST NO. 2 OF 3(8905-9208)
Click highlighted areas on diagram
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-50010 |
UCF10 |
1 | ||
| 44555-50030 |
UCF10 |
1 | ||
| 47970 - ACCUMULATOR ASSY, BRAKE TRACTION | ||||
| 47970-50040 |
UCF10 |
1 | ||
| 47970-50010 |
UCF10 |
1 | ||
| 47977 - BRACKET, BRAKE TRACTION ACCUMULATOR, NO.1 | ||||
| 47977-50020 |
UCF10 |
1 | ||
| 47977-50010 |
UCF10 |
1 | ||
| 47977A - BUSH(FOR BRAKE TRACTION ACCUMULATOR BRACKET) | ||||
| 90385-10002 |
UCF10 |
1 | ||
| 47977B - SPACER(FOR BRAKE TRACTION ACCUMULATOR BRACKET) | ||||
| 90561-08002 |
UCF10 |
1 | ||
| 47978 - BRACKET, BRAKE TRACTION ACCUMULATOR , NO.2 | ||||
| 47978-50010 |
UCF10 |
1 | ||
| 47980 - PUMP ASSY, BRAKE TRACTION | ||||
| 47980-50030 |
UCF10 |
1 | ||
| 47980-50010 |
UCF10 |
1 | ||
| 47980A - HOSE, PRESSURE(FOR BRAKE TRACTION PUMP) | ||||
| 90947-06007 |
UCF10 |
1 | ||
| 90947-06002 |
UCF10 |
1 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13006 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
8 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13006 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
8 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13006 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
8 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13006 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
4 | ||
| 90301-13011 |
UCF10 |
8 | ||
| 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90401-10039 |
UCF10 |
2 | ||
| 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90401-10039 |
UCF10 |
2 | ||
| 47985 - COVER, BRAKE TRACTION PUMP, NO.1 | ||||
| 47985-50010 |
UCF10 |
1 | ||
| 47986 - COVER, BRAKE TRACTION PUMP, NO.2 | ||||
| 47986-50010 |
UCF10 |
3 | ||
| 47986 - COVER, BRAKE TRACTION PUMP, NO.2 | ||||
| 47986-50010 |
UCF10 |
3 | ||
| 47987 - BRACKET, BRAKE TRACTION PUMP, NO.1 | ||||
| 47987-50030 |
UCF10 |
1 | ||
| 47987-50010 |
UCF10 |
1 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-10023 |
UCF10 |
2 | ||
| 90385-08011 |
UCF10 |
4 | ||
| 47987B - SPACER(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90561-08002 |
UCF10 |
2 | ||
| 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90389-06034 |
UCF10 |
3 | ||
| 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90389-06034 |
UCF10 |
3 | ||
| 47988 - BRACKET, BRAKE TRACTION PUMP, NO.2 | ||||
| 47988-50010 |
UCF10 |
1 | ||
| 47996A - LABEL, BRAKE BLEED NOTICE | ||||
| 47996-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90179-08001 | ||||
| 90201-06021 | ||||
| 90467-16018 | ||||
| 90949-01516 | ||||
| 91611-B0630 | ||||
| 91611-G0610 | ||||
| 91611-G0614 | ||||
| 91611-G0616 | ||||
| 91655-A0818 | ||||
| 91661-G0830 | ||||
| 94110-70630 | ||||
| 94511-30600 | ||||
ILLUST NO. 3 OF 3(8905-9208)
Click highlighted areas on diagram
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) | ||||
| 31478-50010 |
UCF10 |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-50020 |
UCF10 W(*TRC) |
1 | ||
| 44510-50010 |
UCF10 |
1 | ||
| 44510-50040 |
UCF10..CND |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
UCF10 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF10..CND |
4 | ||
| 44545-22070 |
UCF10 |
3 | ||
| 44545E - BOLT, CUSHION, NO.1(FOR BRAKE ACTUATOR) | ||||
| 44545-50010 |
UCF10 |
1 | ||
| 44545F - BOLT, CUSHION, NO.2(FOR BRAKE ACTUATOR) | ||||
| 44545-50020 |
UCF10 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
UCF10 |
3 | ||
| 44546-33010 |
UCF10..CND |
4 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-50010 |
UCF10 |
1 | ||
| 44547-50020 |
UCF10 W(*TRC) |
1 | ||
| 44547-50030 |
UCF10 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-50020 |
UCF10 W(*TRC) |
1 | ||
| 44591-50040 |
UCF10..CND |
1 | ||
| 44591-50010 |
UCF10 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-50010 |
UCF10 |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-50010 |
UCF10 |
1 | ||
| 44597-50050 |
UCF10 |
1 | ||
| 44597A - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2 | ||||
| 44597-50030 |
UCF10 |
1 | ||
| 44597B - CLAMP, BRAKE TRACTION ACTUATOR CONNECTOR | ||||
| 44597-50060 |
UCF10 |
1 | ||
| 44597-50020 |
UCF10 |
1 | ||
| 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) | ||||
| 47547-27030 |
UCF10 |
1 | ||
| 47990 - ACTUATOR ASSY, BRAKE TRACTION | ||||
| 47990-50010 |
UCF10 |
1 | ||
| 47990-50030 |
UCF10 |
1 | ||
| 47999 - BRACKET, BRAKE TRACTION ACTUATOR, NO.2 | ||||
| 47999-50010 |
UCF10 |
1 | ||
| 47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 90385-10002 |
UCF10 |
3 | ||
| 47999B - SPACER(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 90561-08002 |
UCF10 |
3 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90119-08157 | ||||
| 90179-08177 | ||||
| 91651-40610 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91661-F0828 | ||||
| 93269-15008 | ||||
| 93315-15025 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
