Toyota Lexus ls400 UCF10 HEADLAMP

UCF10L-AEPGKA (1989)

Toyota Lexus Ls400

Production May 1989 - Oct 1994

Engine 1UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

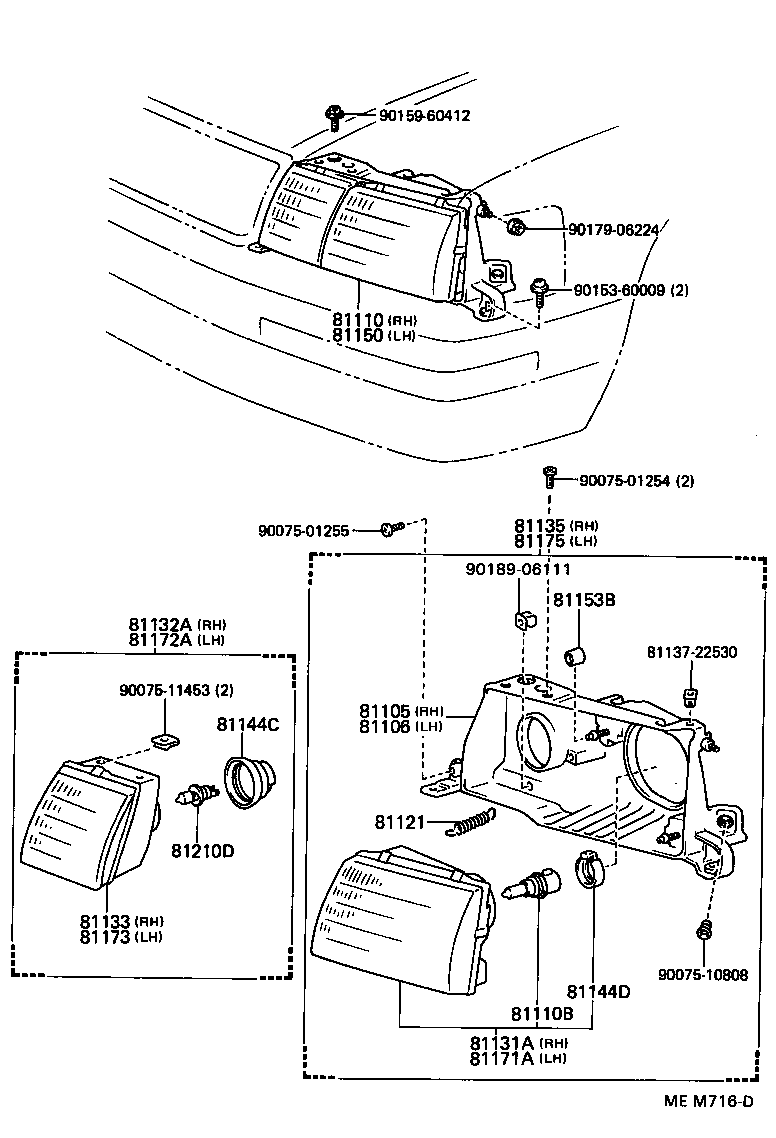

(8905-9208)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-50010	UCF10	05/1989 - 10/1994	1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-50010	UCF10	05/1989 - 10/1994	1
81110 - HEADLAMP ASSY, RH
81110-50010	UCF10	05/1989 - 01/1990	1
81110-50061	UCF10	06/1993 - 10/1994	1
81110-50011	UCF10	01/1990 - 08/1992	1
81110-50060	UCF10	08/1992 - 06/1993	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	UCF10 12V 60/55W,HALOGEN	08/1992 - 10/1994	2
90981-13032	UCF10 12V 65/45W,HAL,WH	05/1989 - 08/1992	2
81121 - SPRING, HEADLAMP TENSION
90075-25502	UCF10	05/1989 - 08/1992	2
81131A - UNIT, HEADLAMP, RH
81131-50061	UCF10	06/1993 - 10/1994	1
81131-50010	UCF10	05/1989 - 01/1990	1
81131-50060	UCF10	08/1992 - 06/1993	1
81131-50011	UCF10	01/1990 - 08/1992	1
81132A - LAMP, FOG, RH
81132-50061	UCF10	06/1993 - 10/1994	1
81132-50060	UCF10	08/1992 - 06/1993	1
81132-50010	UCF10	05/1989 - 08/1992	1
81133 - UNIT ASSY, FOG, RH
81133-50060	UCF10	08/1992 - 06/1993	1
81133-50010	UCF10	05/1989 - 08/1992	1
81133-50061	UCF10	06/1993 - 10/1994	1
81135 - UNIT ASSY, HEADLAMP, RH
81130-50010	UCF10	05/1989 - 01/1990	1
81130-50060	UCF10	08/1992 - 06/1993	1
81130-50061	UCF10	06/1993 - 10/1994	1
81130-50011	UCF10	01/1990 - 08/1992	1
81144C - COVER, HEADLAMP SOCKET
90075-99015	UCF10	05/1989 - 08/1992	2
90075-99094	UCF10	08/1992 - 10/1994	2
81144D - CAP, HEADLAMP LOCKING
90075-99010	UCF10	05/1989 - 08/1992	2
90075-99095	UCF10	08/1992 - 10/1994	2
81150 - HEADLAMP ASSY, LH
81150-50060	UCF10	08/1992 - 06/1993	1
81150-50011	UCF10	01/1990 - 08/1992	1
81150-50061	UCF10	06/1993 - 10/1994	1
81150-50010	UCF10	05/1989 - 01/1990	1
81153B - BEARING, HEADLAMP
90075-10806	UCF10	05/1989 - 10/1994	4
81171A - UNIT, HEADLAMP, LH
81171-50060	UCF10	08/1992 - 06/1993	1
81171-50061	UCF10	06/1993 - 10/1994	1
81171-50011	UCF10	01/1990 - 08/1992	1
81171-50010	UCF10	05/1989 - 01/1990	1
81172A - LAMP, FOG, LH
81172-50010	UCF10	05/1989 - 08/1992	1
81172-50061	UCF10	06/1993 - 10/1994	1
81172-50060	UCF10	08/1992 - 06/1993	1
81173 - UNIT ASSY, FOGLAMP, LH
81173-50060	UCF10	08/1992 - 06/1993	1
81173-50061	UCF10	06/1993 - 10/1994	1
81173-50010	UCF10	05/1989 - 08/1992	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-50010	UCF10	05/1989 - 01/1990	1
81170-50011	UCF10	01/1990 - 08/1992	1
81170-50060	UCF10	08/1992 - 06/1993	1
81170-50061	UCF10	06/1993 - 10/1994	1
81210D - BULB, FOG LAMP
90981-13027	UCF10 12V 55W,HALOGEN	05/1989 - 10/1994	2
Common parts
81137-22530
90075-01254
90075-01255
90075-10808
90075-11453
90153-60009
90159-60412
90179-06224
90189-06111

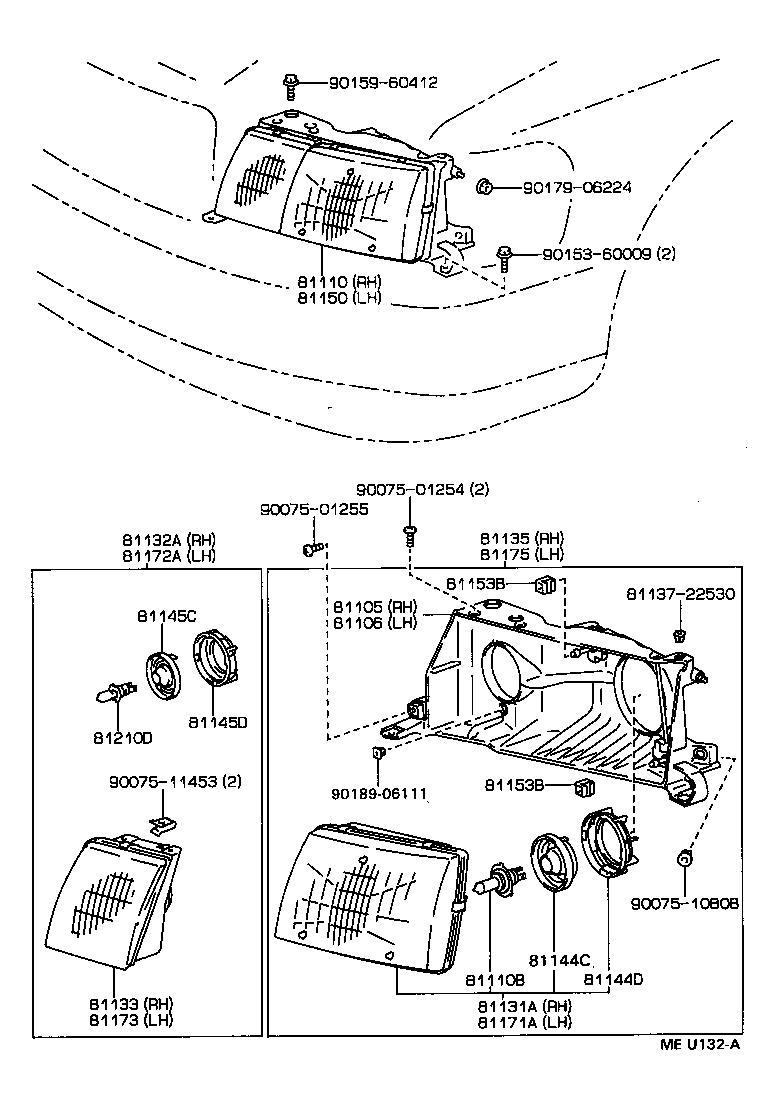

(9208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-50010	UCF10	05/1989 - 10/1994	1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-50010	UCF10	05/1989 - 10/1994	1
81110 - HEADLAMP ASSY, RH
81110-50010	UCF10	05/1989 - 01/1990	1
81110-50061	UCF10	06/1993 - 10/1994	1
81110-50011	UCF10	01/1990 - 08/1992	1
81110-50060	UCF10	08/1992 - 06/1993	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	UCF10 12V 60/55W,HALOGEN	08/1992 - 10/1994	2
90981-13032	UCF10 12V 65/45W,HAL,WH	05/1989 - 08/1992	2
81131A - UNIT, HEADLAMP, RH
81131-50061	UCF10	06/1993 - 10/1994	1
81131-50010	UCF10	05/1989 - 01/1990	1
81131-50060	UCF10	08/1992 - 06/1993	1
81131-50011	UCF10	01/1990 - 08/1992	1
81132A - LAMP, FOG, RH
81132-50061	UCF10	06/1993 - 10/1994	1
81132-50060	UCF10	08/1992 - 06/1993	1
81132-50010	UCF10	05/1989 - 08/1992	1
81133 - UNIT ASSY, FOG, RH
81133-50060	UCF10	08/1992 - 06/1993	1
81133-50010	UCF10	05/1989 - 08/1992	1
81133-50061	UCF10	06/1993 - 10/1994	1
81135 - UNIT ASSY, HEADLAMP, RH
81130-50010	UCF10	05/1989 - 01/1990	1
81130-50060	UCF10	08/1992 - 06/1993	1
81130-50061	UCF10	06/1993 - 10/1994	1
81130-50011	UCF10	01/1990 - 08/1992	1
81144C - COVER, HEADLAMP SOCKET
90075-99015	UCF10	05/1989 - 08/1992	2
90075-99094	UCF10	08/1992 - 10/1994	2
81144D - CAP, HEADLAMP LOCKING
90075-99010	UCF10	05/1989 - 08/1992	2
90075-99095	UCF10	08/1992 - 10/1994	2
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-99072	UCF10	08/1992 - 10/1994	2
81145D - CAP, HEADLAMP LOCKING NO.2
90075-99073	UCF10	08/1992 - 10/1994	2
81150 - HEADLAMP ASSY, LH
81150-50060	UCF10	08/1992 - 06/1993	1
81150-50011	UCF10	01/1990 - 08/1992	1
81150-50061	UCF10	06/1993 - 10/1994	1
81150-50010	UCF10	05/1989 - 01/1990	1
81153B - BEARING, HEADLAMP
90075-10806	UCF10	05/1989 - 10/1994	4
81153B - BEARING, HEADLAMP
90075-10806	UCF10	05/1989 - 10/1994	4
81171A - UNIT, HEADLAMP, LH
81171-50060	UCF10	08/1992 - 06/1993	1
81171-50061	UCF10	06/1993 - 10/1994	1
81171-50011	UCF10	01/1990 - 08/1992	1
81171-50010	UCF10	05/1989 - 01/1990	1
81172A - LAMP, FOG, LH
81172-50010	UCF10	05/1989 - 08/1992	1
81172-50061	UCF10	06/1993 - 10/1994	1
81172-50060	UCF10	08/1992 - 06/1993	1
81173 - UNIT ASSY, FOGLAMP, LH
81173-50060	UCF10	08/1992 - 06/1993	1
81173-50061	UCF10	06/1993 - 10/1994	1
81173-50010	UCF10	05/1989 - 08/1992	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-50010	UCF10	05/1989 - 01/1990	1
81170-50011	UCF10	01/1990 - 08/1992	1
81170-50060	UCF10	08/1992 - 06/1993	1
81170-50061	UCF10	06/1993 - 10/1994	1
81210D - BULB, FOG LAMP
90981-13027	UCF10 12V 55W,HALOGEN	05/1989 - 10/1994	2
Common parts
81137-22530
90075-01254
90075-01255
90075-10808
90075-11453
90153-60009
90159-60412
90179-06224
90189-06111
