UCF10L-AEPGKA (1989)
Toyota Lexus Ls400
(8905- )

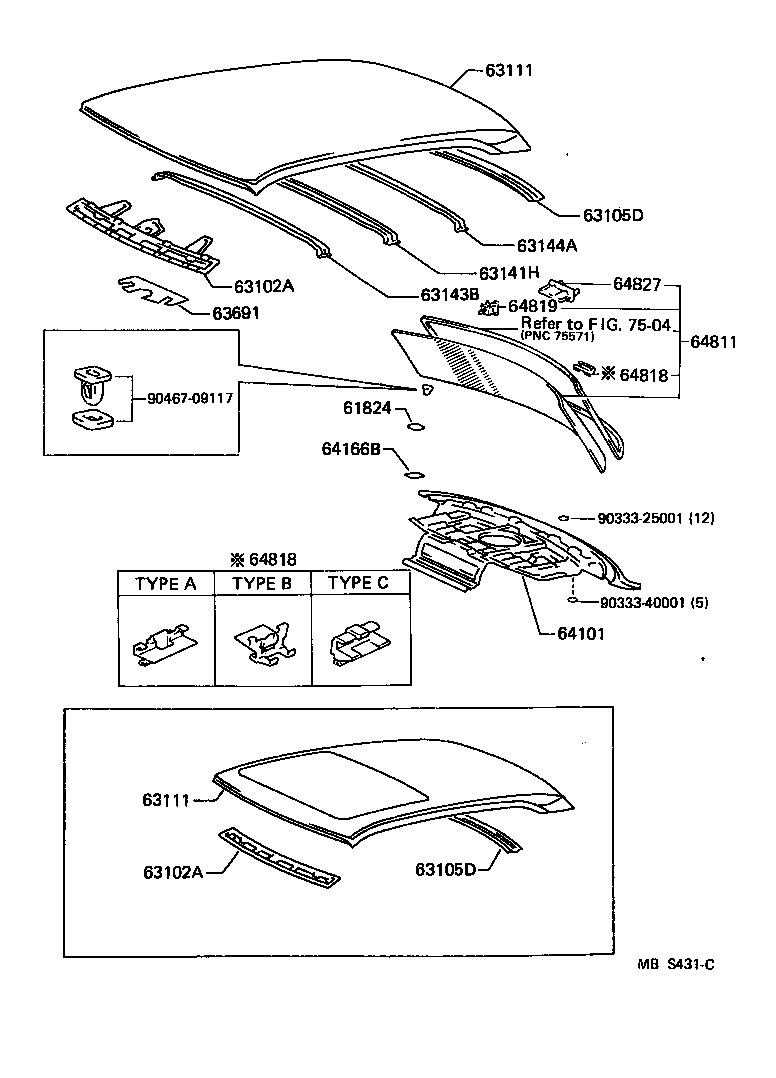

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50010 |
UCF10 |
4 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-50020 |
UCF10 W(MOON ROOF) |
1 | ||
| 63102-50010 |
UCF10 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-50020 |
UCF10 W(MOON ROOF) |
1 | ||
| 63102-50010 |
UCF10 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-50010 |
UCF10 |
1 | ||
| 63105-50011 |
UCF10 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-50010 |
UCF10 |
1 | ||
| 63105-50011 |
UCF10 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63101-50020 |
UCF10 W(MOON ROOF) |
1 | ||
| 63111-50010 |
UCF10 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63101-50020 |
UCF10 W(MOON ROOF) |
1 | ||
| 63111-50010 |
UCF10 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-50010 |
UCF10 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-50010 |
UCF10 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-50010 |
UCF10 |
1 | ||
| 63691 - PAD, ROOF SILENCER, NO.21 | ||||
| 63691-50010 |
UCF10 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-50010 |
UCF10 |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-50010 |
UCF10 |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64810-50040 |
UCF10 *EHTT,T=3.5,BRONZE |
1 | ||
| 64810-50041 |
UCF10 *EHTT,T=3.5,BRONZE |
1 | ||
| 64810-50060 |
UCF10 *EHTT,T=3.5,BLUE |
1 | ||
| 64810-50050 |
UCF10 *EHTT,T=3.5,GRAY |
1 | ||
| 64810-50051 |
UCF10 *EHTT,T=3.5,GRAY |
1 | ||
| 64810-50061 |
UCF10 *EHTT,T=3.5,BLUE |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 75495-50010 |
UCF10 TYPE C,ORANGE |
1 | ||
| 64818-50010 |
UCF10 TYPE A,BLUE |
10 | ||
| 64818-50010 |
UCF10 TYPE A, BLUE |
12 | ||
| 64818-50010 |
UCF10 TYPE A,BLUE |
12 | ||
| 64818-50010 |
UCF10 TYPE A, BLUE |
10 | ||
| 64818-50060 |
UCF10 TYPE B,BLUE |
4 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 75495-50010 |
UCF10 TYPE C,ORANGE |
1 | ||
| 64818-50010 |
UCF10 TYPE A,BLUE |
10 | ||
| 64818-50010 |
UCF10 TYPE A, BLUE |
12 | ||
| 64818-50010 |
UCF10 TYPE A,BLUE |
12 | ||
| 64818-50010 |
UCF10 TYPE A, BLUE |
10 | ||
| 64818-50060 |
UCF10 TYPE B,BLUE |
4 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-50010 |
UCF10 |
2 | ||
| 64819-50040 |
UCF10 |
2 | ||
| 64827 - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-50010 |
UCF10 |
2 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90333-40001 | ||||
| 90467-09117 | ||||
| Linked diagrams | ||||
| 7504 | ||||
(8905- )

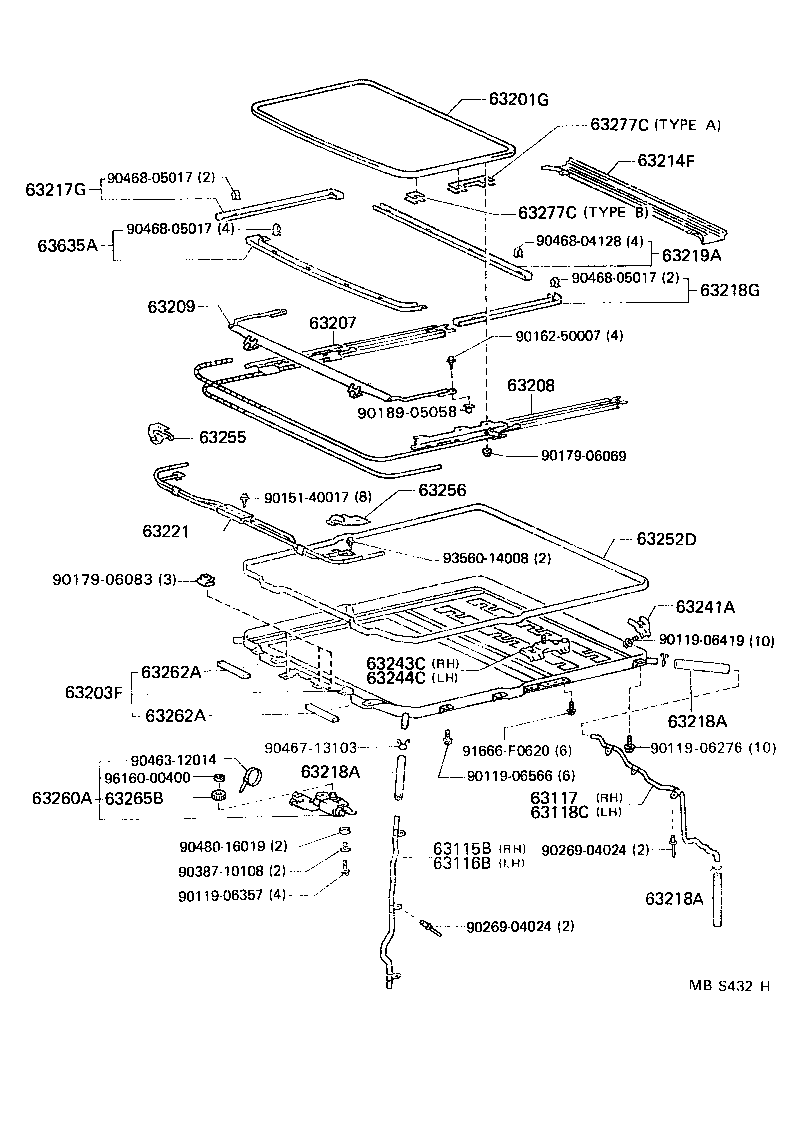

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63115B - PIPE, SLIDING ROOF DRAIN, FRONT RH | ||||
| 63115-50010 |
UCF10 |
1 | ||
| 63116B - PIPE, SLIDING ROOF DRAIN, FRONT LH | ||||
| 63116-50010 |
UCF10 |
1 | ||
| 63117 - PIPE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63117-50011 |
UCF10 |
1 | ||
| 63117-50012 |
UCF10 |
1 | ||
| 63117-50010 |
UCF10 |
1 | ||
| 63118C - PIPE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63118-50012 |
UCF10 |
1 | ||
| 63118-50011 |
UCF10 |
1 | ||
| 63118-50010 |
UCF10 |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-50020 |
UCF10 *TL,T=4.7,BRONZE |
1 | ||
| 63201-50021 |
UCF10 *TL,T=4.7,BRONZE |
1 | ||
| 63201-50030 |
UCF10 *TL,T=4.7,BLUE |
1 | ||
| 63201-50010 |
UCF10 *TL,T=4.7,GRAY |
1 | ||
| 63201-50011 |
UCF10 *TL,T=4.7,GRAY |
1 | ||
| 63201-50070 |
UCF10 *LAM,T=4.7,GRAY |
1 | ||
| 63201-50081 |
UCF10 *LAM,T=4.7,BRONZE |
1 | ||
| 63201-50080 |
UCF10 *LAM,T=4.7,BRONZE |
1 | ||
| 63201-50091 |
UCF10 *LAM,T=4.7,BLUE |
1 | ||
| 63201-50090 |
UCF10 *LAM,T=4.7,BLUE |
1 | ||
| 63201-50031 |
UCF10 *TL,T=4.7,BLUE |
1 | ||
| 63201-50071 |
UCF10 *LAM,T=4.7,GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-50010 |
UCF10 |
1 | ||
| 63203-50011 |
UCF10 |
1 | ||
| 63203-50012 |
UCF10 |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63603-50010 |
UCF10 |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63604-50010 |
UCF10 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-50011 |
UCF10 |
1 | ||
| 63209-50010 |
UCF10 |
1 | ||
| 63209-50012 |
UCF10 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-50011 |
UCF10 |
1 | ||
| 63214-50010 |
UCF10 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63217-50010C0 |
UCF10 BLACK,TRIM2# |
1 | ||
| 63217-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63217-5001002 |
UCF10 DEEP RED,TRIM3# |
1 | ||
| 63217-50010K0 |
UCF10 TUAPE,TRIM9# |
1 | ||
| 63217-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 63217-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 63217-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 63217-50010W3 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63217-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-50030 |
UCF10 REAR,LOWER |
2 | ||
| 63249-50010 |
UCF10 L=65,FRONT |
2 | ||
| 63249-50020 |
UCF10 REAR,UPPER |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-50030 |
UCF10 REAR,LOWER |
2 | ||
| 63249-50010 |
UCF10 L=65,FRONT |
2 | ||
| 63249-50020 |
UCF10 REAR,UPPER |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-50030 |
UCF10 REAR,LOWER |
2 | ||
| 63249-50010 |
UCF10 L=65,FRONT |
2 | ||
| 63249-50020 |
UCF10 REAR,UPPER |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-5001002 |
UCF10 DEEP RED,TRIM3# |
1 | ||
| 63218-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63218-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63218-50010K0 |
UCF10 TUAPE,TRIM9# |
1 | ||
| 63218-50010W3 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63218-50010C0 |
UCF10 BLACK,TRIM2# |
1 | ||
| 63218-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 63218-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63218-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 63218-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63219-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 63219-5001002 |
UCF10 DEEP RED,TRIM3# |
1 | ||
| 63219-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 63219-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63219-5001105 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 63219-5001103 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63219-5001104 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63219-5001102 |
UCF10 DEEP RED,TRIM3# |
1 | ||
| 63219-50011W3 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63219-50011C0 |
UCF10 BLACK,TRIM2# |
1 | ||
| 63219-50011K0 |
UCF10 TUAPE,TRIM9# |
1 | ||
| 63219-5001106 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 63219-50011E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 63219-50011P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-50010 |
UCF10 |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-50010 |
UCF10 |
6 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-50010 |
UCF10 |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-50010 |
UCF10 |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-50010 |
UCF10 |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-50012 |
UCF10 |
1 | ||
| 63255-50011 |
UCF10 |
1 | ||
| 63255-50010 |
UCF10 |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-50010 |
UCF10 |
1 | ||
| 63256-50012 |
UCF10 |
1 | ||
| 63256-50011 |
UCF10 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-50010 |
UCF10 |
1 | ||
| 63260-50020 |
UCF10 |
1 | ||
| 63260-50011 |
UCF10 |
1 | ||
| 63262A - SEAL, SLIDING ROOF, FRONT NO.1 | ||||
| 63262-50010 |
UCF10 |
2 | ||
| 63262A - SEAL, SLIDING ROOF, FRONT NO.1 | ||||
| 63262-50010 |
UCF10 |
2 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
UCF10 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
UCF10 T=1.0,TYPE A,T=1 |
1 | ||
| 63277-20030 |
UCF10 T=1.0,TYPE B,T=1 |
1 | ||
| 63277-20040 |
UCF10 T=2.0,TYPE A,T=2.0 |
1 | ||
| 63277-50010 |
UCF10 T=1.6,TYPE A,T=1.6 |
1 | ||
| 63277-20030 |
UCF10 T=1.0,TYPE B,T=1.0 |
1 | ||
| 63277-20050 |
UCF10 T=2.0,TYPE B,T=2 |
1 | ||
| 63277-20020 |
UCF10 T=1.0,TYPE A,T=1.0 |
1 | ||
| 63277-20040 |
UCF10 T=2.0,TYPE A,T=2 |
1 | ||
| 63277-50020 |
UCF10 T=1.6,TYPE B,T=1.6 |
1 | ||
| 63277-20050 |
UCF10 T=2.0,TYPE B,T=2.0 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
UCF10 T=1.0,TYPE A,T=1 |
1 | ||
| 63277-20030 |
UCF10 T=1.0,TYPE B,T=1 |
1 | ||
| 63277-20040 |
UCF10 T=2.0,TYPE A,T=2.0 |
1 | ||
| 63277-50010 |
UCF10 T=1.6,TYPE A,T=1.6 |
1 | ||
| 63277-20030 |
UCF10 T=1.0,TYPE B,T=1.0 |
1 | ||
| 63277-20050 |
UCF10 T=2.0,TYPE B,T=2 |
1 | ||
| 63277-20020 |
UCF10 T=1.0,TYPE A,T=1.0 |
1 | ||
| 63277-20040 |
UCF10 T=2.0,TYPE A,T=2 |
1 | ||
| 63277-50020 |
UCF10 T=1.6,TYPE B,T=1.6 |
1 | ||
| 63277-20050 |
UCF10 T=2.0,TYPE B,T=2.0 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-5001002 |
UCF10 DEEP RED,TRIM3# |
1 | ||
| 63635-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 63635-50010K0 |
UCF10 TUAPE,TRIM9# |
1 | ||
| 63635-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63635-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 63635-50010C0 |
UCF10 BLACK,TRIM2# |
1 | ||
| 63635-50010W3 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 63635-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63635-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 63635-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-06276 | ||||
| 90119-06357 | ||||
| 90119-06419 | ||||
| 90119-06566 | ||||
| 90151-40017 | ||||
| 90162-50007 | ||||
| 90179-06069 | ||||
| 90179-06083 | ||||
| 90189-05058 | ||||
| 90269-04024 | ||||
| 90387-10108 | ||||
| 90463-12014 | ||||
| 90467-13103 | ||||
| 90468-04128 | ||||
| 90468-05017 | ||||
| 90480-16019 | ||||
| 91666-F0620 | ||||
| 93560-14008 | ||||
| 96160-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
