UCF10L-AEPGKA (1989)
Toyota Lexus Ls400
Production
May 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8905- )

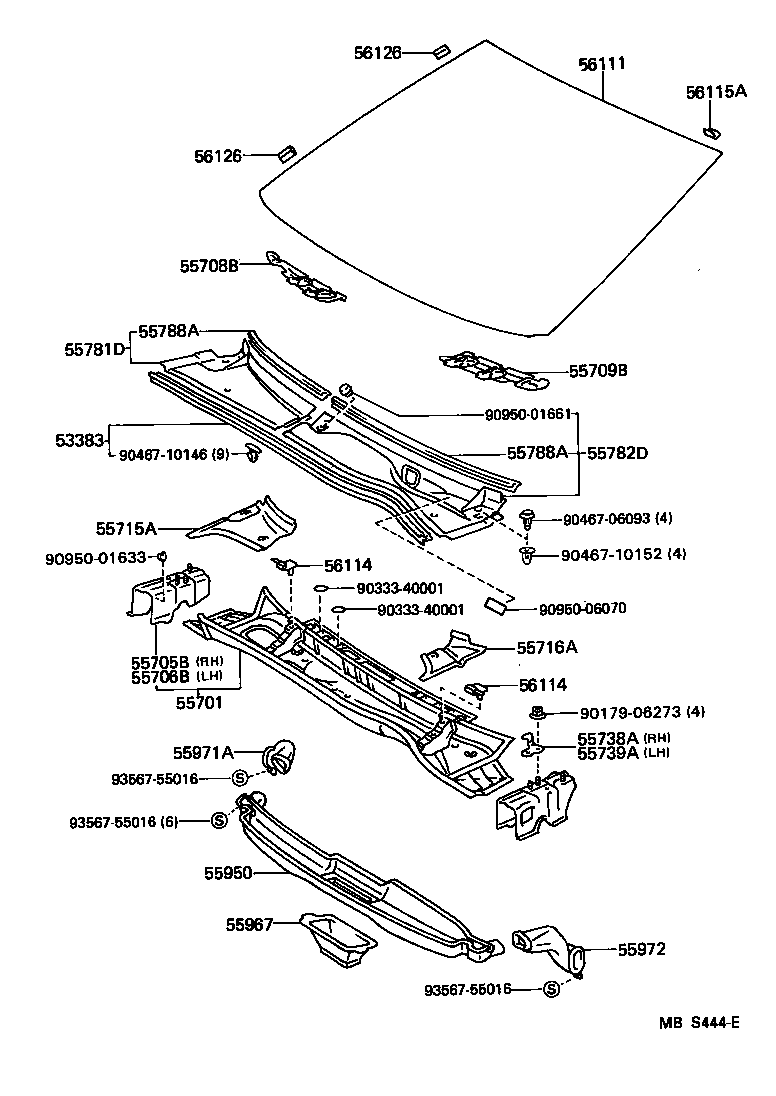

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-50010 |
UCF10 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-50011 |
UCF10 |
1 | ||
| 55700-50010 |
UCF10 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-50010 |
UCF10 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-50010 |
UCF10 |
1 | ||
| 55708B - INSULATOR SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-50010 |
UCF10 |
1 | ||
| 55783-50020 |
UCF10 |
1 | ||
| 55709B - INSULATOR SUB-ASSY, COWL TOP, NO.2 | ||||
| 55784-50010 |
UCF10 |
1 | ||
| 55709-50010 |
UCF10 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-50010 |
UCF10 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-50010 |
UCF10 |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-50010 |
UCF10 |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-50010 |
UCF10 |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-50010 |
UCF10 |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-50010 |
UCF10 |
1 | ||
| 55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55789-50010 |
UCF10 LH |
1 | ||
| 55788-50010 |
UCF10 RH |
1 | ||
| 55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55789-50010 |
UCF10 LH |
1 | ||
| 55788-50010 |
UCF10 RH |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55951-50010 |
UCF10 |
1 | ||
| 55967 - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-50010 |
UCF10 |
1 | ||
| 55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-50010 |
UCF10 |
1 | ||
| 55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-50010 |
UCF10 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-50050 |
UCF10 *TL,T=4.7,GRAY |
1 | ||
| 56111-50030 |
UCF10 *TL,T=4.7,BRONZE |
1 | ||
| 56111-50031 |
UCF10 *TL,T=4.7,BRONZE |
1 | ||
| 56111-50040 |
UCF10 *TL,T=4.7,BLUE |
1 | ||
| 56111-50051 |
UCF10 *TL,T=4.7,GRAY |
1 | ||
| 56111-50041 |
UCF10 *TL,T=4.7,BLUE |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56110-50010 |
UCF10 |
2 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56110-50010 |
UCF10 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-50010 |
UCF10 |
7 | ||
| 56126 - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56126-50010 |
UCF10 |
8 | ||
| 56126-50010 |
UCF10 |
4 | ||
| 56126 - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56126-50010 |
UCF10 |
8 | ||
| 56126-50010 |
UCF10 |
4 | ||
| Common parts | ||||
| 90179-06273 | ||||
| 90333-40001 | ||||
| 90467-06093 | ||||
| 90467-10146 | ||||
| 90467-10152 | ||||
| 90950-01633 | ||||
| 90950-01661 | ||||
| 90950-06070 | ||||
| 93567-55016 | ||||
