Toyota Lexus ls400 UCF10 BRAKE BOOSTER & VACUUM TUBE

UCF10L-AEPGKA (1989)

Toyota Lexus Ls400

Production May 1989 - Oct 1994

Engine 1UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

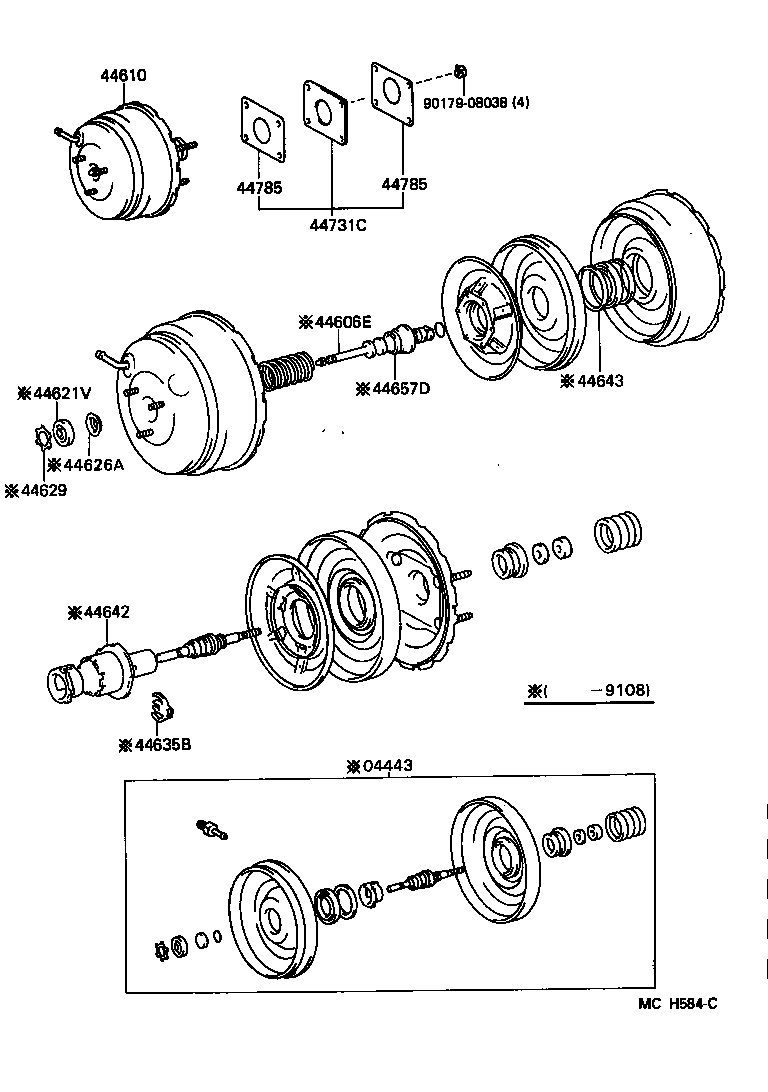

Click highlighted areas on diagram

Part #	Description	Period	Qty
04443 - BOOSTER KIT, BRAKE
04443-50010	UCF10	05/1989 - 08/1990	1
04443-50020	UCF10	08/1990 - 08/1992	1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800	UCF10	05/1989 - 08/1992	1
44610 - BOOSTER ASSY, BRAKE
44610-50050	UCF10	08/1990 - 08/1991	1
44610-50051	UCF10..USA	08/1992 - 08/1993	1
44610-50020	UCF10 W(*TRC)	05/1989 - 08/1990	1
44610-50061	UCF10..USA W(*TRC)	08/1992 - 08/1993	1
44610-50010	UCF10	05/1989 - 08/1990	1
44610-50062	UCF10..USA W(*TRC)	08/1993 - 10/1994	1
44610-50061	UCF10 W(*TRC)	08/1991 - 08/1992	1
44610-50052	UCF10..USA	08/1993 - 10/1994	1
44610-50051	UCF10	08/1991 - 08/1992	1
44610-50060	UCF10 W(*TRC)	08/1990 - 08/1991	1
44621V - SEAL, BOOSTER BODY
44621-14030	UCF10	05/1989 - 08/1992	1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010	UCF10	05/1989 - 08/1992	1
44629 - RING, CIRCULAR INTERNAL
44628-60010	UCF10	05/1989 - 08/1992	1
44635B - KEY, VALVE STOPPER
44635-20800	UCF10	05/1989 - 08/1992	1
44642 - PISTON, BRAKE BOOSTER
44641-30560	UCF10 DIAPHRAGM	05/1989 - 08/1992	1
44642-20800	UCF10 PISTON	05/1989 - 08/1992	1
44643 - RETAINER, DIAPHRAGM
44643-20800	UCF10	05/1989 - 08/1992	1
44657D - CASE, REACTION DISC
44657-50010	UCF10	05/1989 - 08/1992	1
44731C - BRACKET, BRAKE BOOSTER
44731-50011	UCF10	05/1992 - 10/1994	1
44731-50010	UCF10	05/1989 - 05/1992	1
44785 - GASKET, BRAKE BOOSTER
44785-50010	UCF10	05/1989 - 10/1994	2
44785 - GASKET, BRAKE BOOSTER
44785-50010	UCF10	05/1989 - 10/1994	2
Common parts
90179-08038

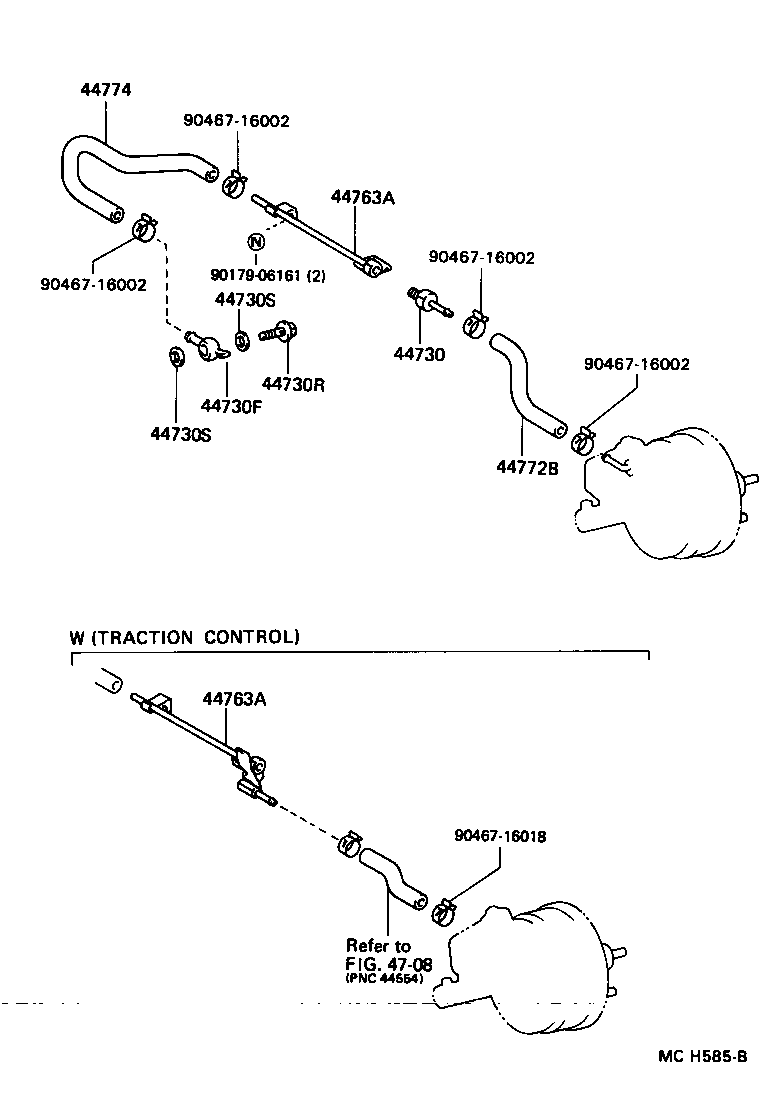

Click highlighted areas on diagram

Part #	Description	Period	Qty
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22120	UCF10	05/1989 - 10/1994	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09138	UCF10	05/1989 - 10/1994	1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012	UCF10	05/1989 - 10/1994	1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005	UCF10	05/1989 - 10/1994	2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005	UCF10	05/1989 - 10/1994	2
44763A - TUBE, HOSE TO HOSE, NO.1
44763-50020	UCF10 W(*TRC)	05/1989 - 08/1992	1
44763-50010	UCF10..USA	08/1992 - 10/1994	1
44763-50010	UCF10	05/1989 - 08/1992	1
44763-50020	UCF10..USA W(*TRC)	08/1992 - 10/1994	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-50020	UCF10 W(*TRC)	05/1989 - 08/1992	1
44763-50010	UCF10..USA	08/1992 - 10/1994	1
44763-50010	UCF10	05/1989 - 08/1992	1
44763-50020	UCF10..USA W(*TRC)	08/1992 - 10/1994	1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-50010	UCF10	05/1989 - 10/1994	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-50010	UCF10	05/1989 - 08/1992	1
44774-50030	UCF10	08/1992 - 10/1994	1
Common parts
90179-06161
90467-16002
90467-16018
