UCF10L-AEPGKA (1989)

Toyota Lexus Ls400

Production May 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )

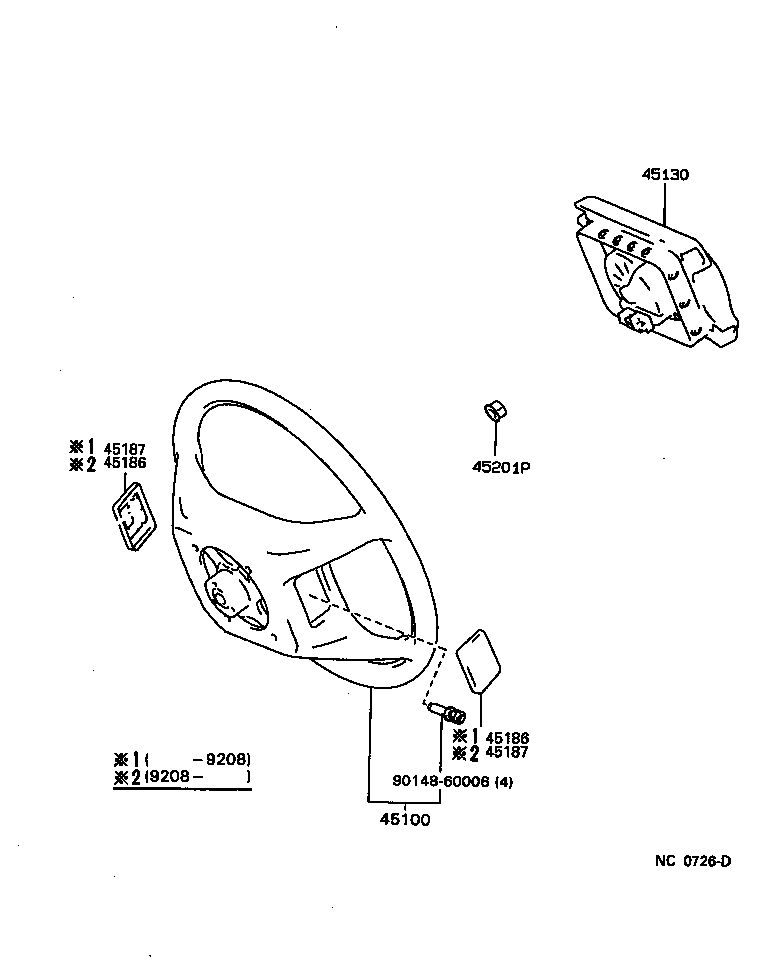

Click highlighted areas on diagram

diagram 45100 45130 45186 45186 45187 45187 45201P 9014860006
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-50050J0

UCF10

4-SPOKE,DK.BLUE,TRIM8#

 1
45100-50070B0

UCF10

4-SPOKE,SHADOW GRAY,TRIM1#

 1
45100-50070C0

UCF10

4-SPOKE,BLACK,TRIM2#

 1
45100-50070E0

UCF10

4-SPOKE,IVORY,TRIM0#

 1
45100-50050E0

UCF10

4-SPOKE,OAK,TRIM0#

 1
45100-5002006

UCF10

4-SPOKE,DARK ROSE,TRIM4#

 1
45100-50050B0

UCF10

4-SPOKE,SHADOW GRAY,TRIM1#

 1
45100-50050C0

UCF10

4-SPOKE,BLACK,TRIM2#

 1
45100-5002003

UCF10

4-SPOKE,SHADOW GRAY,TRIM1#

 1
45100-5002002

UCF10

4-SPOKE,DEEP RED,TRIM3#

 1
45100-5002005

UCF10

4-SPOKE,GREIGE,TRIM0#

 1
45100-5002004

UCF10

4-SPOKE,DARK BLUE,TRIM8#

 1
45100-50070K0

UCF10

4-SPOKE,TAUPE,TRIM9#

 1
45100-50070J0

UCF10

4-SPOKE,DK.BLUE,TRIM8#

 1
45100-50050K0

UCF10

4-SPOKE,TAUPE,TRIM9#

 1
45130 - BUTTON ASSY, HORN
45130-5001003

UCF10

SHADOW GRAY,TRIM1#

 1
45130-5001005

UCF10

GREIGE,TRIM0#

 1
45130-50070K0

UCF10

TAUPE,TRIM9#

 1
45130-5001105

UCF10

GREIGE,TRIM0#

 1
45130-5001102

UCF10

DEEP RED,TRIM3#

 1
45130-5001006

UCF10

DARK ROSE,TRIM4#

 1
45130-50070B0

UCF10

SHADOW GRAY,TRIM1#

 1
45130-5001103

UCF10

SHADOW GRAY,TRIM1#

 1
45130-50070E0

UCF10

OAK,TRIM0#

 1
45130-5001104

UCF10

DARK BLUE,TRIM8#

 1
45130-50070J0

UCF10

DK.BLUE,TRIM8#

 1
45130-5001106

UCF10

DARK ROSE,TRIM4#

 1
45130-5001002

UCF10

DEEP RED,TRIM3#

 1
45130-50070C0

UCF10

BLACK,TRIM2#

 1
45130-5001004

UCF10

DARK BLUE,TRIM8#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-5001003

UCF10

SHADOW GRAY,TRIM1#

 1
45186-5001002

UCF10

DEEP RED,TRIM3#

 1
45186-5001004

UCF10

DARK BLUE,TRIM8#

 1
45186-50020B0

UCF10

SHADOW GRAY,TRIM1#

 1
45186-5001005

UCF10

GREIGE,TRIM0#

 1
45186-50020E0

UCF10

OAK,TRIM0#

 1
45186-50020K0

UCF10

TAUPE,TRIM9#

 1
45186-5001006

UCF10

DARK ROSE,TRIM4#

 1
45186-50020C0

UCF10

BLACK,TRIM2#

 1
45186-50020J0

UCF10

DK.BLUE,TRIM8#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-5001003

UCF10

SHADOW GRAY,TRIM1#

 1
45186-5001002

UCF10

DEEP RED,TRIM3#

 1
45186-5001004

UCF10

DARK BLUE,TRIM8#

 1
45186-50020B0

UCF10

SHADOW GRAY,TRIM1#

 1
45186-5001005

UCF10

GREIGE,TRIM0#

 1
45186-50020E0

UCF10

OAK,TRIM0#

 1
45186-50020K0

UCF10

TAUPE,TRIM9#

 1
45186-5001006

UCF10

DARK ROSE,TRIM4#

 1
45186-50020C0

UCF10

BLACK,TRIM2#

 1
45186-50020J0

UCF10

DK.BLUE,TRIM8#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-5001002

UCF10

DEEP RED,TRIM3#

 1
45187-5001005

UCF10

GREIGE,TRIM0#

 1
45187-50020C0

UCF10

BLACK,TRIM2#

 1
45187-50020E0

UCF10

OAK,TRIM0#

 1
45187-5001003

UCF10

SHADOW GRAY,TRIM1#

 1
45187-50020K0

UCF10

TAUPE,TRIM9#

 1
45187-50020J0

UCF10

DK.BLUE,TRIM8#

 1
45187-5001004

UCF10

DARK BLUE,TRIM8#

 1
45187-5001006

UCF10

DARK ROSE,TRIM4#

 1
45187-50020B0

UCF10

SHADOW GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-5001002

UCF10

DEEP RED,TRIM3#

 1
45187-5001005

UCF10

GREIGE,TRIM0#

 1
45187-50020C0

UCF10

BLACK,TRIM2#

 1
45187-50020E0

UCF10

OAK,TRIM0#

 1
45187-5001003

UCF10

SHADOW GRAY,TRIM1#

 1
45187-50020K0

UCF10

TAUPE,TRIM9#

 1
45187-50020J0

UCF10

DK.BLUE,TRIM8#

 1
45187-5001004

UCF10

DARK BLUE,TRIM8#

 1
45187-5001006

UCF10

DARK ROSE,TRIM4#

 1
45187-50020B0

UCF10

SHADOW GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

UCF10

 1
90179-12071

UCF10

 1
Common parts
90148-60006
