UCF10L-AEPGKA (1989)

Toyota Lexus Ls400

Production May 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

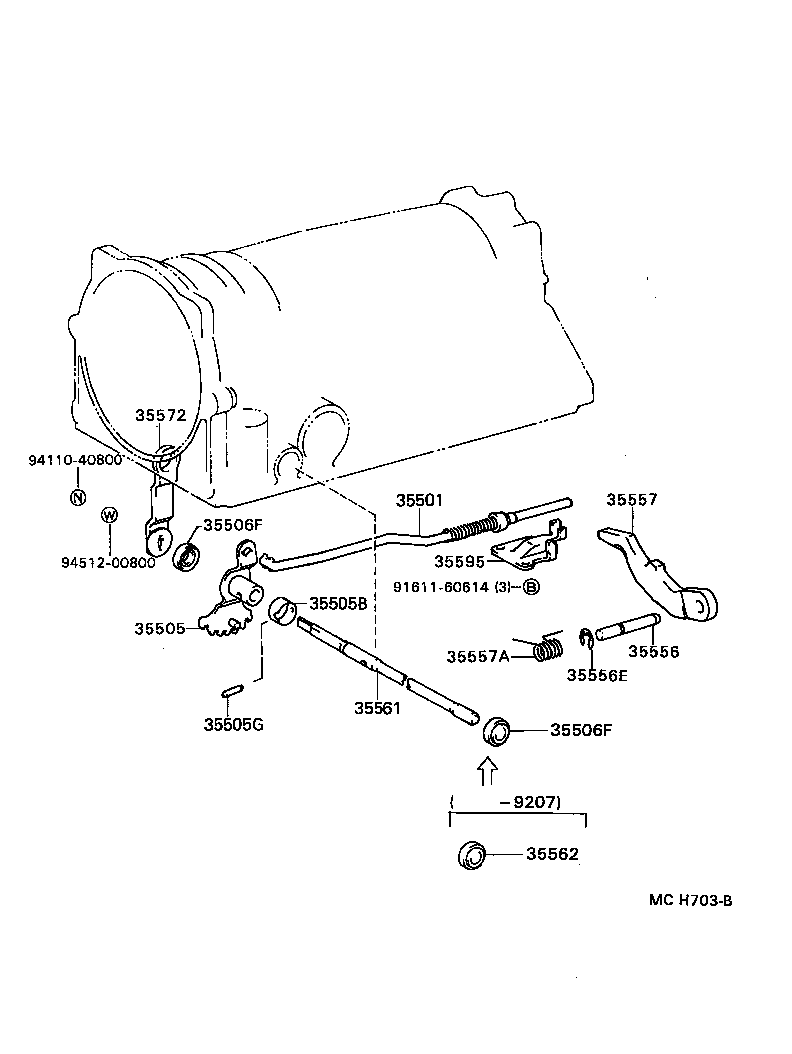

ILLUST NO. 1 OF 2(8905- )

Click highlighted areas on diagram

A341E

diagram 35501 35505 35505B 35505G 35506F 35506F 35556 35556E 35557 35557A 35561 35562 35572 35595 9161160614 9411040800 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-30010

UCF10

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-50010

UCF10

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

UCF10

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

UCF10

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

UCF10

 2
90311-12002

UCF10

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

UCF10

 2
90311-12002

UCF10

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-30020

UCF10

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

UCF10

 1
35557 - PAWL, PARKING LOCK
35557-30020

UCF10

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21002

UCF10

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-30070

UCF10

 1
35561-50010

UCF10

 1
35562 - CAP, MANUAL VALVE LEVER SHAFT
35562-50010

UCF10

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-50011

UCF10

 1
35572-30060

UCF10

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-30010

UCF10

 1
Common parts
91611-60614
94110-40800
94512-00800

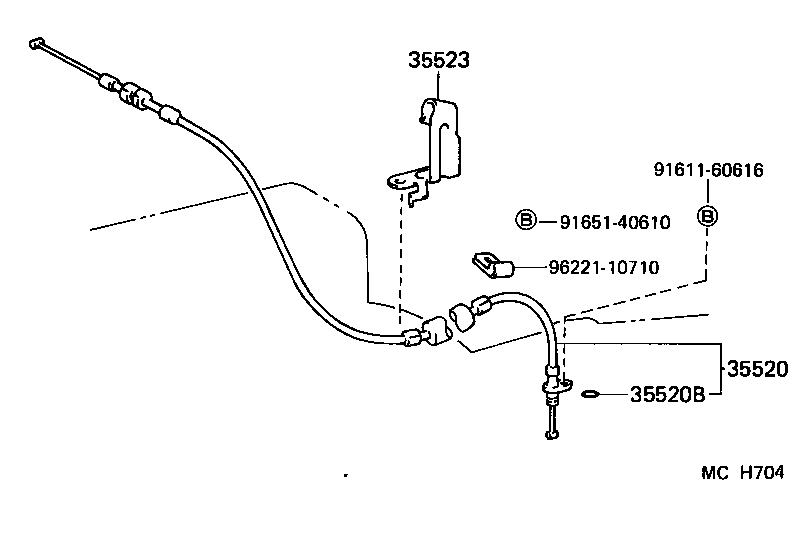

ILLUST NO. 2 OF 2(8905- )

Click highlighted areas on diagram

A341E

diagram 35520 35520B 35523 9161160616 9165140610 9622110710
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-50010

UCF10

 1
35520-50020

UCF10..USA

CALIFORNIA SPEC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

UCF10

 1
35523 - CLAMP, THROTTLE CABLE
35523-50010

UCF10

 1
Common parts
91611-60616
91651-40610
96221-10710
